Name: ifm Electronic Ultrasonic switch Ultrasound M30 NPN UIT515
Brand: ifm Electronic
SKU: 3321600

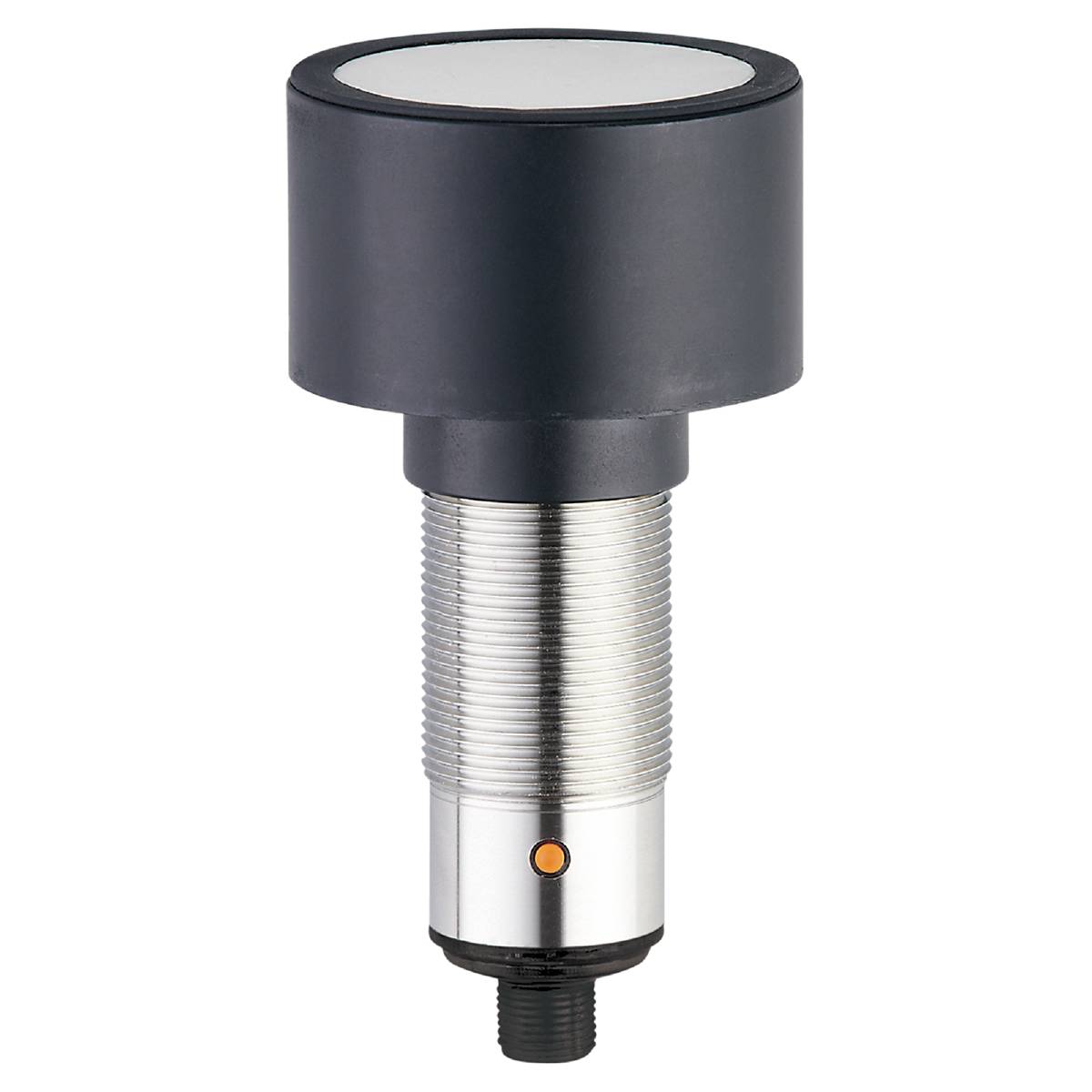

Image similar

Product type

Ultrasonic switch

Max. operating voltage

30 V DC

Outputs

NPN

Switching distance (max.)

8000 mm

Model

Ultrasound

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Ifm UIT515 ultrasonic reflex button

Very large detection range
Intuitive setting of the detection area by pressing a button
Highly visible LED for indication of switch status and echo
Output function NO / NC programmable
Non-contact detection, regardless of color, transparency or surface condition of the object

Dimensions [mm] M30 x 1.5 / L = 118.8
Number of digital outputs: 2
Number of inputs and outputs: Number of digital outputs: 2
Display: Switch status: 2 x LED, yellow; echo: 1 x LED, green
Ambient temperature-1 [°C]: -20...70
Repeat accuracy 1 %
Tightening torque [Nm]: 100
Resolution [mm]: 3
Output function: NO/NC contact; (can be parameterized)
Standby delay time [s]: < 0.3
Operating voltage [V]: 10... 30 DC
Blind zone [mm]: 600
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: NPN
Housing: Threaded design
Total number of outputs: 2
Weight [g]: 437,000
Thread name M30 x 1.5
Accuracy/Variance Notes: The specified values are reached after a warm-up time of at least 20 minutes
Hysteresis [%]: 1
Short-circuit protection: Yes
Storage temperature [°C]: -30...80
Max. Deviation from 90° angle sensor / object [°]: ± 4
max. Voltage drop switch output DC [V]: 2.2
MTTF: 135
Opening angle cylindrical [°]: 10; (±2)
Switching distance [mm]: 600...8000; (Target: 1000 x 1000 )
Switching frequency DC [Hz]: 1
Switch point drift [%]: -5...5
IP 67 protection
Protection class III
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: 30
Teach function: Yes
Temperature compensation: Yes
Overload-proof: Yes
Reverse polarity protection: Yes
Transformer frequency [kHz]: 40
