Buy ifm Electronic Ultrasonic switch Ultrasound M30 PNP UIT504

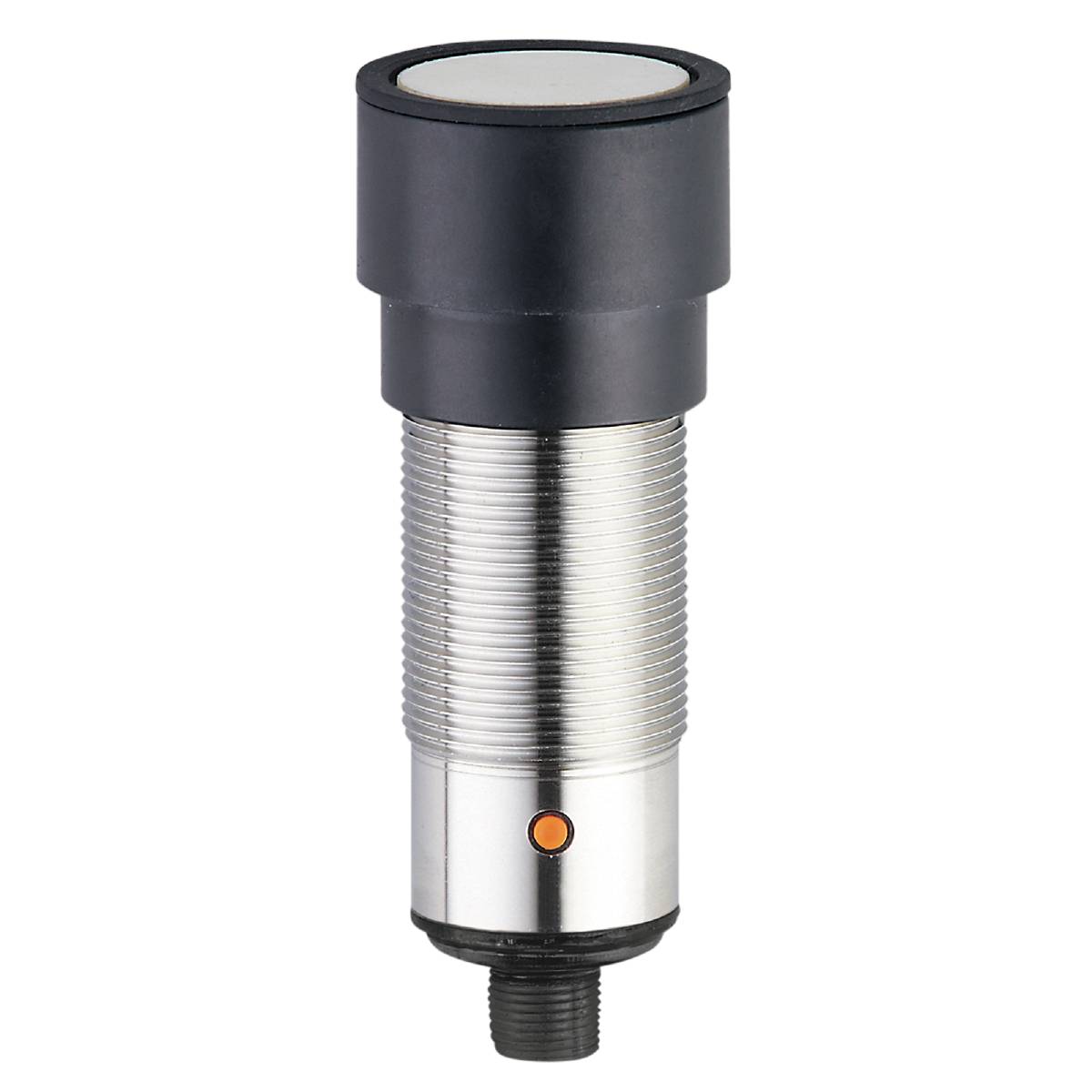

A cylindrical sensor with a black top surface and metallic main body, suitable for object detection in automated processes.

Image similar

Product type

Ultrasonic switch

Max. operating voltage

30 V DC

Outputs

PNP

Switching distance (max.)

6000 mm

Model

Ultrasound

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm UIT504 ultrasonic reflex button

Very large detection range
Intuitive adjustment of the detection area by pressing a button or IO-Link
Highly visible LED for indication of switch status and echo
Output function NO / NC programmable
Non-contact detection, regardless of color, transparency or surface condition of the object
Width of the sound beam adjustable via IO-Link

Technical specifications

Dimensions [mm] M30 x 1.5 / L = 103.8
Analog output current [mA]: 4...20
Response time [ms]: < 600; (analogue output)
Number of analog outputs: 1
Number of digital outputs: 1
Number of inputs and outputs: Number of digital outputs: 1; number of analog outputs: 1
Display: Switch status: 2 x LED, yellow; echo: 1 x LED, green
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -20...70
Repeat accuracy 1 %
Tightening torque [Nm]: 100
Resolution [mm]: 3
Output function: NO/NC contact; (can be parameterized)
Output signal: Switching signal; analog signal; IO-Link
Required master port class: A
Standby delay time [s]: < 0.3
Operating voltage [V]: 10... 30 DC
Blind zone [mm]: 350
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: PNP
Housing: Threaded design
Total number of outputs: 2
Weight [g]: 242,500
Thread name M30 x 1.5
Accuracy/Variance Notes: The specified values are reached after a warm-up time of at least 20 minutes
Hysteresis [%]: < 3
IO-Link functions (acyclic): Application-specific marking; operating hours counter
Communication interface: IO-Link
Short-circuit protection: Yes
Storage temperature [°C]: -30...80
Analog output linearity error [%]: <3
Max. Deviation from 90° angle sensor / object [°]: ± 4
Max. Burden [Ω]: 500
max. Voltage drop switch output DC [V]: 2.2
Min Process cycle time [ms]: 3.2
MTTF: 102
Opening angle cylindrical [°]: 15; (±2)
Parameterisation options: Hysteresis/window; second switch-point; switch-on and switch-off delay; switch-on processes; teach-function; Bright-/dark switching
Profile: Smart sensor: Device identification; multi-channel, two setpoint switching sensor, type 0 generic profiled sensor; process data variable; device diagnosis; teach channel
Switching distance [mm]: 350...6000; (Target: 400 x 400 )
Switching frequency DC [Hz]: 1
Switch point drift [%]: -5...5
IP 67 protection
Protection class III
SIO mode: Yes
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: < 30
Teach function: Yes
Temperature compensation: Yes
Overload-proof: Yes
Reverse polarity protection: Yes
Transformer frequency [kHz]: 75
