Buy ifm Electronic Vibration sensor VNB001 9.6 - 30 V DC 1 pc(s)

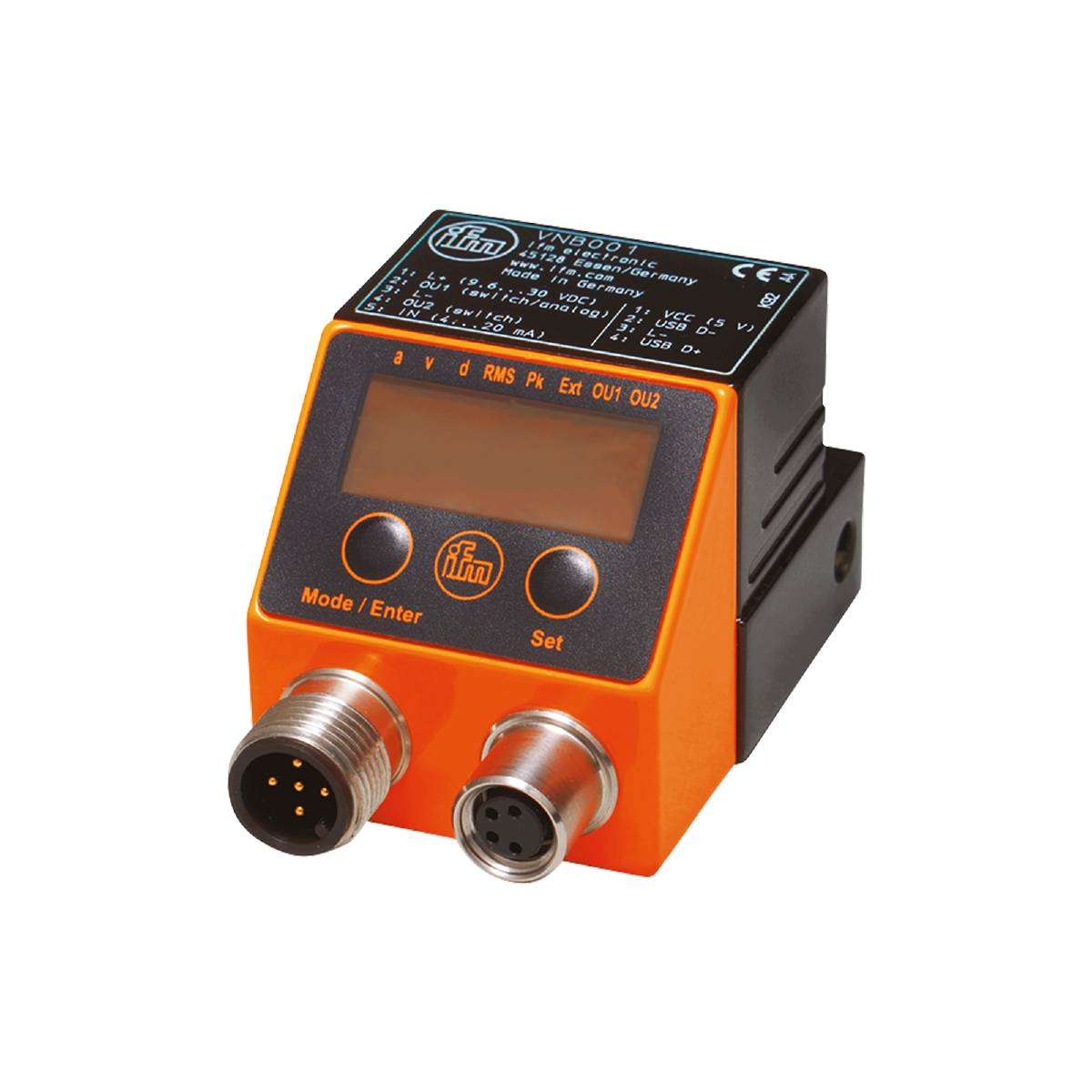

An orange and black electronic device with two connectors and a digital display on a black background.

Image similar

Product type

Vibration sensor

Min. operating voltage

9.6 V DC

Max. operating voltage

30 V DC

Content

1 pc(s)

Type

VNB001

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm VNB001 Vibration Sensor

Two switching outputs for pre-alarm and main alarm
Integrated history memory with real-time clock for monitoring, display and recording of values
Scalable analog current output for the output of the vibration speed
Use of the analog input for monitoring another measured variable
Parameterization and visualization directly on the device or optionally via the parameterization software

Technical specifications

Dimensions [mm] 36 x 37.6 x 62.4
Analog output current [mA]: 4...22
Analog input current [mA]: 4...20
Number of analog outputs: 1
Number of analog inputs: 1
Number of digital outputs: 2
Number of inputs and outputs: Number of analog inputs: 1; number of digital outputs: 2; number of analog outputs: 1
Number of measuring axles: 1
Display: Function: 6 x LED, green; Pre-alarm: 1 x LED, yellow; Main alarm: 1 x LED, red; Measured values: 7-segment LED-display, red / yellow / green 4-digit
Diagnostics measuring principle: Capacitive
Ambient temperature-1 [°C]: -30...60
Tightening torque [Nm]: 7
Application: Vibration sensor in accordance with ISO 10816
Data memory version: Ring memory; FIFO
Output signal: Switching signal; analogue signal
Operating voltage [V]: 9.6...30 DC (or via USB (switching output not active)
Real-time clock: Yes; UTC, battery buffered
Frequency range [Hz]: 2...1000
Total number of inputs and outputs: 3; (configurable)
Weight [g]: 226,850
Heartbeat: Yes
History memory: Yes
Communication interface USB
Short-circuit protection: Yes
Storage temperature [°C]: -30...85
Max. LOAD [Ω]: 9.6...17 V: 150; 17...30 V: 500
max. Voltage drop switch output DC [V]: 2
Measuring range vibration [mm/s]: 0...500; (depending on oscillation frequency)
Measurement error ± 3%
Minimum load current [mA]: 100
Mounting type: Mounting set M5 / M8
MTTF: 148
IP 67 protection
Protection class III
Self-test function: Yes
Sensor type: Micro-mechanical acceleration sensor
Memory: 686774 records
5 min recording interval
Location: Internal
Plug connection: USB - Pin layout: 0014 - Plug connection: 1 x M8; Coding: A / Process connection - Pin layout: 0063 - Plug connection: 1 x M12; Code: A
Current consumption: < 70
Overload-proof: Yes
Polarity reversal protected: Yes
