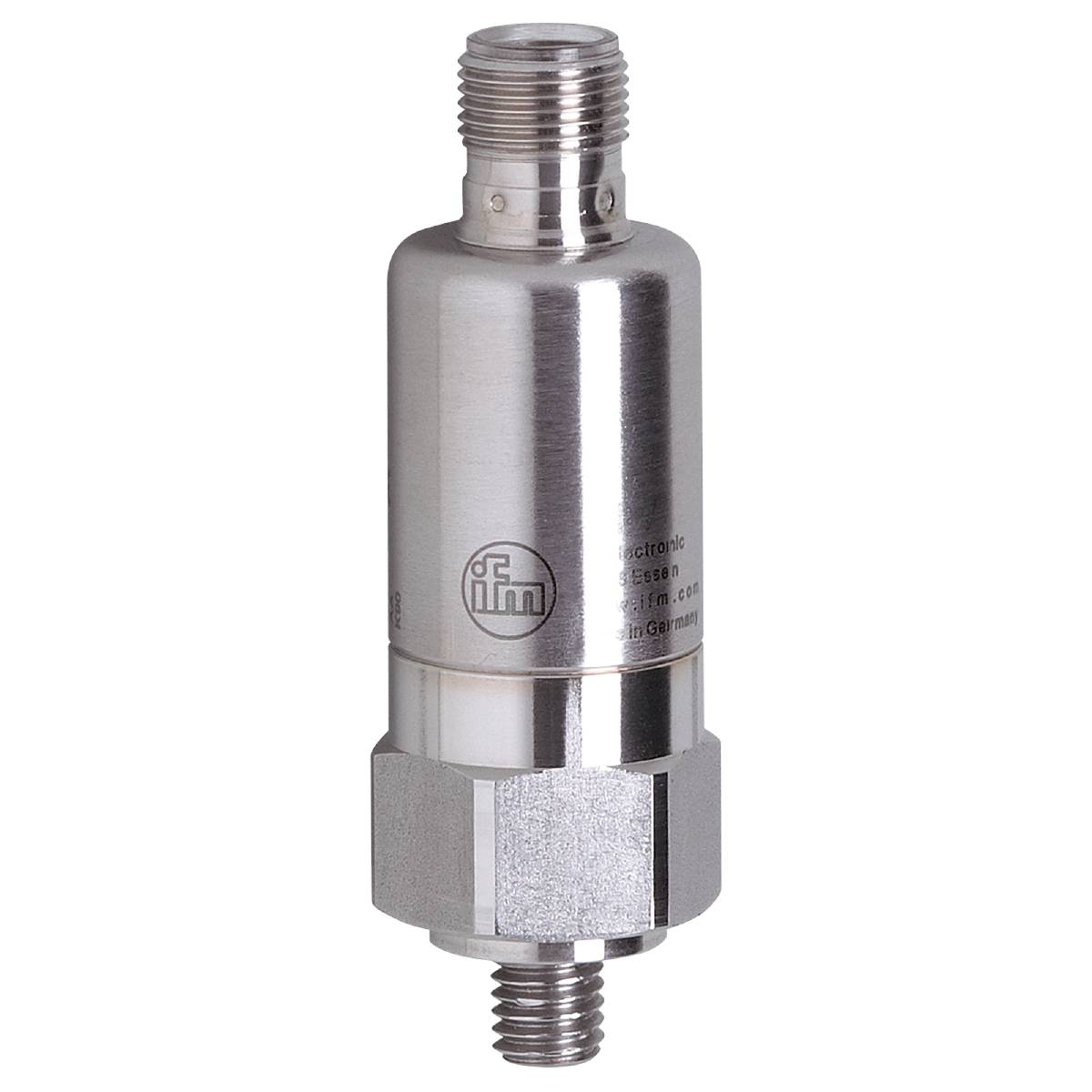

Buy ifm Electronic Vibration transducer VTV12A 9.6 - 32 V DC 1 pc(s)

Image similar

Product type

Vibration transducer

Min. operating voltage

9.6 V DC

Max. operating voltage

32 V DC

Content

1 pc(s)

Type

VTV12A

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Reliable permanent monitoring of the overall vibration according to DIN ISO 10816
Two-wire technology
Precise linearized analogue output
Large operating temperature range and high protection class
For applications in areas where there is a risk of explosion

Analog output current [mA]: 4...20
Number of measuring axles: 1
Linearity deviation: 0.25 %
Ambient temperature-1 [°C]: -20...60
Repeatability: < 0.5; (% of final value)
Tightening torque [Nm]: 8
Application: Vibration transmitter according to ISO 10816
ATEX Device Identification: II 3D Ex tc IIIC T110°C Dc X; II 3G Ex nA IIC T4 GC X
Operating voltage [V]: 9.6... 32 DC
Frequency range [Hz]: 10...1000
Total number of inputs and outputs: 1
Weight [g]: 139,000
Max. Load [Ω]: < (Ub - 9.6 V) x 50; Ub = 24 V: 720
Measuring range vibration [mm/s]: 0...25; (RMS)
Measurement error: < ± 3
Mounting screw
MTTF: 868
Protection class: IP 67; (if used outside the hazardous area: IP 69K)
Protection class III
Sensor type: Micro-electromechanical system (MEMS)
Plug connection: Pin layout: Zero plug connection 1 x M12
