Buy ifm Electronic VSE101 Vibration sensor testing circuit VSE101 1 pc(s)

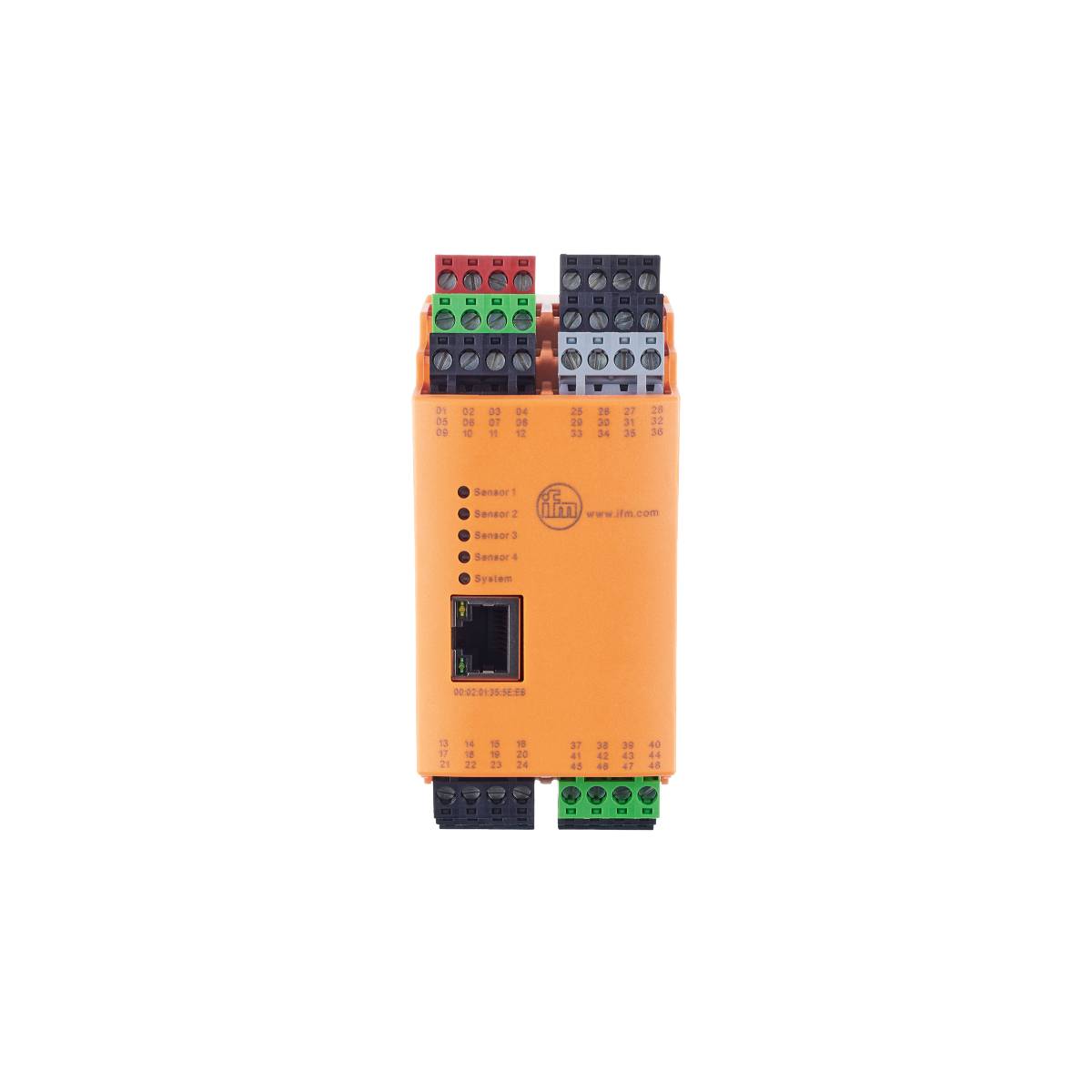

A compact, orange electronic module with multiple terminal blocks, suitable for industrial control applications.

Image similar

Product type

Vibration sensor testing circuit

Type

VSE101

Max. operating voltage

24 V DC

Operating voltage

24 V DC (max)

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm VSE101 Diagnostic electronics for vibration sensors

For the reliable vibration monitoring of machines and systems
Condition-oriented maintenance thanks to monitoring of unbalance, roller bearing or gear condition
Inputs for a simultaneous detection of up to four vibration sensors
Two switching outputs for pre-alarm and main alarm
Analog inputs for monitoring other measured variables

Technical specifications

Dimensions [mm] 114 x 50 x 105
Analog output current [mA]: 0...22; (0...10 V)
Analog input current [mA]: 4...20
Number of analog outputs: 1; (configurable)
Number of analog inputs: 2
Number of digital outputs: 10; (configurable)
Number of digital inputs: 8; (configurable)
Number of dynamic inputs: 4
Number of inputs and outputs: Number of digital inputs: 8; number of analog inputs: 2; number of dynamic inputs: 4; number of digital outputs: 10; number of analog outputs: 1
Ambient temperature-1 [°C]: 0...70
Application: Continuous vibration monitoring
Analogue input resolution: 12
Design: Parameterisable via PC-software VES004
Data memory version: Ring memory; FIFO
Short-circuit protection version: Synchronised
Output function: NO/NC contact; (can be parameterized)
Output signal: Switching signal; analogue signal
Operating voltage [V]: 24 DC (when IEPE input is used: 24 + 20%; IEPE = Integrated Electronics Piezo Electric)
Operating voltage tolerance [%]: 20
Data storage buffered: Yes
Continuous current carrying capacity of the switching output DC [mA]: 100
Dynamic Input Resolution [bit]: 16
Dynamic Input - Frequency Range [Hz]: 0.1...12000
Dynamic Input Sampling rate [kSamples]: 100
Dynamic input - signal: 0...10 mA / IEPE / 4...20 mA
Real-time clock: Yes
Input wiring digital inputs HTL
Electrical version: PNP
Frequency range [Hz]: 0.1...12000
Housing: Plastic housing
Total number of outputs: 10
Total number of inputs and outputs: 16; (configurable)
Total number of inputs: 10
Weight [g]: 442,600
History memory: Yes
Communication interface: Ethernet
Field ready-to-assemble connection / terminals: COMBICON: ; Max. Cable length 250 m.
Short-circuit protection: Yes
Storage temperature [°C]: 0...70
Max. Burden [Ω]: 500
max. Voltage drop switch output DC [V]: 2
Mounting type: Mounting rail; (TH35/EN60715)
MTTF: 89
TCP/IP protocol
Protection class IP 20
Protection class III
Memory: 881664 records
Storage intervals: Min. 1 min
Location: Internal
Power consumption 200; (24 V)
Overload-proof: Yes
