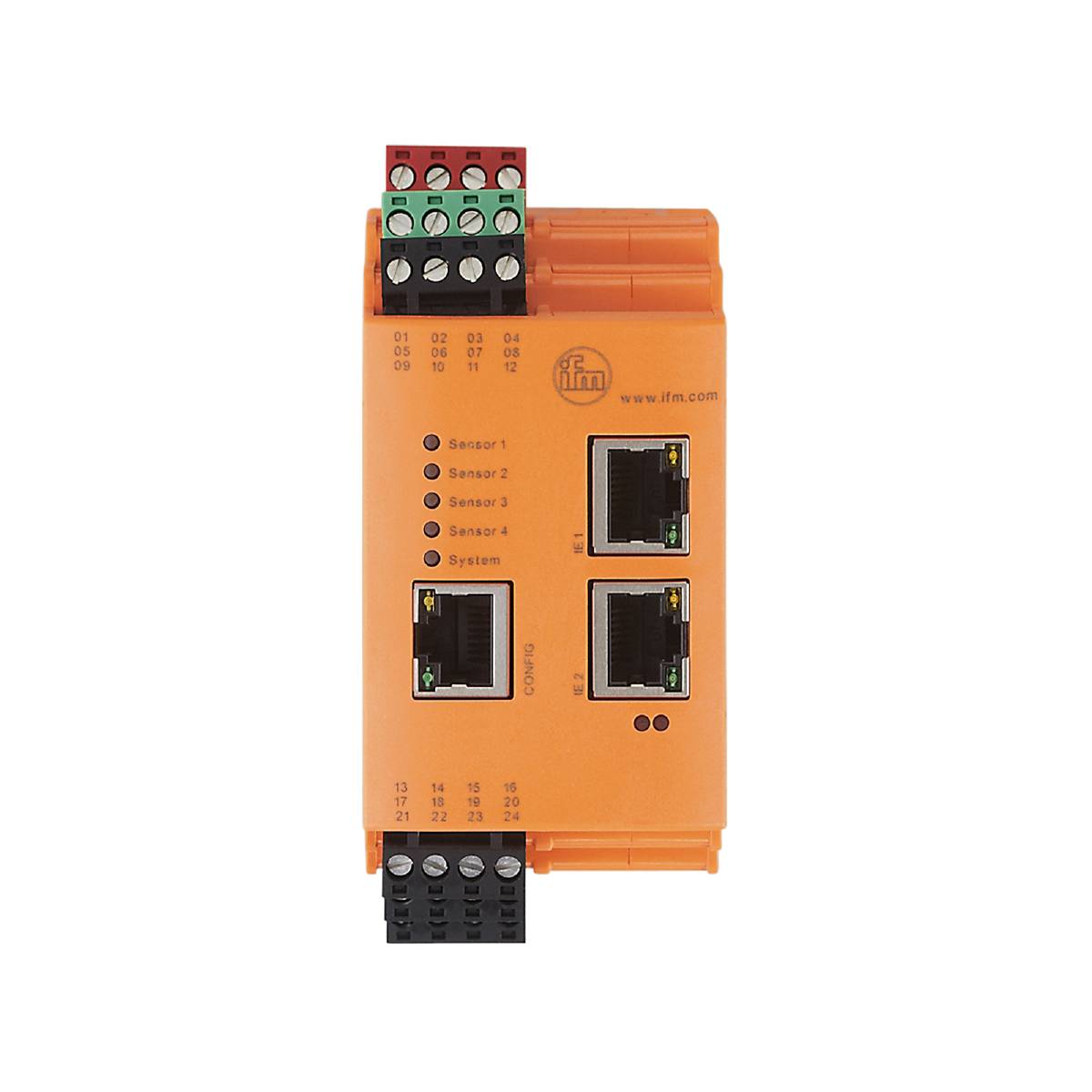

Buy ifm Electronic VSE153 Vibration sensor testing circuit VSE153 1 pc(s)

Image similar

Product type

Vibration sensor testing circuit

Type

VSE153

Max. operating voltage

24 V DC

Operating voltage

24 V DC (max)

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm VSE153 Diagnostic electronics for vibration sensors

For the reliable vibration monitoring of machines and systems
Condition-oriented maintenance thanks to monitoring of unbalance, roller bearing or gear condition
Dynamic inputs for simultaneous detection of up to four vibration sensors
Two switching outputs for pre-alarm and main alarm
Analog inputs for monitoring other physical measured variables

Technical specifications

Dimensions [mm] 114.2 x 50 x 105.3
Analog output current [mA]: 4...20
Analog input current [mA]: 4...20
Number of analog outputs: 1; (configurable)
Number of analog inputs: 2
Number of digital outputs: 2; (configurable)
Number of dynamic inputs: 4
Number of inputs and outputs: Number of analog inputs: 2; number of dynamic inputs: 4; number of digital outputs: 2; number of analog outputs: 1
Ambient temperature-1 [°C]: 0...60
Application: Continuous vibration monitoring
Analogue input resolution: 12
Design: Parameterisable via PC-software VES004
Short-circuit protection version: Synchronised
Output function: NO/NC contact; (can be parameterized)
Output signal: Switching signal; analogue signal
Operating voltage [V]: 24 DC (when IEPE input is used: 24 + 20%; IEPE = Integrated Electronics Piezo Electric)
Operating voltage tolerance [%]: 20
Continuous current carrying capacity of the switching output DC [mA]: 100
Dynamic Input Resolution [bit]: 16
Dynamic Input - Frequency Range [Hz]: 0.1...12000
Dynamic Input Sampling rate [kSamples]: 100
Dynamic input - signal: 0...10 mA / IEPE / 4...20 mA
Real-time clock: Yes
Electrical version: PNP
Frequency range [Hz]: 0.1...12000
Housing: Plastic housing
Total number of outputs: 2
Total number of inputs and outputs: 8; (configurable)
Total number of inputs: 6
Weight [g]: 414,600
Communication interface: Ethernet
Field attachable connection / terminals: COMBICON:
Short-circuit protection: Yes
Storage temperature [°C]: 0...60
Max. Burden [Ω]: 500
max. Voltage drop switch output DC [V]: 2
Mounting type: Mounting rail; (TH35/EN60715)
MTTF: 91
Protocol: Modbus TCP
Protection class IP 20
Protection class III
Power consumption: 200; (24 V DC)
Overload-proof: Yes
Transfer rate 10 Mbaud; 100 Mbaud
