Buy ifm Electronic VSE903 Vibration sensor testing circuit VSE903 1 pc(s)

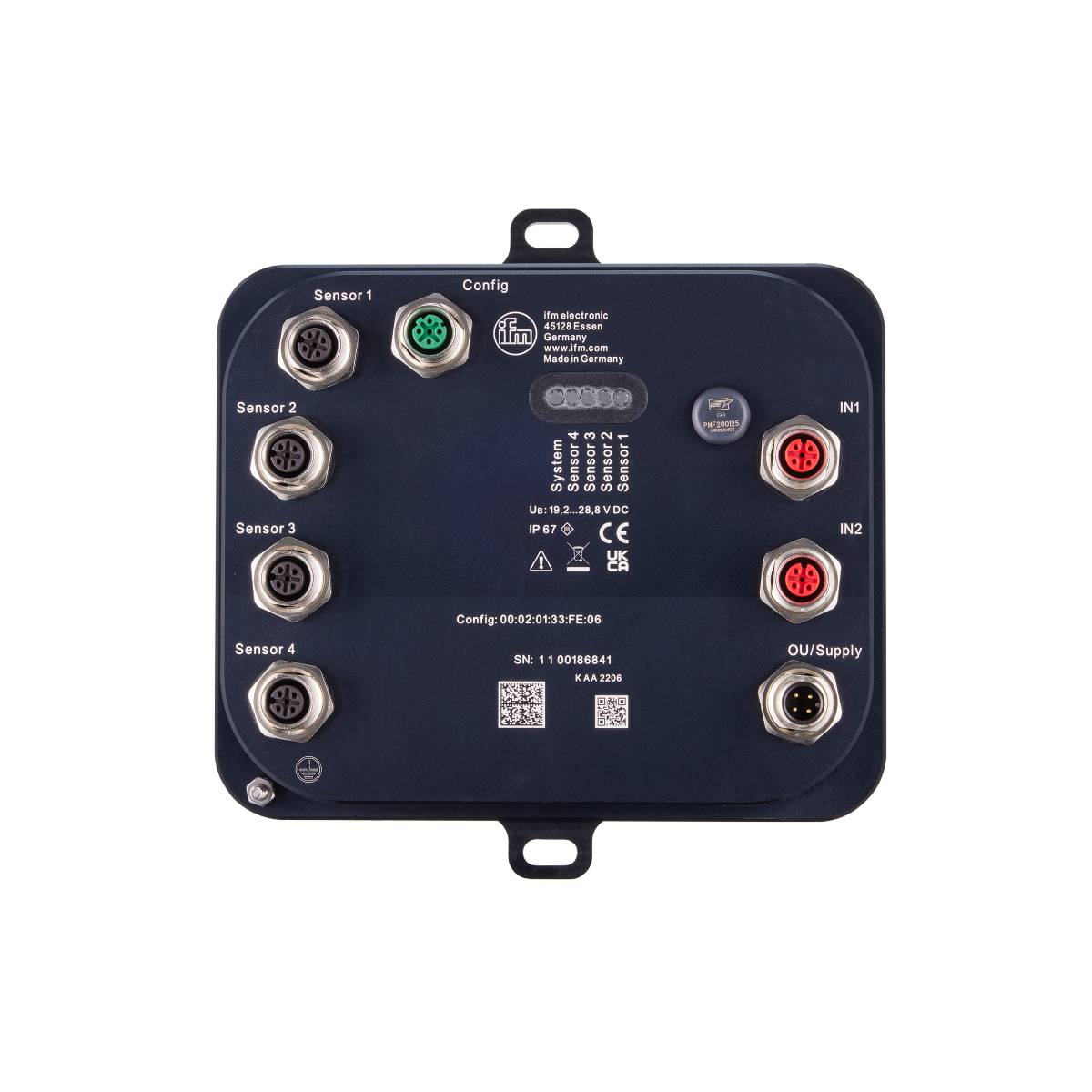

A black electronic device with multiple ports and sensors, which is equipped for configuration and power supply.

Image similar

Product type

Vibration sensor testing circuit

Type

VSE903

Max. operating voltage

24 V DC

Operating voltage

24 V DC (max)

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm VSE903 Diagnostic electronics for vibration sensors

Robust IP-67 housing for the decentralized use
Fast, fault-free installation and retrofit thanks to standard M12 connections
Six signal inputs capture all relevant data for condition monitoring
Compatible with all standard acceleration sensors

Technical specifications

Dimensions [mm] 175 x 172 x 66.6
Analog output current [mA]: 4...20
Analog input current [mA]: 4...20
Number of analog outputs: 1; (configurable)
Number of digital outputs: 2
Number of dynamic inputs: 4
Number of inputs and outputs: Number of dynamic inputs: 4; number of digital outputs: 2; number of analog outputs: 1
Ambient temperature-1 [°C]: 0...70
Application: Continuous vibration monitoring
Analogue input resolution: 12
Design: Parameterisable via PC-software VES004
Data memory version: Ring memory; FIFO
Short-circuit protection version: Synchronised
Output function: NO/NC contact; (can be parameterized)
Output signal: Switching signal; analogue signal
Operating voltage [V]: 24 DC; (when IEPE input is used 24 + 20% IEPE = Integrated Electronics Piezo Electric)
Operating voltage tolerance [%]: 20
Data storage buffered: Yes
Continuous current carrying capacity of the switching output DC [mA]: 100
Dynamic Input - Frequency Range [Hz]: 0.1...12000
Dynamic Input Sampling rate [kSamples]: 100
Dynamic input - signal: 0...10 mA / IEPE / 4...20 mA
Real-time clock: Yes
Electrical version: PNP
Frequency range [Hz]: 0.1...12000
Aluminium casing
Total number of outputs: 2
Total number of inputs and outputs: 8; (configurable)
Total number of inputs: 6
Weight [g]: 1296,700
History memory: Yes
Communication interface: Ethernet
Short-circuit protection: Yes
Storage temperature [°C]: 0...70
Max. Burden [Ω]: 500
max. Voltage drop switch output DC [V]: 2
Max. Permissible relative humidity [%]: 90
Mounting type: Rear panel fitting
MTTF: 92
TCP/IP protocol
IP 67 protection
Protection class III
Memory: 881664 records
Storage intervals: Min. 1 min
Location: Internal
Plug connection: 1.Sensor 1...4 - Pin layout: 0017 - Plug connection: 4 x M12; Coding: A / 2.Config - Pin layout: 0191 - Plug connection: 1 x M12; Coding: D / 3.IN 1 - Pin layout: 0017 - Plug connection: 1 x M12; Coding: A; Max. Cable length: 250 m / 4 IN 2 - Pin layout: 0017 - Plug connection: 1 x M12; Coding: A; Max. Cable length 250 m.
Power consumption: 200; (24 V DC)
Overload-proof: Yes
