Buy ifm Electronic VSE950 Vibration sensor testing circuit VSE950 1 pc(s)

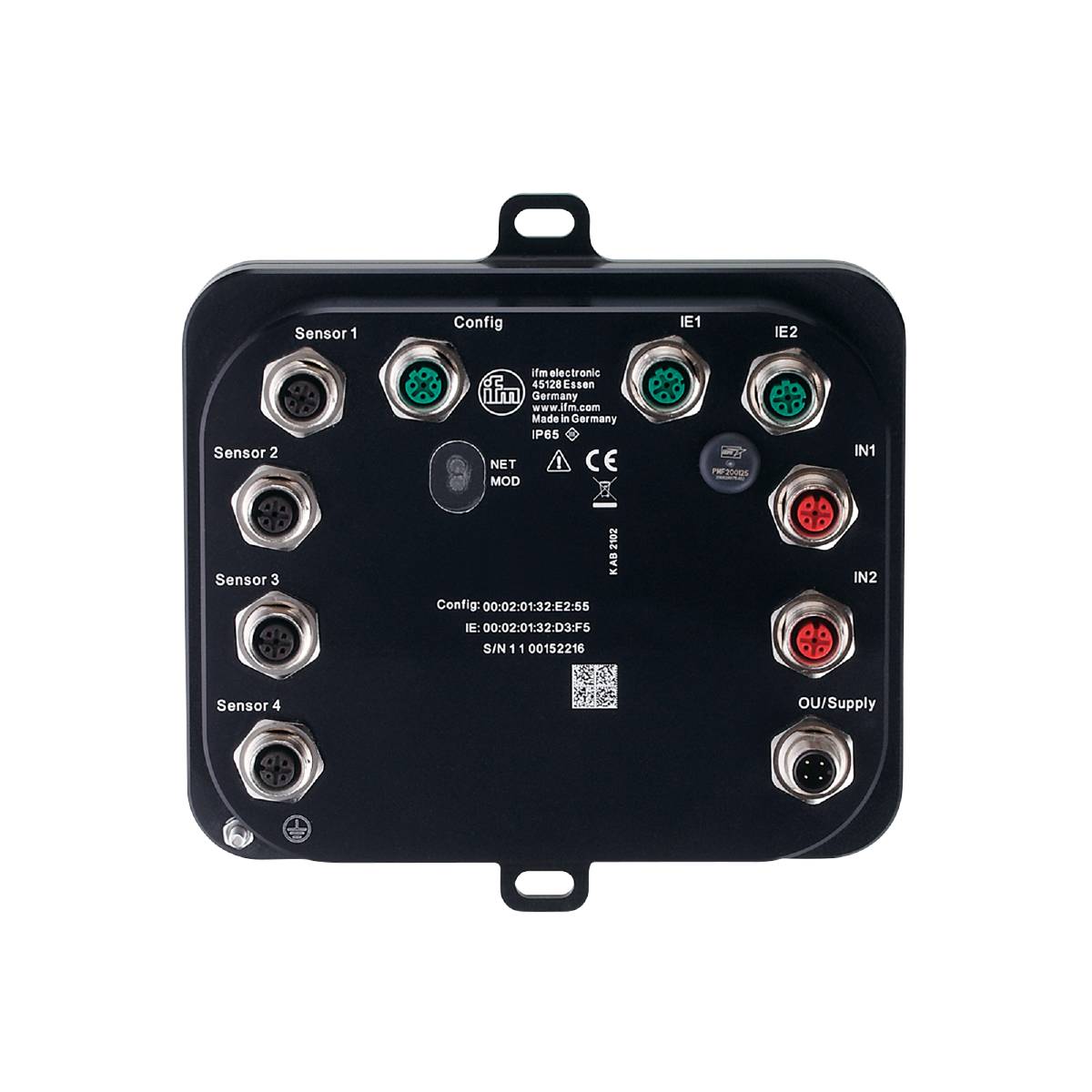

A black electronic device with multiple round ports and labels. The ports are for sensors and inputs.

Image similar

Product type

Vibration sensor testing circuit

Type

VSE950

Max. operating voltage

24 V DC

Operating voltage

24 V DC (max)

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm VSE950 Diagnostic electronics for vibration sensors

Robust IP-67 housing for the decentralized use
Fast, fault-free installation and retrofit thanks to standard M12 connections
Six signal inputs capture all relevant data for condition monitoring
Separation between automation and IT network
Compatible with all standard acceleration sensors

Technical specifications

Dimensions [mm] 175 x 172 x 66.6
Analog output current [mA]: 0...22
Analog input current [mA]: 0...20
Number of analog outputs: 1; (configurable)
Number of analog inputs: 1; (static)
Number of digital outputs: 2; (configurable)
Number of digital inputs: 1
Number of dynamic inputs: 4
Number of inputs and outputs: Number of digital inputs: 1; number of analog inputs: 1; number of dynamic inputs: 4; number of digital outputs: 2; number of analog outputs: 1
Ambient temperature-1 [°C]: 0...60
Analogue input resolution: 12
Design: Parameterisable via PC-software VES004
Short-circuit protection version: Synchronised
Output function: NO/NC contact; (can be parameterized)
Output signal: Switching signal; analogue signal
Operating voltage [V]: 24 DC
Operating voltage tolerance [%]: 20
Continuous current carrying capacity of the switching output DC [mA]: 100
Digital input Frequency range [Hz]: 0.1...100000
Dynamic Input Resolution [bit]: 16
Dynamic Input - Frequency Range [Hz]: 0...12000
Dynamic Input Sampling rate [kSamples]: 100
Dynamic input signal: 0...20 mA
Real-time clock: Yes
Electrical version: PNP
Frequency range [Hz]: 0.1...12000
Aluminium casing
Total number of outputs: 2
Total number of inputs and outputs: 8; (configurable)
Total number of inputs: 6
Weight [g]: 1388,200
Communication interface: Ethernet
Short-circuit protection: Yes
Storage temperature [°C]: 0...60
Max. Burden [Ω]: 500
max. Voltage drop switch output DC [V]: 2
Mounting type: Rear panel fitting
MTTF: 92
Protocol: PROFINET
IP 67 protection
Protection class III
M12 connector
Plug connection: 1.Sensor 1...4 - Pin layout: 0017 - Plug connection: 4 x M12; Coding: A / 2.Config / IE1 / IE2 - Pin layout: 0191 - Plug connection: 3 x M12; Coding: D / 3.IN 1 - Pin layout: 0017 - Plug connection: 1 x M12; Coding: A; Max. Cable length: 30 m / 4 IN 2 - Pin layout: 0017 - Plug connection: 1 x M12; Coding: A; Max. Cable length 30 m.
Power consumption: 200; (24 V DC)
Overload-proof: Yes
