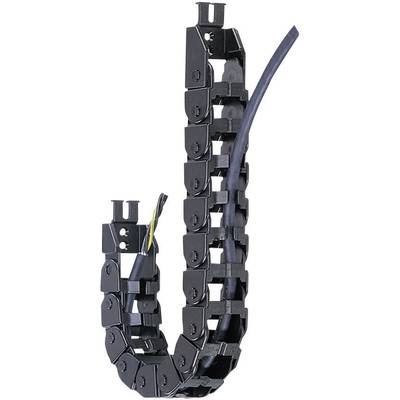

A flexible energy guidance chain made of black plastic, through which a black cable and a yellow cable are routed.

Image similar

Machine with control cables and power cables in a production environment. A red emergency stop button is located on the side.

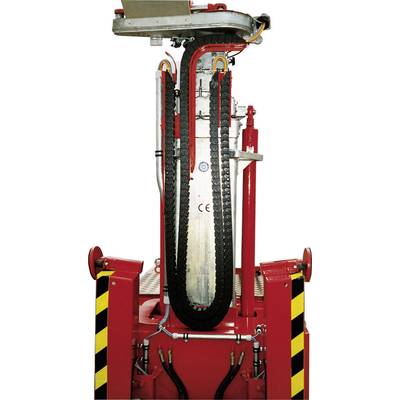

Red mechanical arm with hoses and chain mechanism, surrounded by yellow and black warning stripes, presumably for industrial applications.

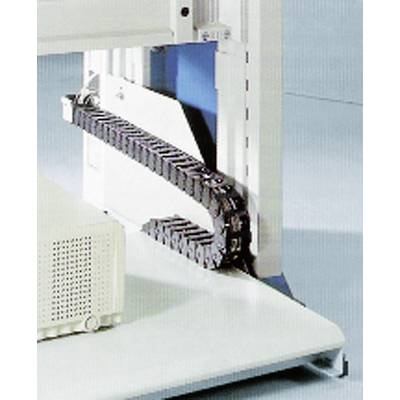

Industrial cable chain on a machine, which safely guides and protects cables. It is attached to a white frame.

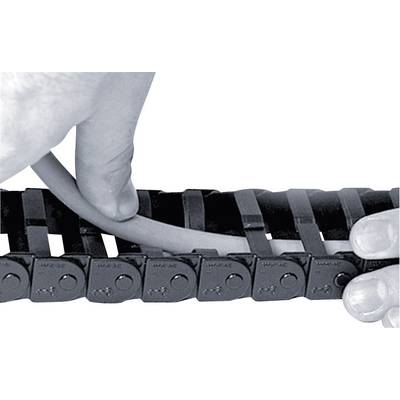

A hand is placing a cable into a black energy chain guide. The chain has multiple links that organise and protect the cable.

Table of Chain Information: Type, Pitch in mm per Link, and Links per Metre. For example, 'Easy Chain E08', 20 mm/link, 50 links/m.

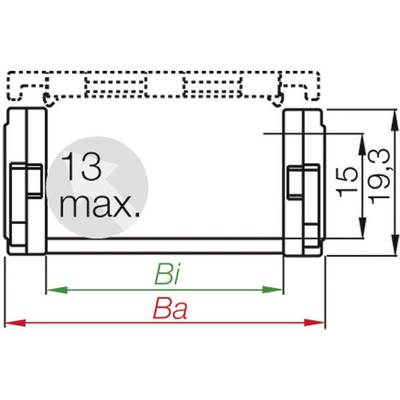

Technical drawing of a component with dimensions: Height 19.3 mm, Width 15 mm, Maximum diameter 13 mm.

Technical drawing of a cylinder with dimensions: 19 mm height, 25 mm width. '13 max.' indicates the maximum diameter.

1/8

Image similar

Datasheet (PDF)

4 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (1 m = € 33.61)

€

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

igus E14.4.125.0 Easy Chain Plastic E Chain Easy Chain® E-Kette® E14.2

Easy to fill from outside
Low-cost
Simply press the cable
UL94-V2 classification

Technical specifications

Speed unsupported straight, max. 20m/s
Speed unsupported with arc, max. 3m/s
Speed floating max. 3m/s

Features: Snap fasteners
UL94-V2 standard

Inside width: 50 mm

Series: Easy Chain®

Outside width: 62 mm

Bend radius: 125 mm

No. of chain links: 33

Factory colour: Black

Outside height: 25 mm

Inside height: 19 mm

Material (details): Plastic

Length: 1006.5 mm

Min. temperature: -30 °C

Max. temperature: +100 °C

Chain link pitch: 30.5 mm

Content: 1 pc(s)

Manufacturer part #: E14.4.125.0

Type: Easy Chain® E-Kette® E14.2

Type: Easy Chain® E-Kette® E14.2

Temperature range: -30 - +100 °C

Product type: Drag chain

Documents & Downloads

Datasheet

Datasheet 740562 igus E14.4.125.0 Easy Chain Plastic E Chain Easy Chain® E-Kette® E14.2

User & Safety Instructions

User & Safety Instructions 740562 igus E14.4.125.0 Easy Chain Plastic E Chain Easy Chain® E-Kette® E14.2

Description

Can be mounted and dismantled at "every point". Cable is simply pressed from outside, saves assembly time. Low-cost, light-weight one-piece E-Kette®. Limited torsional movement possible. "Push-button principle" holds the members of the chain securely together. Small pitch for quiet, smooth running. Interior that protects the wires. Inner division and connection elements available with integrated strain relief. ISO Class 2 according to ISO 14644-1.
