igus EFSM-05 Flange bearing Bore diameter 5 mm Hole spacing 17 mm
EAN:
Part number:
Item no:
Product type
Flange bearing
Bore Ø
5 mm
Type
EFSM-05
Hole spacing
17 mm
Radial stress (persistent) (max.)
500 N
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
Igubal® four hole flange bearing spacing
- Dome made of highly wear-resistant iglidur® W 300
- Easy to set up
- Compensation of misalignment of errors
- Absolutely corrosion-resistant
- This text is machine translated.
Technical specifications
- Product type
Flange bearing
- Type
EFSM-05
- Bore Ø
5 mm
- Hole spacing
17 mm
- Radial stress (persistent) (max.)
500 N
- Radial load (temporary) (max.)
1000 N
- Radial stress (persistent) (max.)
700 N
- Radial stress (temporary) (max.)
1400 N
- Radial traction (persistent) (max.)
750 N
- Radial traction (temporary) (max.)
1500 N
- Axial load (persistent) (max.)
75 N
- Axial load (temporary) (max.)
150 N
Documents & Downloads
Datasheet
Datasheet 1416672 igus EFSM-05 Flange bearing Bore diameter 5 mm Hole spacing 17 mm
Description
Hints

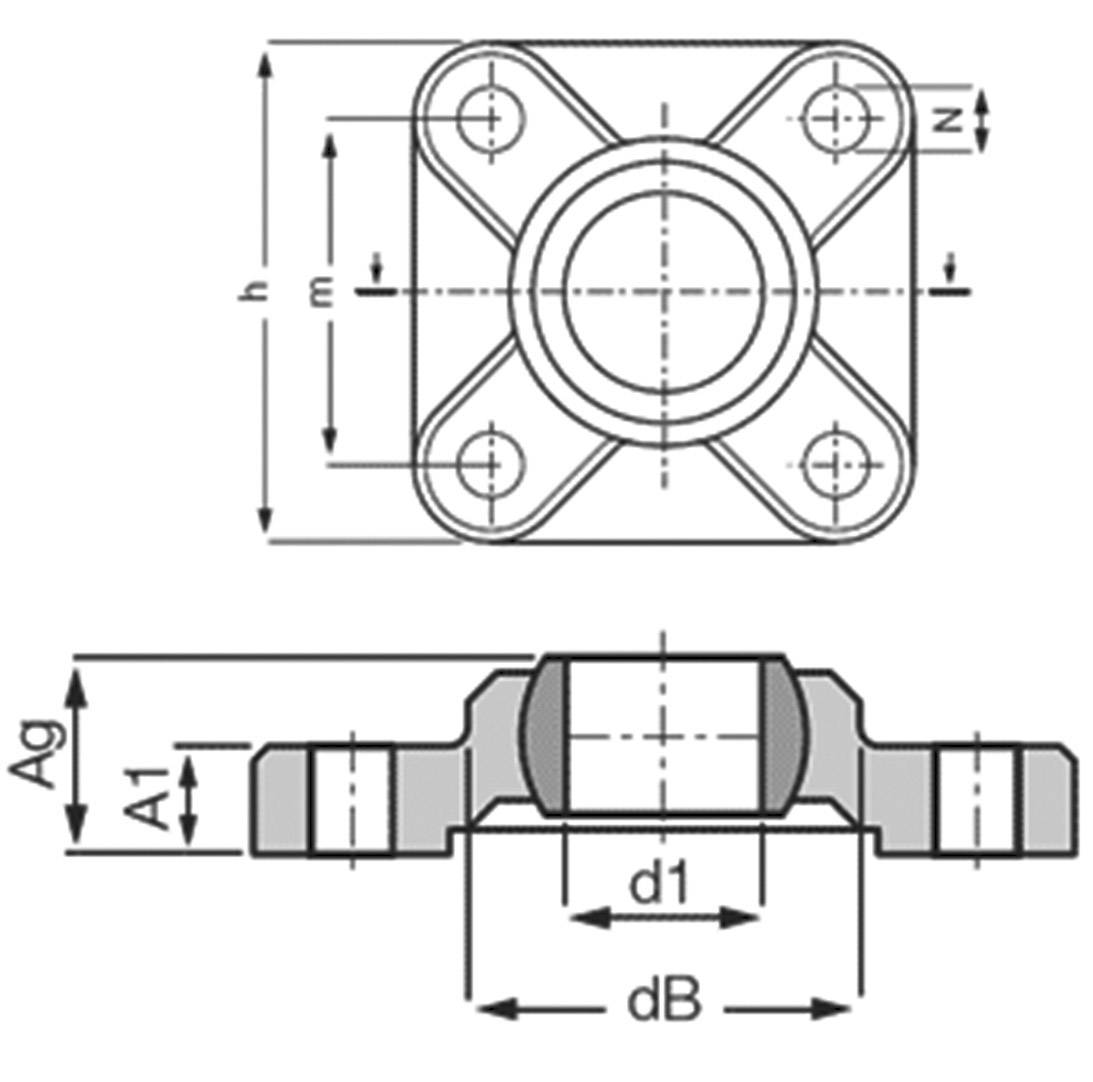

Similar product shown
