igus Robot assembly kit Delta DLE-DR-0003
EAN:
Part number:
Item no:
Number
Total (€ 8,844.54 / piece)
€ 8,844.54
plus VAT.
Highlights & Details
dry-tech® Delta robot kit with motor control
- With motor controlInexpensive and light kit for Delta robotsQuick pick & place handling - ready for installationFinished system based on drylin® kit
Technical specifications
- Positioning accuracy: +- 0.5 mm
- Working area diameter 75 mm: 380 mm
- Max. Load capacity: 5 kg
- Max. Process force with radius 0 mm: 100 N
- Dynamic: at least 60 Piks. (Min)
- Max. path velocity 3m/s
- Max. Acceleration: 60 m/s².
- Product type
Robot assembly kit
- Manufacturer part #
DLE-DR-0003
- Weight
15 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1718142 igus Robot assembly kit Delta DLE-DR-0003
Description

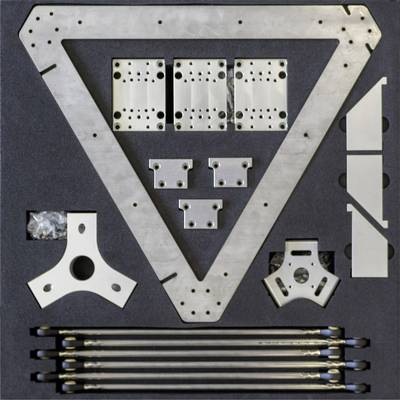

Consisting of three pre-assembled drylin® ZLW toothed belt axes with NEMA stepper motors and encoders, igubal® double bearings as well as the matching adapter plates is the drylin® Delta Robot mounted quickly and easily. The light-weight construction, consisting of aluminum and plastic, reached the system pick rate of 60/min in a space with diameters of up to 380 mm.
Typical applications: Handling, pick-and-place, robotics, automation.
The advantages of the drylin® Delta Robot:
Low-cost alternative to usual Delta kinematics
Ready-to-install system based on drylin® kit
No additional lubricant is needed and therefore low maintenance
Fast movements possible by parallel kinematics
Compact and light design.
When will the delta robot used?
Pick-and-place tasks, such as Tape Transfer Stations
Sorting Systems
Assembly Systems
Joining processes
Small parts handling
For fast positioning tasks
This text is machine translated.
Typical applications: Handling, pick-and-place, robotics, automation.
The advantages of the drylin® Delta Robot:
Low-cost alternative to usual Delta kinematics
Ready-to-install system based on drylin® kit
No additional lubricant is needed and therefore low maintenance
Fast movements possible by parallel kinematics
Compact and light design.
When will the delta robot used?
Pick-and-place tasks, such as Tape Transfer Stations
Sorting Systems
Assembly Systems
Joining processes
Small parts handling
For fast positioning tasks
This text is machine translated.
