Iiyama 233 cm (92"") LH9252UWS-B1AG Digital signage display EEC: G (A - G) 233 cm 92 inch 5120 x 2160 Pixel 24/7
EAN:
Part number:
Item no:
Highlights & Details

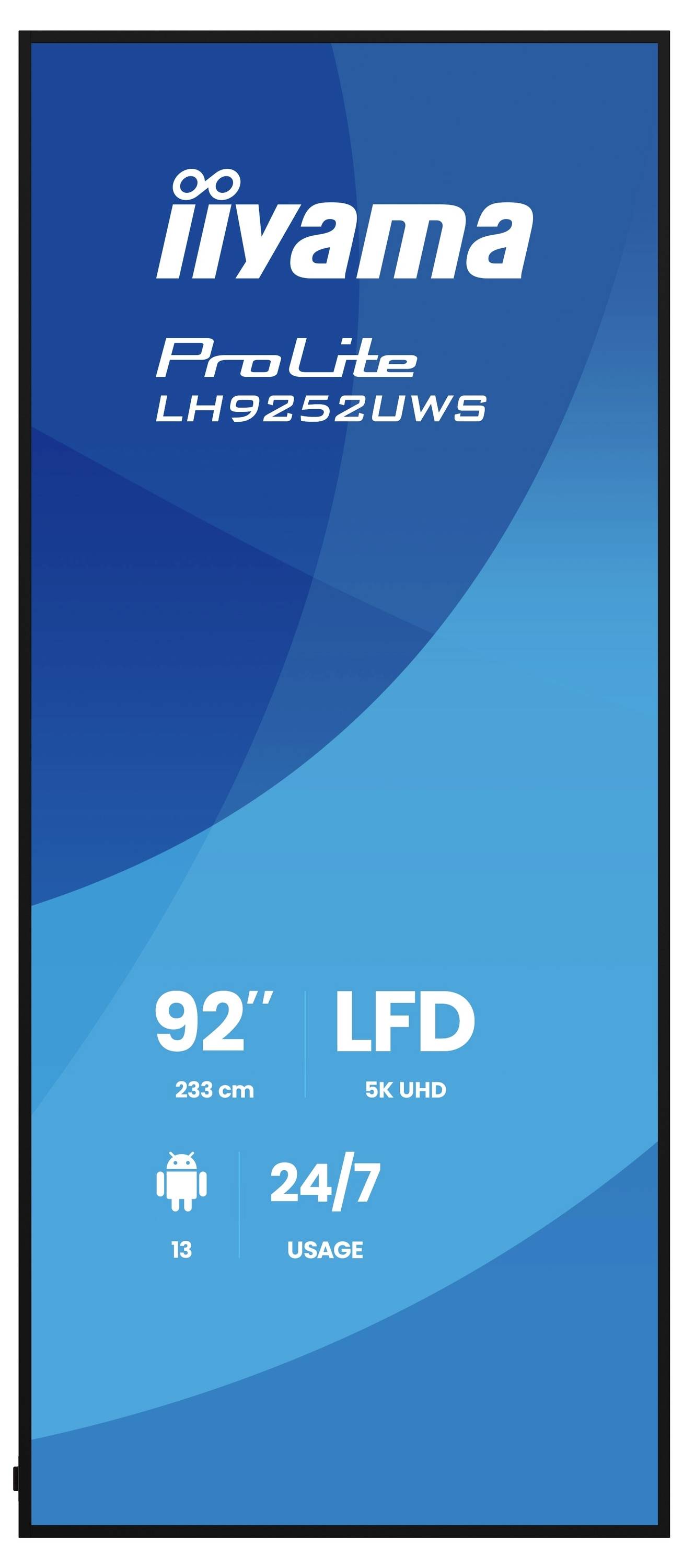

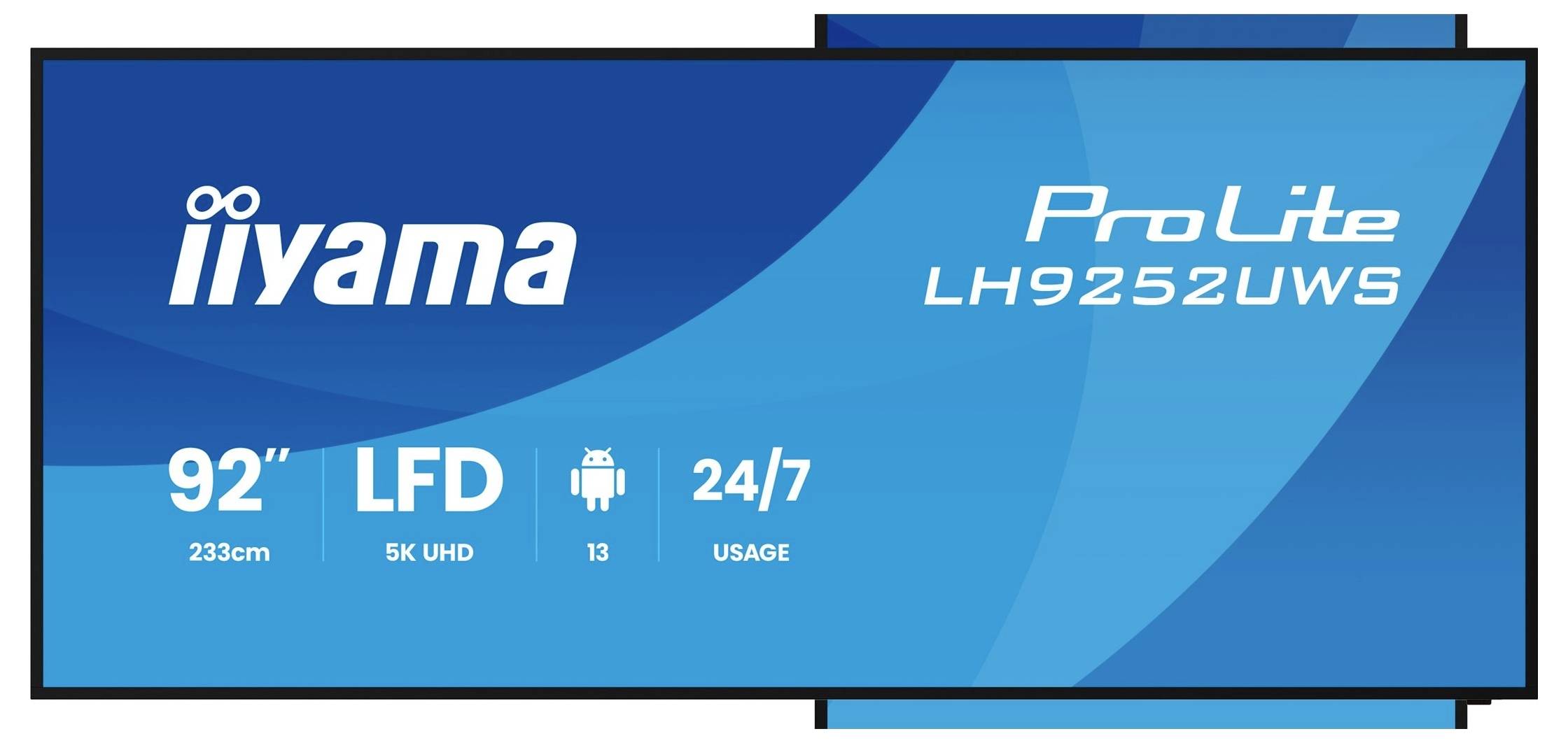

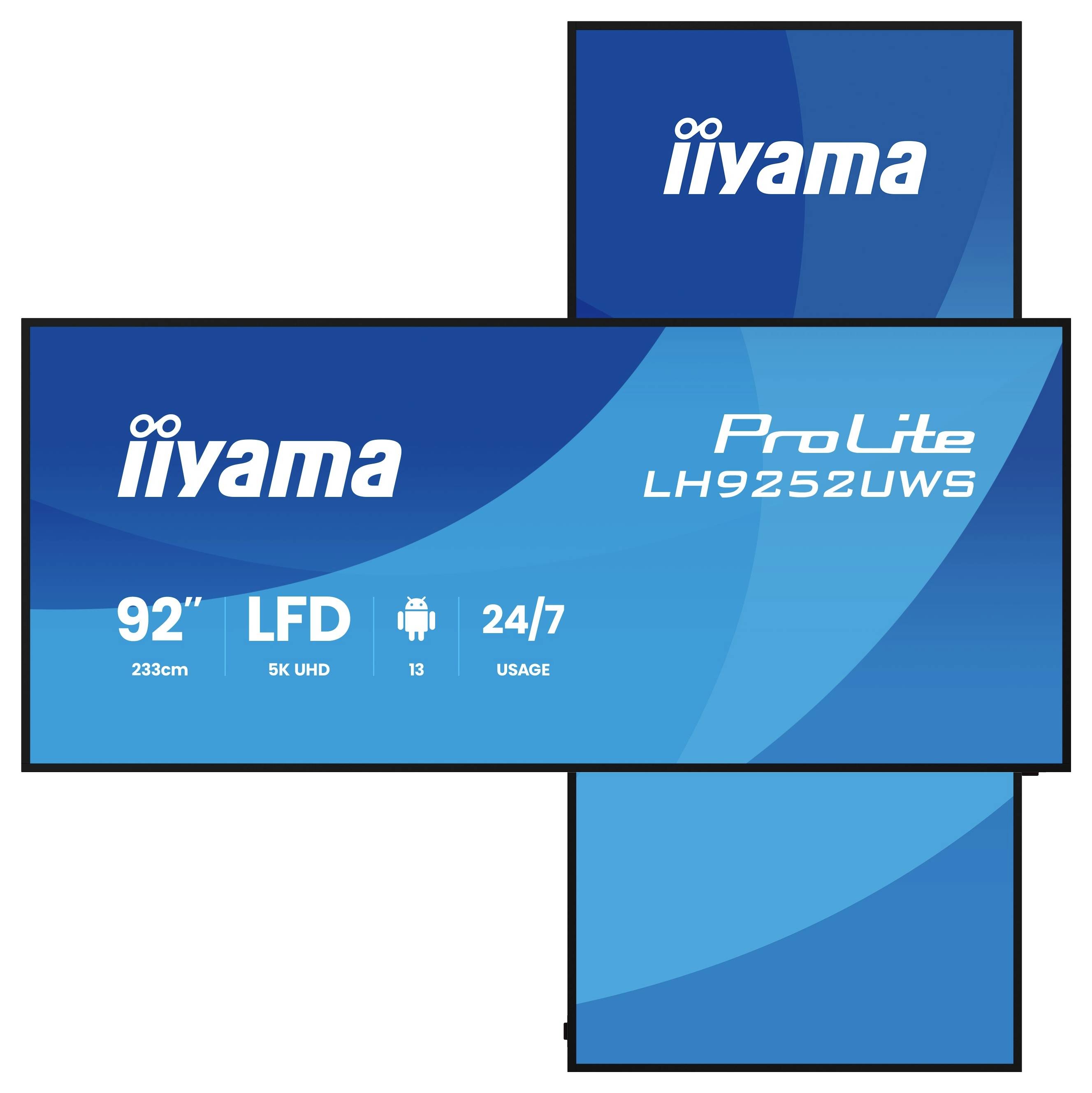

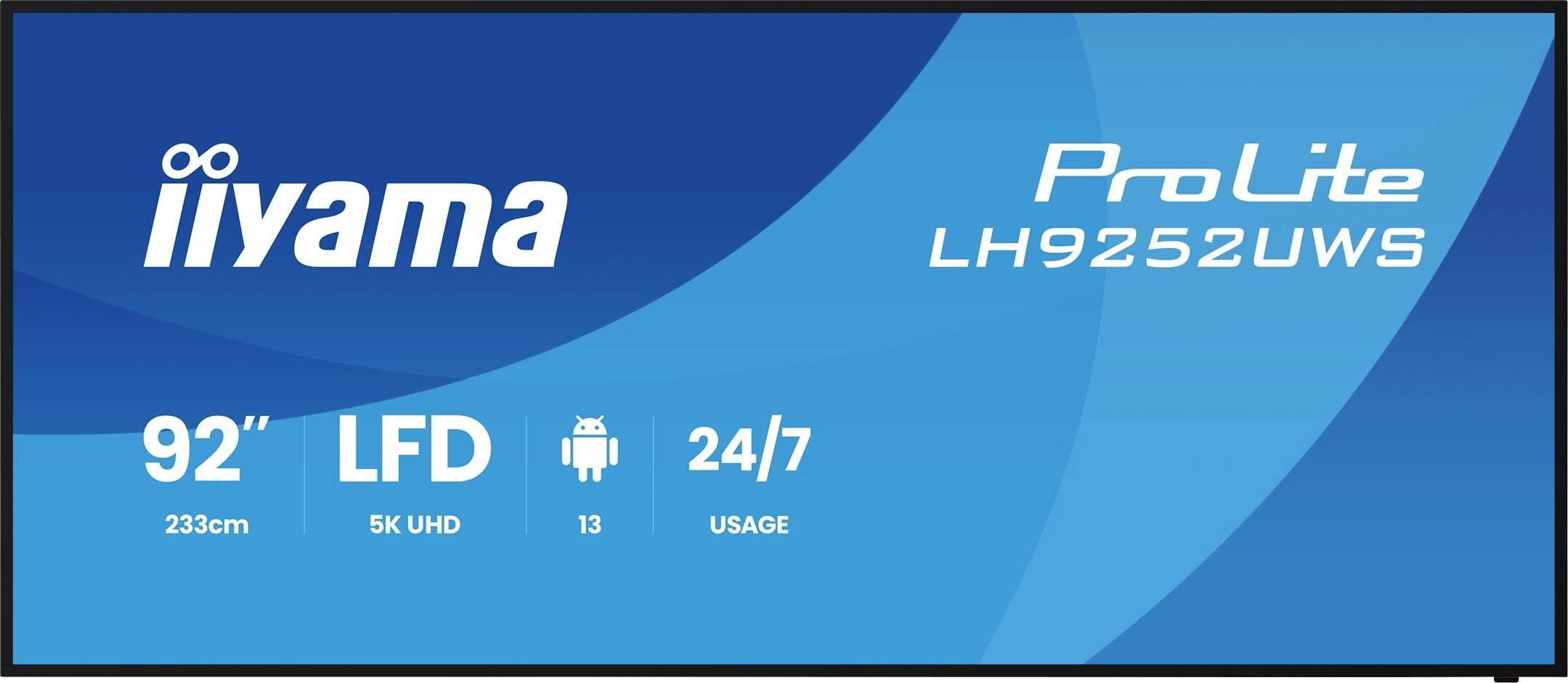

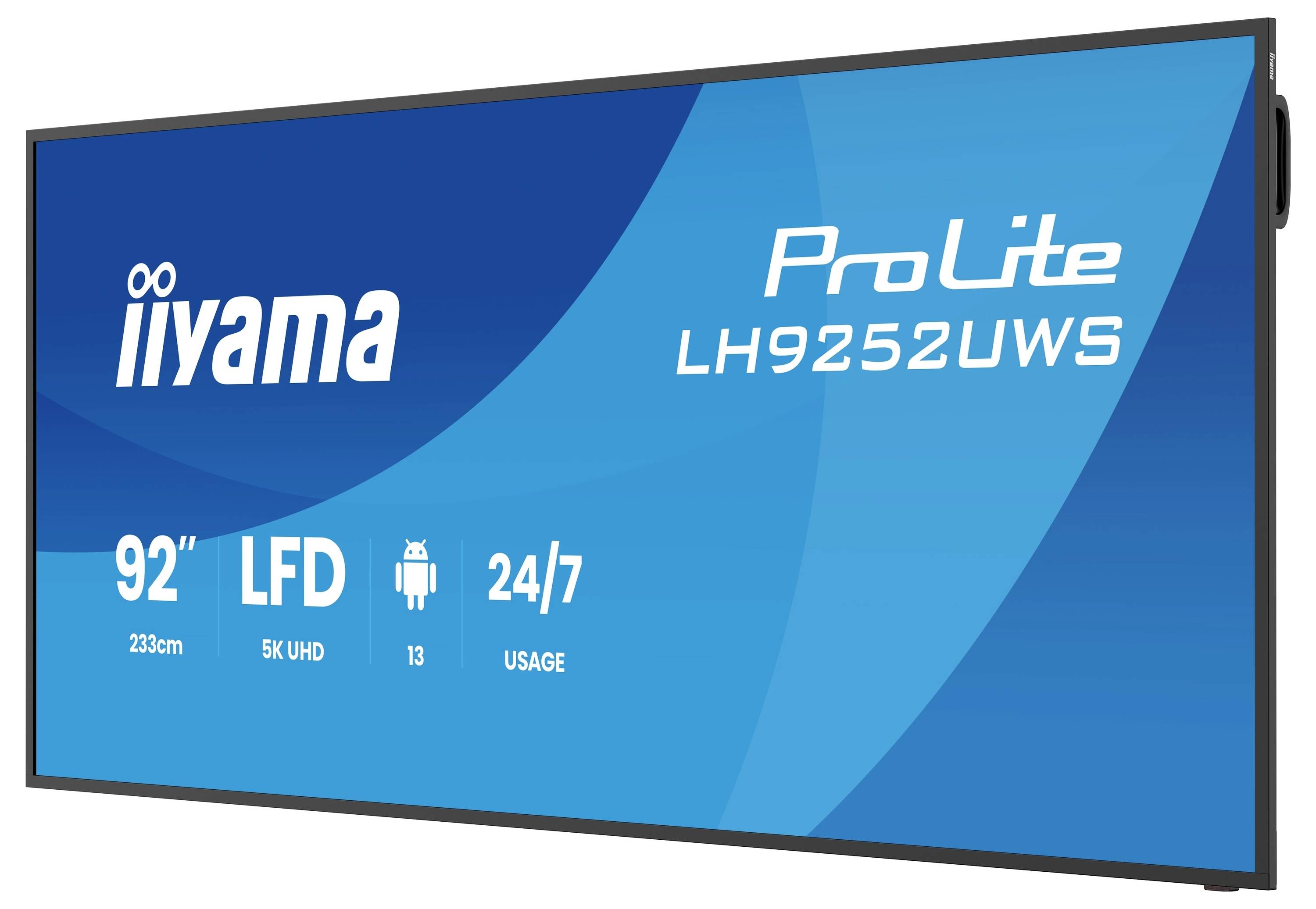

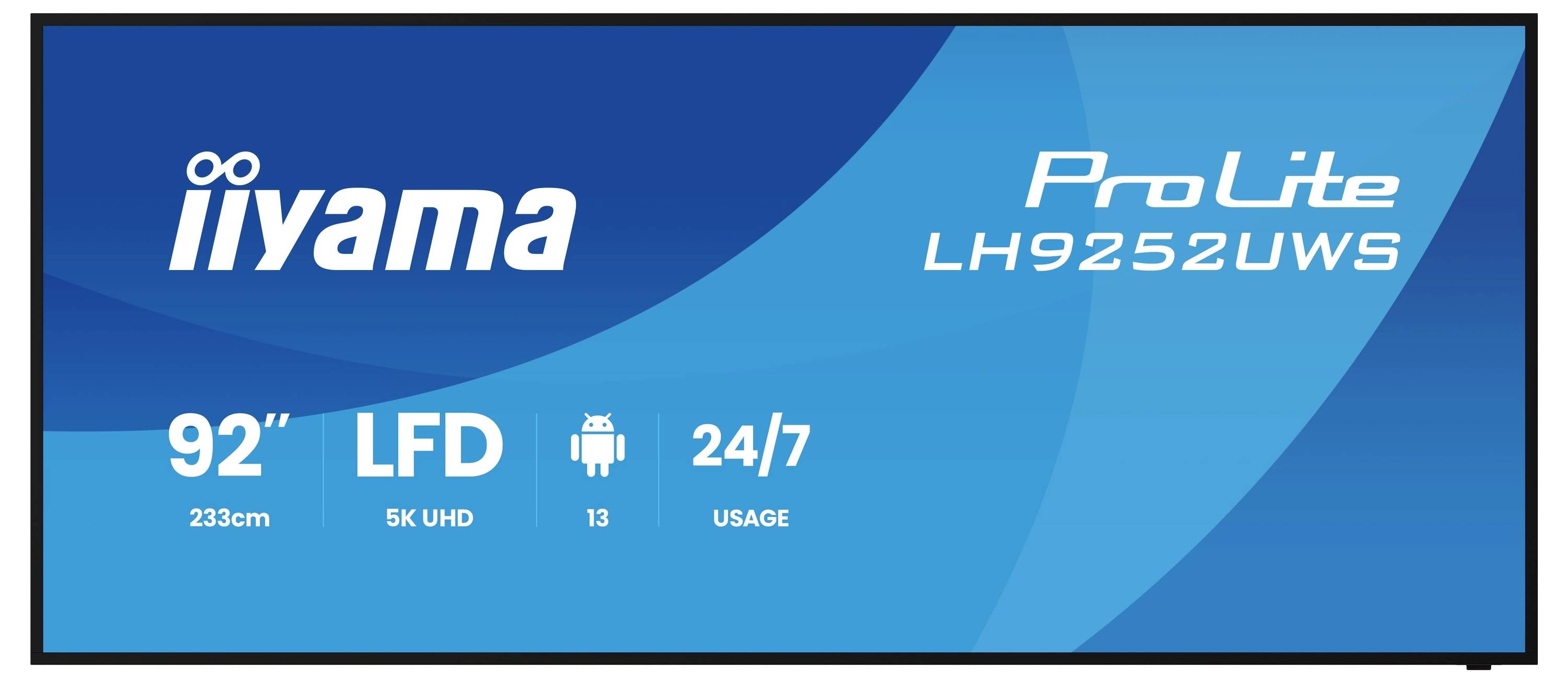

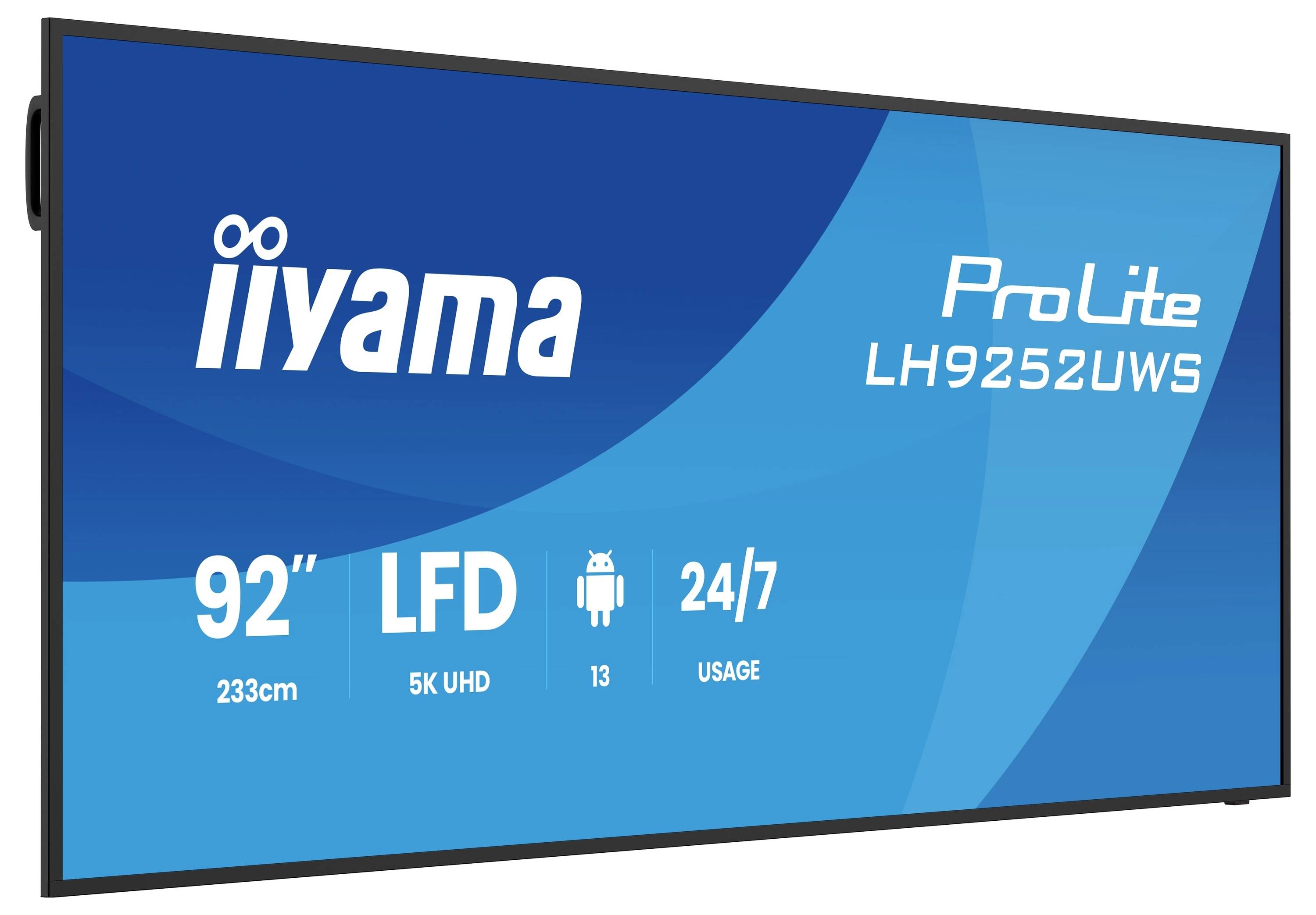

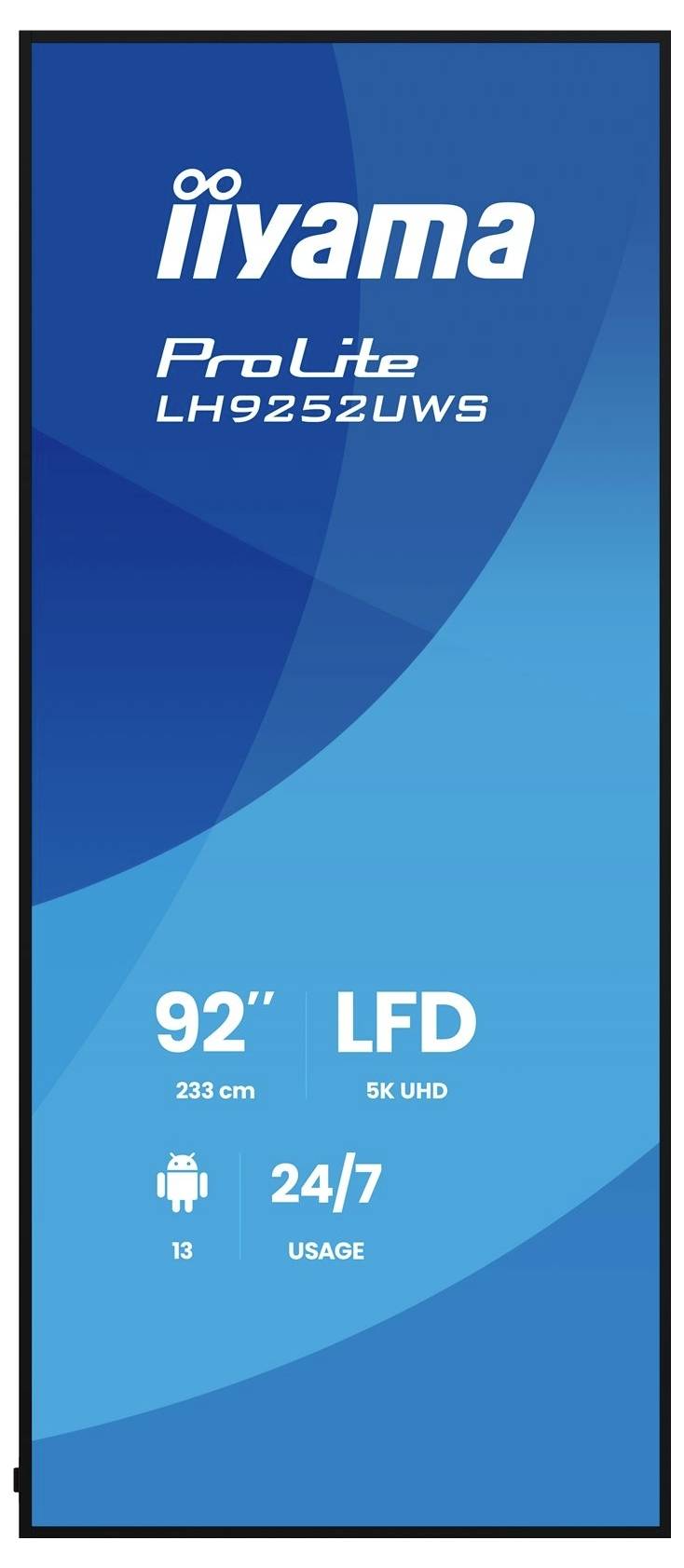

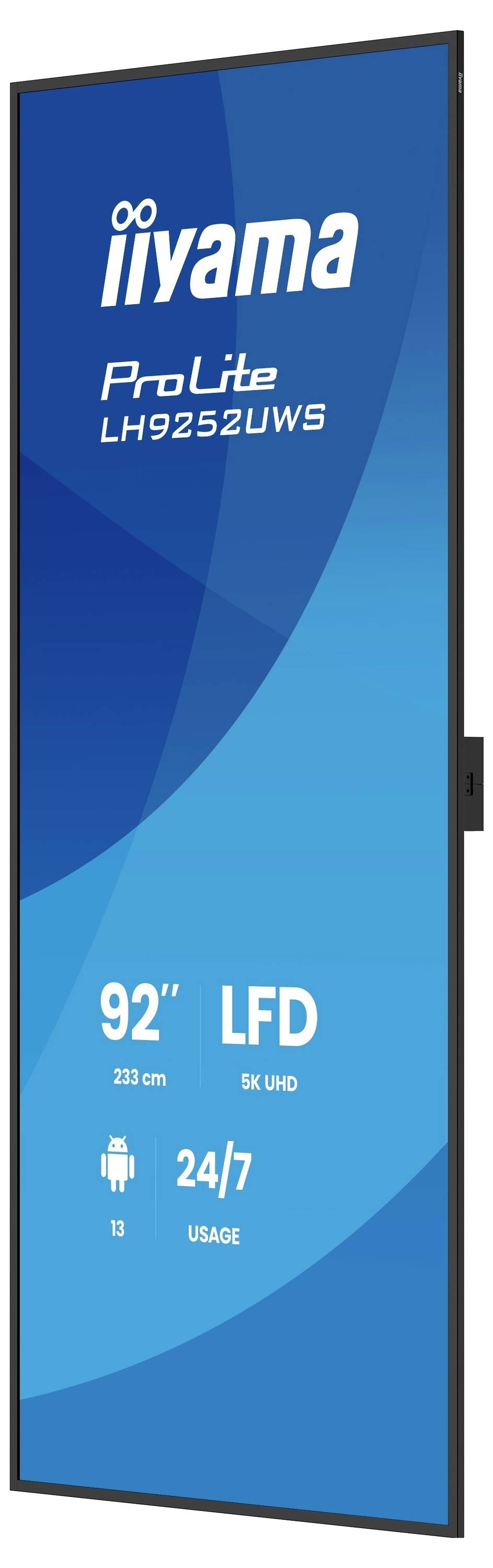

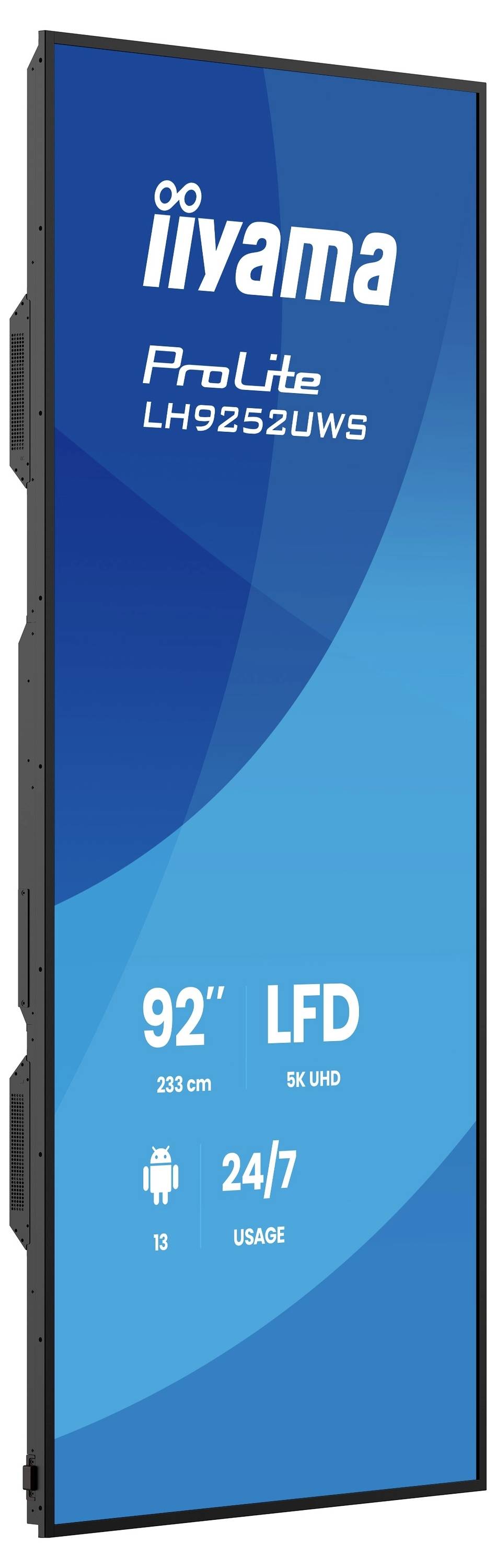

Iiyama 233 cm (92"") LH9252UWS-B1AG Digital signage display
- Screen size diagonal: 233 cm (92 inch)
- Display resolution: 5120 x 2160 Pixel
- Energy efficiency rating (calc): G (A - G)
- Operating time (console): 24/7
Technical specifications
- Panel type VA
- Contrast ratio 5000:1
- Contrast ratio (dynamic): 5000:1
- Installed operating system: Android™
- Product type
Digital signage display
- Screen size diagonal (inches)
92 inch
- Operating time (console)
24/7
- Display resolution
5120 x 2160 Pixel
- Image format
21:9
- Frame rate
60 Hz
- Image enhancement
60 Hz
- No. of USB ports
3 x
- Power supply (details)
100 - 240 V
- Power consumption (standby)
0.5 W
800 x 600 mm
- Dim
(W x H x D) 2182 x 943.8 x 85.2 mm
- Width
2182 mm
- Height
943.8 mm
- Depth
85.2 mm
- Height (without base)
943.8 mm
- Device depth (without stand)
85.2 mm
- Weight
44 kg
- Weight (without base)
44 kg
G (A - G)
- Display
233.7 cm (92 inch)
- Display (cm)
233.7 cm
- Screen size diagonal (cm)
233 cm
- Screen size diagonal (inches)
92 inch
- Power consumption (off)
0.3 W
- Power consumption (ON)
201 W
- No. of DisplayPort
1 x
- Memory capacity
128 GB
- 10/100/1000 Mbps ports
2 x
- Brightness
500 cd/m²
- Type
internal
- Response time
6.5 ms
8 GB
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- Wi-Fi
Yes
- Anti-glare screen
yes
- Operating temperature (T-T)
0 - 40 °C
- Ethernet LAN
yes
- RS-232C
yes
- Active display area (W x H)
2141,952 x 903,636 mm
- Remote control included
yes
- Number of built-in speakers
2
- OPS slot
1
- Built-in speaker(s)
yes
- Haze rate
25 %
- On Screen Display (OSD)
yes
- Horizontal scan range
30 - 135 kHz
- OPS module slot
yes
- HDMI input ports quantity
1
- Quick start guide
yes
- Pallet net length
12 cm
- Pallet net width
2.38 m
- Pallet net height
114 cm
- Products per pallet
50 Stück(e)
- Storage temperature (T-T)
-20 - 60 °C
- Package weight
63 kg
- Built-in processor
yes
- Bezel width (side)
1.49 cm
- Bezel width (top)
1.49 cm
- Bezel width (bottom)
1.49 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3796698 Iiyama 233 cm (92"") LH9252UWS-B1AG Digital signage display EEC: G (A - G) 233 cm 92 inch 5120 x 2160 Pixel 24/7
Description
The ProLite LH9252UWS-B1AG features an impressive 92" (232.5 cm) 5K Ultra Wide VA panel with USB-C port, Android operating system and integrated speakers with subwoofer, making it the ideal solution for collaborative workspaces, digital signage and immersive presentation environments.
This text is machine translated.
This text is machine translated.
Features
- High-resolution display
- The 92-inch LCD display features a 5120 x 2160 5K UHD resolution and delivers sharp, detailed images for superb image clarity.
- Rugged design for commercial use
- Designed for continuous operation, this display supports 24/7 use and is therefore suitable for Ideal for digital signage in busy environments.
- Powerful audio experience
- Equipped with an audio system, it has two integrated speakers and a subwoofer that deliver a total power of 60 W for an excellent sound quality.

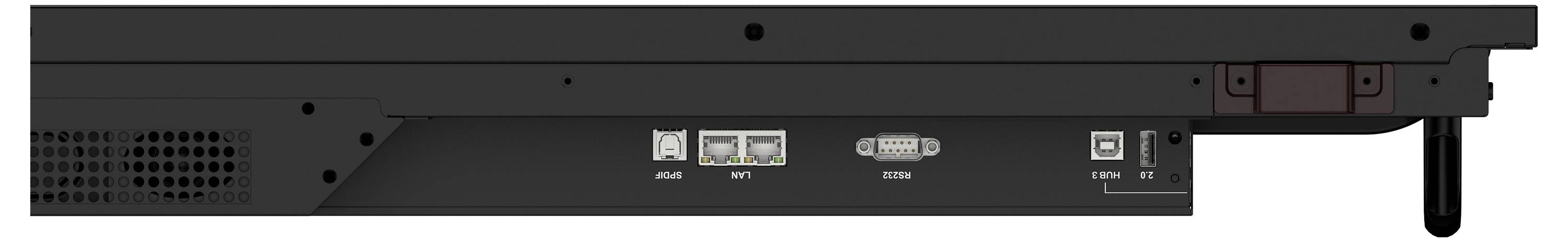

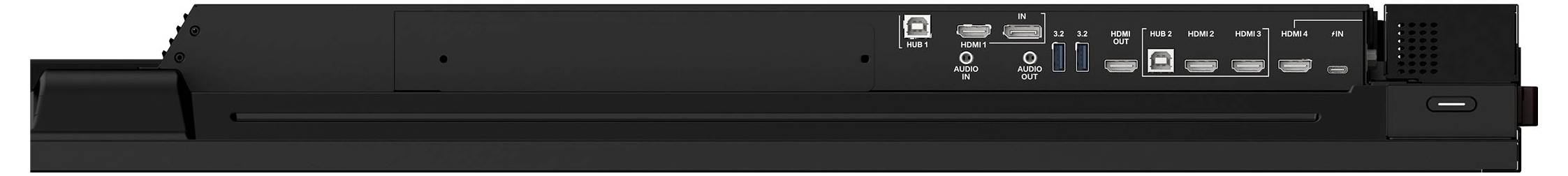

- Versatile connectivity options

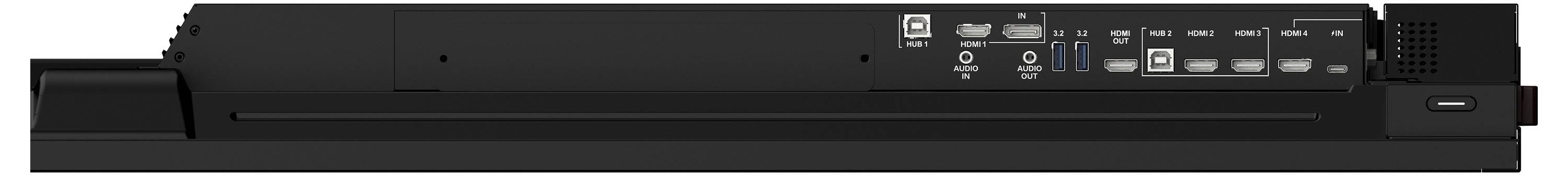

- The display has four HDMI inputs, a USB-C connection with DisplayPort 1.2 as well as numerous other connection options for various devices.
- Technology for image optimization
- It has a wide color space that supports 1.07 billion colors and thus provides lively and natural images for an enchanting viewing experience.
