Name: Iiyama 265,9 cm (105"") LH10552UWS-B1AG 2 Digital signage display EEC: G (A - G) 265.68 cm 104.6 inch 5120 x 2160 Pixel
Brand: Iiyama
SKU: 3796696

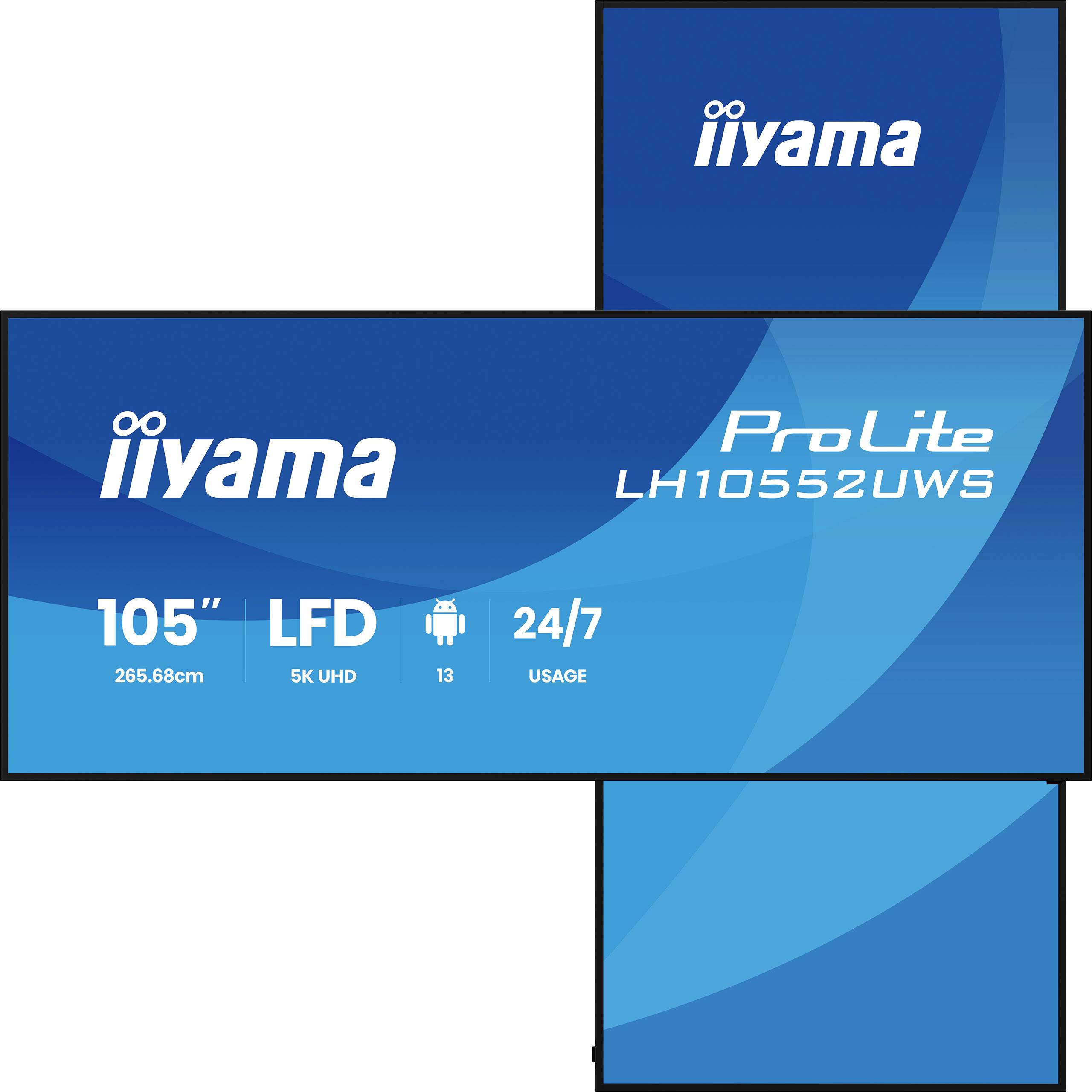

Iiyama ProLite LH1052UWS 105-inch LFD display packaging, showing 5K UHD, 24/7 usage, and Android 13 icons.

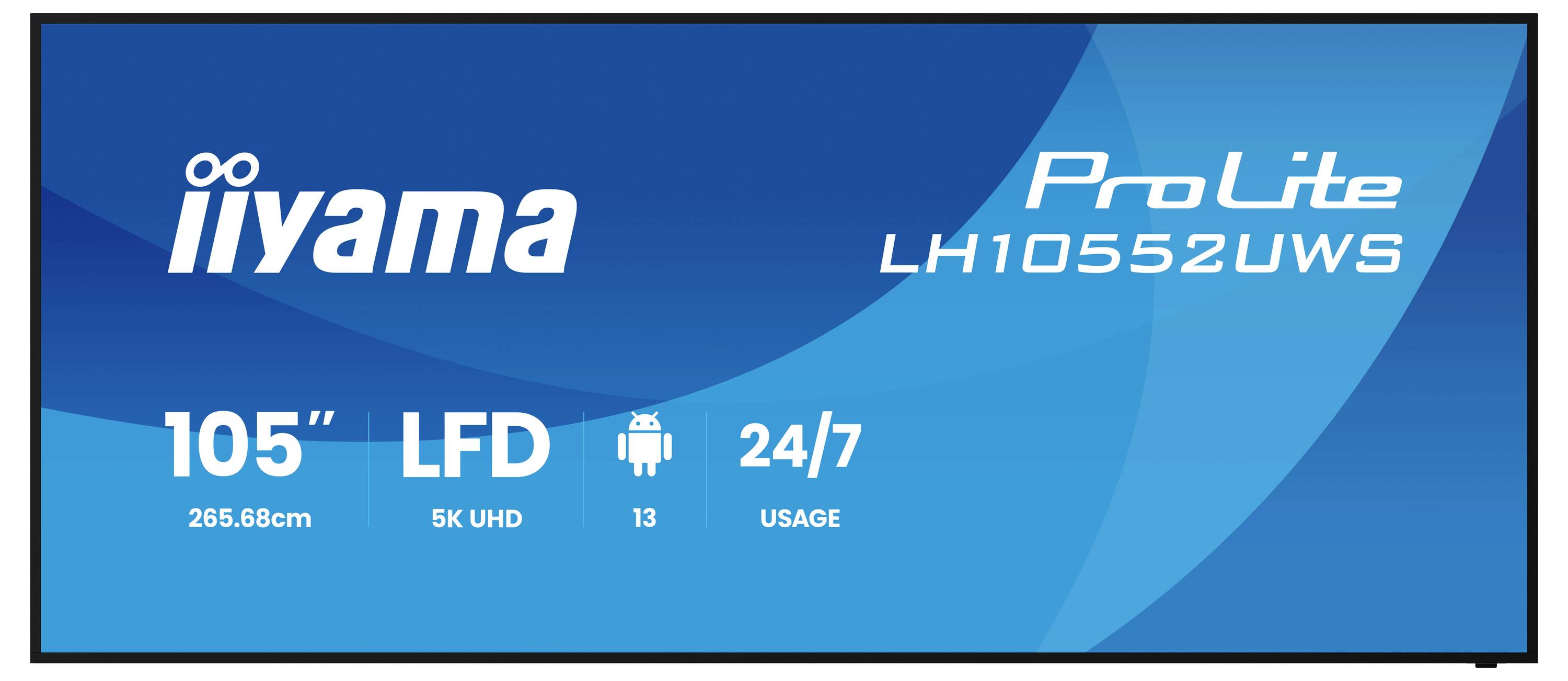

Blue product ad for an iiyama ProLite LH10552UWS 105-inch 5K UHD LFD, showing 24/7 usage and Android 13 compatibility.

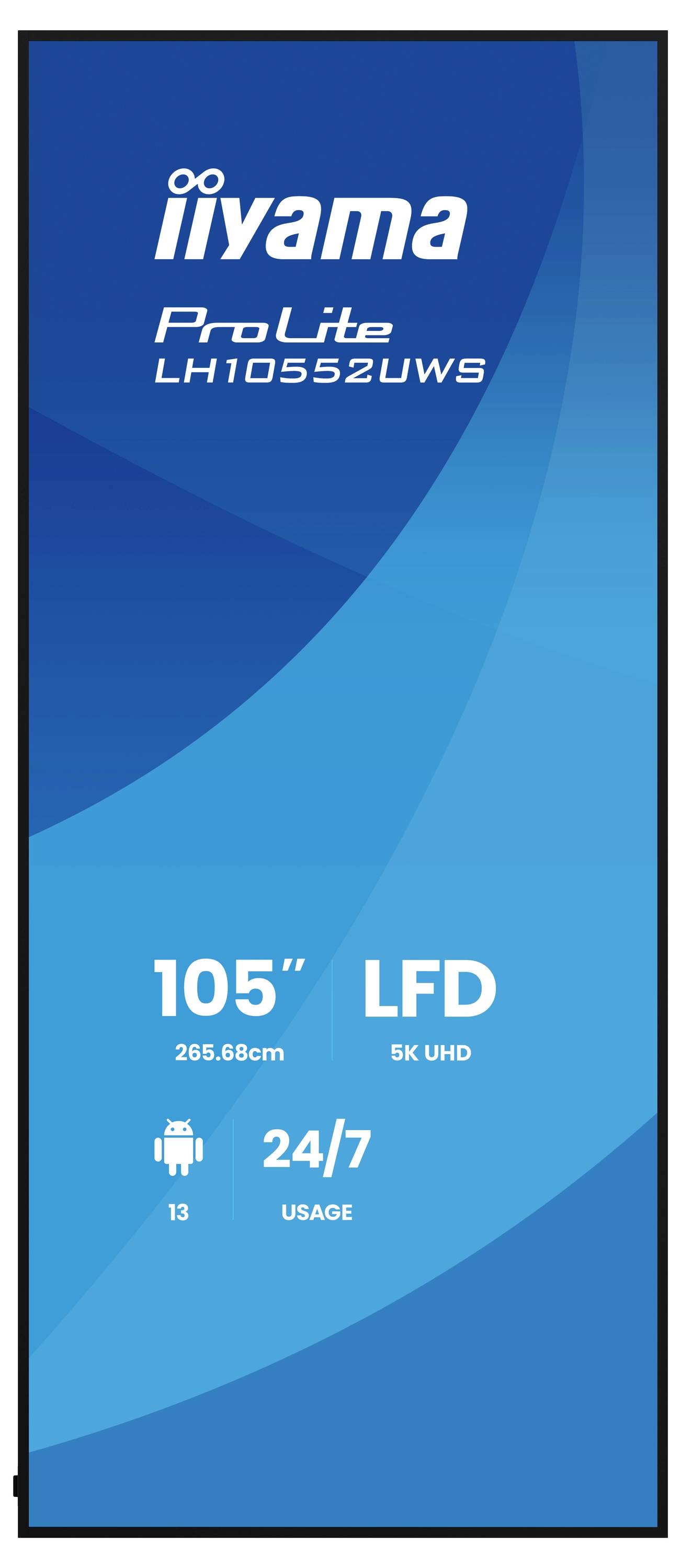

Blue iiyama ProLite LH10552UWS display poster showing 105-inch LFD with 256.6 cm, 5K UHD, Android, 24/7 usage and 13 mm bezel.

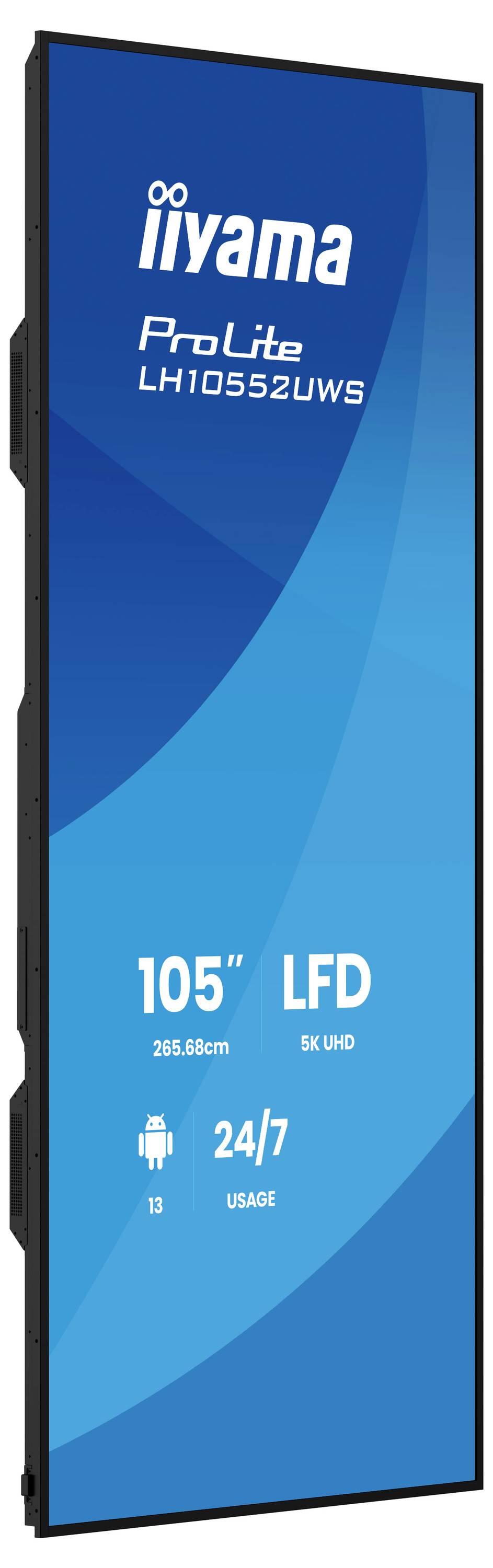

Product image of an iiyama ProLite LH10552UWS 105-inch 5K UHD digital signage display, showing 24/7 usage and Android support.

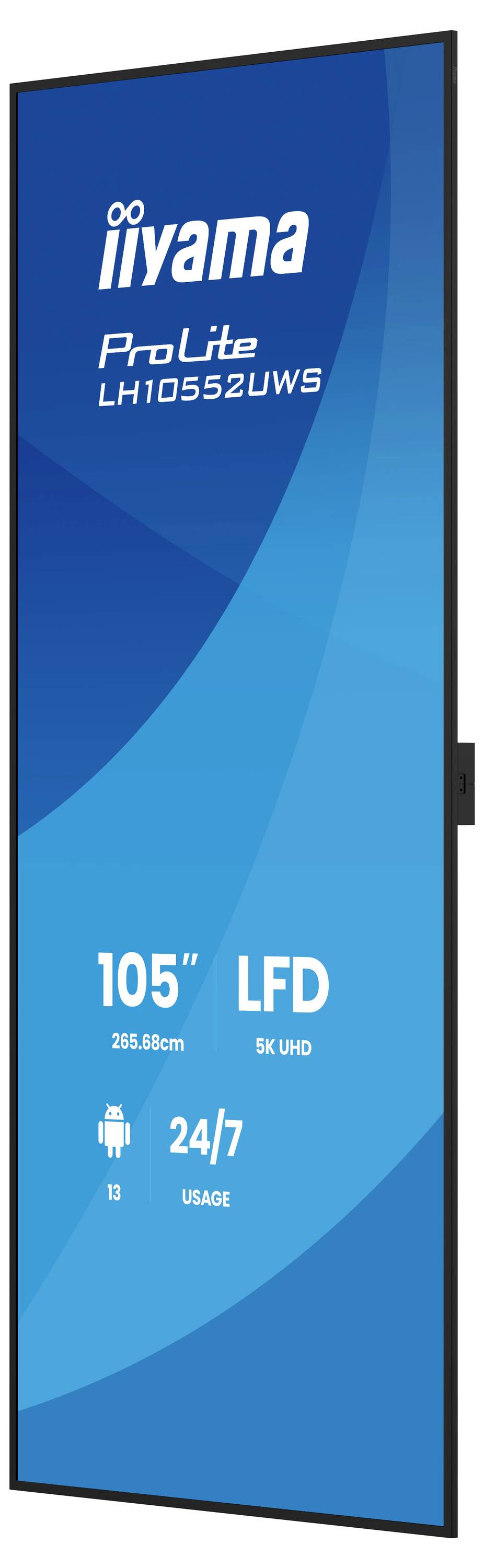

Promotional image of an Iiyama ProLite LH10552UWS 105-inch LCD display with 24/7 usage rating.

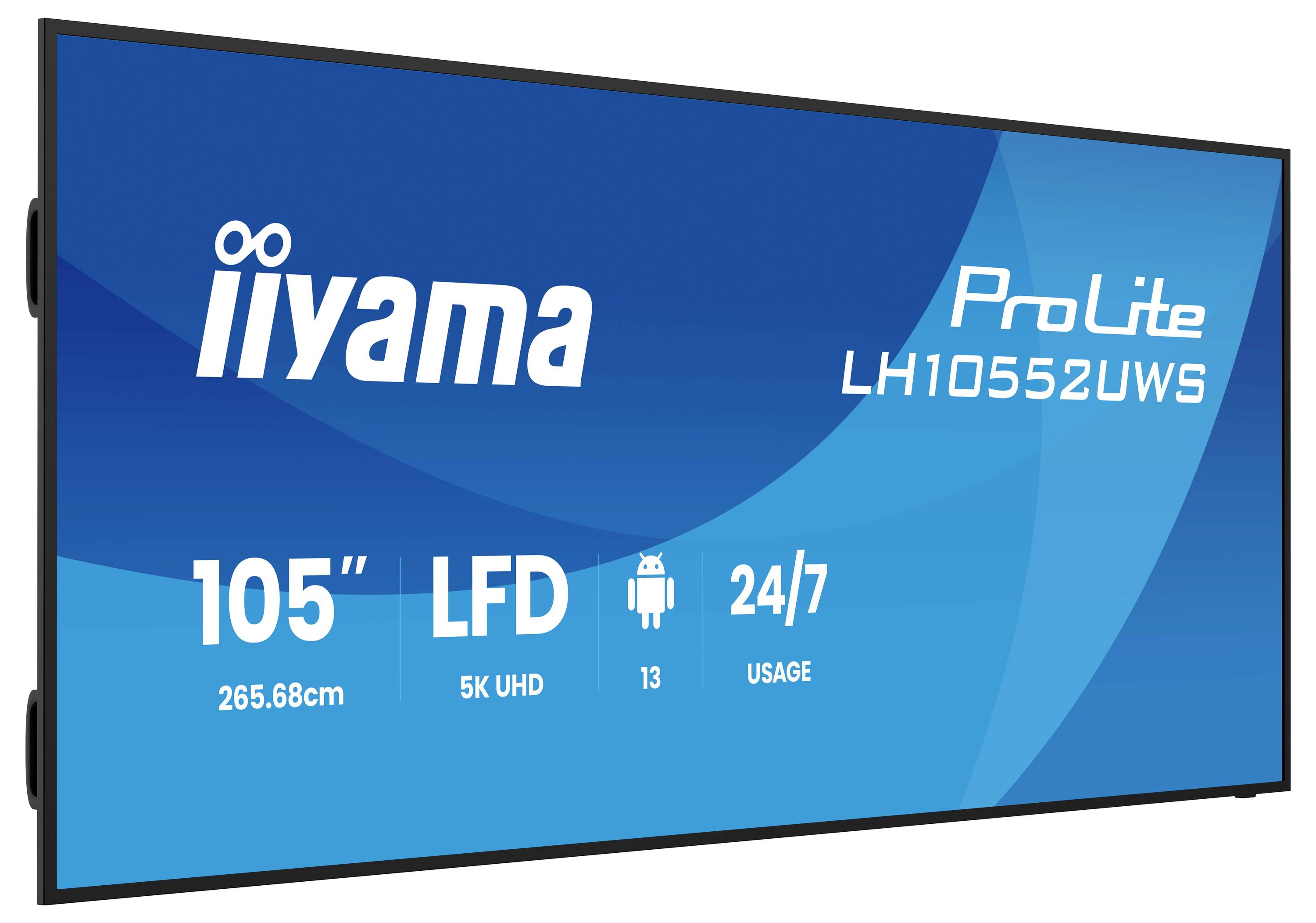

Product image of an iiyama ProLite LH10552UWS 105-inch LFD display, showing 5K UHD, Android 13, and 24/7 usage features.

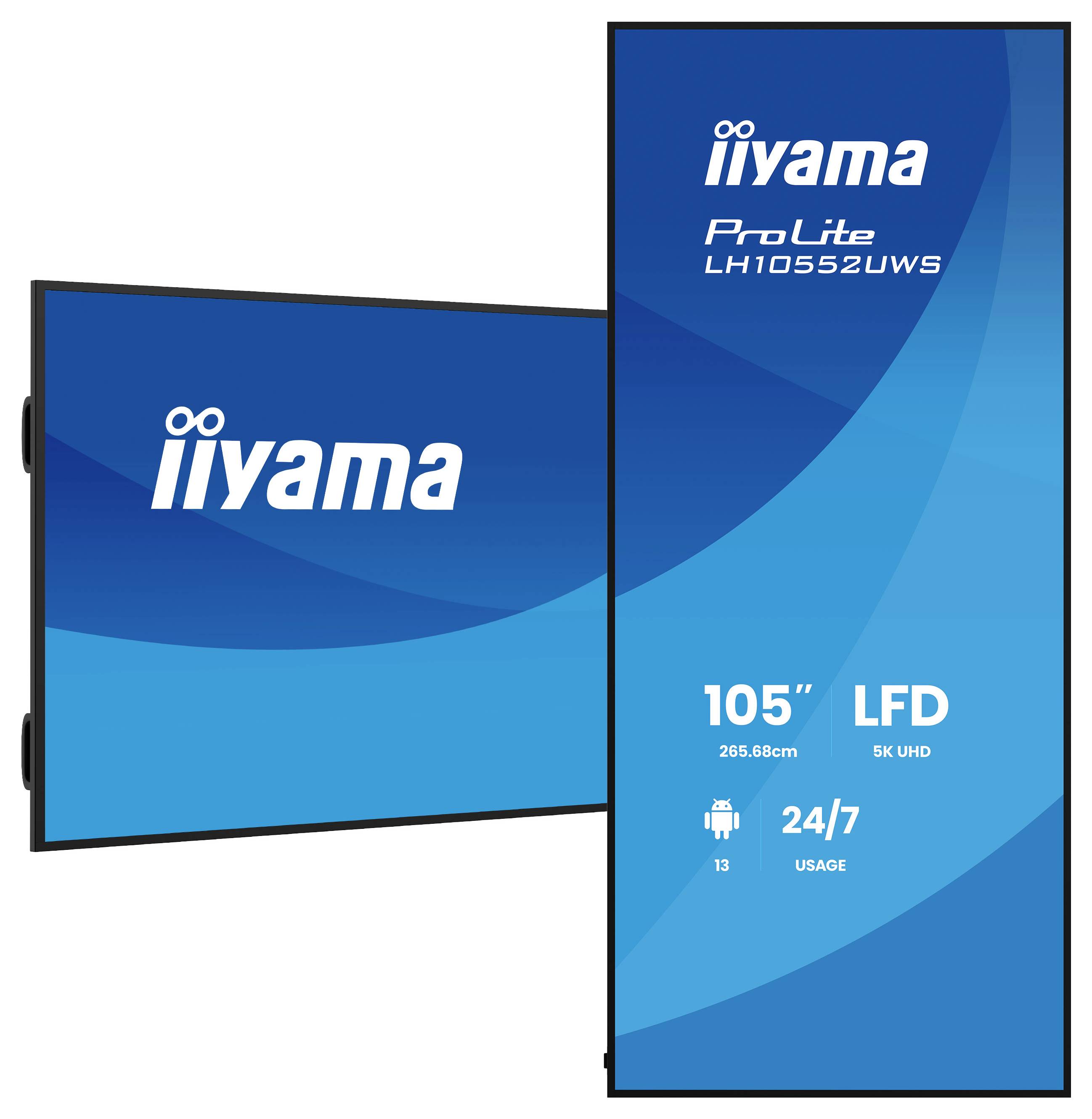

Image of an iiyama ProLite LH1052UWS 105-inch 5K UHD display with a blue screen, shown in landscape and portrait orientations.<br>

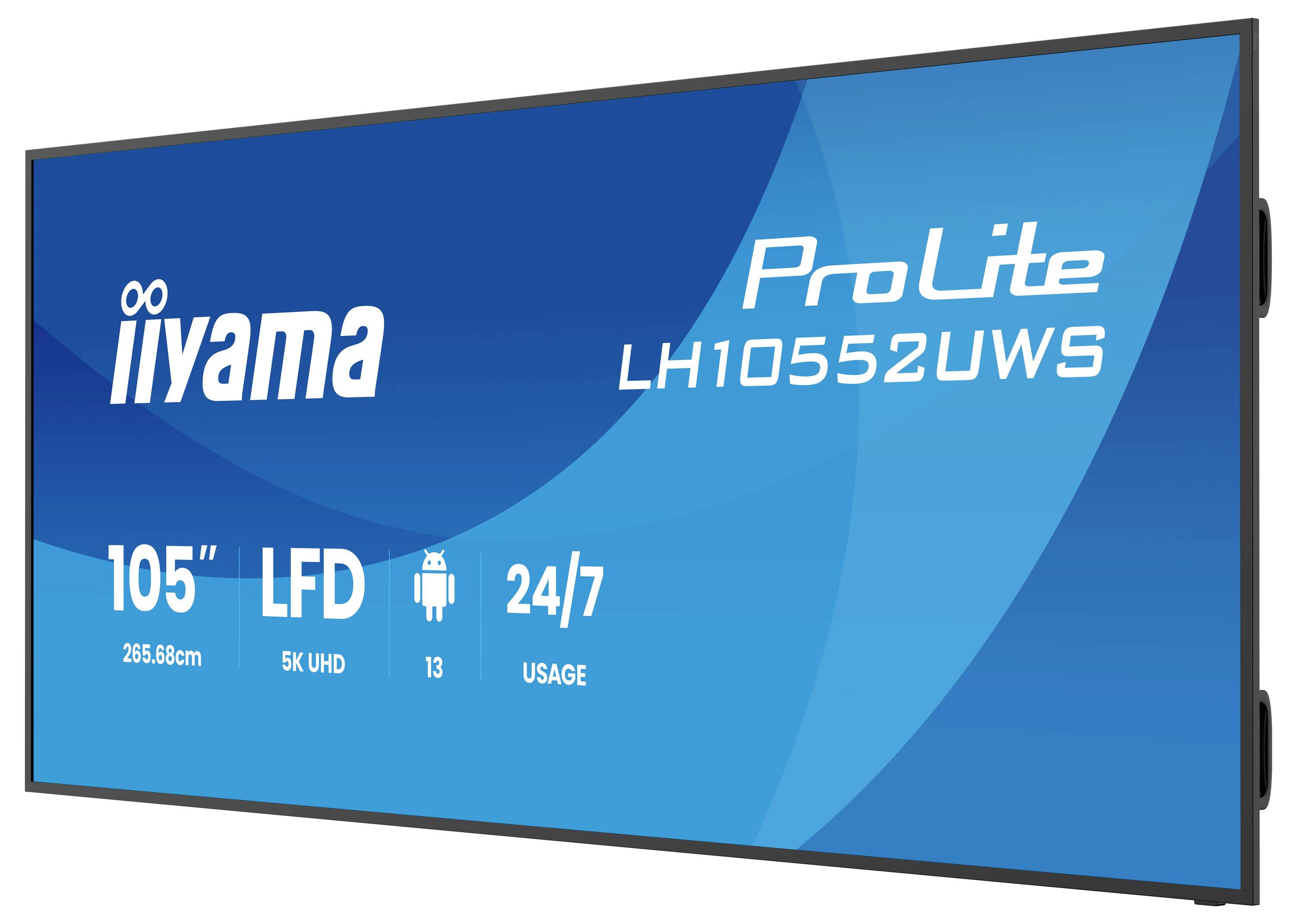

Iiyama ProLite LH10552UWS 105-inch 5K UHD LFD display, with 24/7 usage and Android 13 icons shown on a blue screen.

Side view of a black electronic door lock with a long handle, keypad, and keycard reader, shown against a plain background.

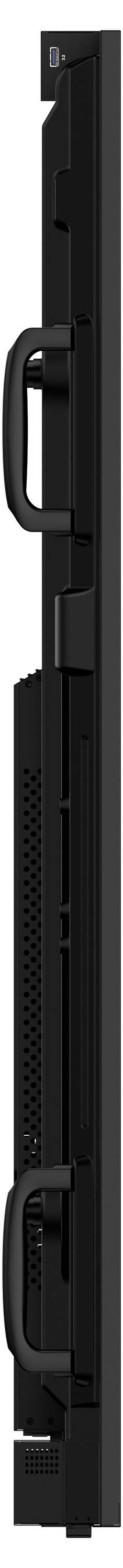

Side view of a black flat-screen monitor with a narrow bezel and rectangular stand, shown vertically against a white background.

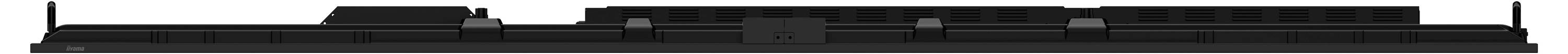

Close-up of a black device dock or console front edge with a centered latch or port detail.

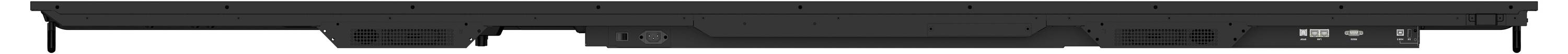

Bottom edge of a black flat-screen TV or monitor on a light background.

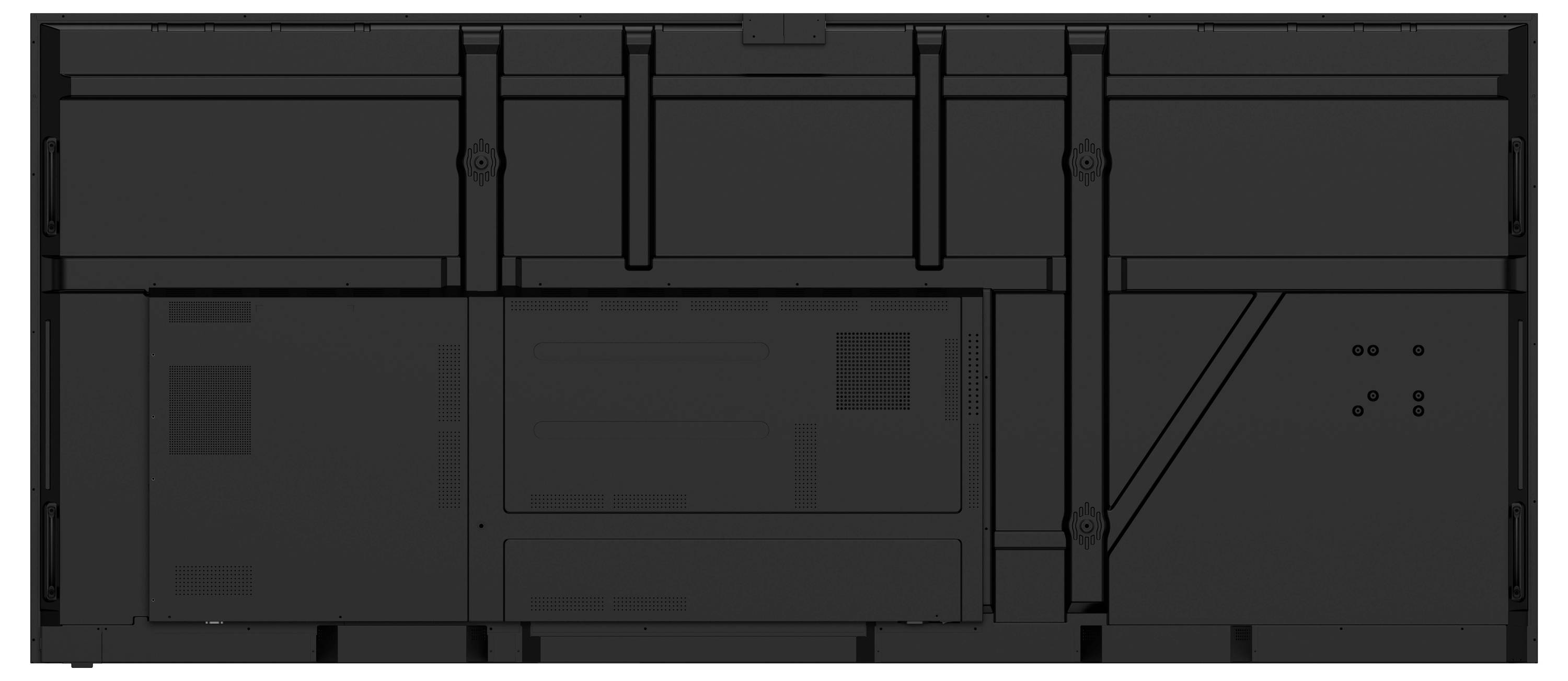

Dark gray technical schematic of a rectangular modular panel, showing segmented sections, joints, and corner markings.

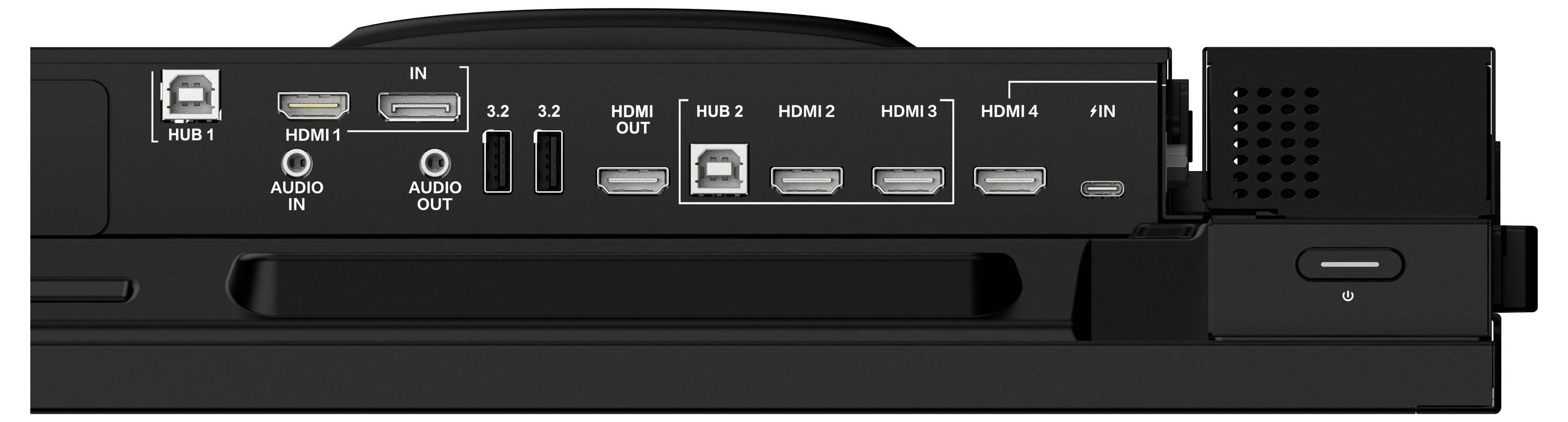

Rear view of a hub/device showing labeled ports: Hub 1 and Hub 2, HDMI 1-4, USB 3.2, audio in/out, and power/input connections.

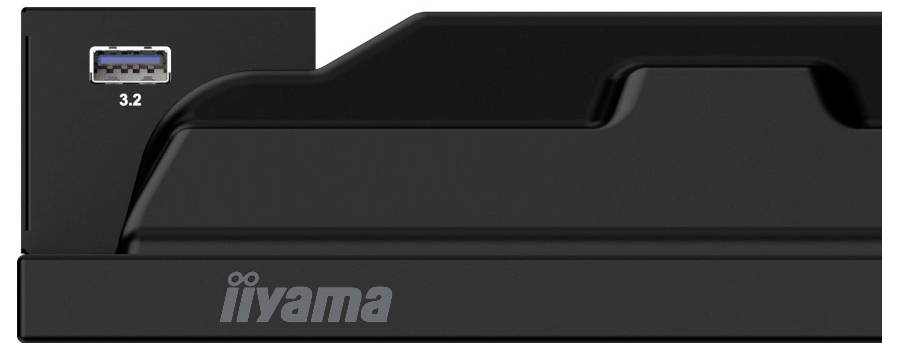

Black Iiyama device front with blue USB 3.2 port on the left and an integrated cover or stand on the right.

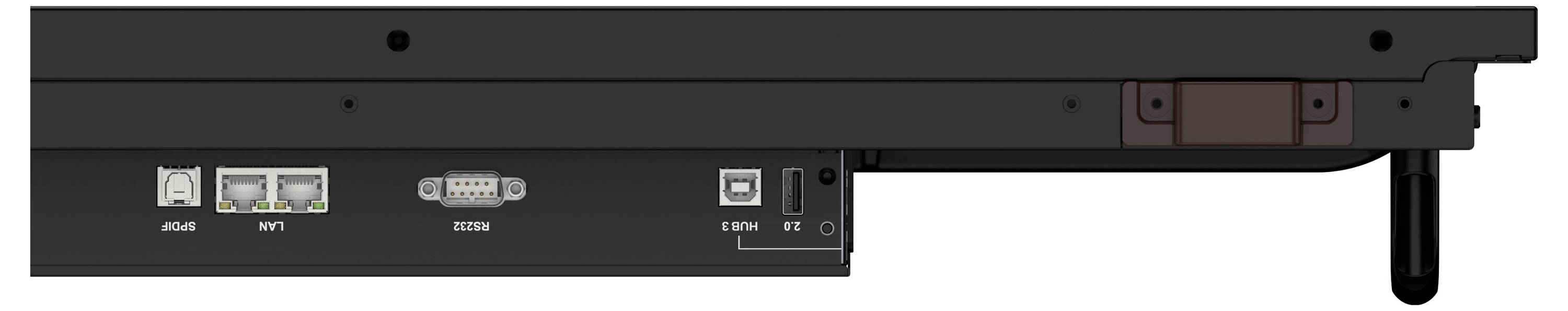

Close-up of the underside of a laptop dock or stand, showing labeled ports and a support leg on the right.

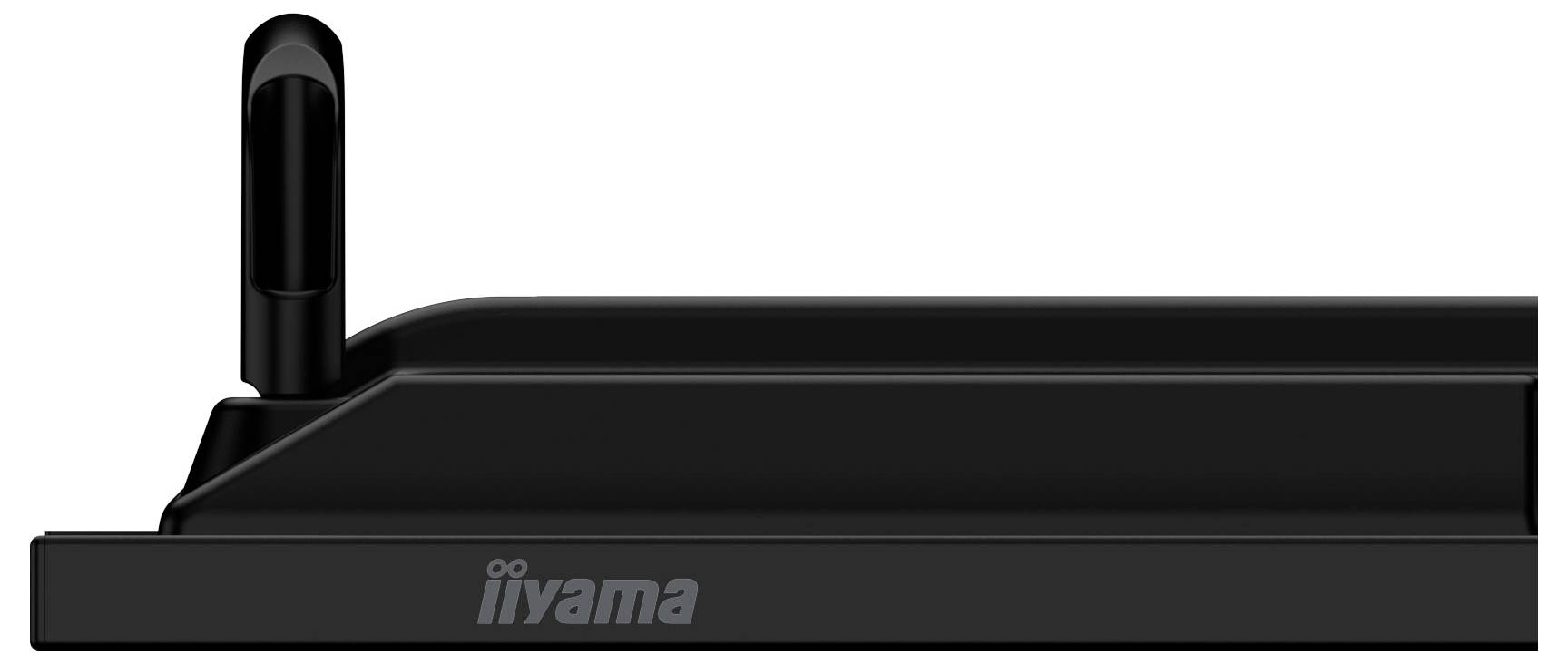

Black iiyama monitor viewed from the side, showing the base and upright stand on a white background.

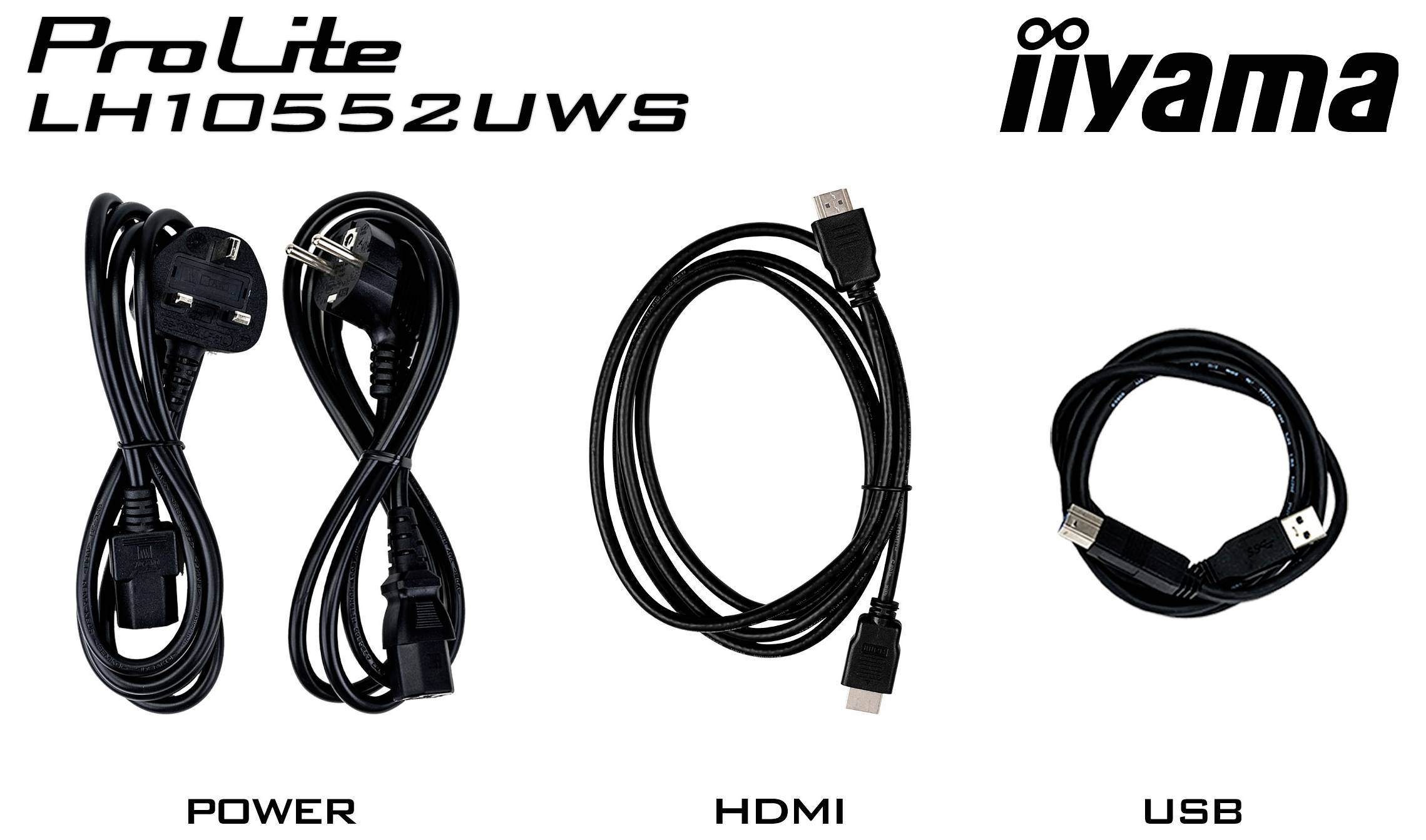

Product image of iiyama ProLite LH1055UWS showing included cables: power, HDMI, and USB.<br>

1/18

Product data sheet

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Iiyama 265,9 cm (105"") LH10552UWS-B1AG 2 Digital signage display

Screen size diagonal: 265.68 cm (104.6 inch)
Display resolution: 5120 x 2160 Pixel
Energy efficiency rating (calc): G (A - G)
Operating time (console): 24/7

Technical specifications

HD type Ultra-wide 5K HD
Contrast ratio 1200:1
Contrast ratio (dynamic): 5000:1
Built-in graphics card model: ARM Mali-G610 MP4
Installed operating system: Android™

Product type: Digital signage display

Screen size diagonal (inches): 104 inch

Operating time (console): 24/7

Display resolution: 5120 x 2160 Pixel

Image format: 21:9

Frame rate: 60 Hz

Image enhancement: 60 Hz

No. of USB ports: 3 x

Power supply (details): 100 - 240 V

Power consumption (standby): 0.5 W

Dim: (W x H x D) 2489.9 x 1081.4 x 77 mm

Width: 2489.9 mm

Height: 1081.4 mm

Depth: 77 mm

Height (without base): 1081.4 mm

Device depth (without stand): 77 mm

Weight: 53.5 kg

Weight (without base): 53.5 kg

: G (A - G)

Display: 265.7 cm (104.6 inch)

Display (cm): 265.7 cm

Screen size diagonal (cm): 265.68 cm

Screen size diagonal (inches): 104.6 inch

Power consumption (off): 0.3 W

Power consumption (ON): 248 W

Display properties: IPS

No. of DisplayPort: 1 x

Memory capacity: 128 GB

10/100/1000 Mbps ports: 2 x

Brightness: 500 cd/m²

Type: internal

Response time: 8 ms

: 8 GB

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Wi-Fi: Yes

Anti-glare screen: yes

Operating temperature (T-T): 0 - 40 °C

Ethernet LAN: yes

RS-232C: yes

Active display area (W x H): 2449,92 x 1033,56 mm

Remote control included: yes

Number of built-in speakers: 2

OPS slot: 1

Built-in speaker(s): yes

Haze rate: 25 %

On Screen Display (OSD): yes

Horizontal scan range: 30 - 135 kHz

OPS module slot: yes

HDMI input ports quantity: 1

Quick start guide: yes

Pallet net length: 12.9 cm

Pallet net width: 2.38 m

Pallet net height: 114 cm

Products per pallet: 32 Stück(e)

Storage temperature (T-T): -20 - 60 °C

Package weight: 79.5 kg

Built-in processor: yes

Bezel width (side): 1.49 cm

Bezel width (top): 1.49 cm

Bezel width (bottom): 1.49 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3796696 Iiyama 265,9 cm (105"") LH10552UWS-B1AG 2 Digital signage display EEC: G (A - G) 265.68 cm 104.6 inch 5120 x 2160 Pixel

Description

The ProLite LH10552UWS-B1AG offers a breathtaking 5K ultra-wide resolution on a 105" (265.68 cm) IPS panel and is suitable for Ideal for hybrid meetings, control rooms and captivating presentations. With USB-C port, 100 W power supply, Android operating system and integrated speakers with subwoofer, it is a complete all-in-one solution for modern working environments.

This text is machine translated.

Hints

HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
