Iiyama 65" Bonded PCAP Anti-glare Bezel Free 40 Digital signage display EEC: F (A - G) 163.9 cm 64.5 inch 3840 x 2160 Pi
EAN:
Part number:
Item no:
Highlights & Details

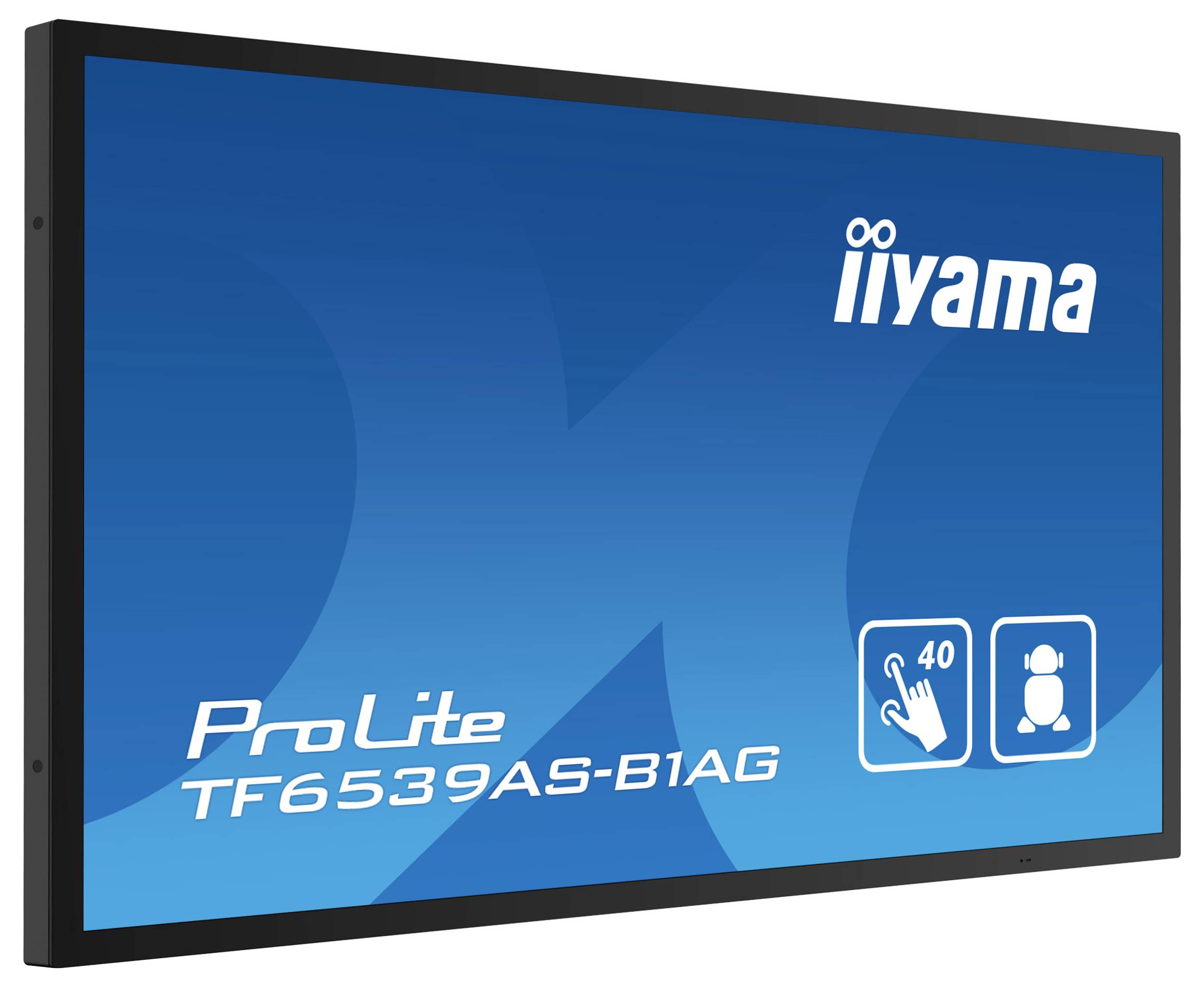

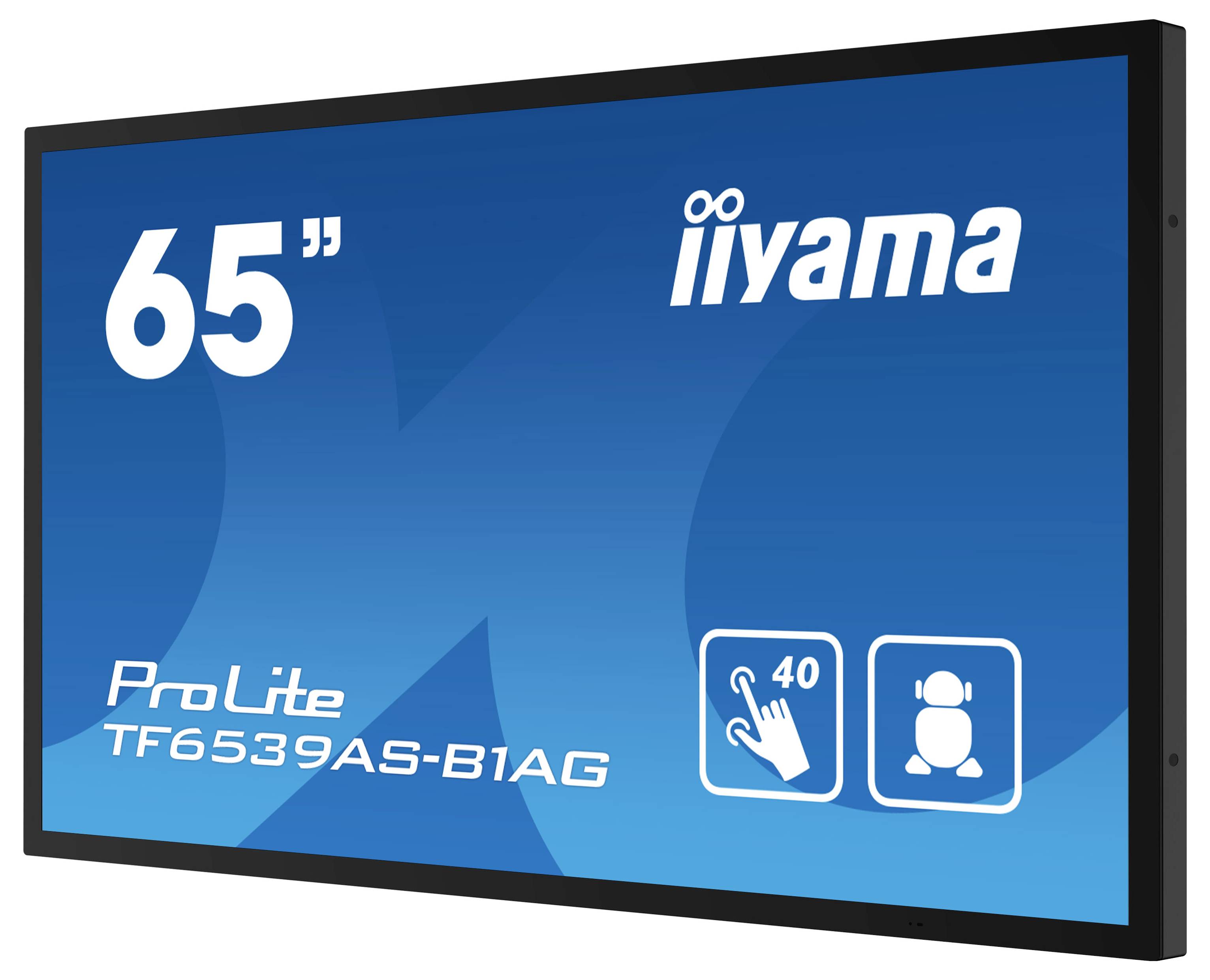

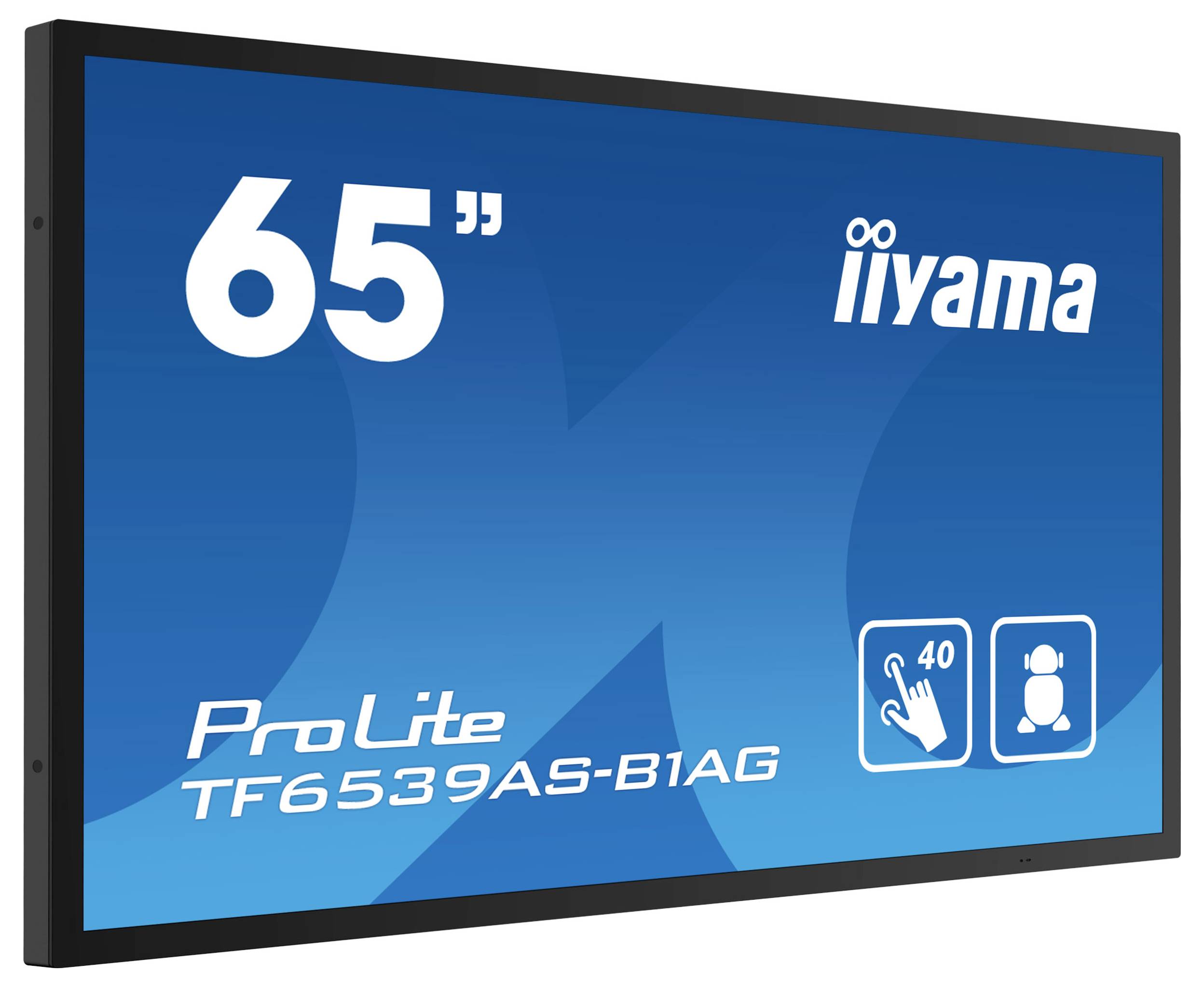

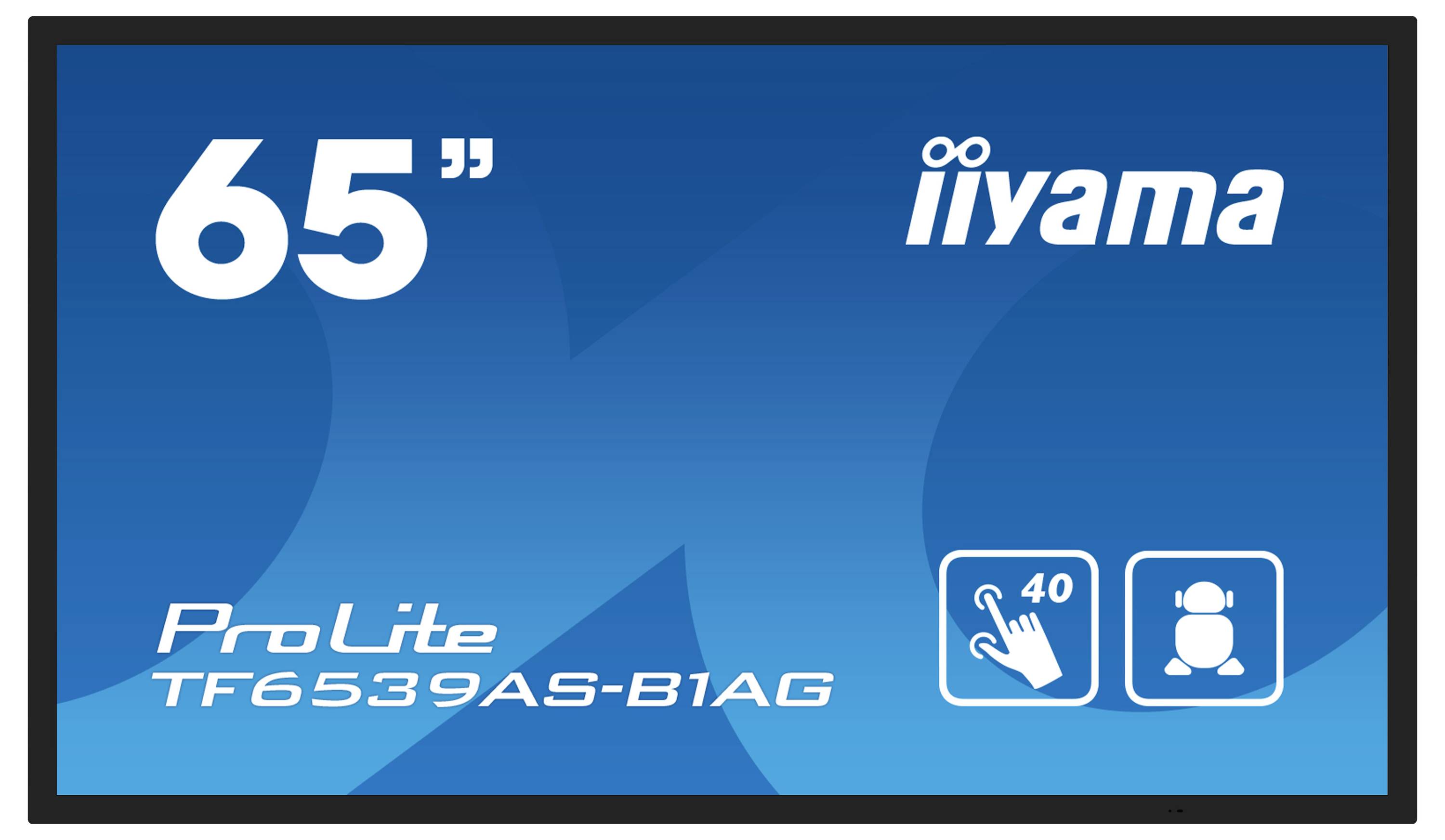

Iiyama 65" Bonded PCAP Anti-glare Bezel Free 40 Digital signage display
- Screen size diagonal: 163.9 cm (64.5 inch)
- Display resolution: 3840 x 2160 Pixel
- Energy efficiency rating (calc): F (A - G)
- Multi-Touch, Android™, Software included, Built-in media player
- Operating time (console): 24/7
Technical specifications
- HD type 4K Ultra HD
- Screen technology: LED
- Contrast ratio 1200:1
- 0.372 x 0.372 mm pixel distance
- Installed operating system: Android™
- HDMI version 2.0
- Supported positioning: Indoors
- USB-Plug USB Typ-A, USB Typ-B
- Product type
Digital signage display
- Screen size diagonal (inches)
64 inch
- Features
Multi-Touch
Android™
Software included
Built-in media player
- Display technology
LED
- Operating time (console)
24/7
- Brightness
500 cd/m²
- Static contrast ratio
1200 : 1
- Display resolution
3840 x 2160 Pixel
- Dot pitch (horizontal)
0.372 mm
- Dot pitch (vertical)
0.372 mm
- Image format
16:9
- Frame rate
60 Hz
- Image enhancement
60 Hz
- Network/internet function
Apps
- Controller
App
Touchscreen
- No. of USB ports
3 x

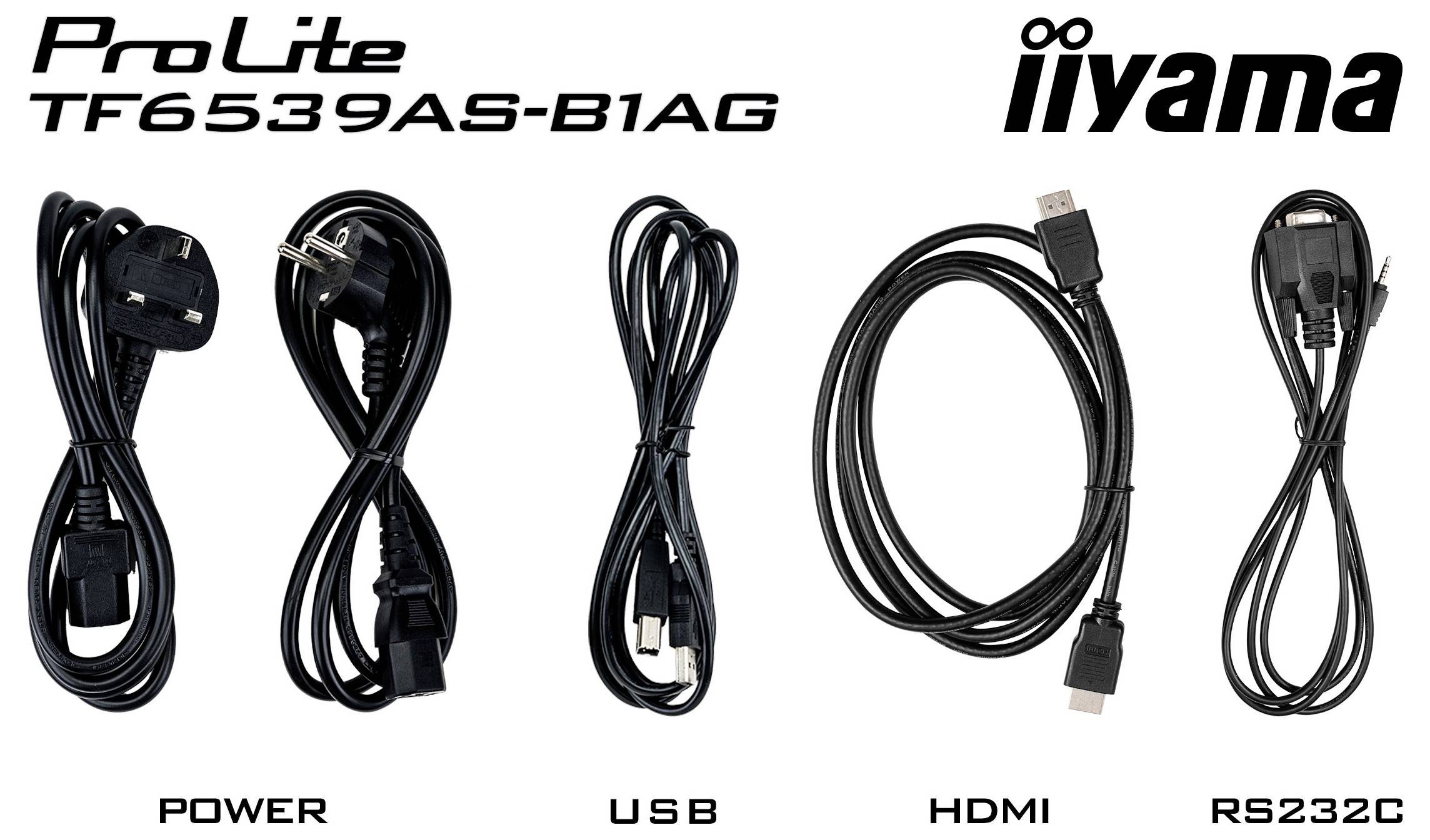

- Interfaces
USB type B
USB type A
HDMI® 2.0b
- Power supply (details)
100 - 240 V
- Power consumption (standby)
0.5 W
400 x 400 mm
- Factory colour
Black
- Dim
(W x H x D) 1495 x 870 x 66 mm
- Width
1495 mm
- Height
870 mm
- Depth
66 mm
- Weight
53.7 kg
F (A - G)
- Display
163.8 cm (64.5 inch)
- Screen resolution
Ultra HD (3840 x 2160 Pixel)
- Display (cm)
163.8 cm
- Screen size diagonal (cm)
163.9 cm
- Screen size diagonal (inches)
64.5 inch
102 kWh/year
- Power consumption (off)
0.3 W
- Power consumption (ON)
183 W
- Display properties
IPS
- No. of DisplayPort
1 x
- No. of HDMI ports
2 x
IP65
- Touchscreen (display)
Yes
- HDCP
Yes
- 10/100/1000 Mbps ports
1 x
- Audio power (max.)
20 W
- Brightness
500 cd/m²
- Type
internal
- Response time
8 ms
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- UKCA
yes
- Number of speakers
2
- Anti-glare screen
yes
- Multi-touch
yes
- Operating temperature (T-T)
0 - 40 °C
- Number of simultaneous touchpoints
40
- Ethernet LAN
yes
- RS-232C
yes
- Active display area (W x H)
1428,5 x 803,5 mm
- Remote control included
yes

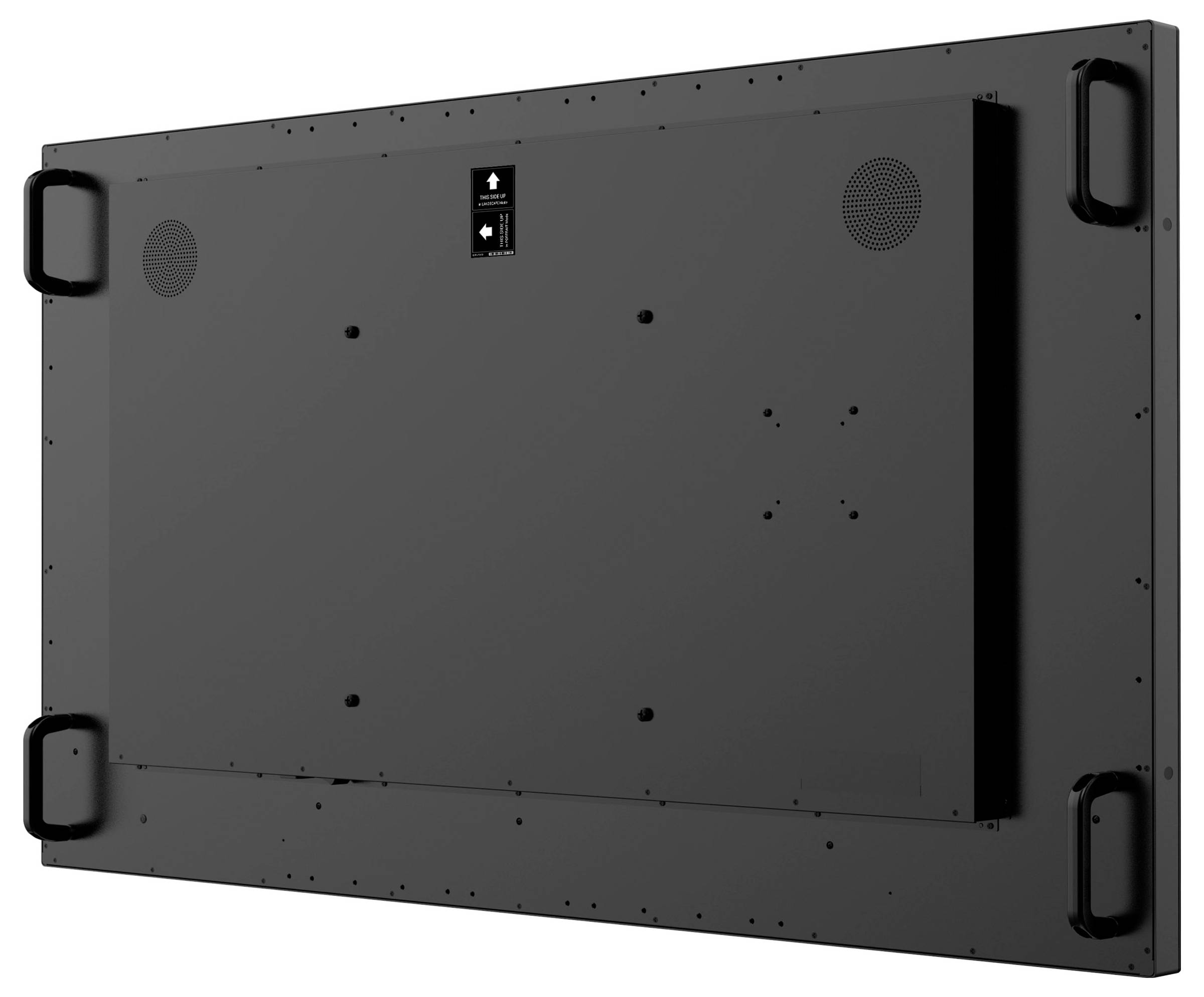

- VESA mounting
yes
- DVI port
no
- Package volume
65000 cm³
- Remote control batteries included
yes
- Built-in speaker(s)
yes
- Haze rate
25 %
- On Screen Display (OSD)
yes
- Horizontal scan range
28 - 160 kHz
- USB Touch port
yes
- Quick start guide
yes
- Energy consumption (SDR) per 1000 hours
102 kWh
- Positional accuracy
2.5 mm
- Batteries included
yes
- Mean time between failures (MTBF)
50000 h
- LED backlight
yes
- Storage temperature (T-T)
-20 - 60 °C
- Number of OSD languages
13
- Package weight
65 kg
- Built-in processor
yes
- Bezel width (side)
3.15 cm
- Bezel width (top)
3.15 cm
- Bezel width (bottom)
3.15 cm
- Glass thickness
4 mm
- Viewable size, horizontal
142.8 cm
- Viewable size, vertical
80.3 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3330809 Iiyama 65" Bonded PCAP Anti-glare Bezel Free 40 Digital signage display EEC: F (A - G) 163.9 cm 64.5 inch 3840 x 2160 Pi
Description
Experience an interactive all-in-one display that combines the best PCAP touch-screen technologies with the versatility and possibilities of the Android operating system and can be easily adapted to your own needs by installing applications directly. It offers a powerful yet flexible operating experience and promotes creative communication with the advantages of a secure and easy-to-use touch screen. The stylish Edge-to-Edge glass design of the TF6539AS-B1AG is suitable for integration in a variety of environments where sophisticated design and functionality are required, such as conference rooms, retail shops and kiosks. The integrated iiSignage² CMS (Content Management System) gives you total security and control over your messaging and advertising. The Eshare APP makes it easy for you to develop and share ideas efficiently in your company or school. The Eshare APP allows you to use wireless media effortlessly, while the signal failover function ensures that content is always displayed actively through the inputs you select. For easy integration, the TF6539AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).
This text is machine translated.
This text is machine translated.
