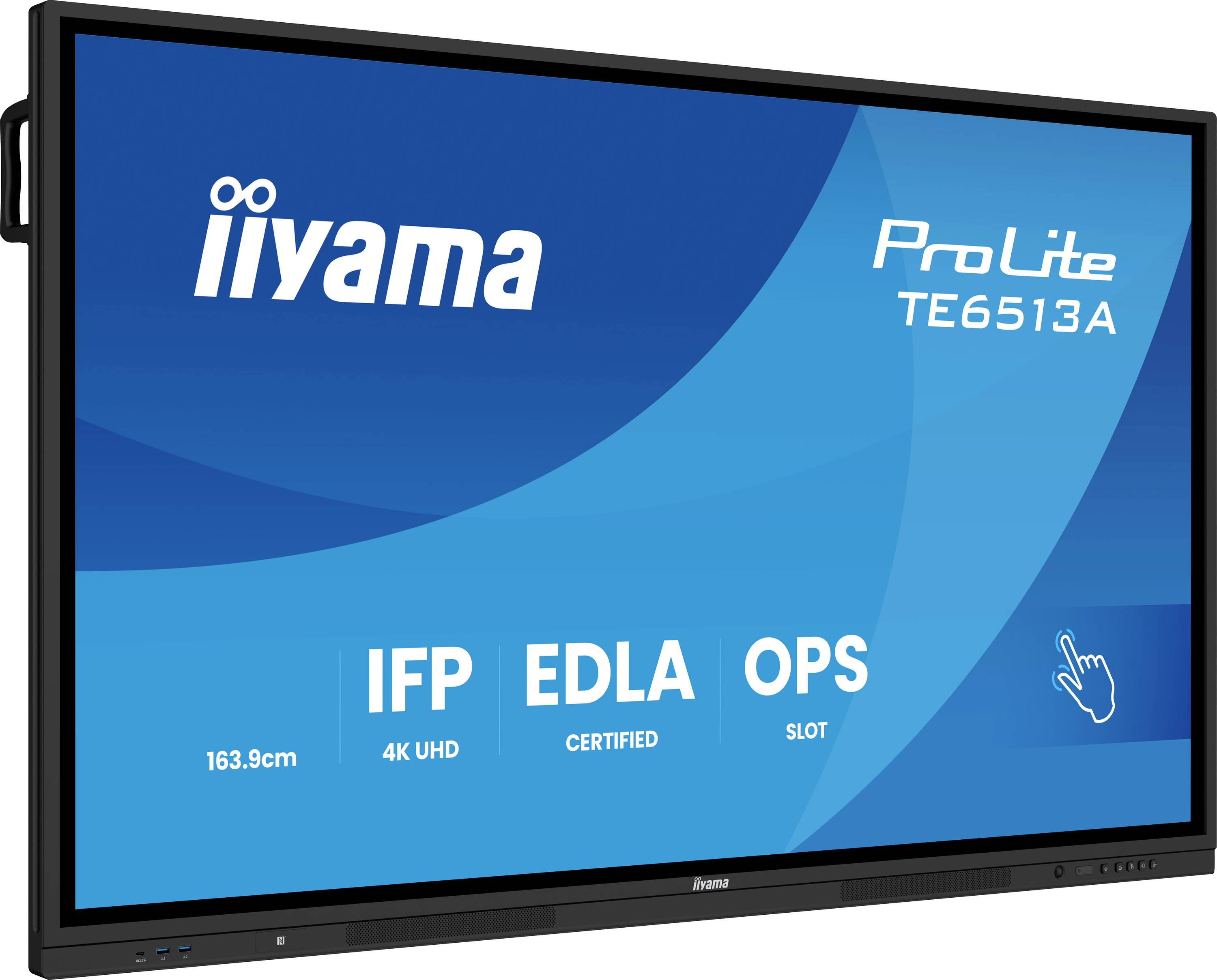

Interactive display showing 'iiyama ProLite TE6513A', features include 4K UHD, IFP, EDLA certified, OPS slot. Main color: blue.

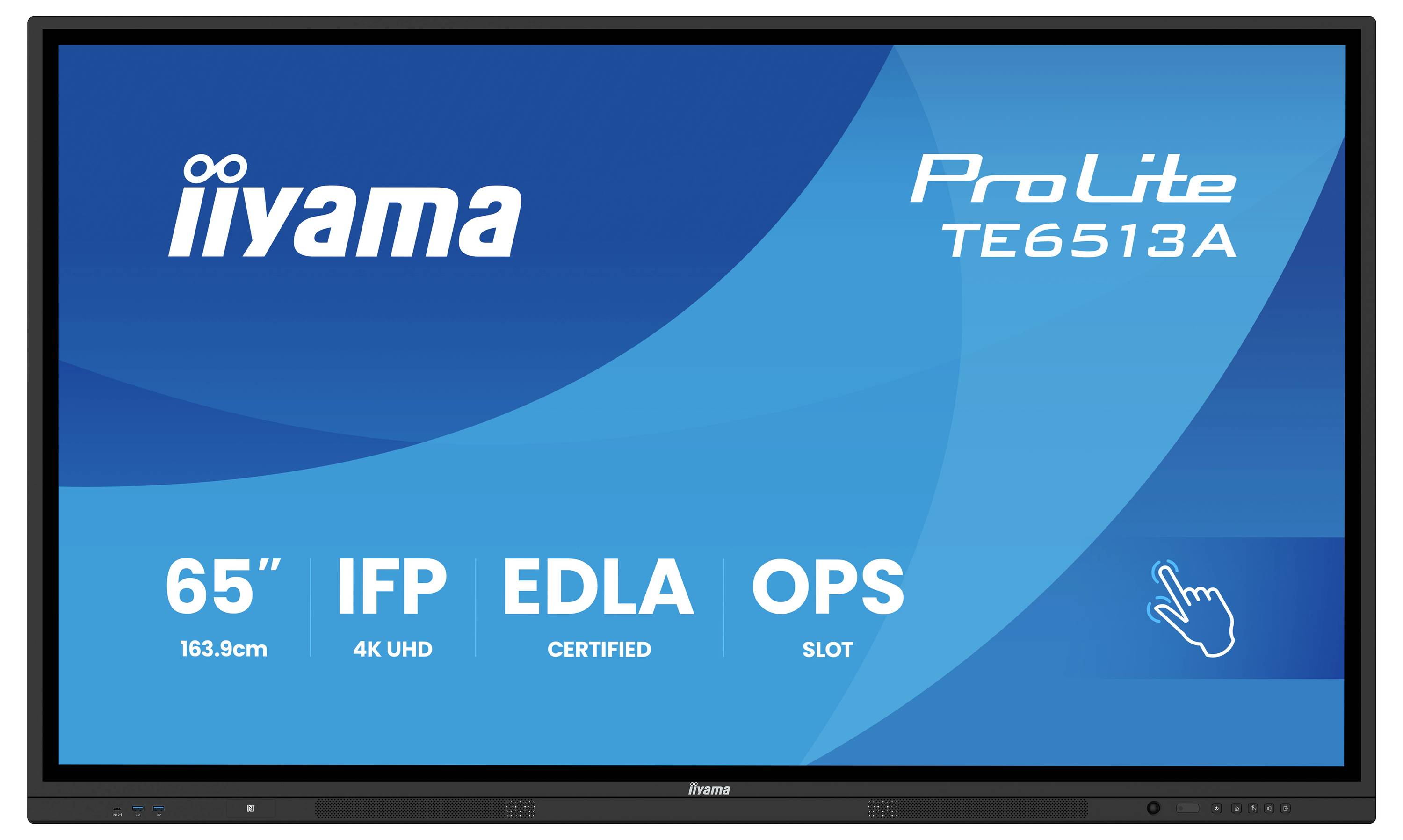

'iiyama ProLite TE6513A' display screen showing '65" IFP 4K UHD EDLA Certified OPS Slot' features.

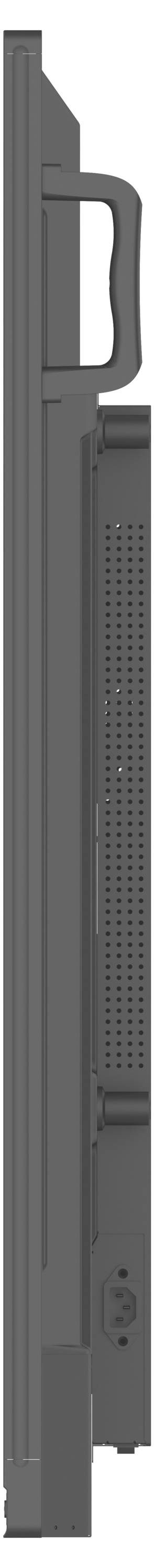

Side view of a slim, vertical computer monitor with a handle and ventilation grid.

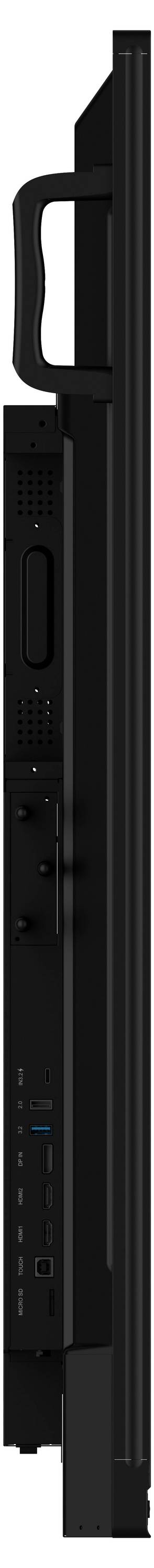

A close-up view of a black electronic device with multiple input/output ports and control buttons on the side, including a handle for carrying.

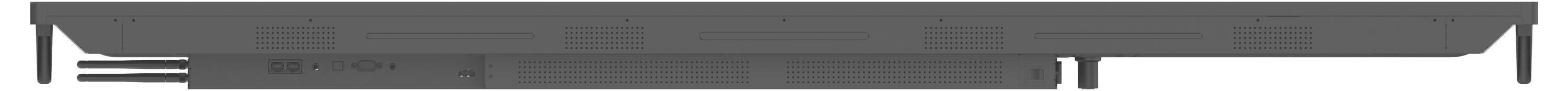

Top view of a slim, rectangular electronic device with a protruding section, possibly for connections or interfaces.

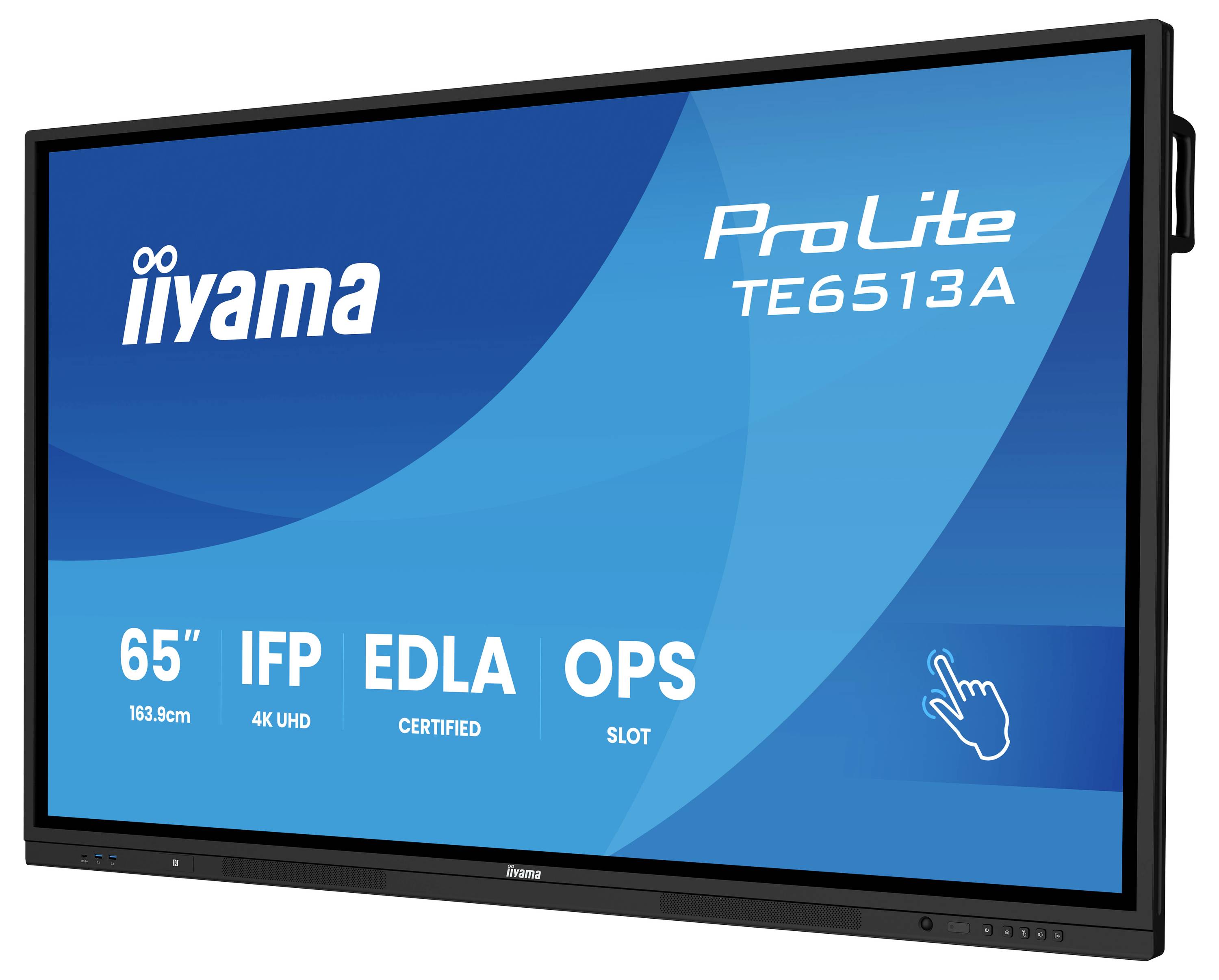

A touchscreen display from Iiyama, model ProLite TE6513A, 65 inches, 4K UHD, with features like IFP, EDLA certified, and OPS slot.

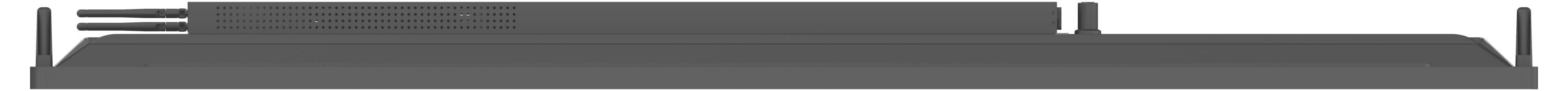

A digital illustration of a sleek, modern electronic device with a thin, rectangular shape and two protruding cylindrical connectors on one side.

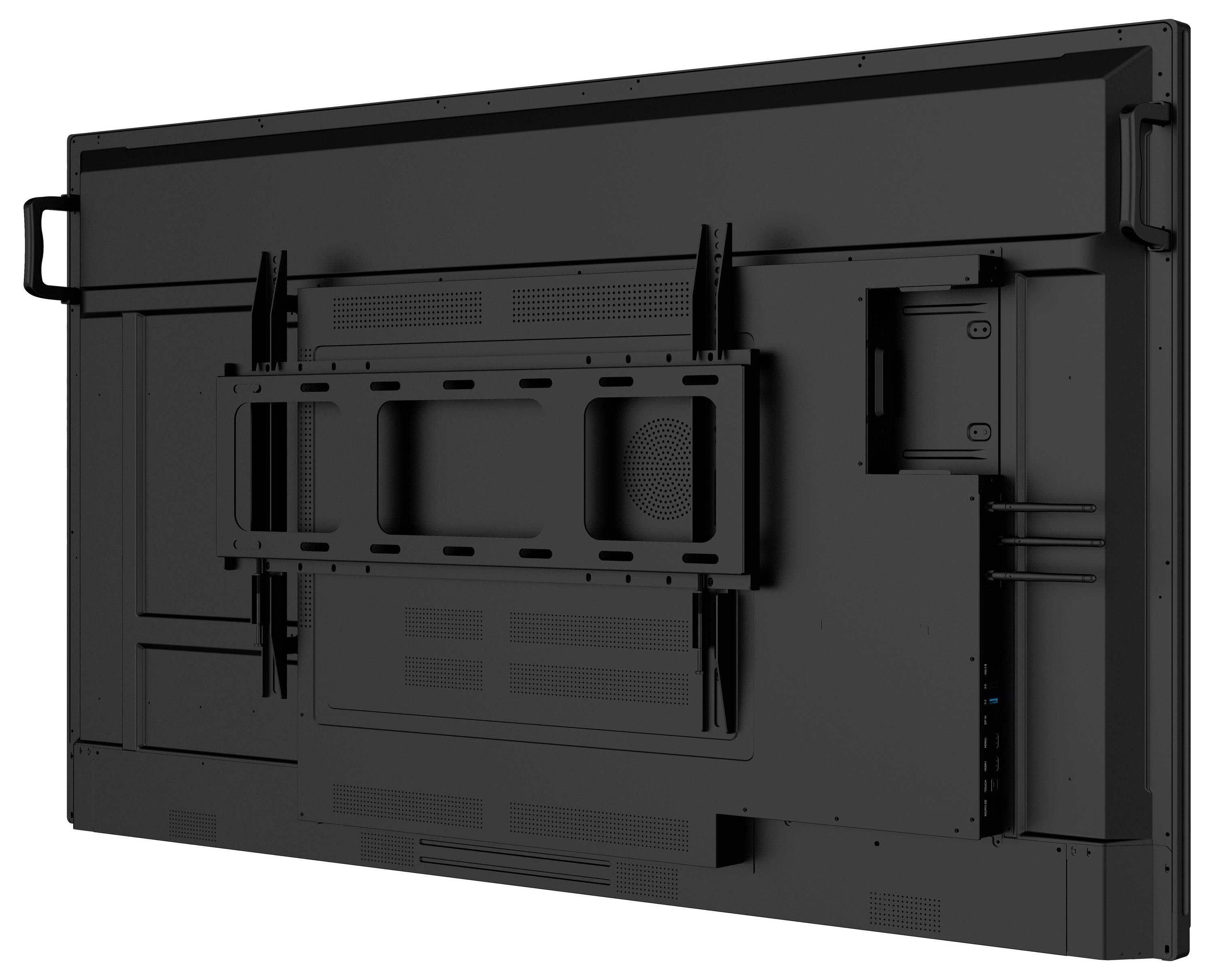

Back view of a large, black television with visible mounting brackets and various ports. The TV has handles on both sides for carrying.

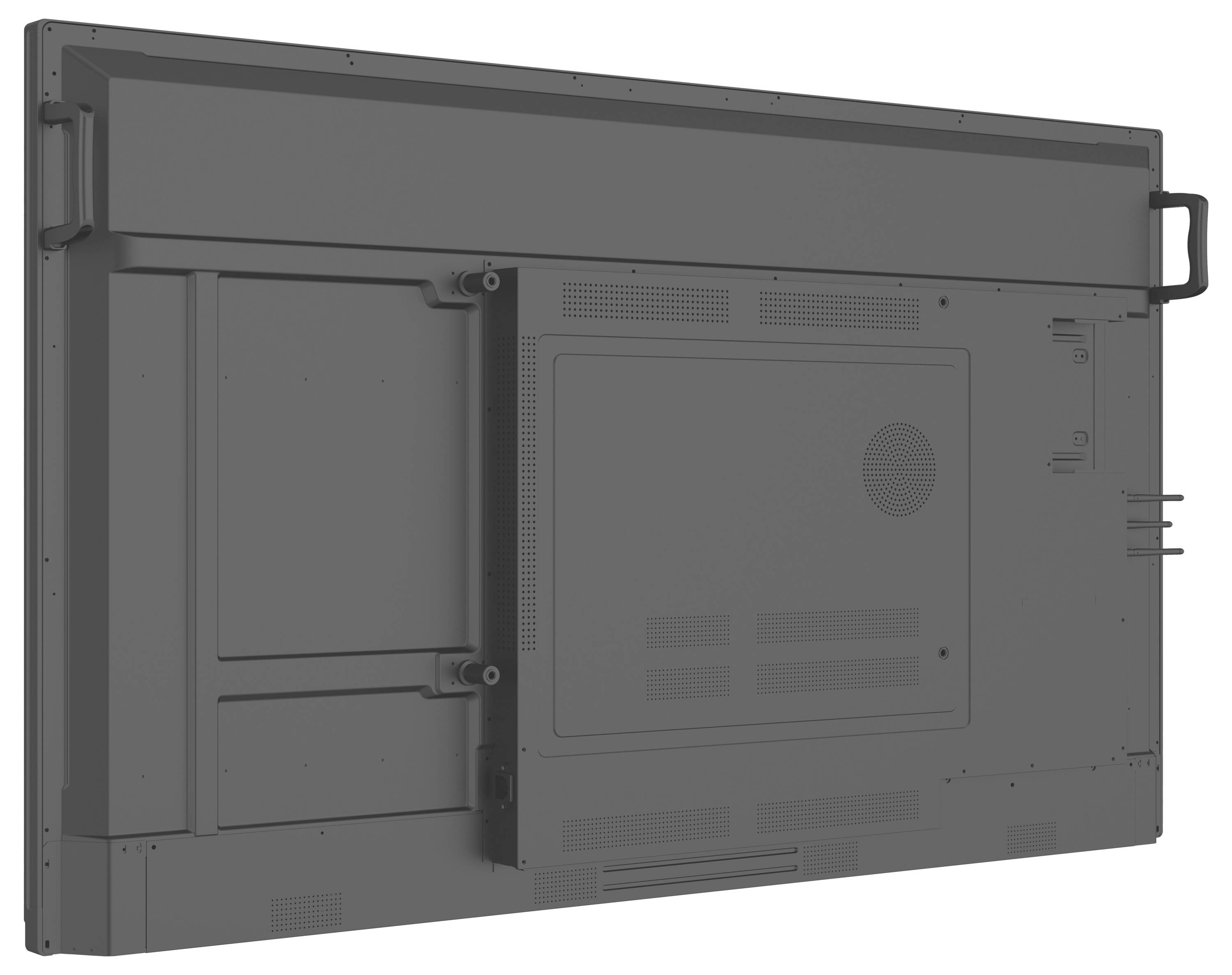

'Rear view of a large industrial display screen with two sturdy handles on either side and multiple ventilation slots for cooling.'

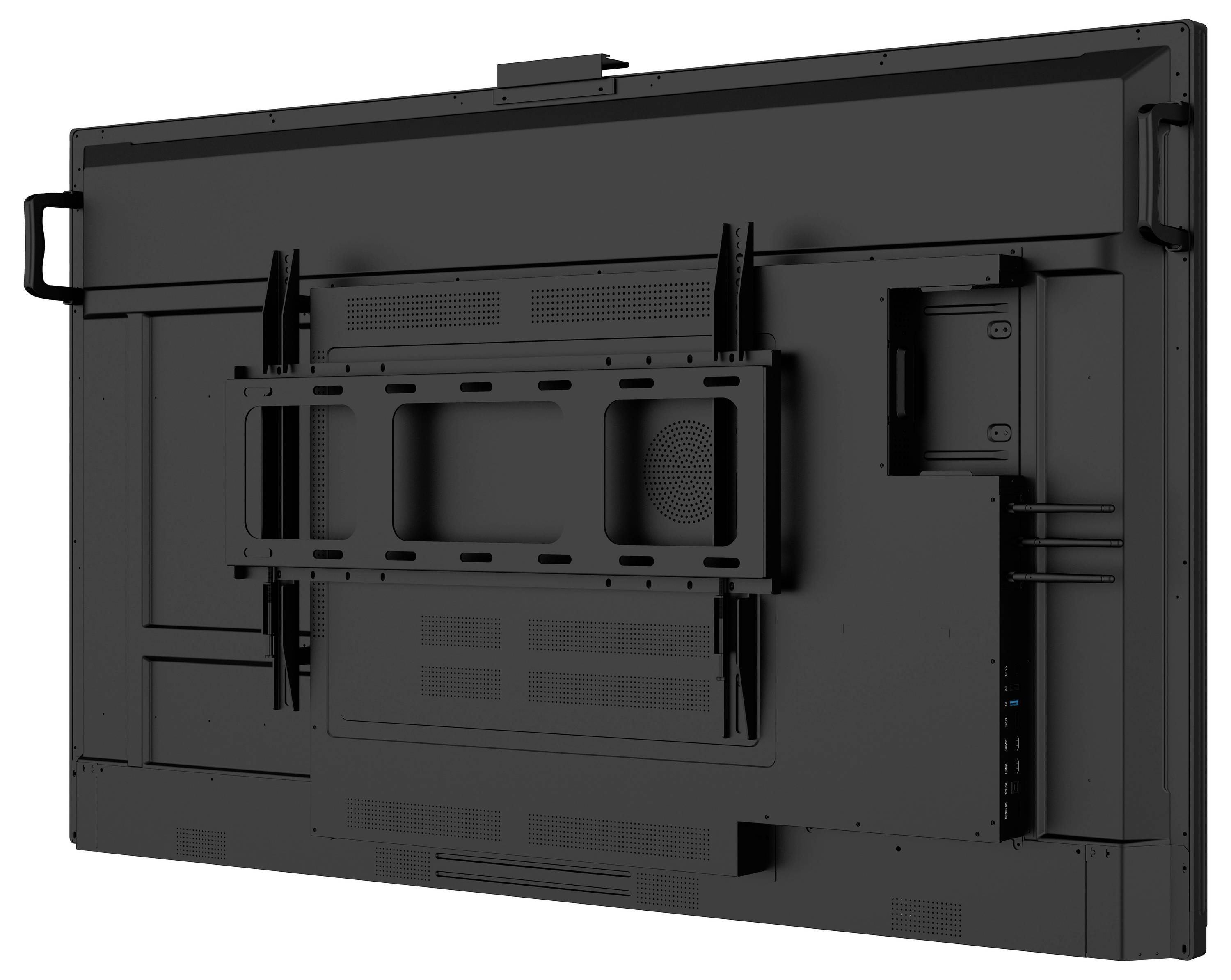

The image shows the back panel of a large flat-screen display with mounting brackets and input connections visible.

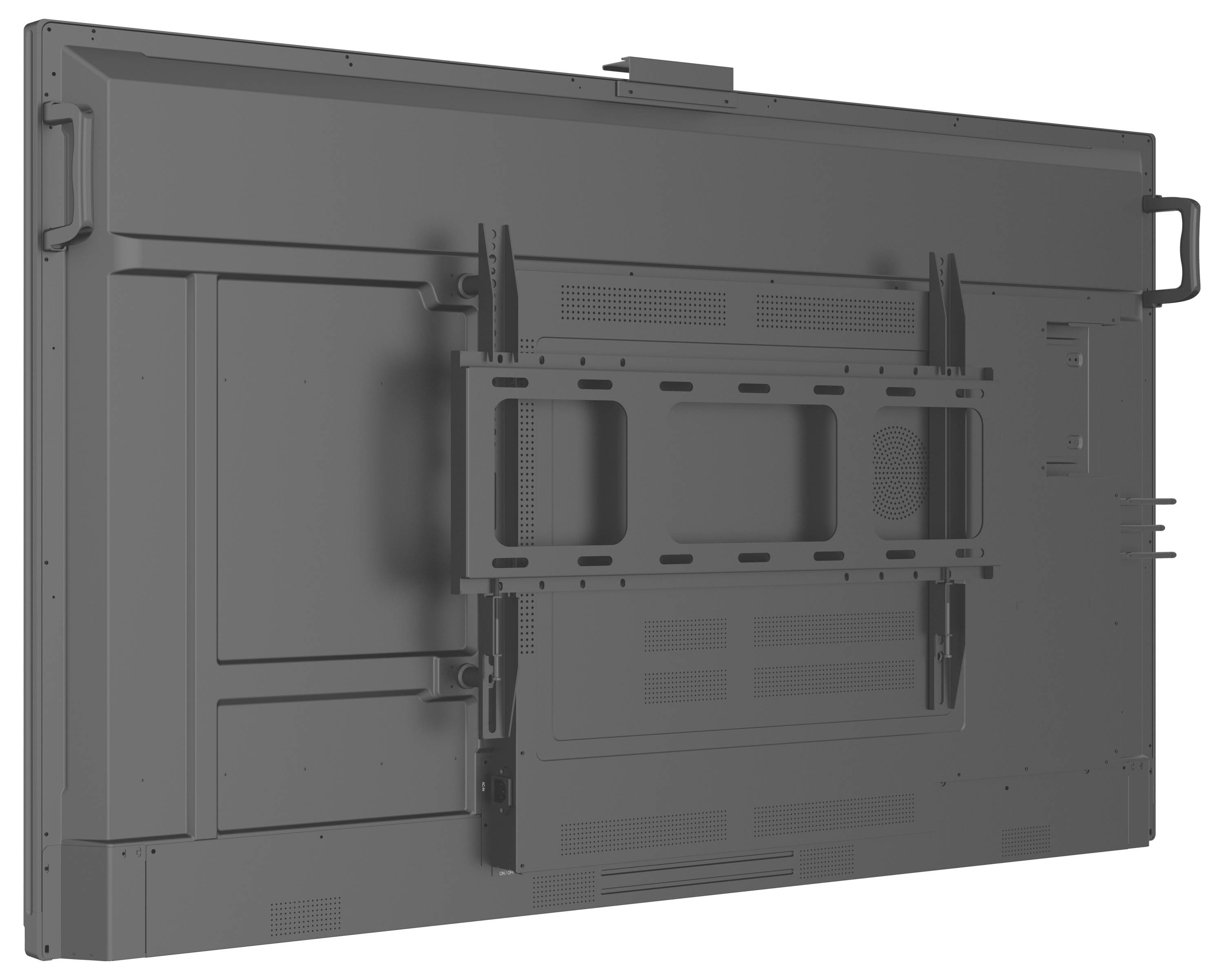

'Back view of a large electronic display panel with mounting bracket. Handles on sides for support. Ventilation slots visible.'

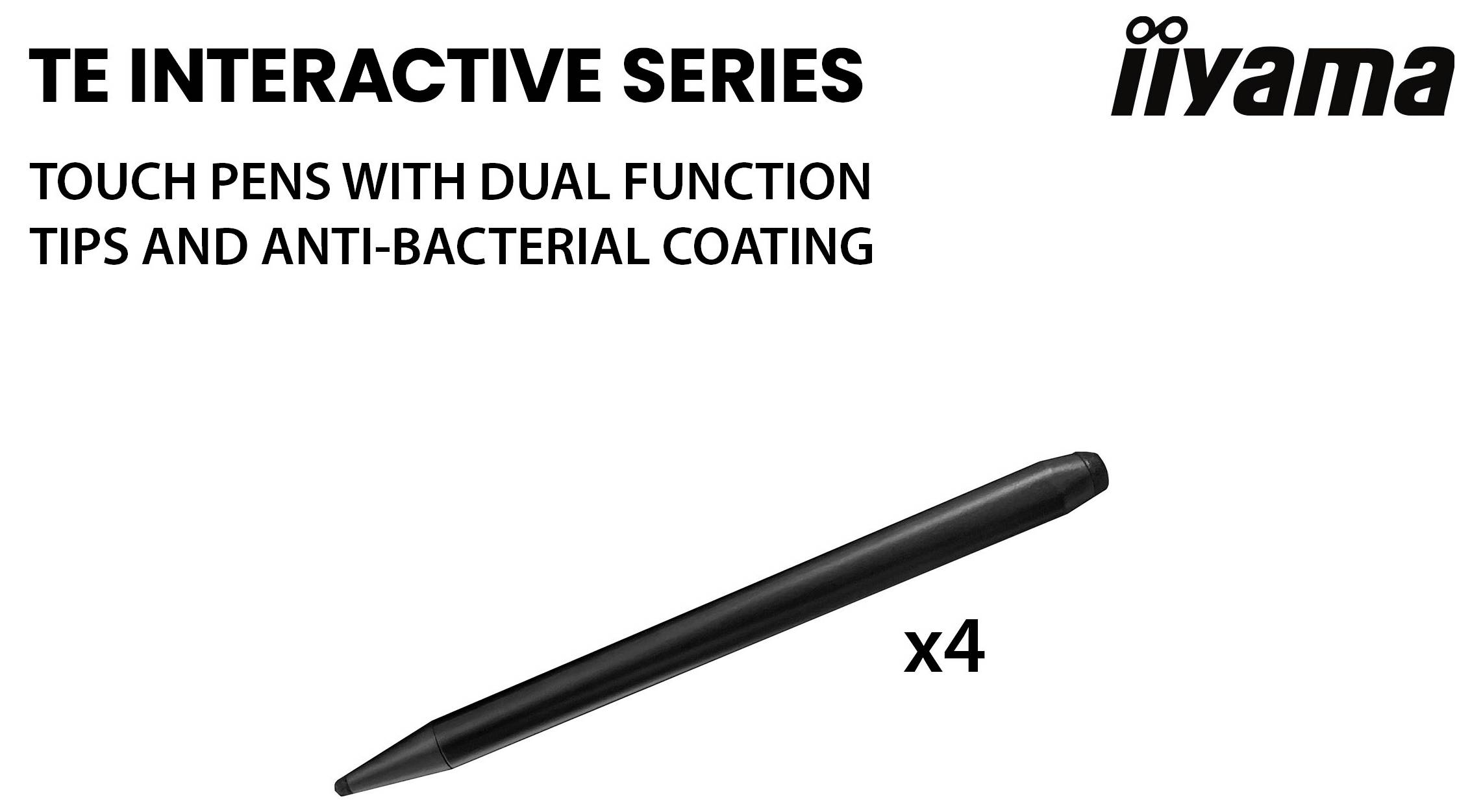

Iiyama Digital signage display EEC: G (A - G) 163.9 cm 64.5 inch-11

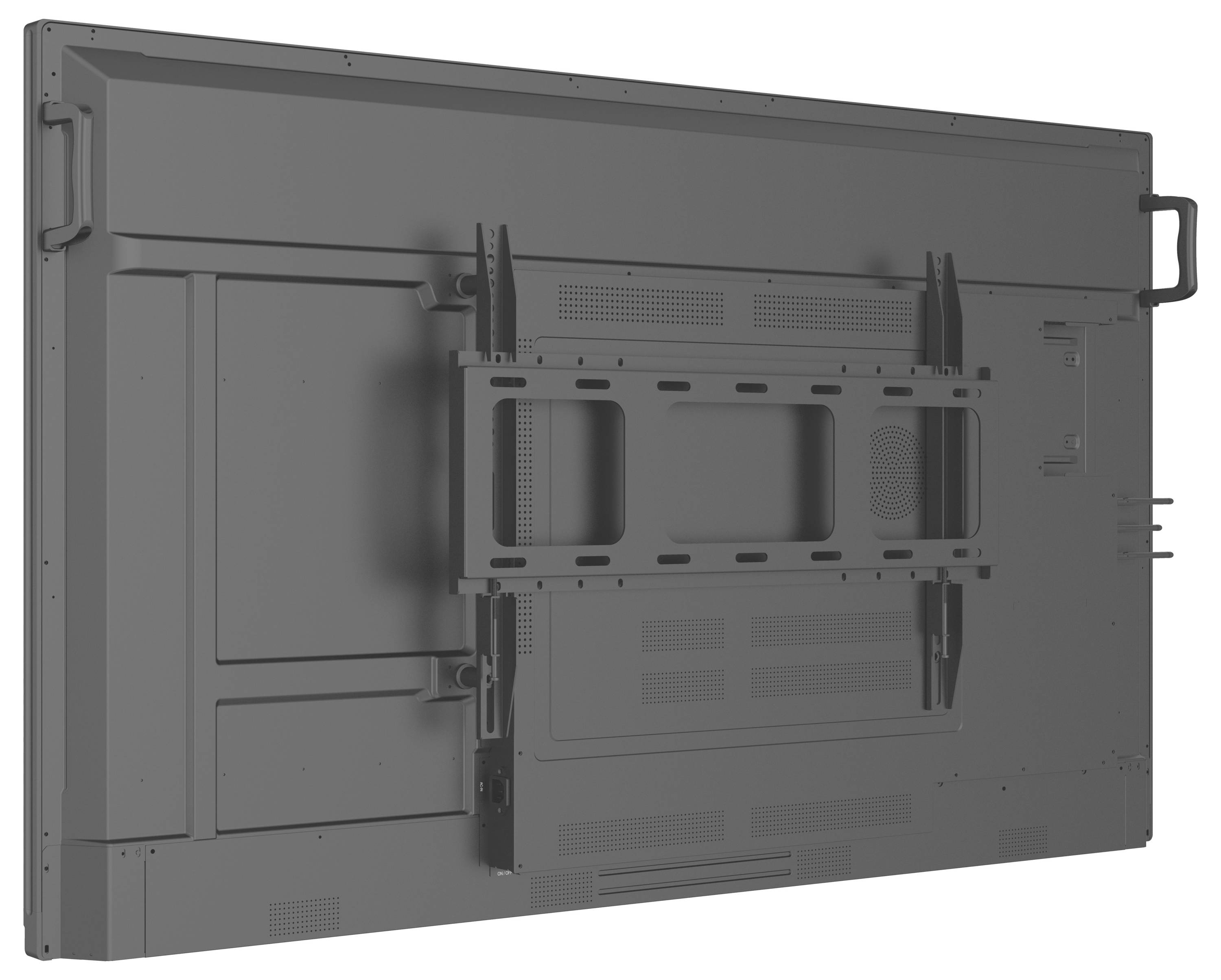

The image shows the back view of a large, wall-mounted electronic display panel, featuring a bracket with multiple mounting holes.

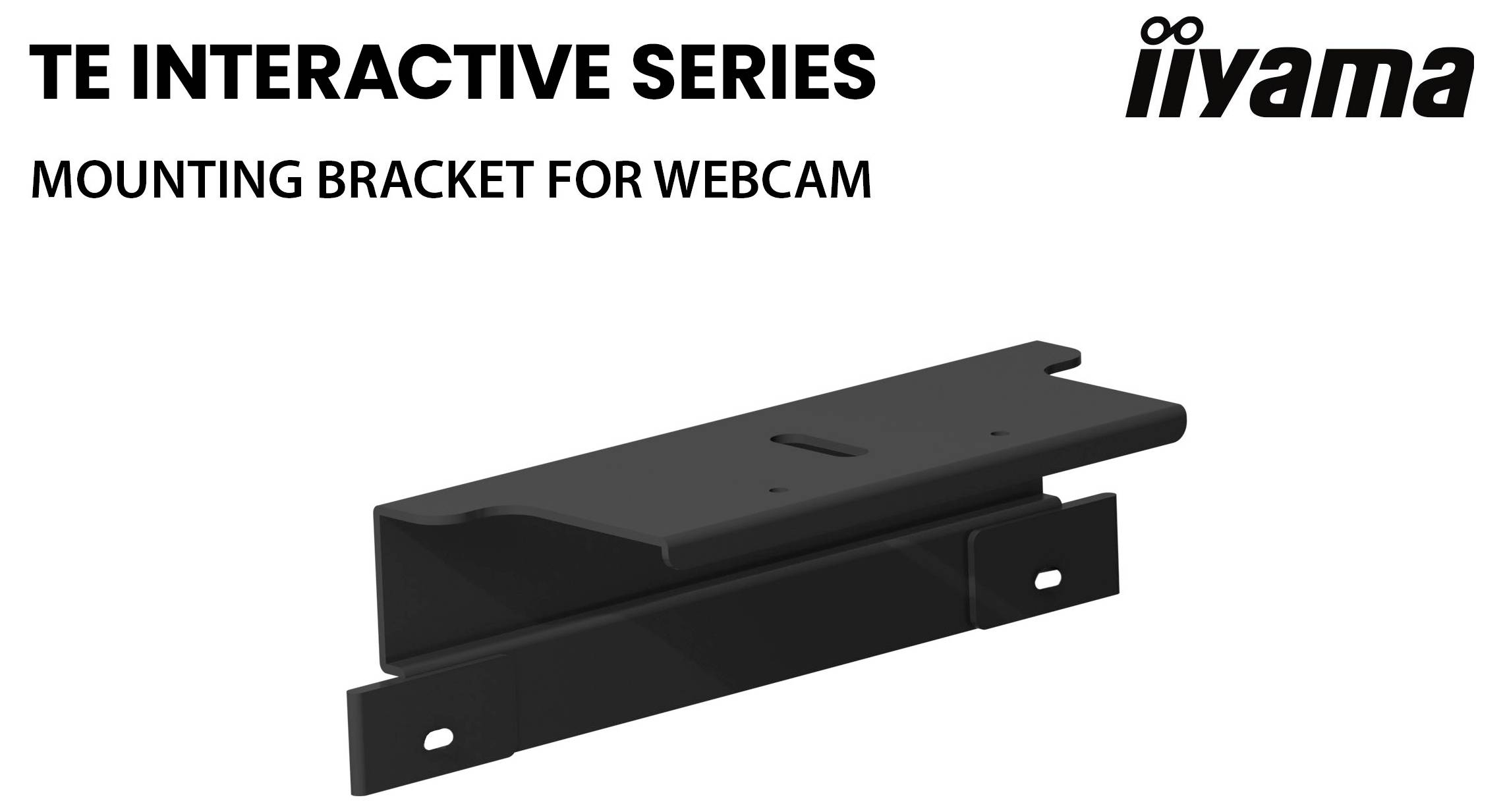

Iiyama Digital signage display EEC: G (A - G) 163.9 cm 64.5 inch-13

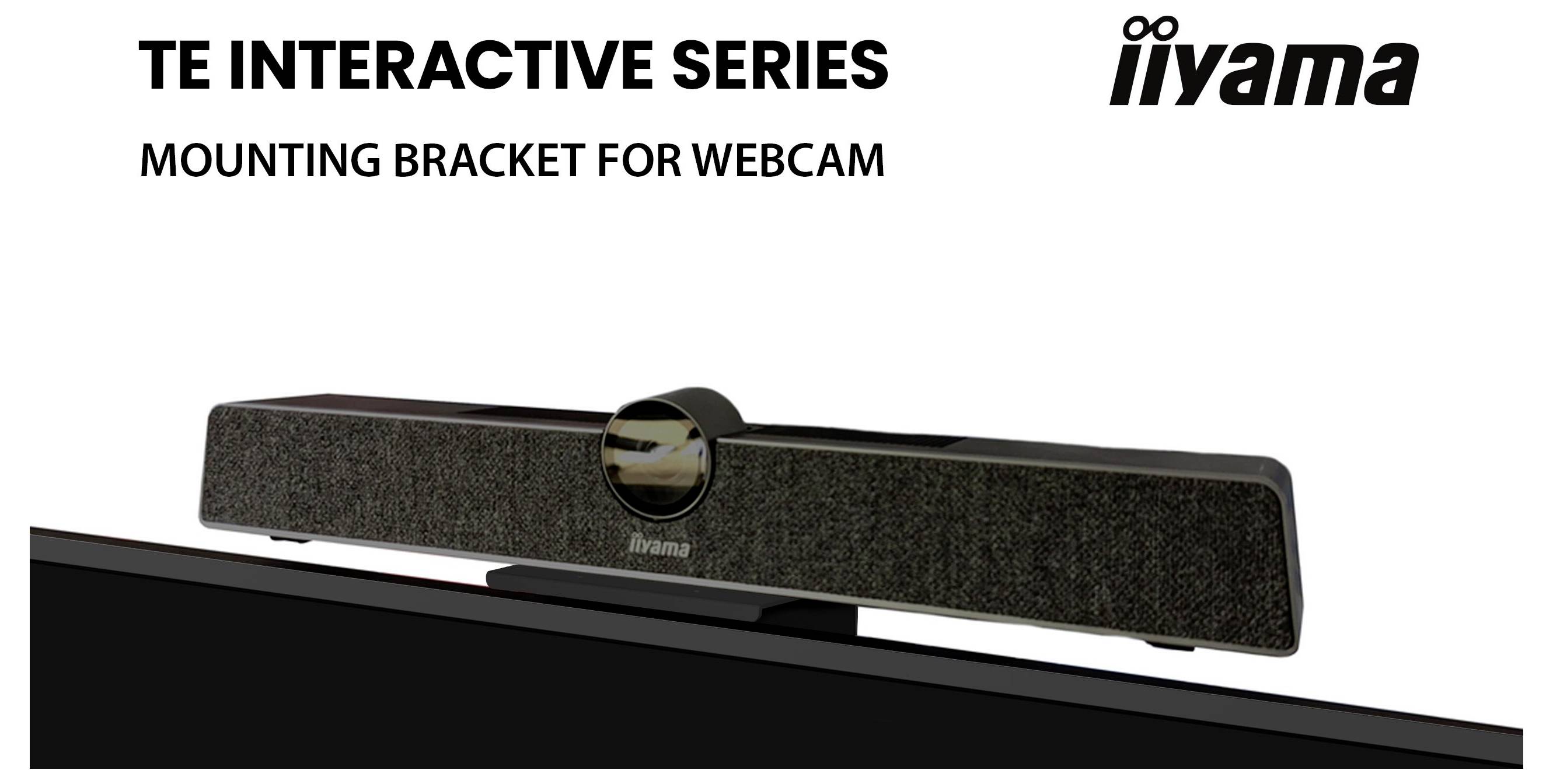

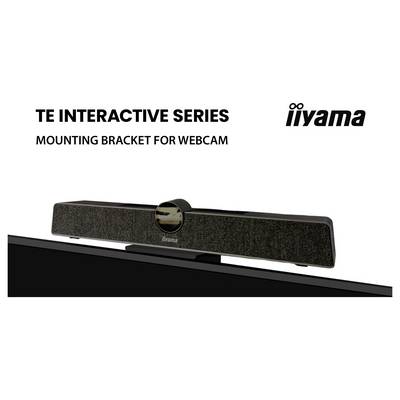

Iiyama Digital signage display EEC: G (A - G) 163.9 cm 64.5 inch-14

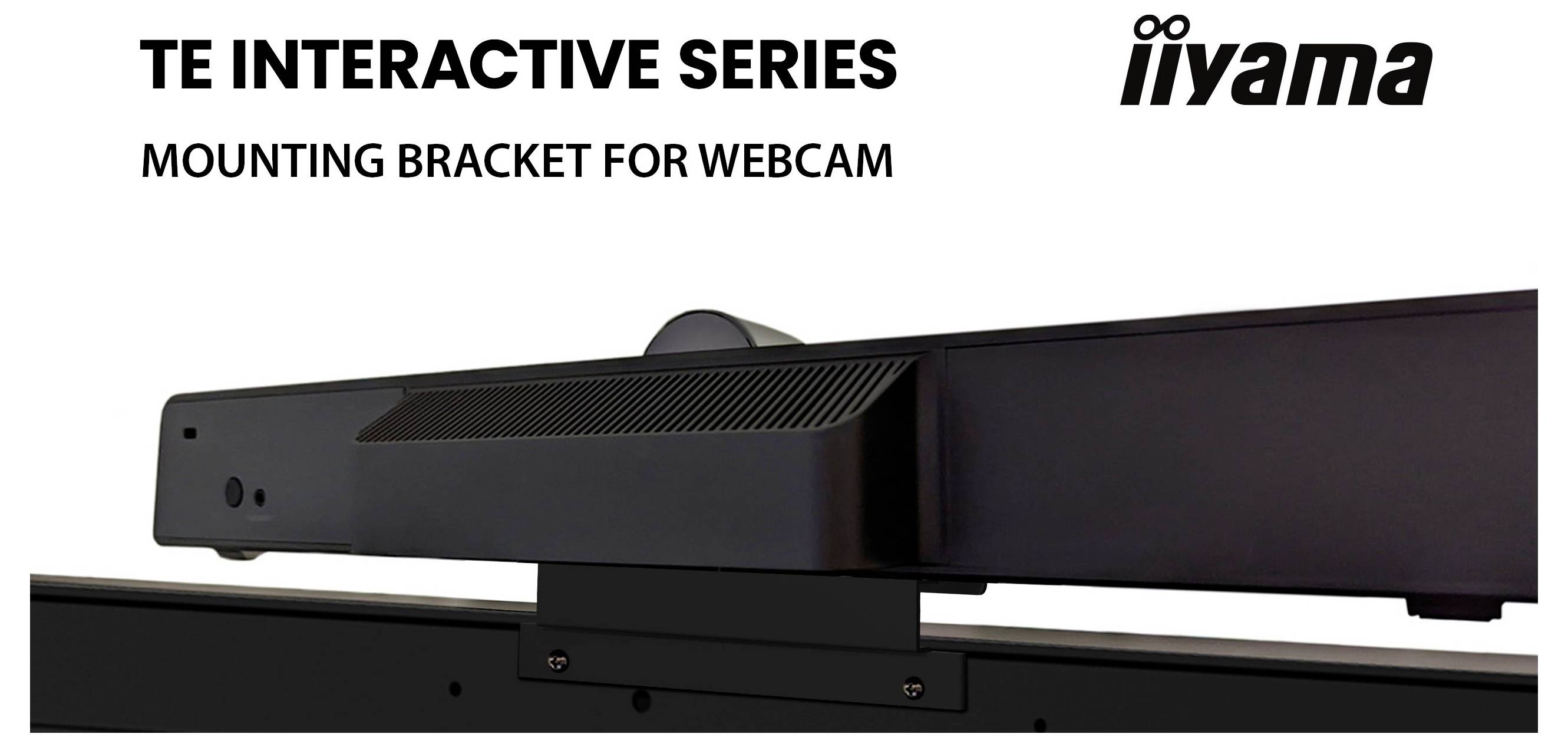

Iiyama Digital signage display EEC: G (A - G) 163.9 cm 64.5 inch-15

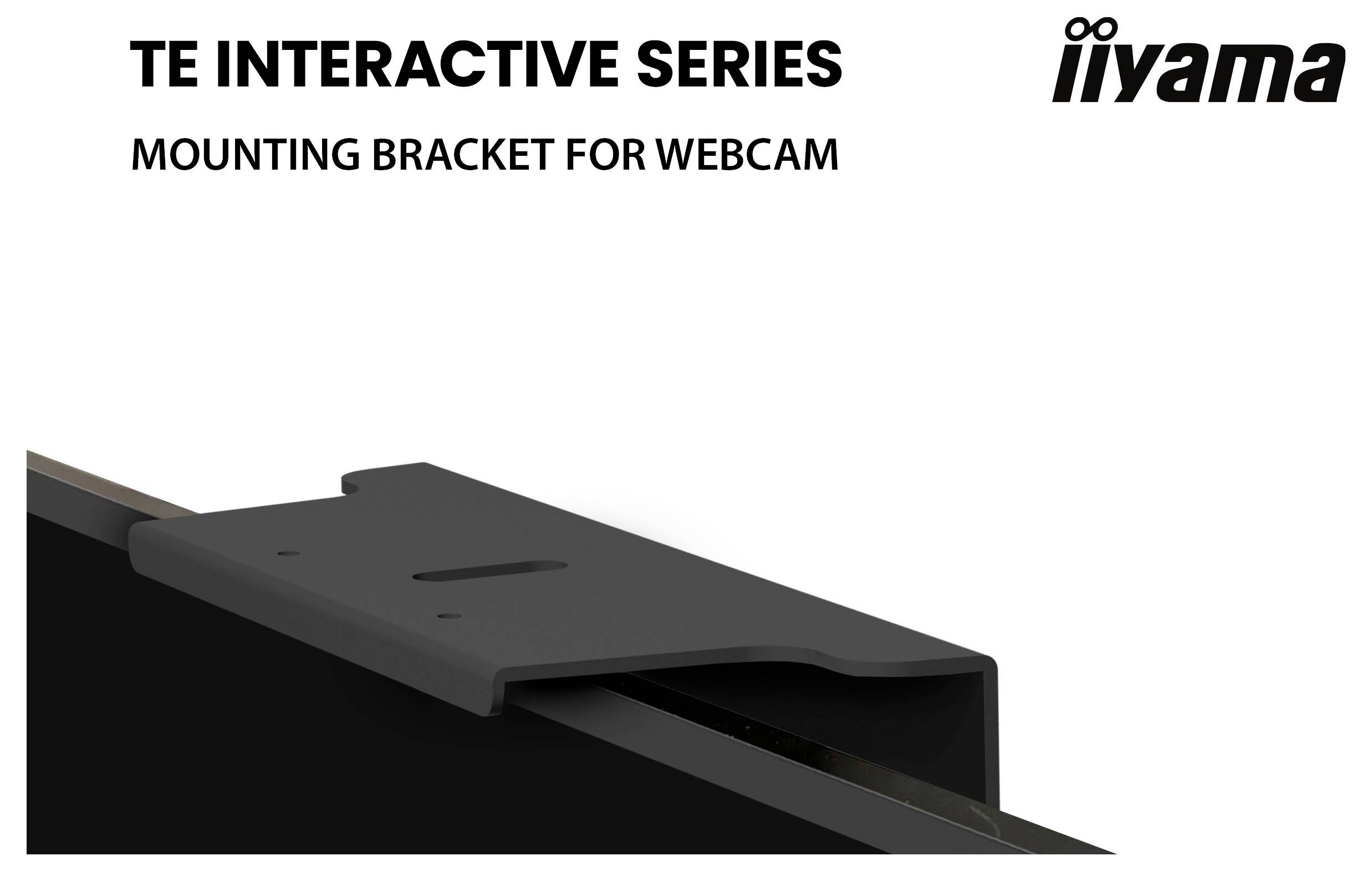

Iiyama Digital signage display EEC: G (A - G) 163.9 cm 64.5 inch-16

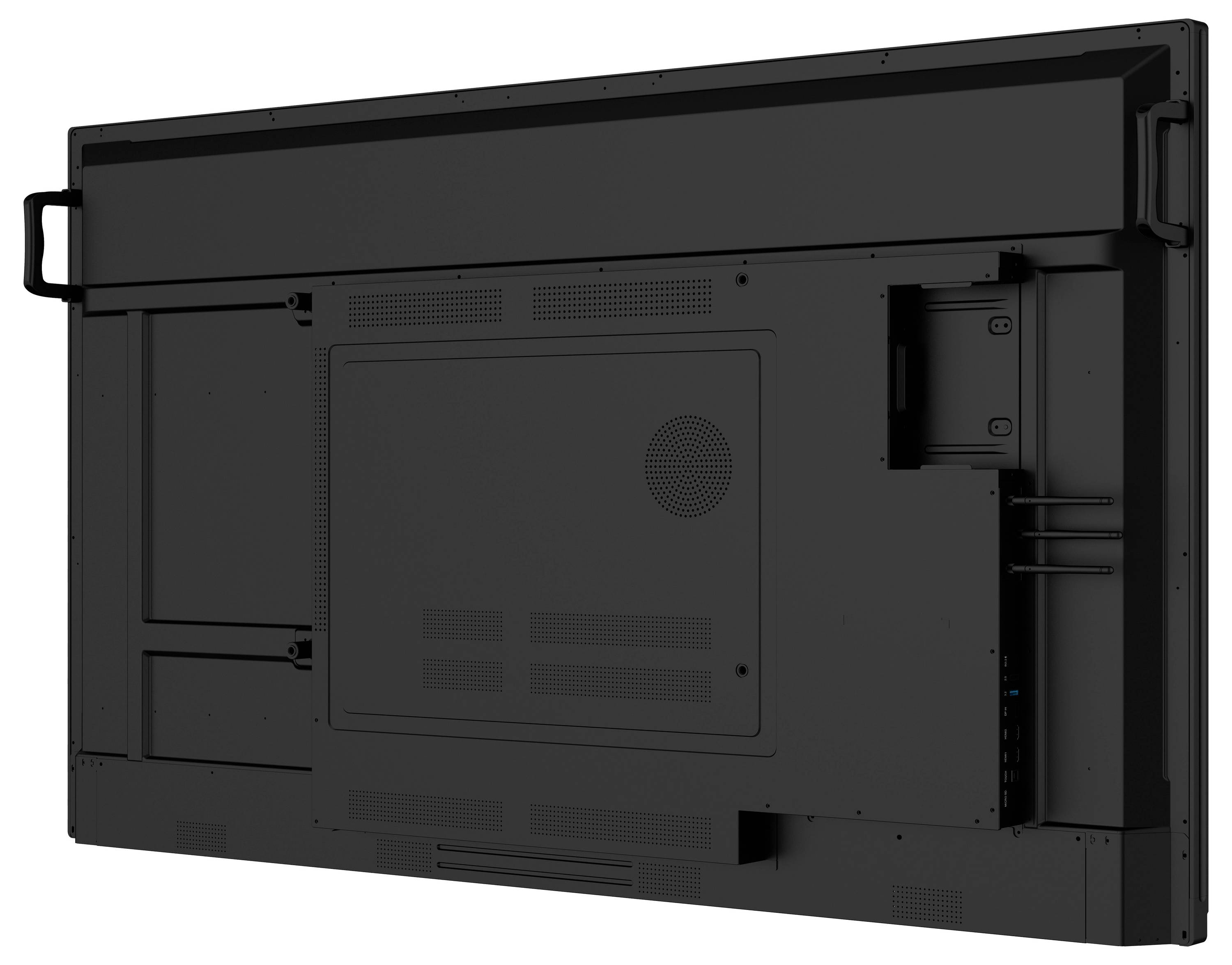

The image shows the back view of a large black monitor or television, displaying the mounting points, ports, and ventilation grilles.

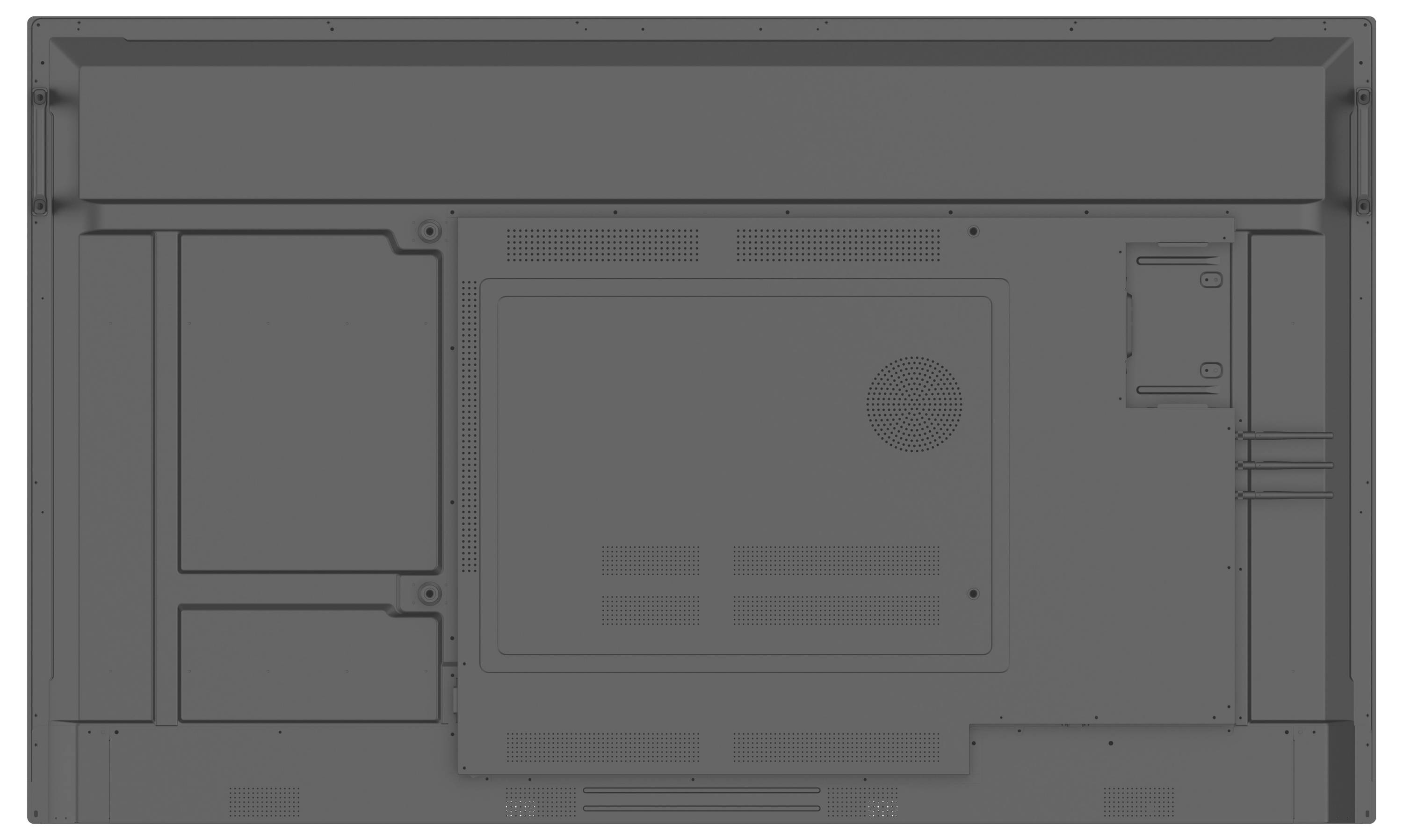

The back of a large flat-screen monitor showing various panels, vents, and connection ports without any visible labels or identifiers.

Iiyama Digital signage display EEC: G (A - G) 163.9 cm 64.5 inch-19

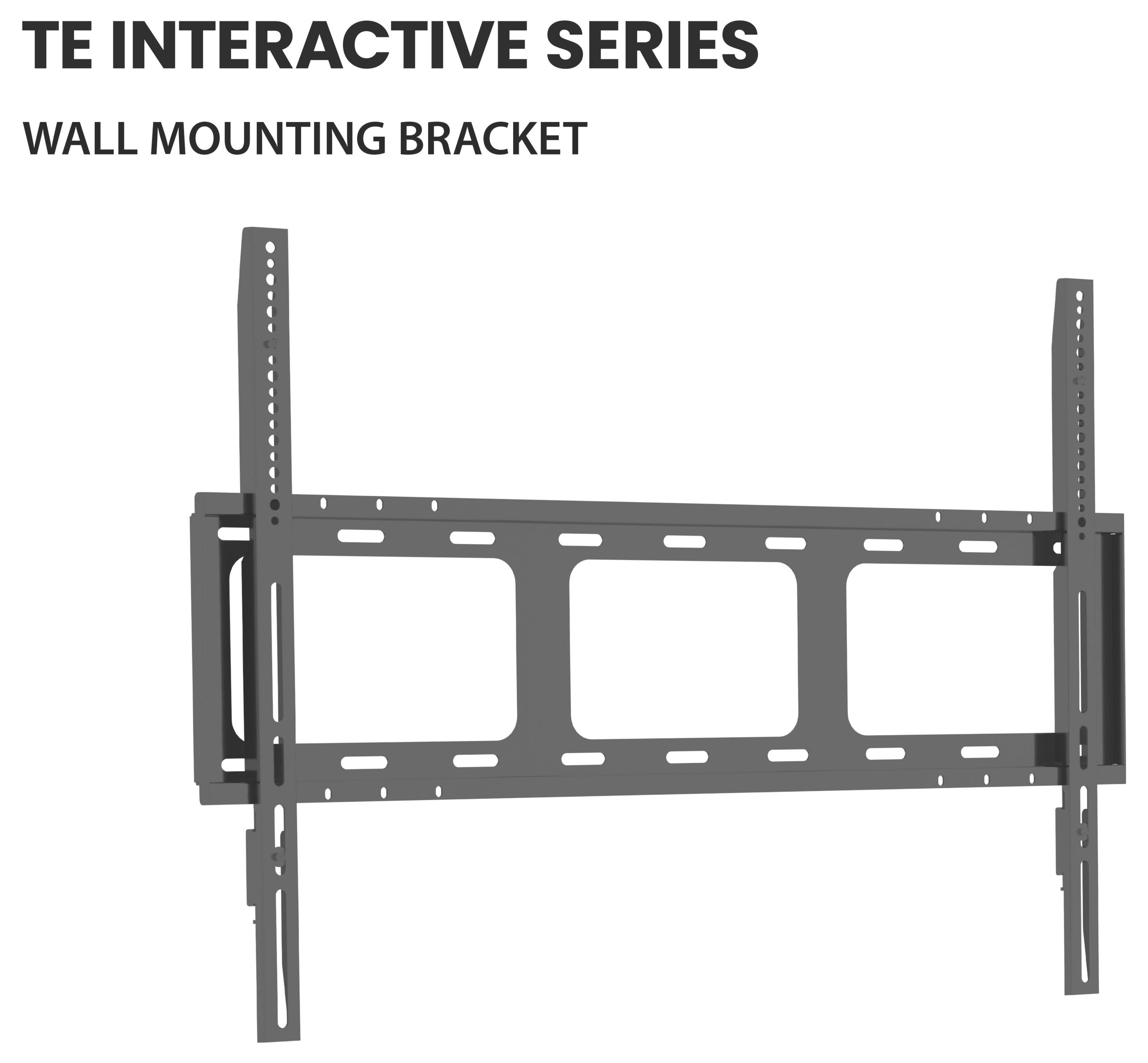

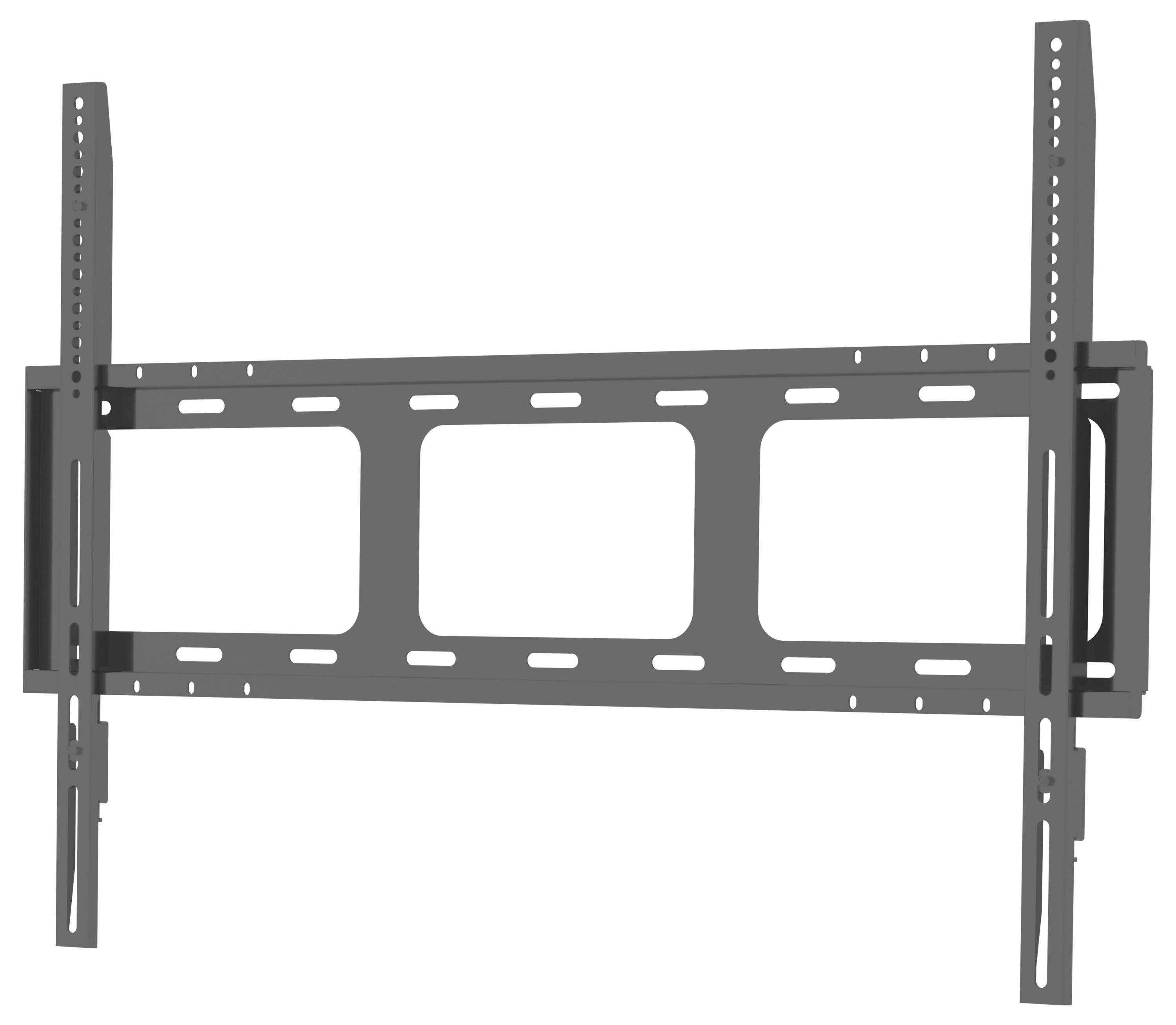

A wall-mounted TV bracket with adjustable arms and multiple screw holes for different mounting configurations.

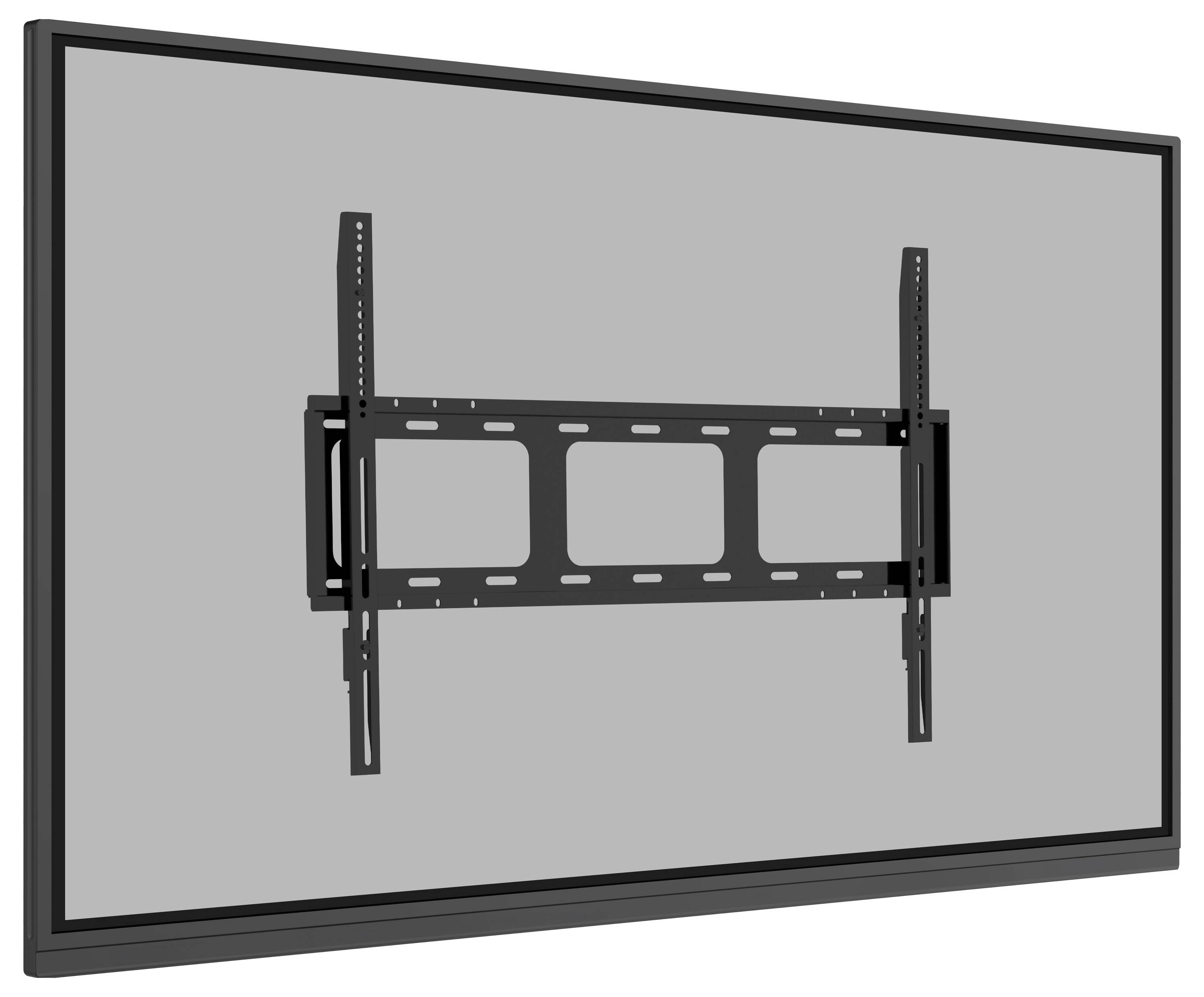

Wall mount bracket attached to a flat screen, viewed from an angle, displaying the structure designed to hold the screen securely.

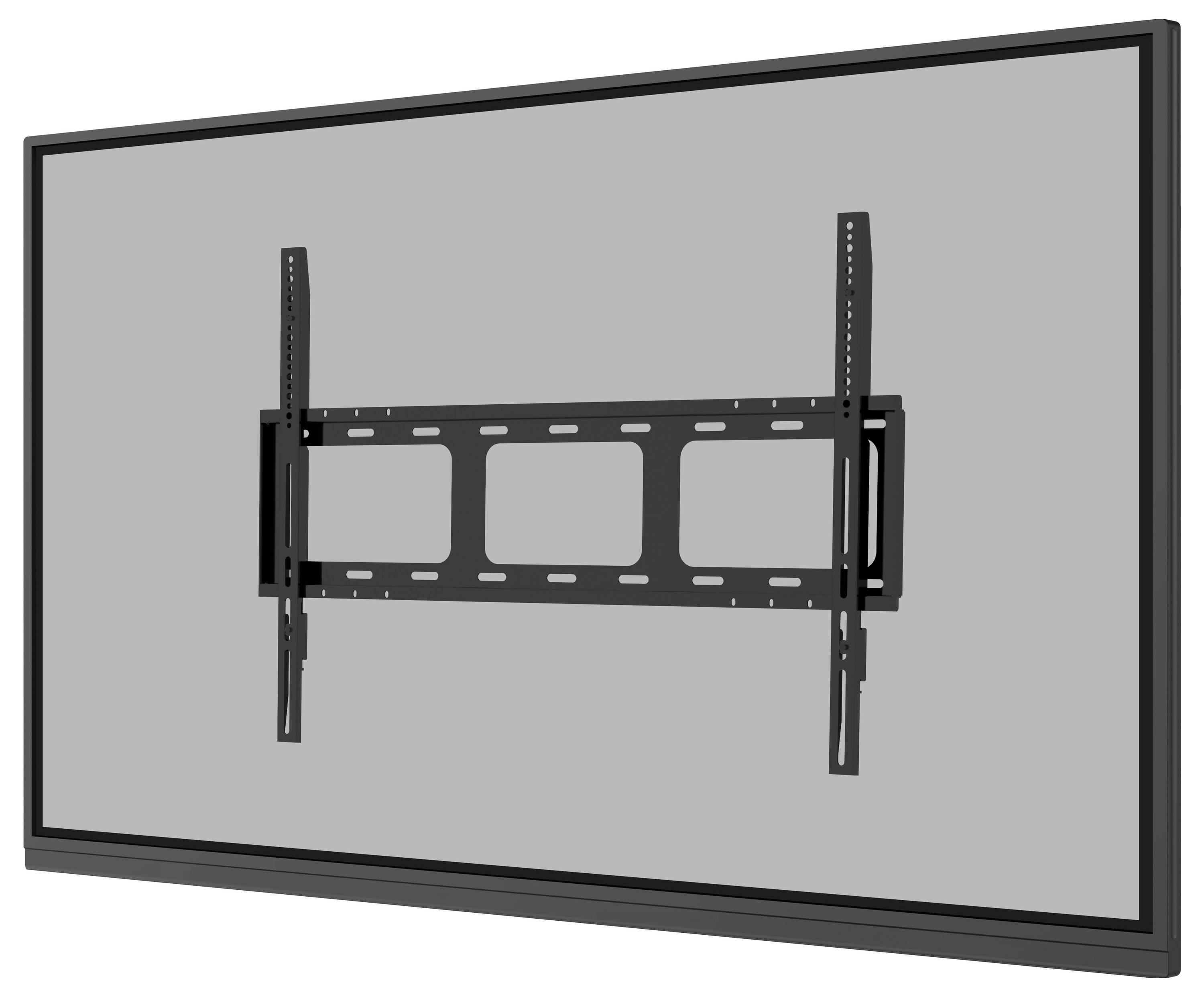

A black wall-mounted TV bracket against a grey background, showing adjustable arms and a rectangular support frame.

1/23

Product data sheet

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Iiyama Digital signage display

Highlights & Details

Screen size diagonal: 163.9 cm (64.5 inch)
Energy efficiency rating (calc): G (A - G)
Multi-Touch

Technical specifications

HD type 4K Ultra HD
Contrast ratio 1200:1
Contrast ratio (dynamic): 5000:1
0.372 x 0.372 mm pixel distance
Built-in graphics card model: ARM Mali-G52
Installed operating system: Android™
WLAN-standards Wi-Fi 6 (802.11ax)
Audio input (mini jack): Yes
Playback media Y
User controls: General settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode color temp), settings (wireless & networks, share, device, personal, system)

Product type: Digital signage display

Screen size diagonal (inches): 64 inch

Features: Multi-Touch

Display technology: LCD

Brightness: 500 cd/m²

Static contrast ratio: 1200 : 1

Dot pitch (horizontal): 0.372 mm

Dot pitch (vertical): 0.372 mm

Image format: 16:9

Network/internet function: Android TV

Wi-Fi: b/g/n/ax

Controller: Touchscreen

No. of USB ports: 6 x

Interfaces: Wi-Fi 6E (IEEE 802.11ax)

Power supply (details): 100 - 240 V

Power consumption (standby): 0.5 W

: 600 x 400 mm

Factory colour: Multicolour

Dim: (W x H x D) 1489 x 891.5 x 87 mm

Width: 1489 mm

Height: 891.5 mm

Depth: 87 mm

Height (without base): 891.5 mm

Device depth (without stand): 87 mm

Weight: 39.4 kg

Weight (without base): 39.4 kg

: G (A - G)

Display: 163.8 cm (64.5 inch)

Screen resolution: Ultra HD (3840 x 2160 Pixel)

Display (cm): 163.8 cm

Screen size diagonal (cm): 163.9 cm

Screen size diagonal (inches): 64.5 inch

Power consumption (off): 0.3 W

Power consumption (ON): 182 W

Bluetooth: 5.0

Bluetooth: Yes

Display properties: IPS

No. of DisplayPort: 1 x

Touchscreen (display): Yes

HDCP: Yes

Charging method (Power Delivery): with USB Power Delivery

Memory capacity: 128 GB

10/100/1000 Mbps ports: 2 x

Audio power (max.): 60 W

Brightness: 500 cd/m²

Type: internal

Response time: 8 ms

: 8 GB

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Wi-Fi: Yes

UKCA: yes

Anti-glare screen: yes

Operating temperature (T-T): 0 - 40 °C

Number of simultaneous touchpoints: 40

Ethernet LAN: yes

RS-232C: yes

Brightness: 500 cd/m²

Active display area (W x H): 1428,5 x 803,5 mm

Remote control included: yes

Number of built-in speakers: 2

OPS slot: 1

Built-in speaker(s): yes

Number of stylus pens: 4

On Screen Display (OSD): yes

Horizontal scan range: 30 - 135 kHz

OPS module slot: yes

HDMI input ports quantity: 1

USB Power Delivery up to: 100 W

Quick start guide: yes

Mean time between failures (MTBF): 50000 h

Products per pallet: 4 Stück(e)

Storage temperature (T-T): -20 - 60 °C

Package weight: 48.5 kg

Built-in processor: yes

Bezel width (side): 1.65 cm

Bezel width (top): 1.65 cm

Bezel width (bottom): 4.1 cm

Stylus pen: yes

Glass thickness: 3.2 mm

Audio Return Channel (ARC): yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729156 Iiyama Digital signage display EEC: G (A - G) 163.9 cm 64.5 inch

Description

The TE6513A-B2AG is a state-of-the-art interactive 4K UHD display with Google EDLA certification that redefines performance and precision. Equipped with a Zero-Gap Air Bonding LCD screen for eliminating parallax of movement and PureTouch IR+ with palm detection, it provides for a smooth and precise interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity and the iControl (DMS), iShare & Eshare (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy additional features such as a PIR motion sensor for more energy efficiency - Ideal for workplaces and educational facilities, as it promotes collaboration, communication and progress.
