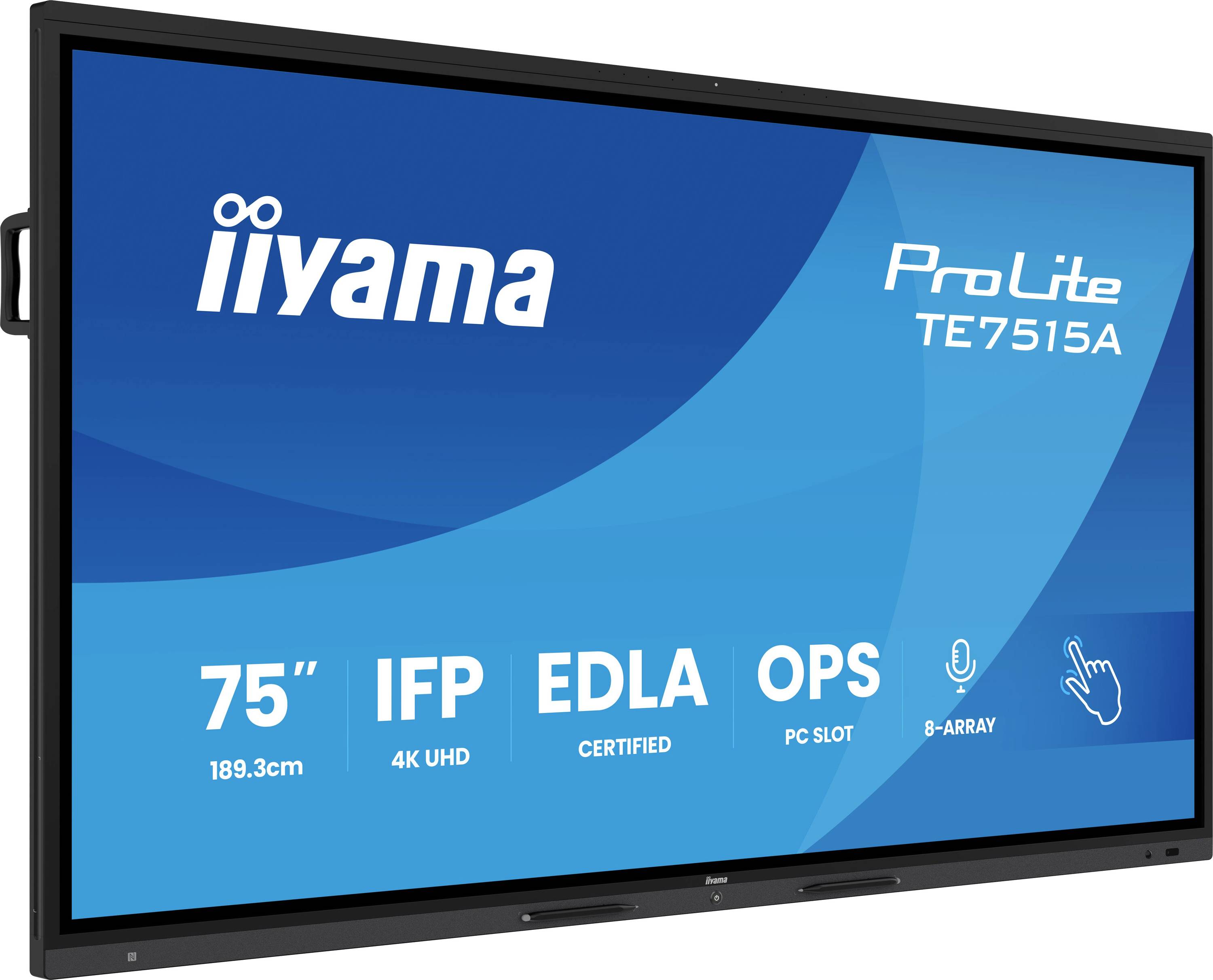

Interactive flat panel display, 75-inch, 4K UHD resolution, features IFP, EDLA certified, OPS PC slot, 8-array touch functionality.

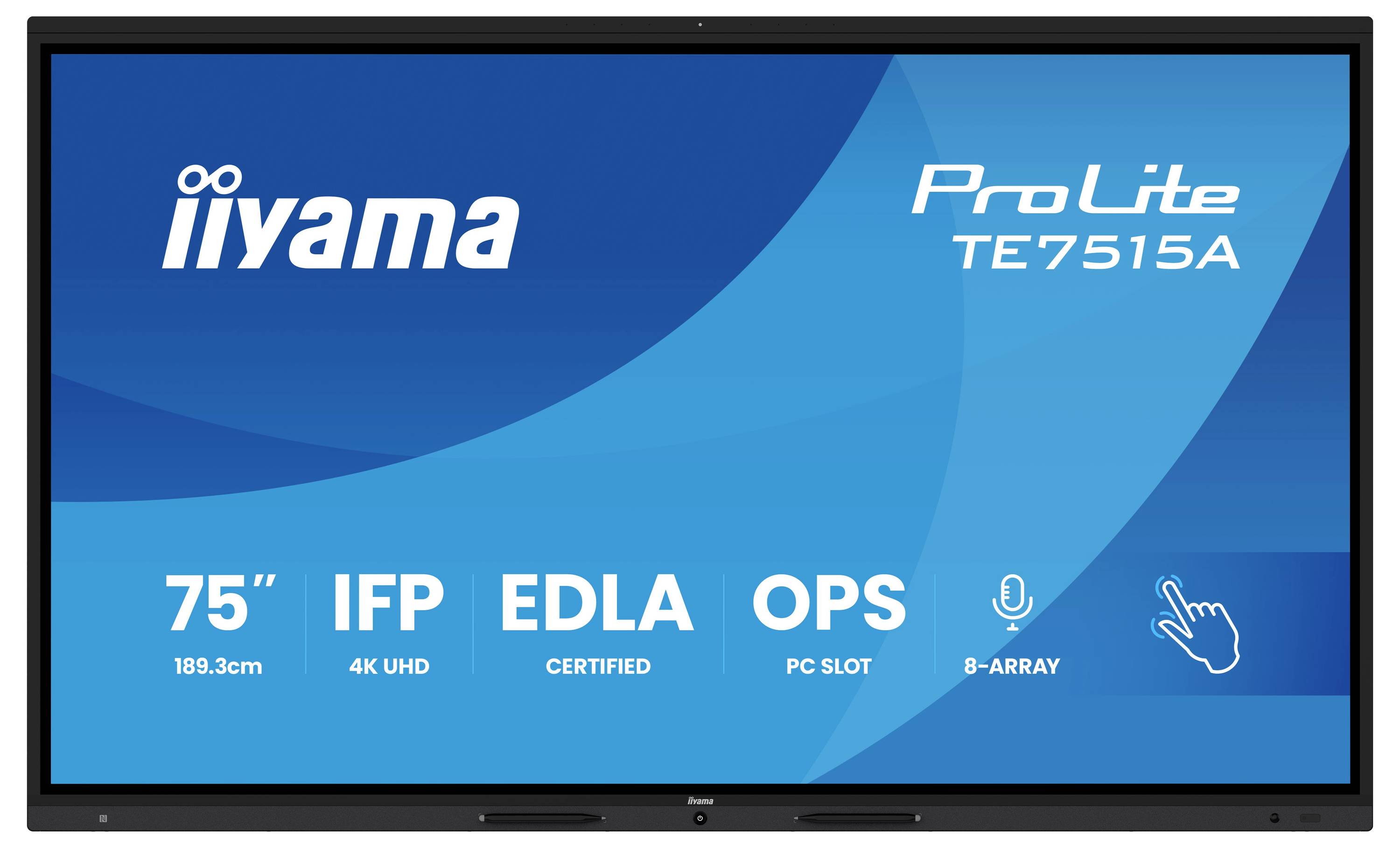

'iiyama ProLite TE7515A' display screen featuring a 75" size, 4K UHD resolution, and various certifications like IFP, EDLA, and OPS.

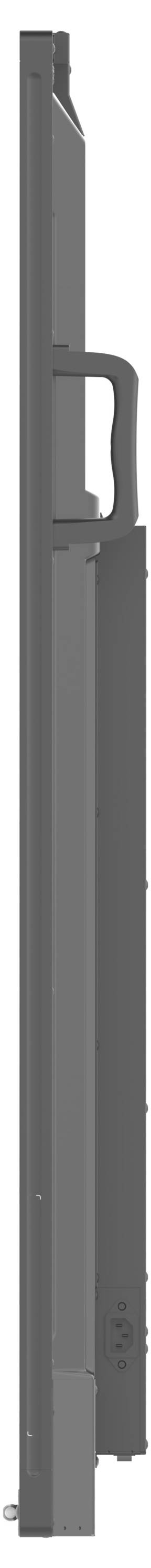

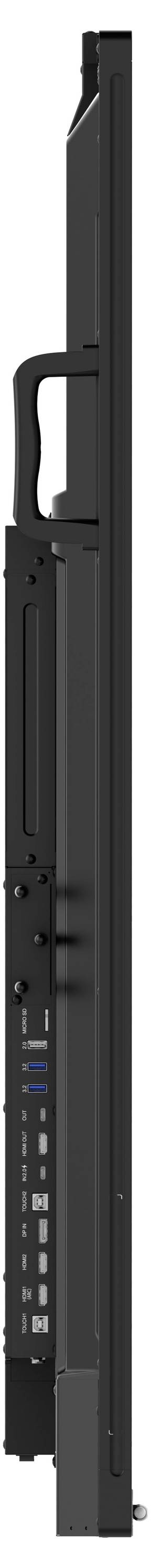

Side view of a tall, narrow, grey mechanical or industrial component, showing a handle and structural details.

A black computer keyboard viewed from above, with a USB cable extending from the left side.

A black keyboard with a sleek, minimalist design and rectangular keys.

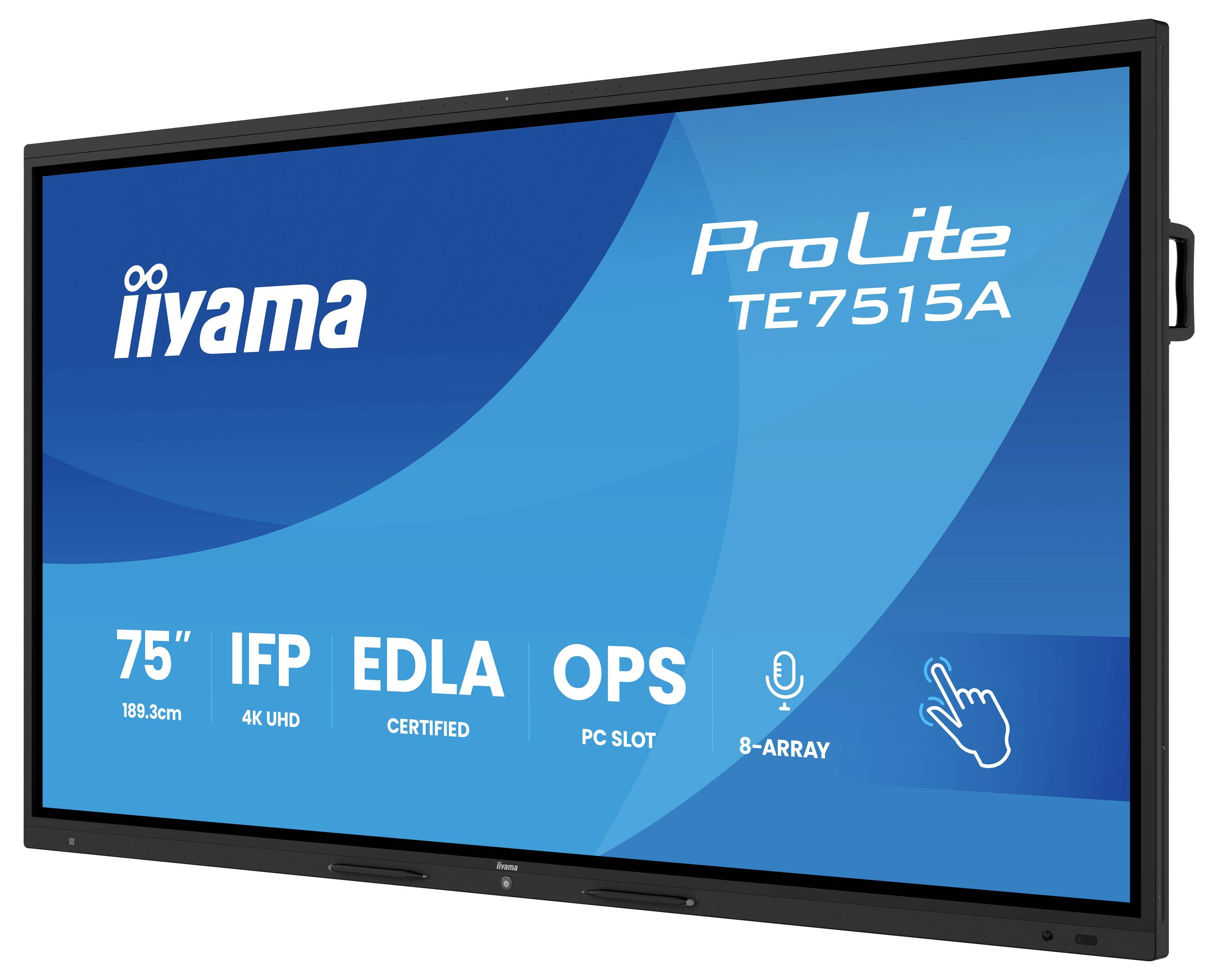

'ProLite TE7515A' displayed on a 75-inch interactive flat panel, featuring 4K UHD resolution, IFP, EDLA certification, OPS PC slot, B-Array microphone, and touch functionality.

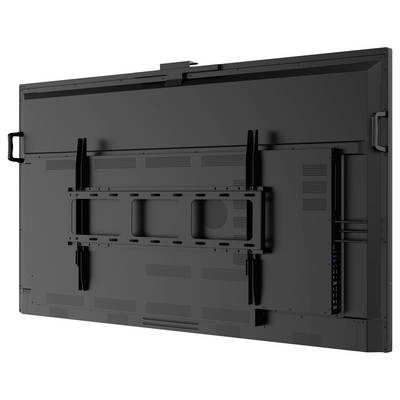

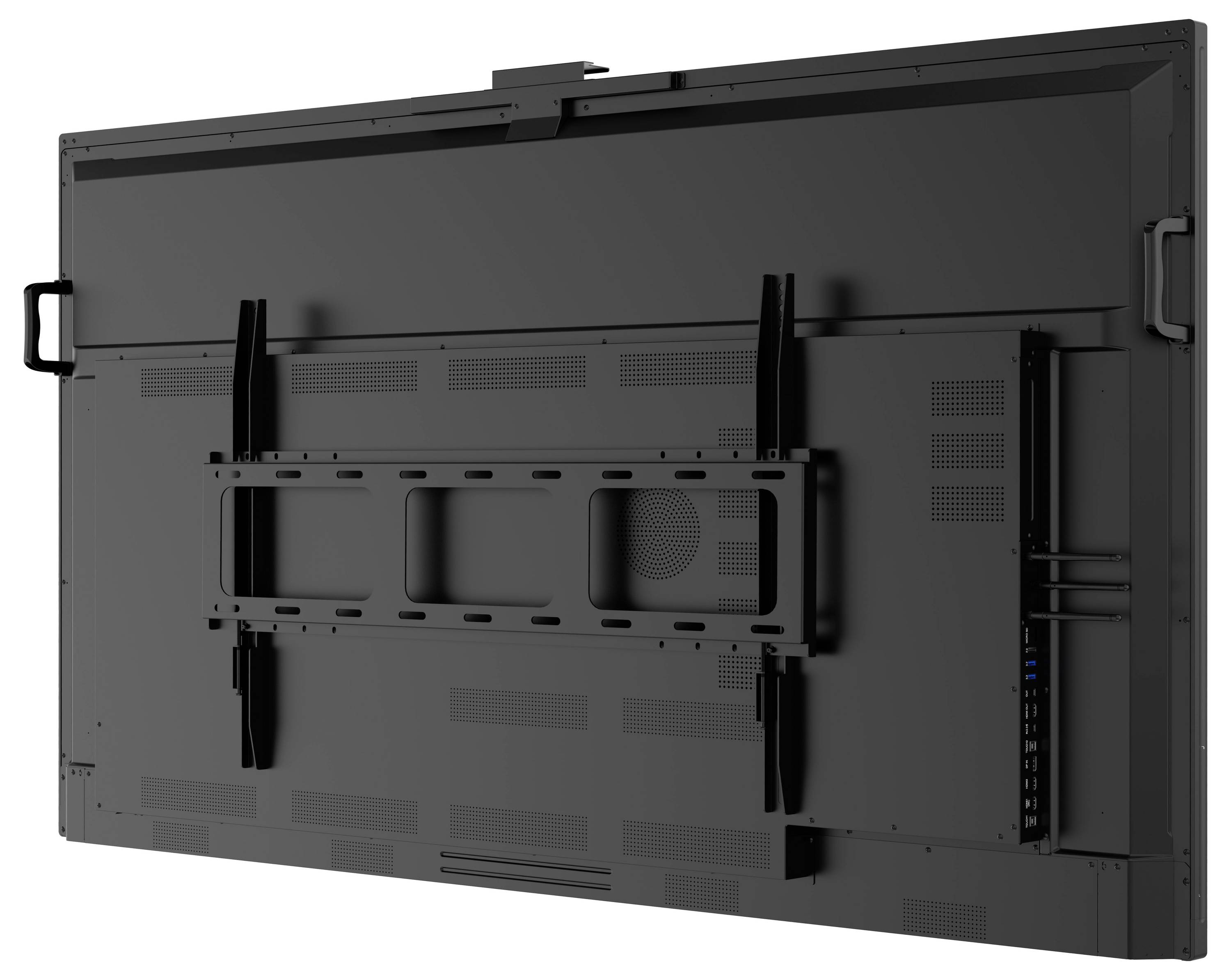

The image shows the back of a large, black flat screen display with mounting brackets and ports visible. Handles are on the sides.

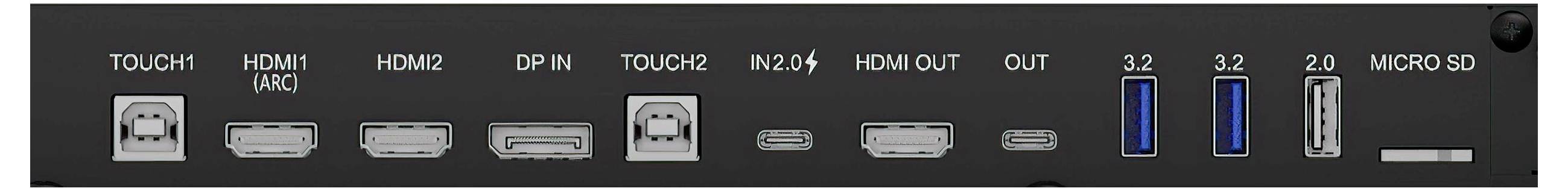

Rear panel of a device showing various ports: 'TOUCH', 'HDMI (ARC)', 'HDMI2', 'DP IN', 'TOUCH2', 'IN2.0', 'HDMI OUT', 'OUT', dual USB 3.2, USB 2.0, 'MICRO SD'.

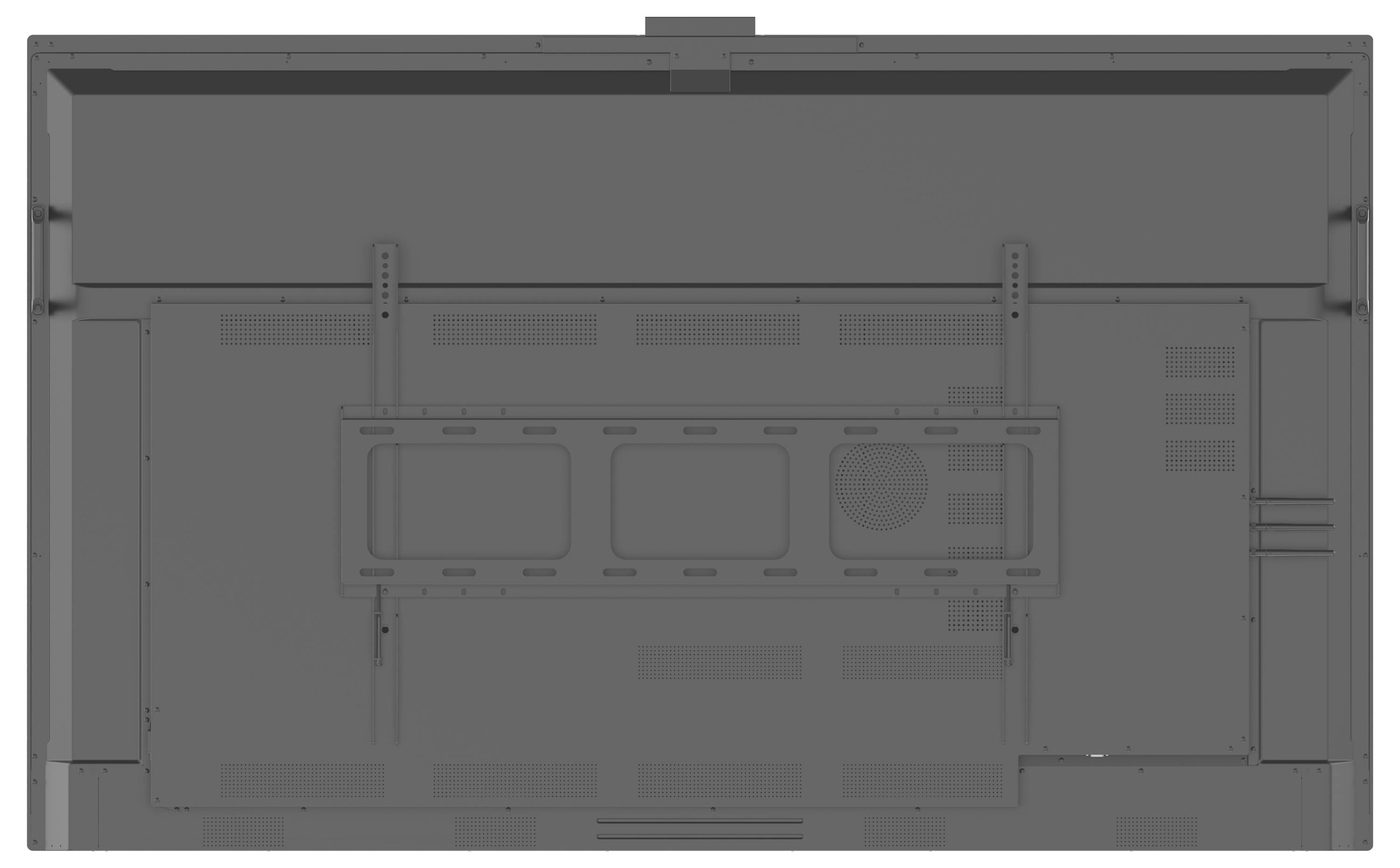

Rear view of a large, flat-screen television showing multiple vents, a power port, and various input/output connectors for cables.

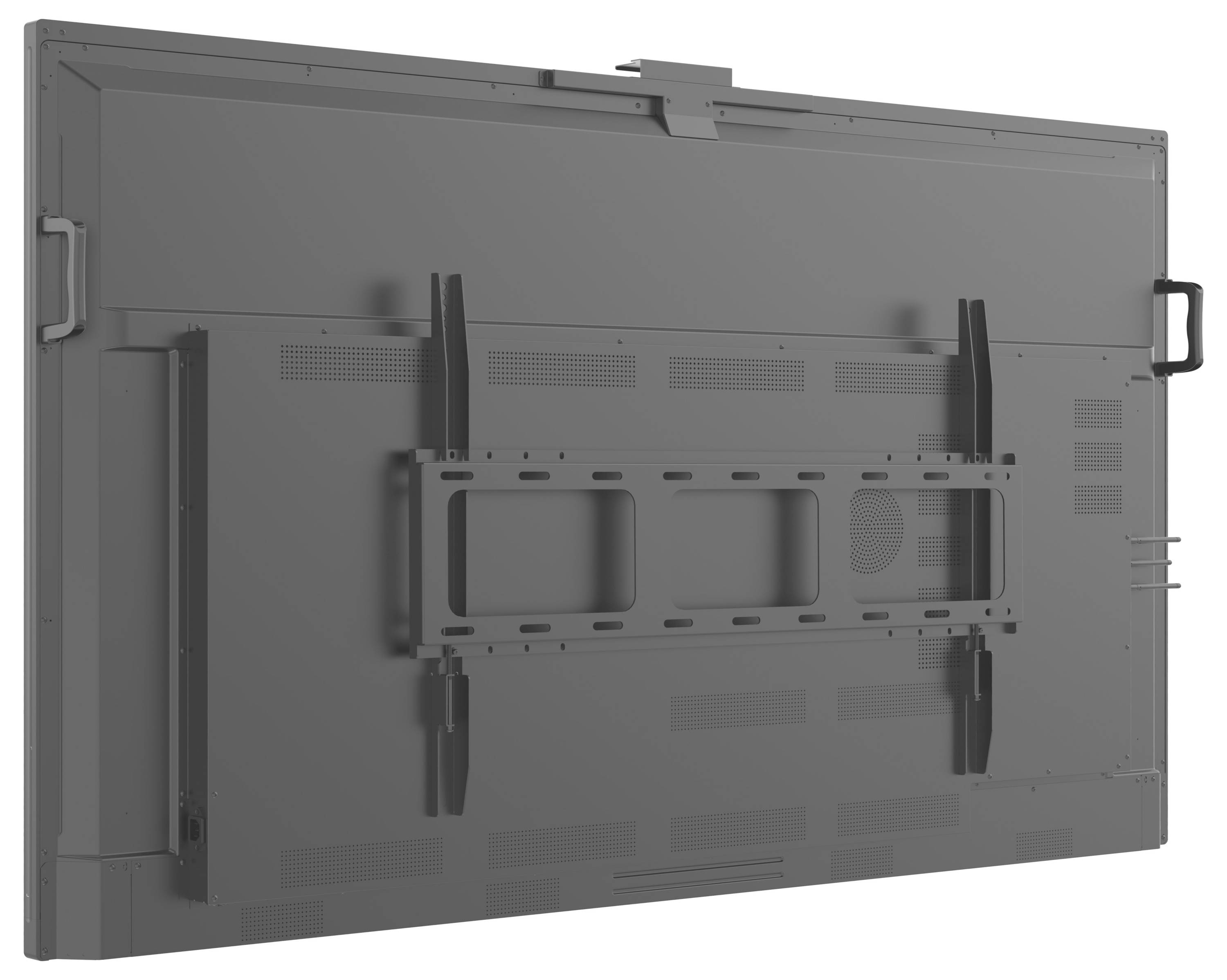

The image shows the back view of a flat-screen monitor with mounting brackets and handles for installation or transport.

Iiyama Digital signage display EEC: G (A - G) 189.3 cm 75 inch 3840 x 2160 Pixel-10

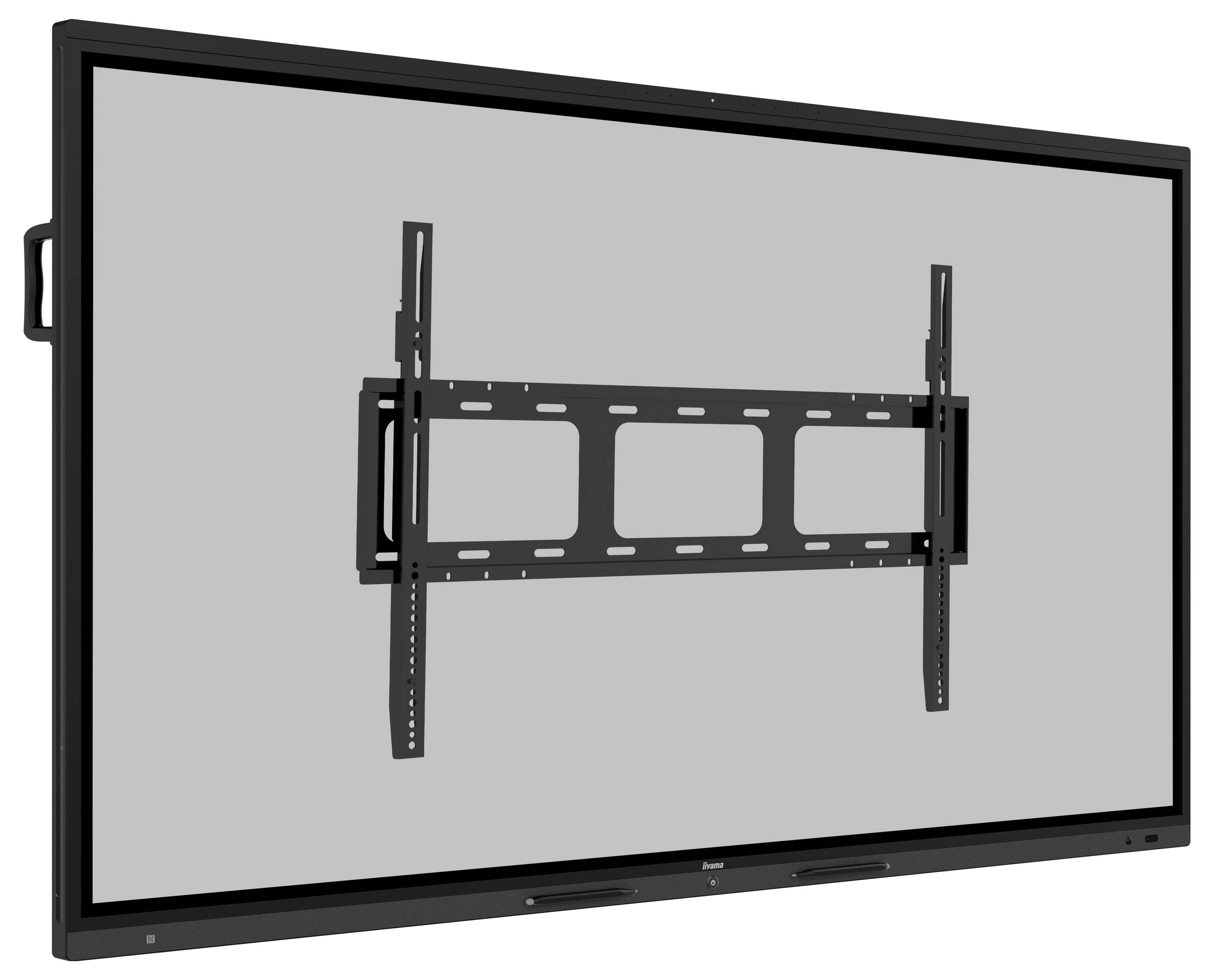

A large black interactive display screen mounted on a gray wall mount bracket.

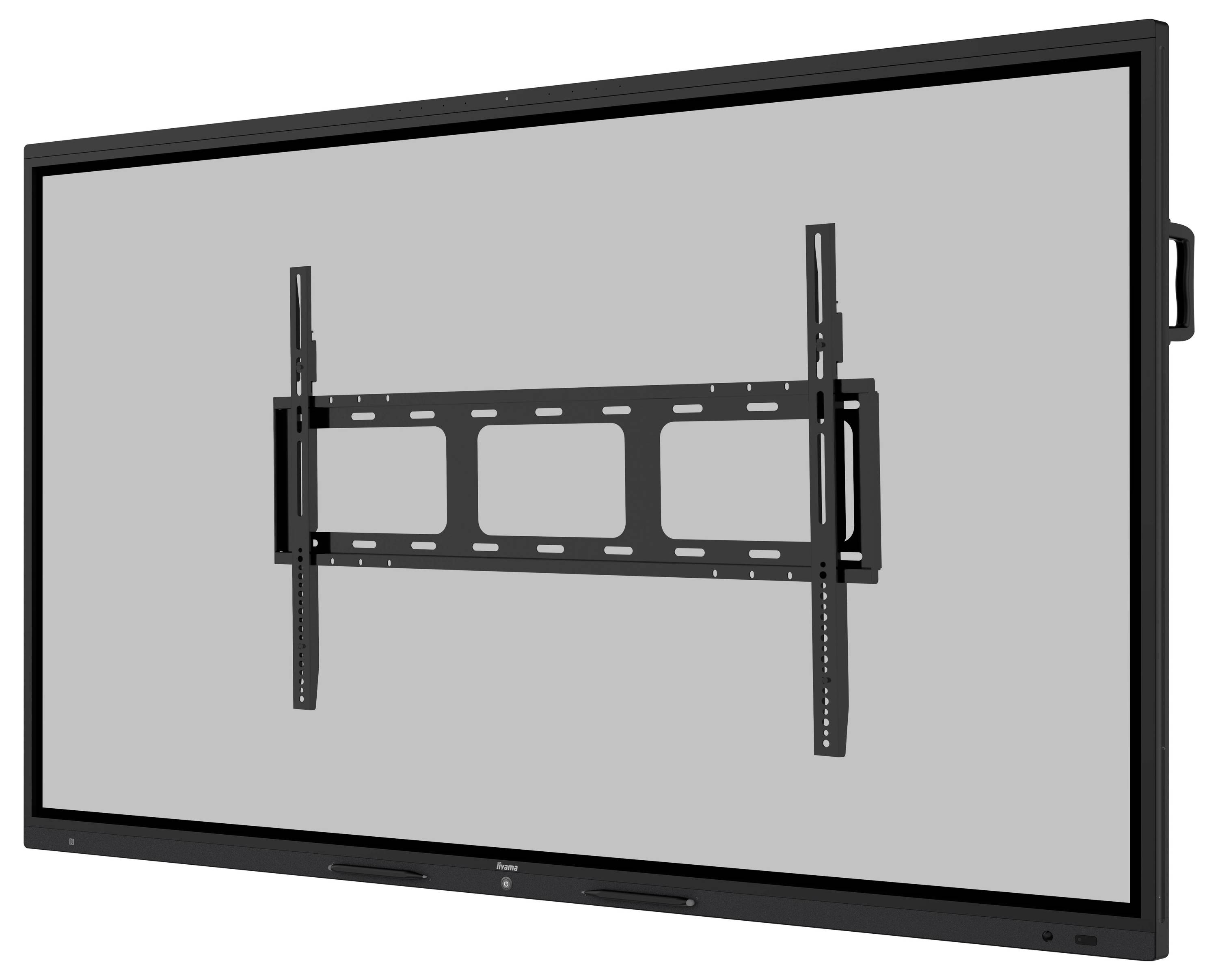

A large black flat-screen monitor mounted on a wall bracket, designed for secure wall installation.

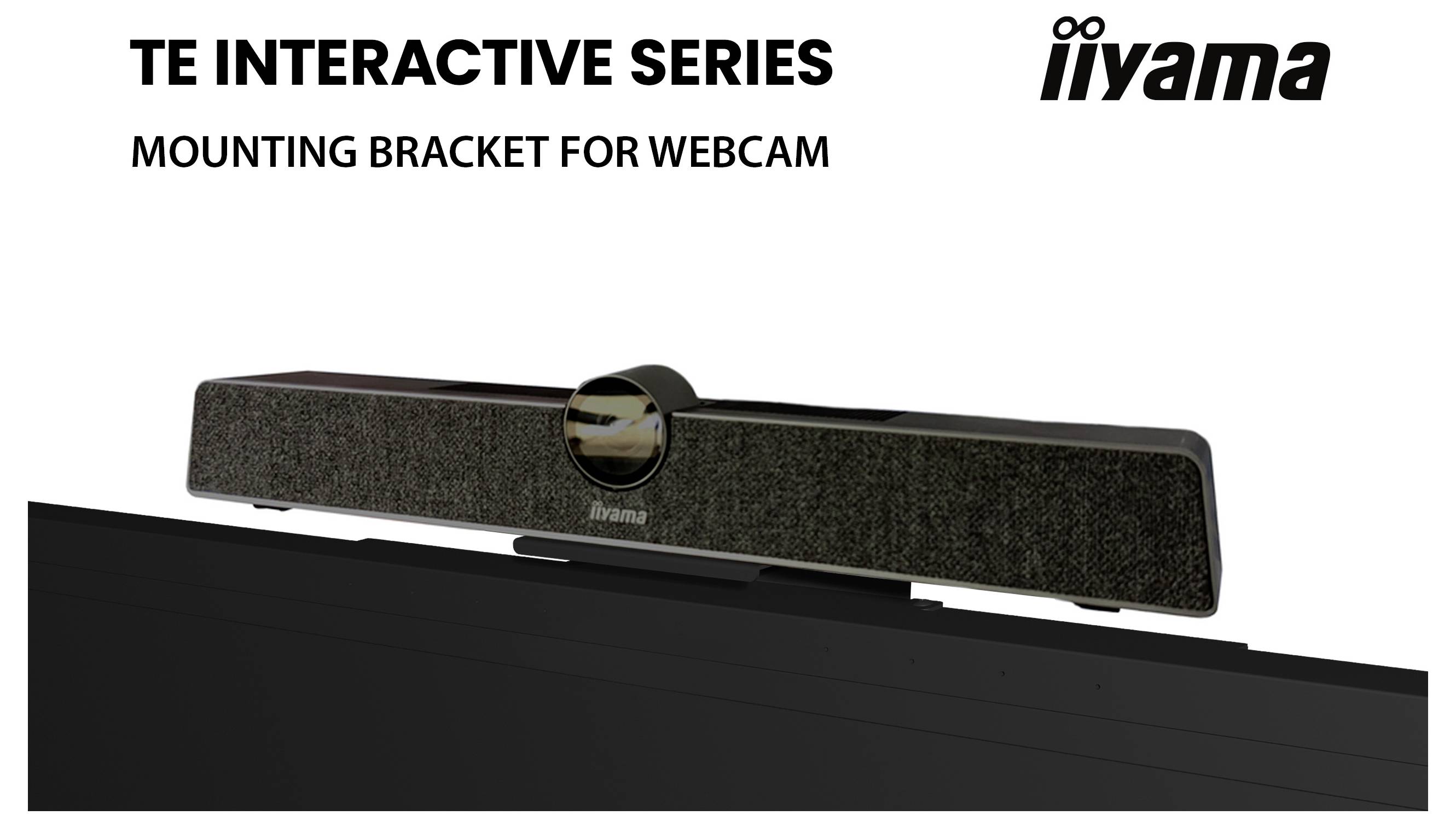

Iiyama Digital signage display EEC: G (A - G) 189.3 cm 75 inch 3840 x 2160 Pixel-13

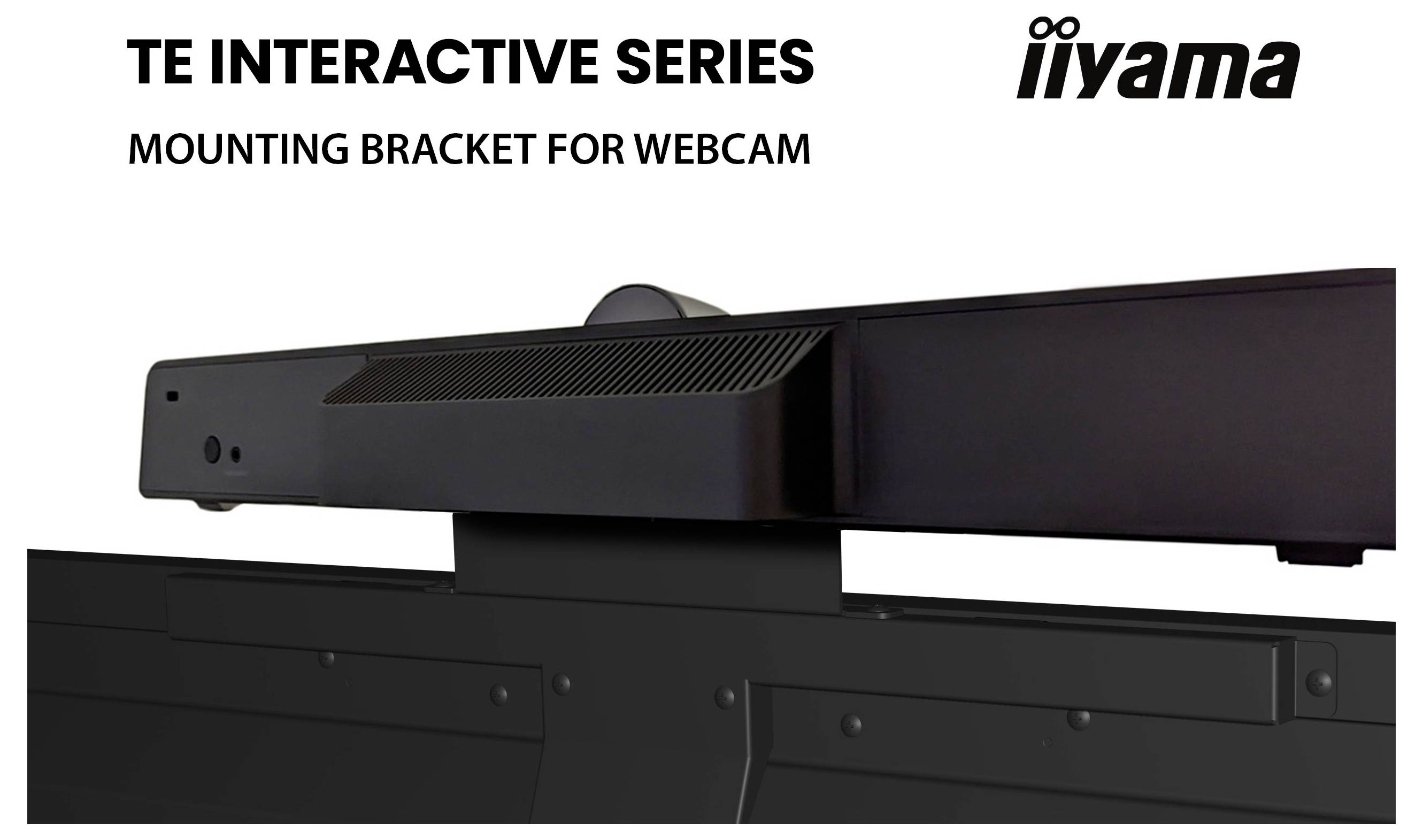

Iiyama Digital signage display EEC: G (A - G) 189.3 cm 75 inch 3840 x 2160 Pixel-14

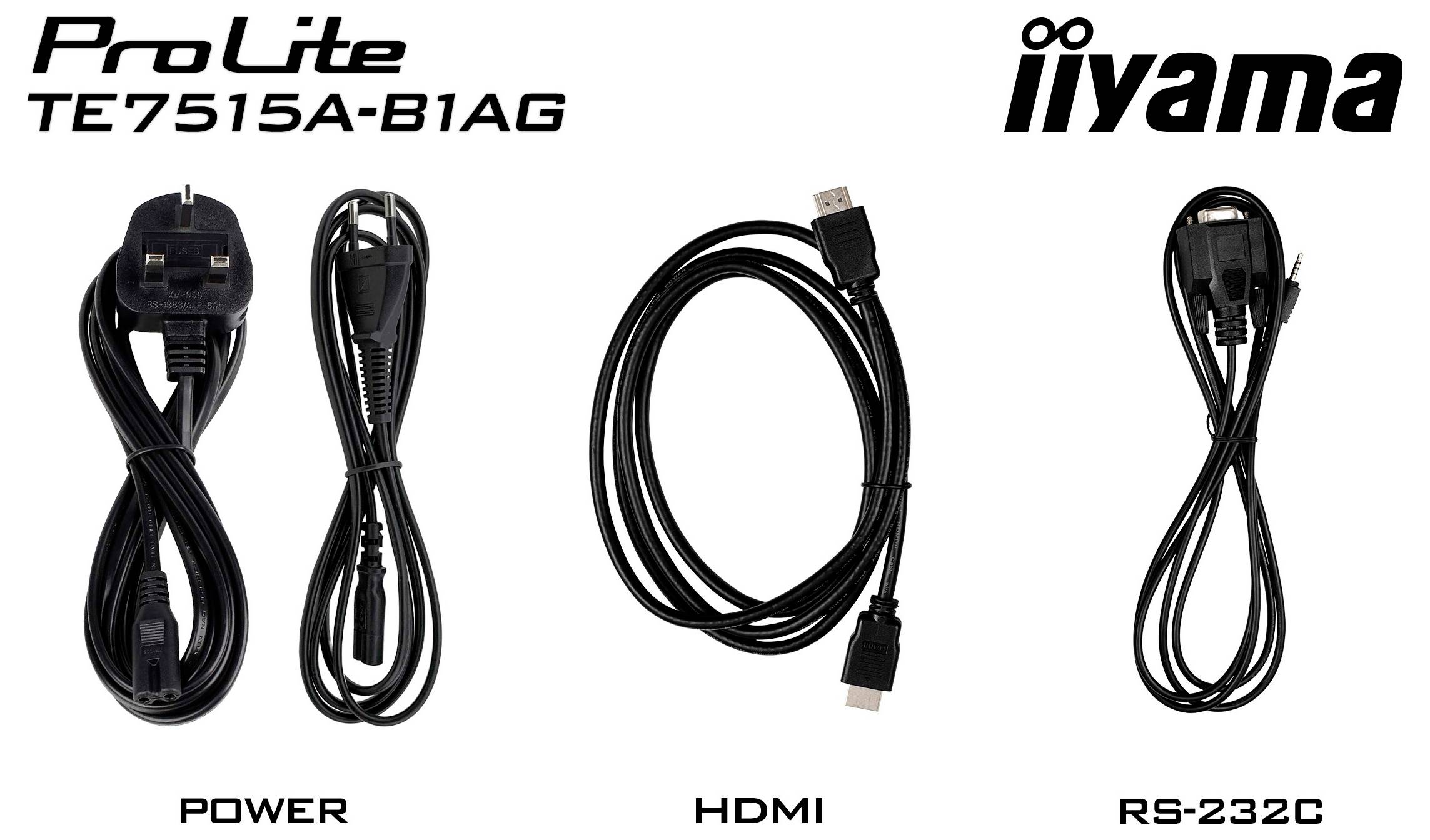

Three types of cables are shown: a power cable, an HDMI cable, and an RS-232C cable, each labeled with its type, under the 'iiyama Pro Lite TE7515A-B1AG' title.

Iiyama Digital signage display EEC: G (A - G) 189.3 cm 75 inch 3840 x 2160 Pixel-17

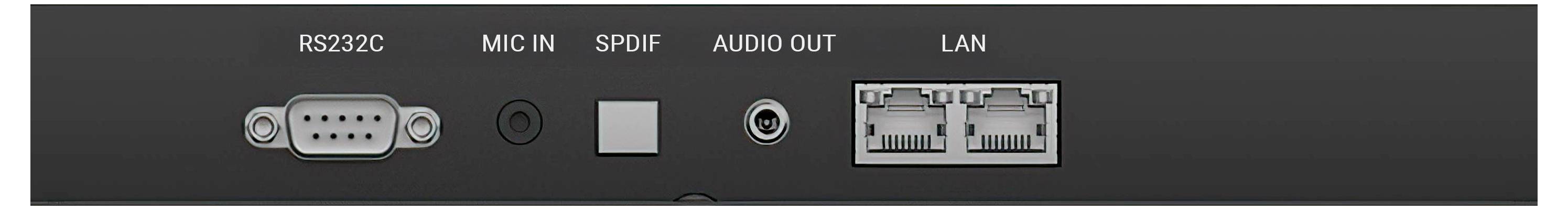

Back panel of an electronic device showing ports: RS232C, mic in, SPDIF, audio out, and two LAN ports, used for connectivity.

Iiyama Digital signage display EEC: G (A - G) 189.3 cm 75 inch 3840 x 2160 Pixel-19

1/20

Product data sheet

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Iiyama Digital signage display

Highlights & Details

Screen size diagonal: 189.3 cm (75 inch)
Display resolution: 3840 x 2160 Pixel
Energy efficiency rating (calc): G (A - G)
Kiosk mode

Technical specifications

Panel type VA
HD type 4K Ultra HD
Contrast ratio 5000:1
Built-in graphics card model: ARM Mali-G52
Installed operating system: Android™
WLAN-standards Wi-Fi 6 (802.11ax)
Audio input (mini jack): Yes
Playback media Y
User controls: Personalization (theme, wallpapers, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, hue, color temp., eye protection mode, energy saving, HDMI range), sounds (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source less detection, auto source switch, auto wake-up, OPS boot with system, Power on source, rename input setting), system (Power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI mode, Wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)

Product type: Digital signage display

Screen size diagonal (inches): 75 inch

Features: Kiosk mode

Display technology: LCD

Brightness: 550 cd/m²

Static contrast ratio: 5000 : 1

Display resolution: 3840 x 2160 Pixel

Image format: 16:9

Network/internet function: WiFi

Wi-Fi: b/g/n/ax

Controller: Touchscreen

No. of USB ports: 4 x

Interfaces: Wi-Fi 6E (IEEE 802.11ax)

Power supply (details): 100 - 240 V

Power consumption (standby): 0.5 W

: 800 x 400 mm

Factory colour: Multicolour

Dim: (W x H x D) 1710.2 x 1036.3 x 87.1 mm

Width: 1710.2 mm

Height: 1036.3 mm

Depth: 87.1 mm

Height (without base): 1036.3 mm

Device depth (without stand): 87.1 mm

Weight: 54.6 kg

Weight (without base): 54.6 kg

: G (A - G)

Display: 190.5 cm (75 inch)

Screen resolution: Ultra HD (3840 x 2160 Pixel)

Display (cm): 190.5 cm

Screen size diagonal (cm): 189.3 cm

Screen size diagonal (inches): 75 inch

Power consumption (off): 0.3 W

Power consumption (ON): 191 W

Bluetooth: 5.0

Bluetooth: Yes

No. of DisplayPort: 1 x

Touchscreen (display): Yes

HDCP: Yes

Charging method (Power Delivery): with USB Power Delivery

Memory capacity: 128 GB

Microphone: Yes

10/100/1000 Mbps ports: 2 x

Brightness: 550 cd/m²

Type: internal

Response time: 6.5 ms

: 8 GB

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Wi-Fi: Yes

UKCA: not relevant

Anti-glare screen: yes

Operating temperature (T-T): 0 - 40 °C

Number of simultaneous touchpoints: 40

Ethernet LAN: yes

RS-232C: yes

Active display area (W x H): 1650 x 928 mm

Remote control included: yes

Number of built-in speakers: 2

OPS slot: 1

Built-in speaker(s): yes

Number of stylus pens: 4

On Screen Display (OSD): yes

USB Type-C DisplayPort Alternate Mode: yes

Picture-in-Picture: yes

Card reader integrated: yes

Horizontal scan range: 30 - 135 kHz

OPS module slot: yes

HDMI input ports quantity: 1

USB Power Delivery up to: 100 W

Quick start guide: yes

Mean time between failures (MTBF): 50000 h

Products per pallet: 4 Stück(e)

Storage temperature (T-T): -20 - 60 °C

Package weight: 67.6 kg

Built-in processor: yes

Bezel width (side): 1.67 cm

Bezel width (top): 3.43 cm

Bezel width (bottom): 4.67 cm

Stylus pen: yes

Glass thickness: 3.2 mm

Audio Return Channel (ARC): yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729157 Iiyama Digital signage display EEC: G (A - G) 189.3 cm 75 inch 3840 x 2160 Pixel

Description

Elegance and functionality combine in the ProLite TE7515A-B2AG. This 75" (᠎189.3 cm) 4K UHD panel not only offers precision and performance, but also adds a high-quality look to modern classrooms and collaborative business environments. With its front button-less (only a discreet on/off button), integrated pen holders and an elegant, fabric-covered lower frame, in which high-quality, forward-facing loudspeakers are installed, the TE7515A enhances the visual experience in every room. It's more than just a device - it's part of your room. Together with the DeepContrast-IR++ technology with palm detection the display offers smooth and natural writing on the optical bonding LCD, which eliminates parallax of movement and provides an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA-certified), the display can be integrated effortlessly in Google-environments. Features such as WiFi 6E, Bluetooth 5.0, NFC reader and PIR motion sensor add connectivity, energy efficiency and access control. With iControl (DMS) and iShare & Eshare (wireless screen sharing), the TE7515A-B2AG promotes seamless teamwork - whether you present, teach or brainstorm The TE7515A-B2AG is not only an interactive display, but also a heart of connection, creativity and collaboration, packed in a sophisticated, modern design.

This text is machine translated.

Hints

HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
