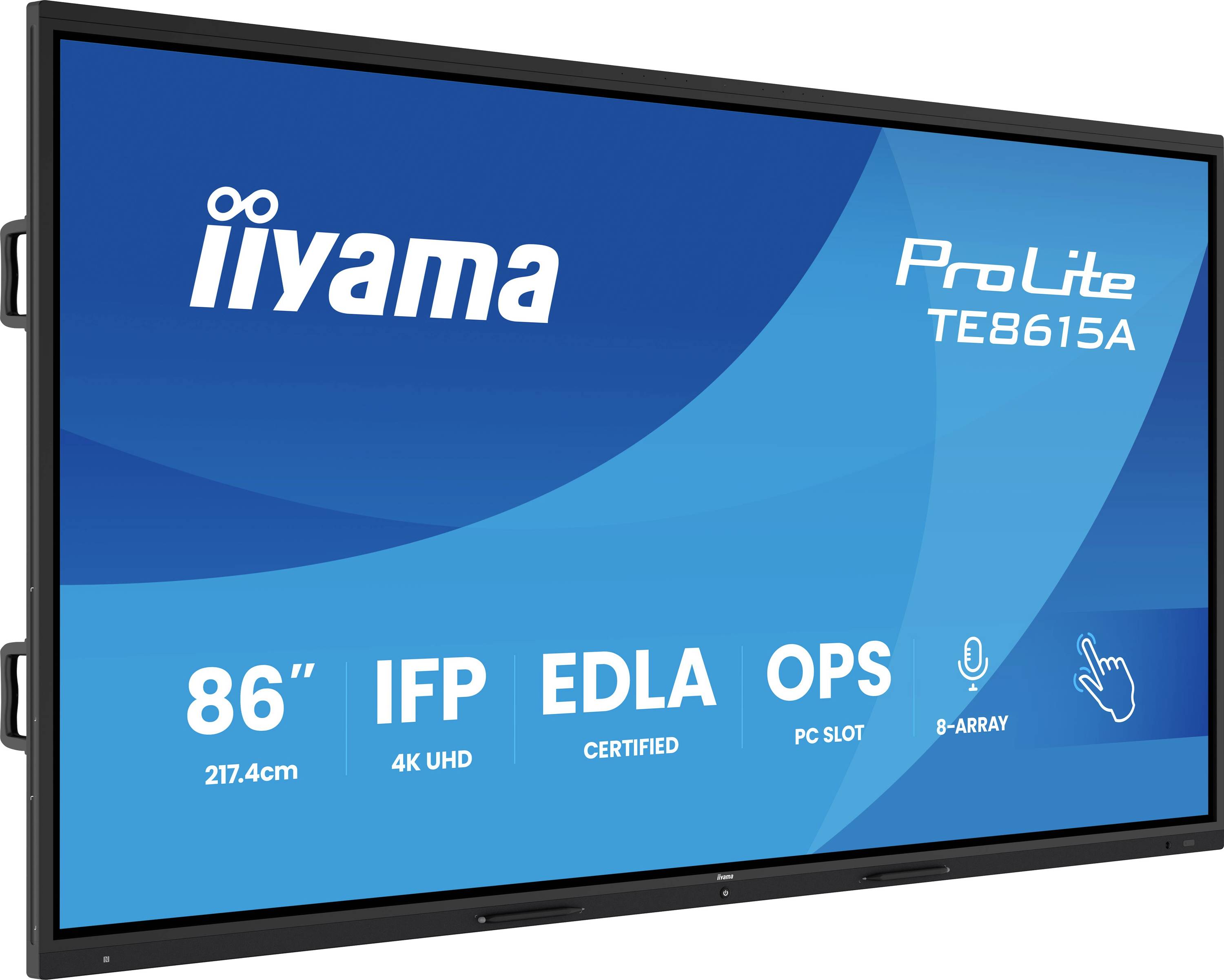

'iiyama ProLite TE8615A' interactive display features an 86-inch screen, 4K UHD resolution, IFP, EDL, OPS slot, and B-Array technology.

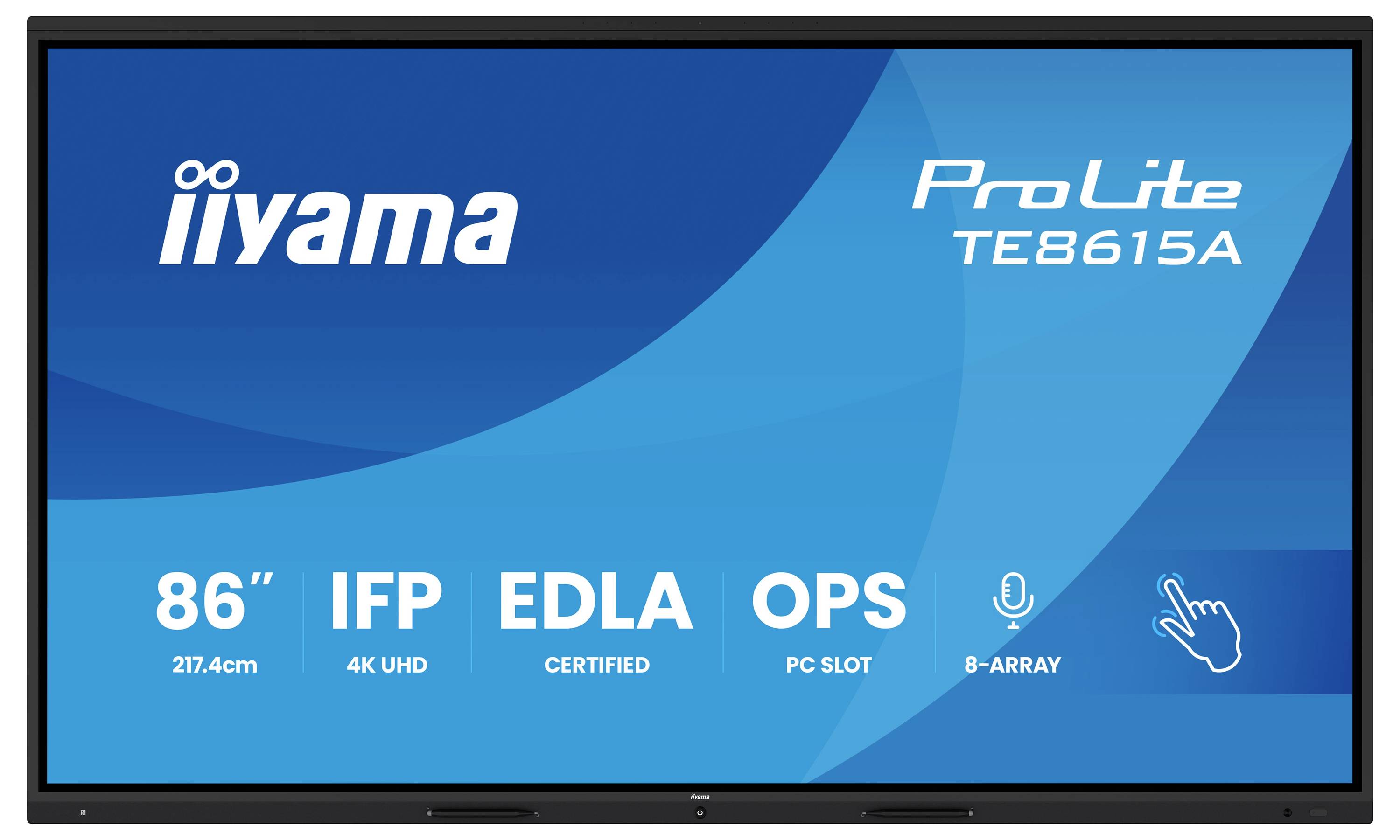

'iiyama ProLite TE8615A, 86" interactive flat panel display, 4K UHD, EDLA certified, with OPS PC slot and 8-array microphone.'

Close-up of a black electronic keyboard without visible branding, showing keys in a horizontal layout on a flat surface.

A black soundbar with multiple speaker sections and connection ports on the side.

Back panel of a device showing various ports including HDMI1, HDMI2, DP1.4, TOUCH1, 2.0, HDMI OUT, USB 3.2, USB 2.0, and MICRO SD.

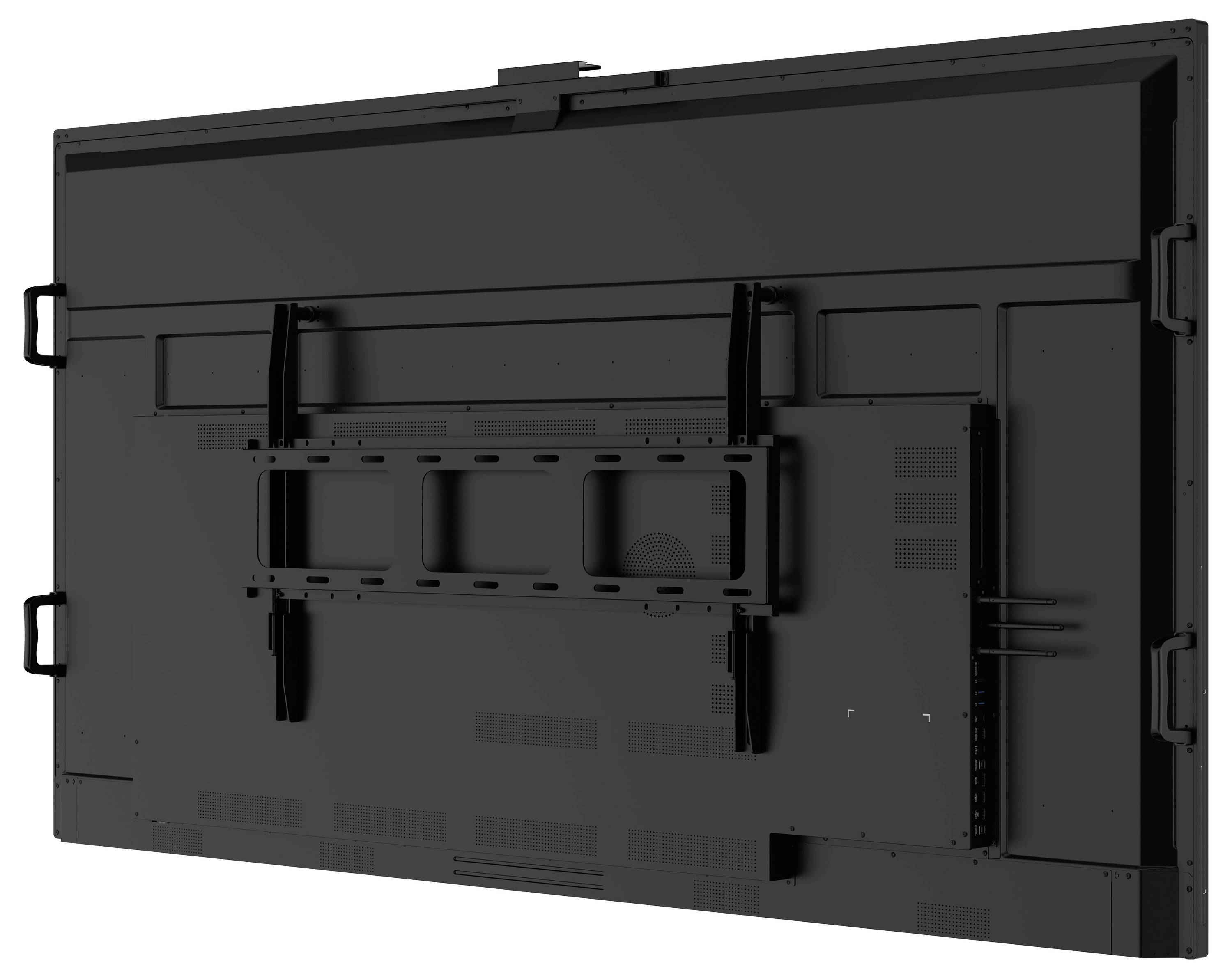

'Back view of a large flat-screen television with mounting brackets and handles on each side for installation or transport.'

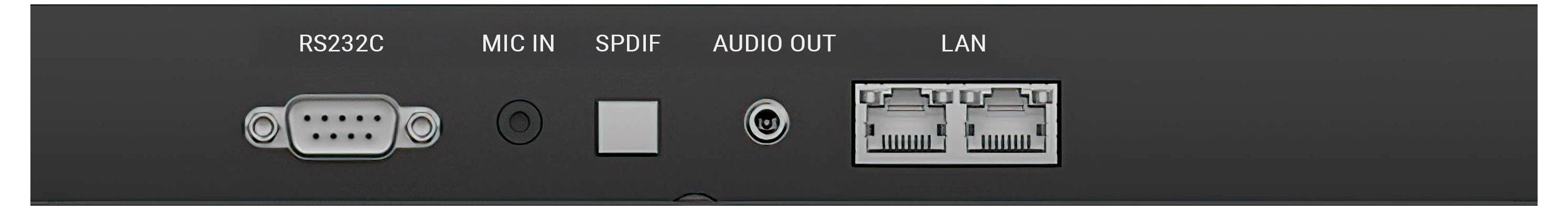

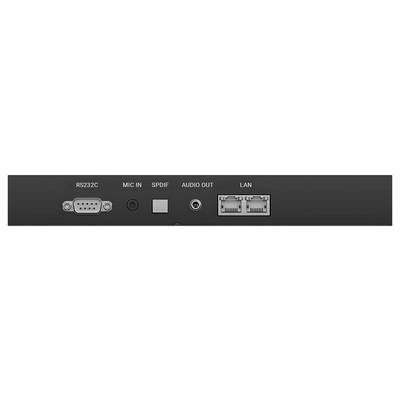

Rear panel ports of a device featuring RS232C, MIC IN, SPDIF, AUDIO OUT, and two LAN connectors.

Iiyama Digital signage display EEC: G (A - G) 217.4 cm 85.6 inch 3840 x 2160 Pixel-10

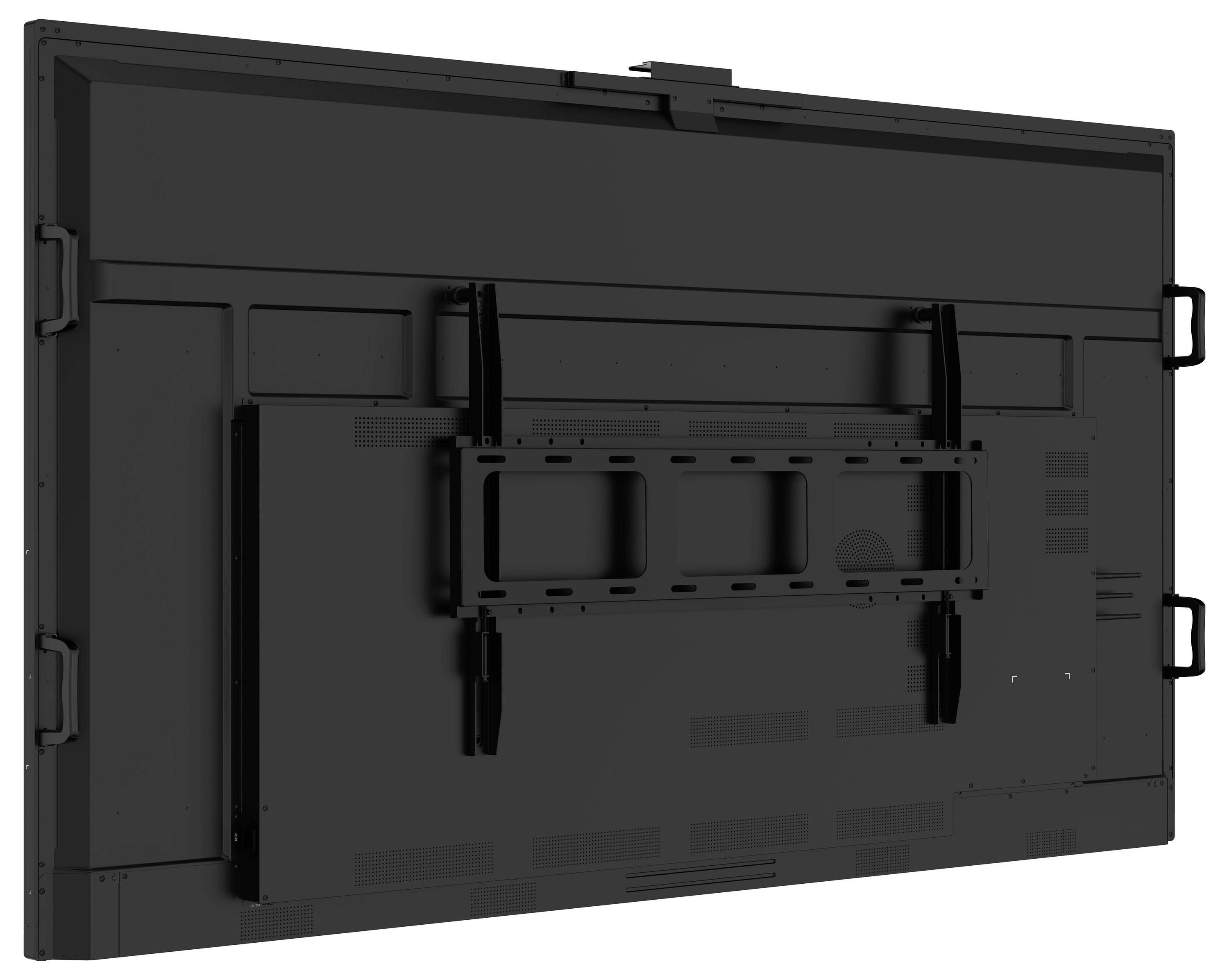

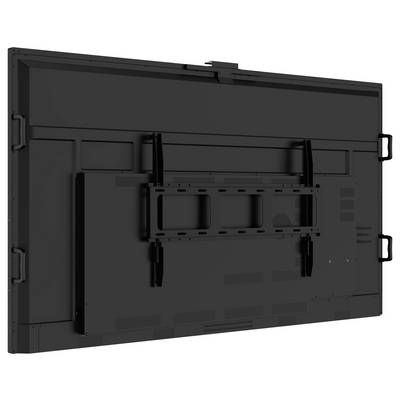

The image shows the rear view of a large flat-screen monitor with mounting brackets attached, suitable for wall installation.

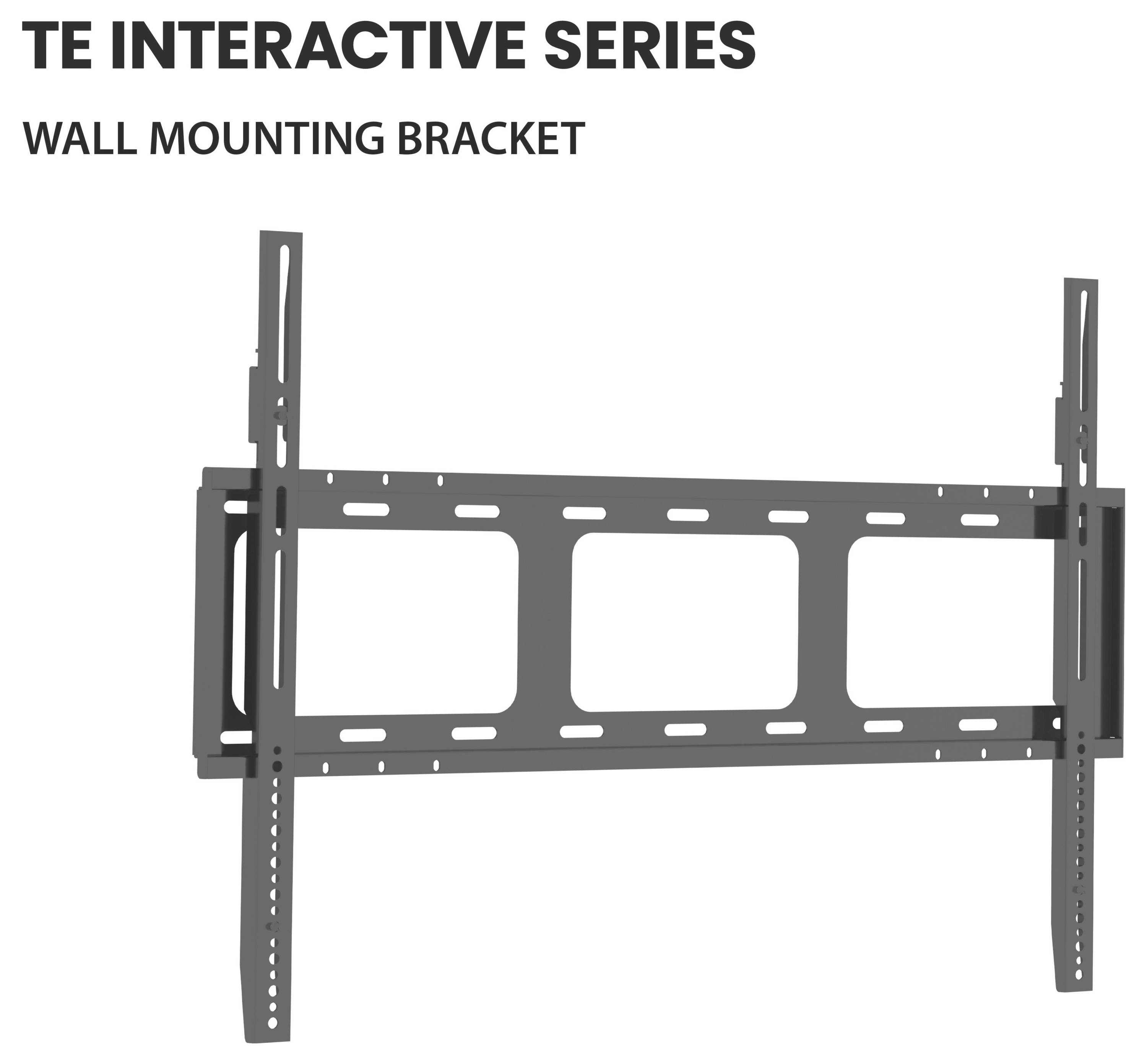

Iiyama Digital signage display EEC: G (A - G) 217.4 cm 85.6 inch 3840 x 2160 Pixel-12

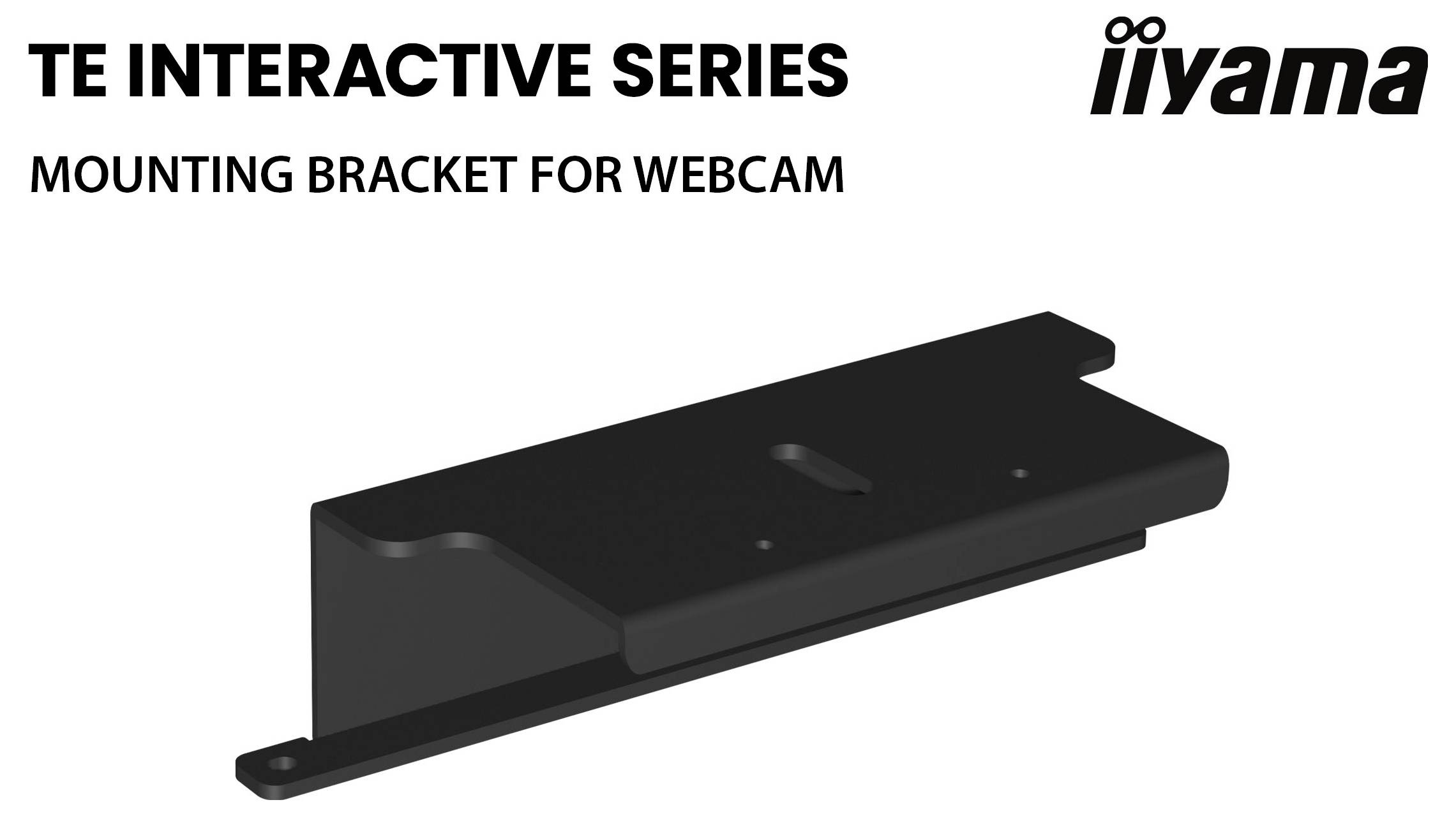

Iiyama Digital signage display EEC: G (A - G) 217.4 cm 85.6 inch 3840 x 2160 Pixel-13

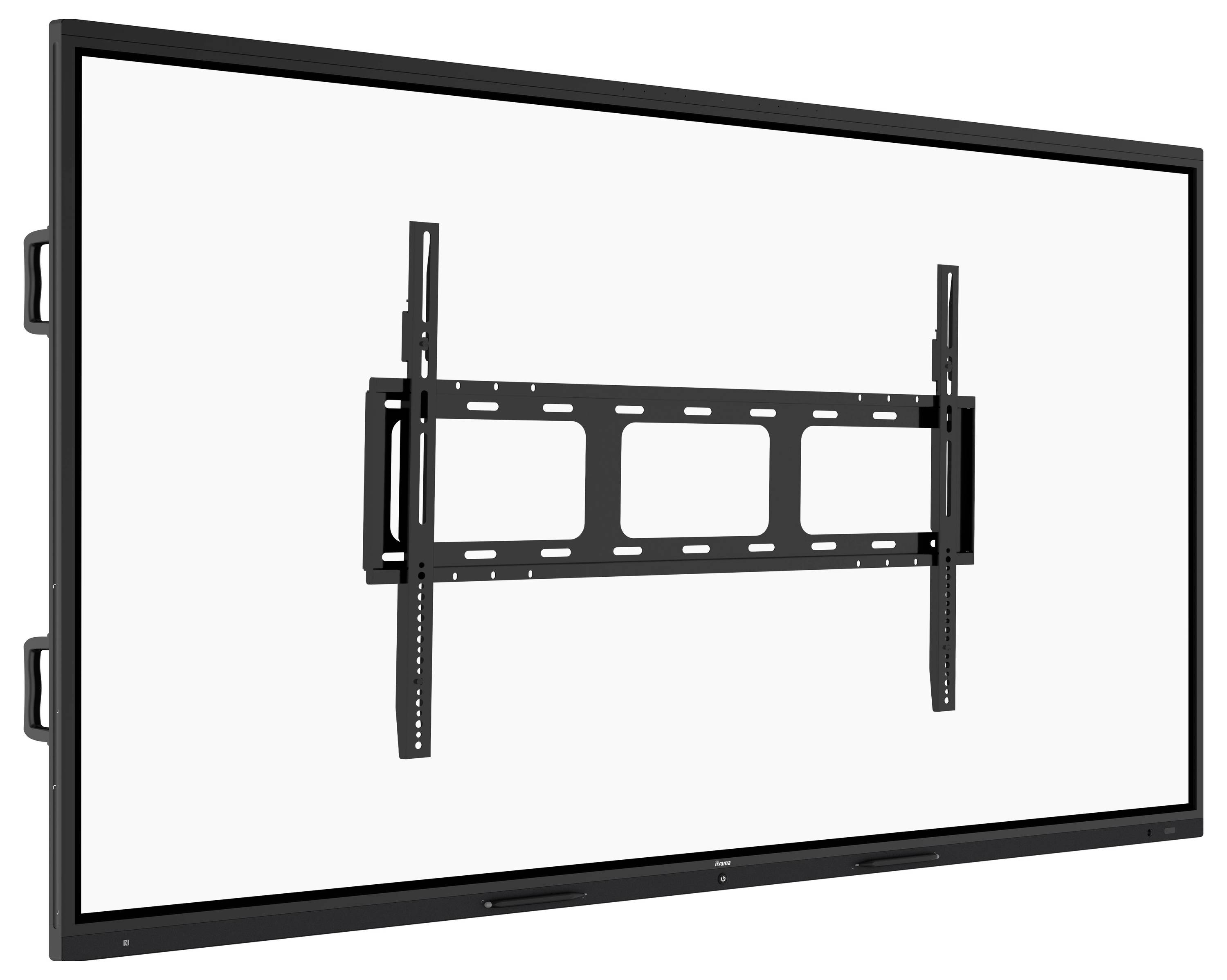

A large flat-screen display mounted on a black adjustable wall bracket. The screen is turned off and features a sleek, modern design.

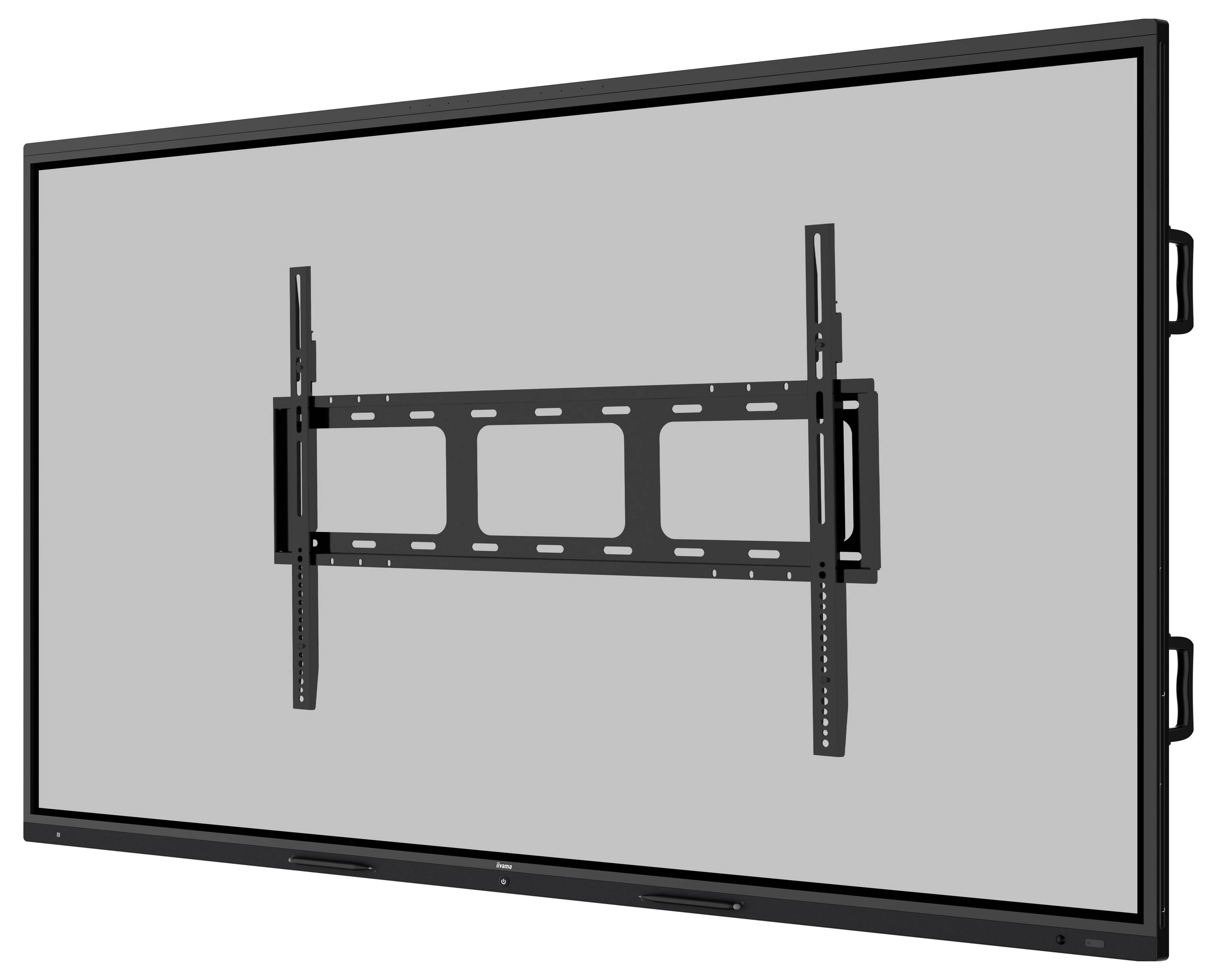

A large flat-screen display mounted on a wall with a black bracket, suitable for presentations or home entertainment setups.

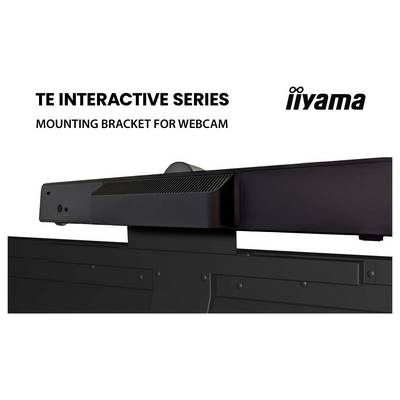

Iiyama Digital signage display EEC: G (A - G) 217.4 cm 85.6 inch 3840 x 2160 Pixel-16

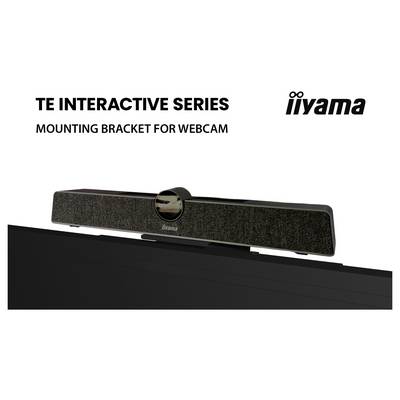

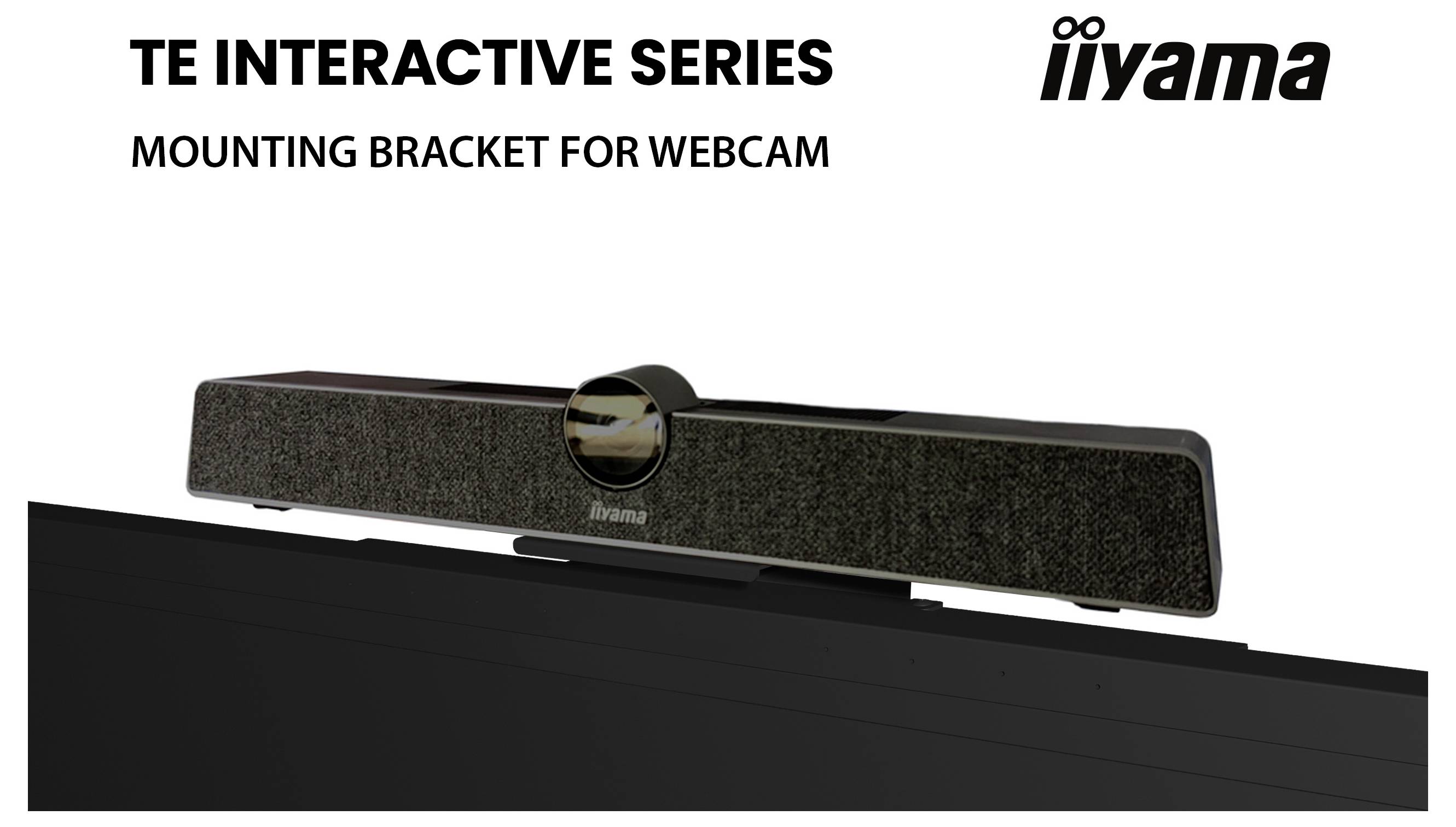

Iiyama Digital signage display EEC: G (A - G) 217.4 cm 85.6 inch 3840 x 2160 Pixel-17

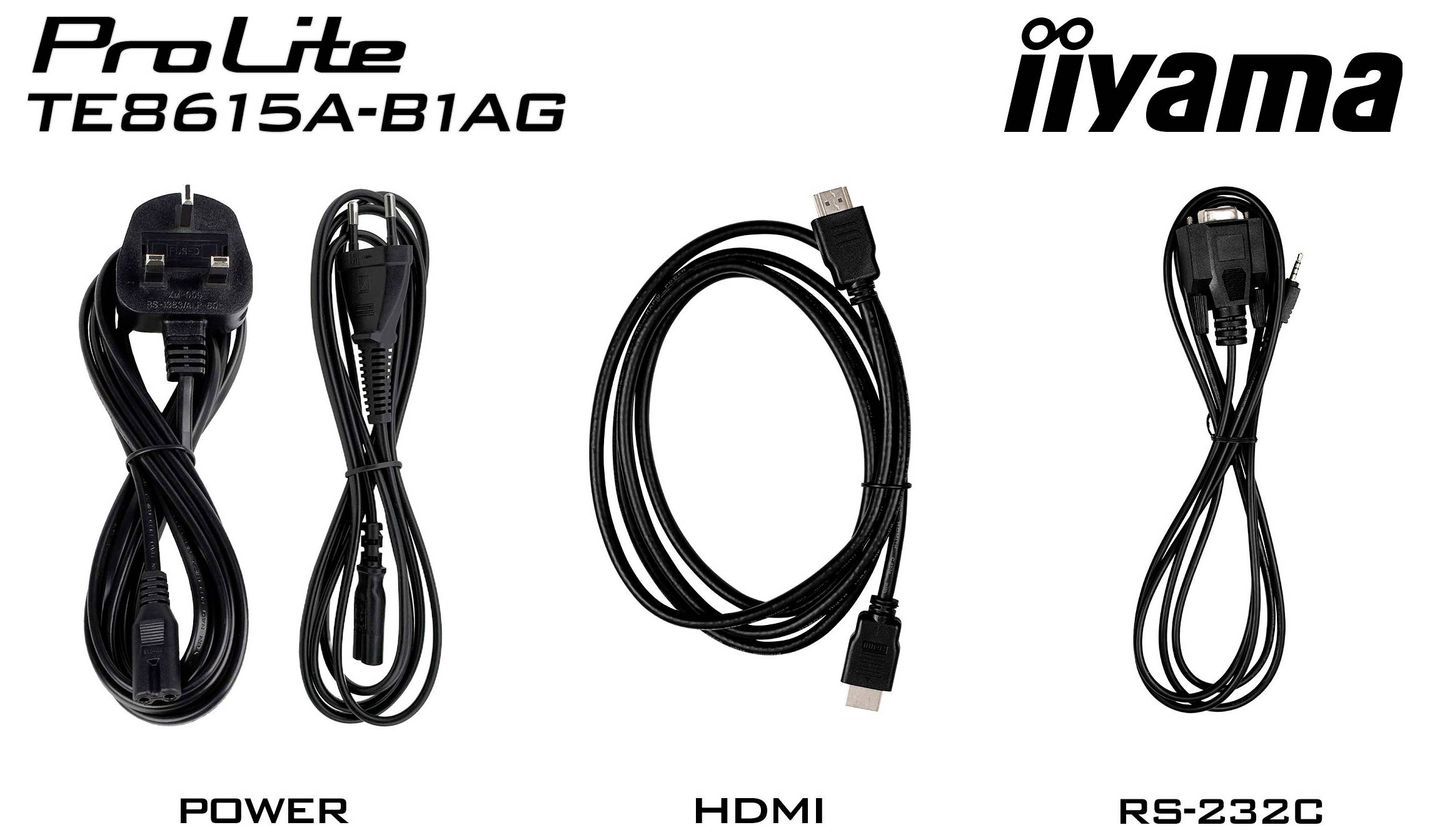

Power cable, HDMI cable, and RS-232C cable arranged side by side. All cables have connectors visible. 'ProLite TE8615A-B1AG' and 'iiyama' logos at the top.

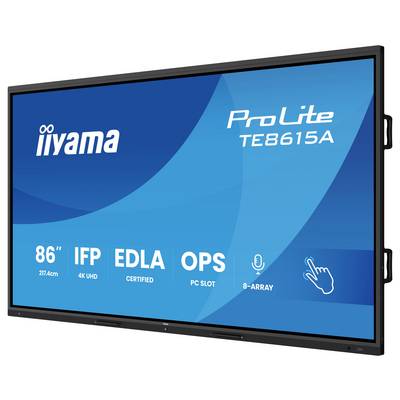

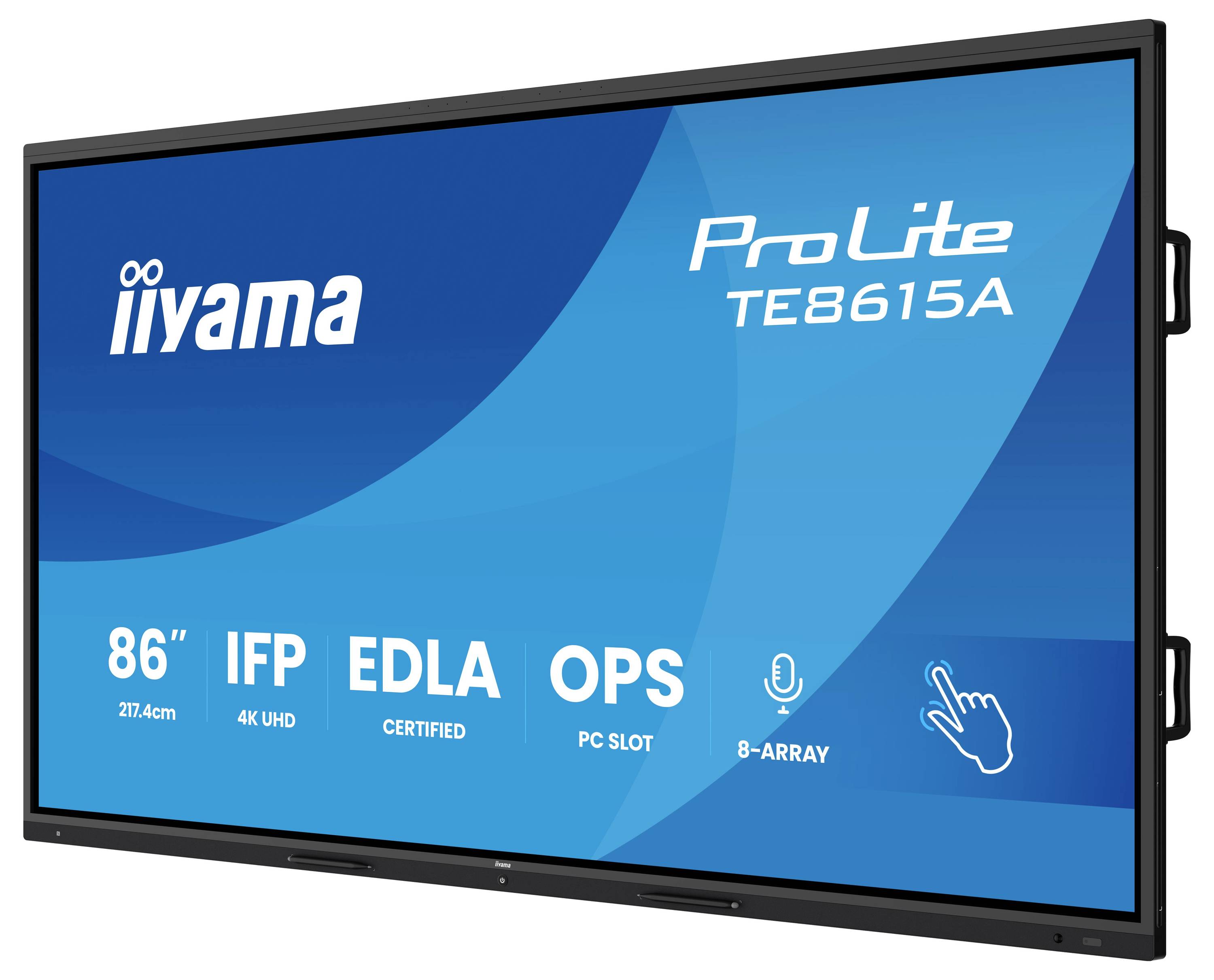

The image shows a large interactive display screen with features like 4K UHD, IFP, EDLA certification, OPS PC slot, and 8-array mic.

1/20

Product data sheet

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Iiyama Digital signage display

Highlights & Details

Screen size diagonal: 217.4 cm (85.6 inch)
Display resolution: 3840 x 2160 Pixel
Energy efficiency rating (calc): G (A - G)
Kiosk mode

Technical specifications

HD type 4K Ultra HD
Contrast ratio 1200:1
Contrast ratio (dynamic): 5000:1
0.493 x 0.493 mm pixel distance
Built-in graphics card model: ARM Mali-G52
Installed operating system: Android™
WLAN-standards Wi-Fi 6 (802.11ax)
Audio input (mini jack): Yes
Playback media Y
User controls: Personalization (theme, wallpapers, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, hue, sharpness, colored temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source less detection, auto source switch, auto wake-up, OPS boot with system, Power on source, rename input setting), system (Power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI mode, Wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)

Product type: Digital signage display

Screen size diagonal (inches): 85 inch

Features: Kiosk mode

Display technology: LCD

Brightness: 550 cd/m²

Static contrast ratio: 1200 : 1

Display resolution: 3840 x 2160 Pixel

Dot pitch (horizontal): 0.493 mm

Dot pitch (vertical): 0.493 mm

Image format: 16:9

Network/internet function: WiFi

Wi-Fi: b/g/n/ax

Controller: Touchscreen

No. of USB ports: 4 x

Interfaces: Wi-Fi 6E (IEEE 802.11ax)

Power supply (details): 100 - 240 V

Power consumption (standby): 0.5 W

: 800 x 600 mm

Factory colour: Black

Dim: (W x H x D) 1955.6 x 1174.3 x 87.1 mm

Width: 1955.6 mm

Height: 1174.3 mm

Depth: 87.1 mm

Height (without base): 1174.3 mm

Device depth (without stand): 87.1 mm

Weight: 68 kg

Weight (without base): 68 kg

: G (A - G)

Display: 217.4 cm (85.6 inch)

Screen resolution: Ultra HD (3840 x 2160 Pixel)

Display (cm): 217.4 cm

Screen size diagonal (cm): 217.4 cm

Screen size diagonal (inches): 85.6 inch

Power consumption (off): 0.3 W

Power consumption (ON): 300 W

Bluetooth: 5.0

Bluetooth: Yes

Display properties: IPS

No. of DisplayPort: 1 x

Touchscreen (display): Yes

Charging method (Power Delivery): with USB Power Delivery

Memory capacity: 128 GB

Microphone: Yes

10/100/1000 Mbps ports: 2 x

Audio power (max.): 60 W

Brightness: 550 cd/m²

Type: internal

Response time: 8 ms

: 8 GB

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Wi-Fi: Yes

UKCA: yes

Anti-glare screen: yes

Operating temperature (T-T): 0 - 40 °C

Number of simultaneous touchpoints: 40

Ethernet LAN: yes

RS-232C: yes

Active display area (W x H): 1895 x 1066 mm

Remote control included: yes

Number of built-in speakers: 2

OPS slot: 1

Built-in speaker(s): yes

Number of stylus pens: 4

On Screen Display (OSD): yes

USB Type-C DisplayPort Alternate Mode: yes

Picture-in-Picture: yes

Card reader integrated: yes

Horizontal scan range: 30 - 135 kHz

OPS module slot: yes

HDMI input ports quantity: 1

USB Power Delivery up to: 100 W

Quick start guide: yes

Mean time between failures (MTBF): 50000 h

Products per pallet: 4 Stück(e)

Package weight: 82.7 kg

Built-in processor: yes

Bezel width (side): 1.65 cm

Bezel width (top): 1.65 cm

Bezel width (bottom): 4.1 cm

Stylus pen: yes

Glass thickness: 3.2 mm

Audio Return Channel (ARC): yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729159 Iiyama Digital signage display EEC: G (A - G) 217.4 cm 85.6 inch 3840 x 2160 Pixel

Description

Elegance and functionality combine in the ProLite TE8615A-B2AG. This 85.6" (᠎᠎217.4 cm) 4K UHD panel not only offers precision and performance, but also adds a high-quality look to modern classrooms and collaborative business environments. With its scanner-less front side (only a decent power on and off button), integrated pen holders and an elegant, fabric-covered lower frame in which high-quality, forward-facing loudspeakers are installed, the TE8615A enhances the visual experience in every room. It's more than just a device - it's part of your room. Together with the DeepContrast-IR++ technology with palm detection the display offers smooth and natural writing on the optical bonding LCD, which eliminates parallax of movement and provides an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA-certified), the display can be integrated effortlessly in Google-environments. Features such as WiFi 6E, Bluetooth 5.0, NFC reader and PIR motion sensor add connectivity, energy efficiency and access control. With iControl (DMS) and iShare & Eshare (wireless screen sharing), the TE8615A-B2AG promotes seamless teamwork - whether you present, teach or brainstormen. The TE8615A-B2AG is not only an interactive display, but also a heart of connection, creativity and cooperation, packed in a sophisticated, modern design.
