Name: Iiyama ProLite Digital signage display 25.5 cm 10.1 inch 1280 x 800 Pixel 24/7
Brand: Iiyama
SKU: 3629747

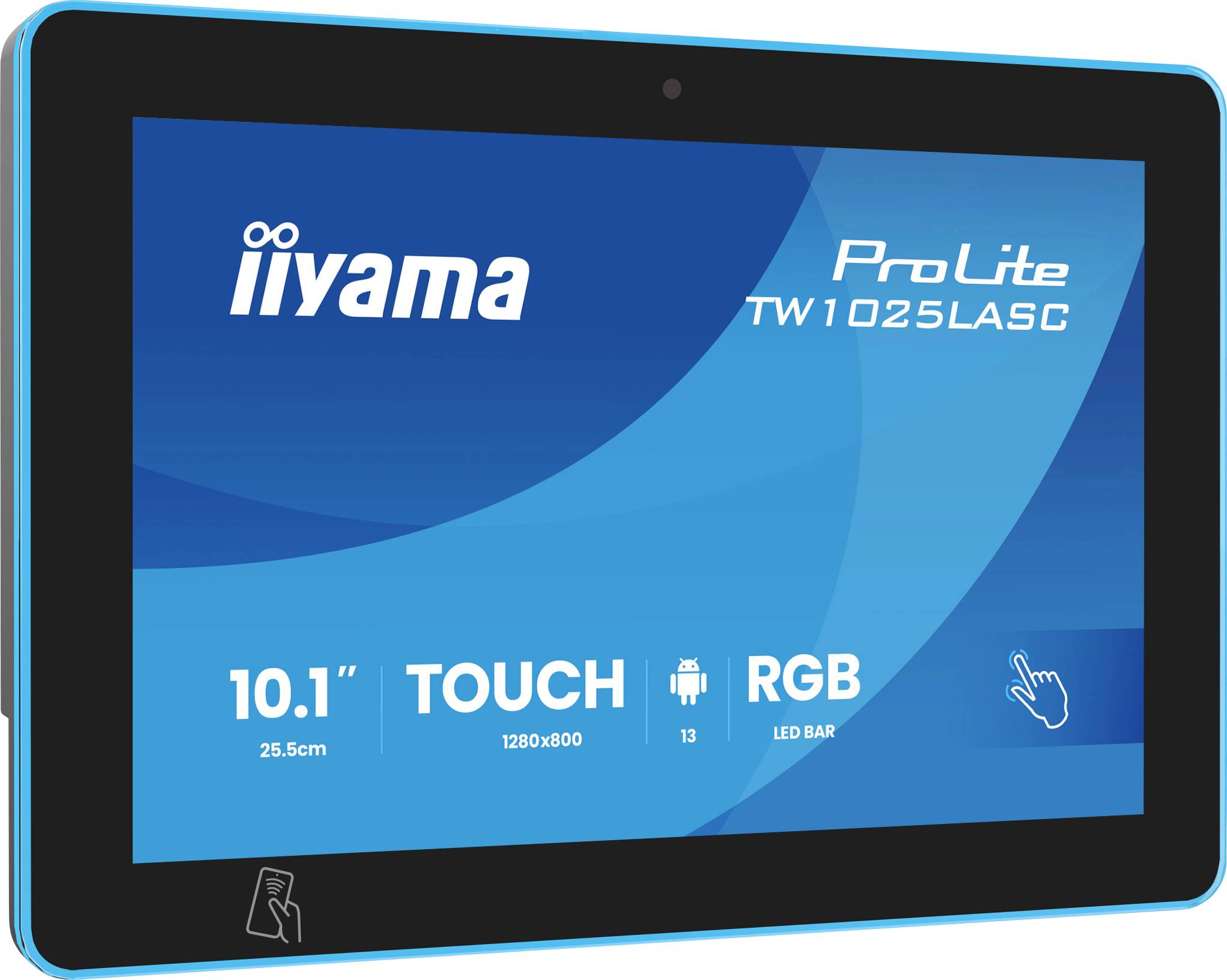

A blue 10.1-inch touchscreen display showing 'iiyama ProLite' model TW1025LASC with Android compatibility and RGB LED bar feature.

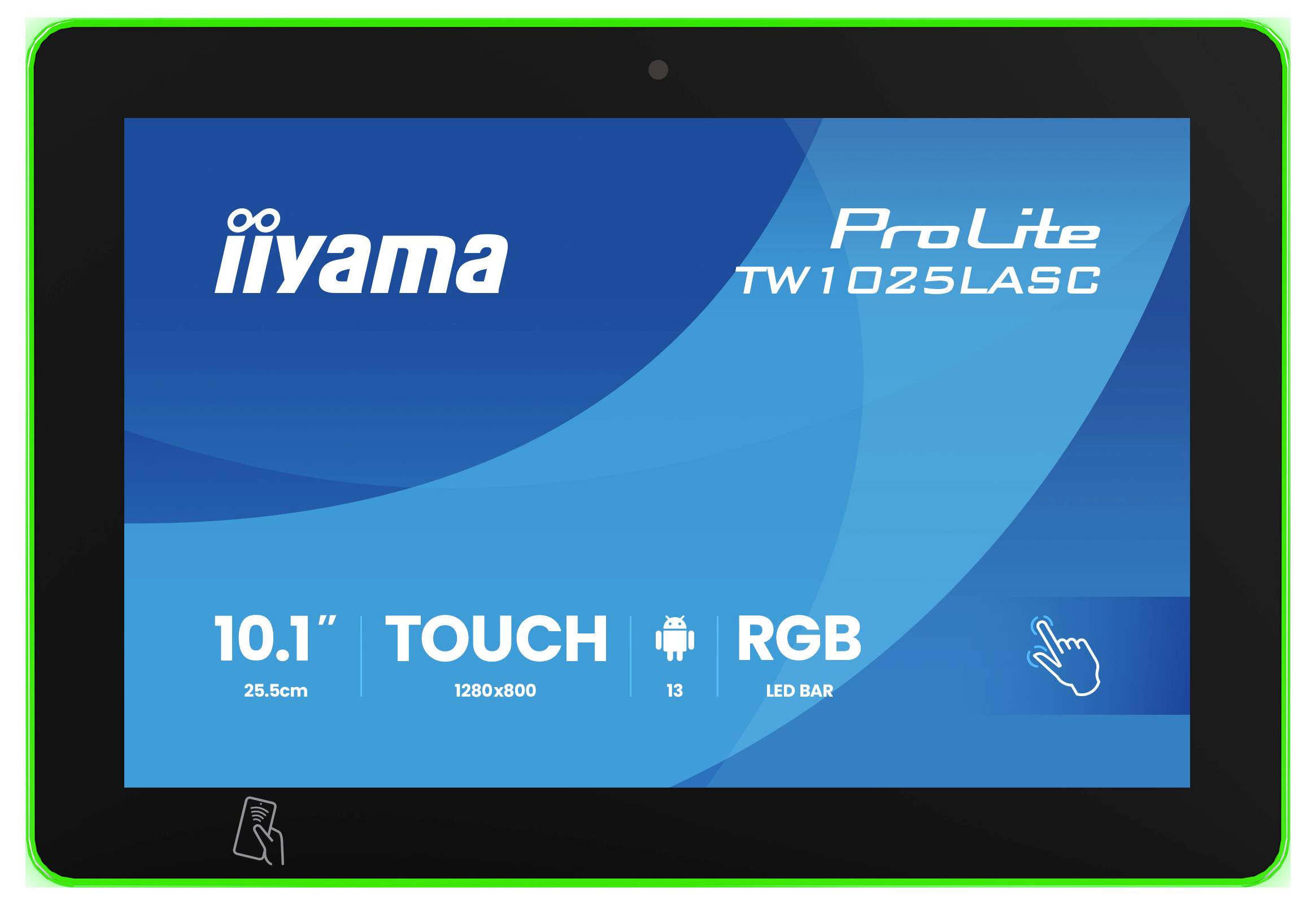

'Iiyama ProLite TW1025LASG' tablet screen displaying size '10.1" 25.6cm', resolution '1280x800', touch capability, and RGB LED bar.

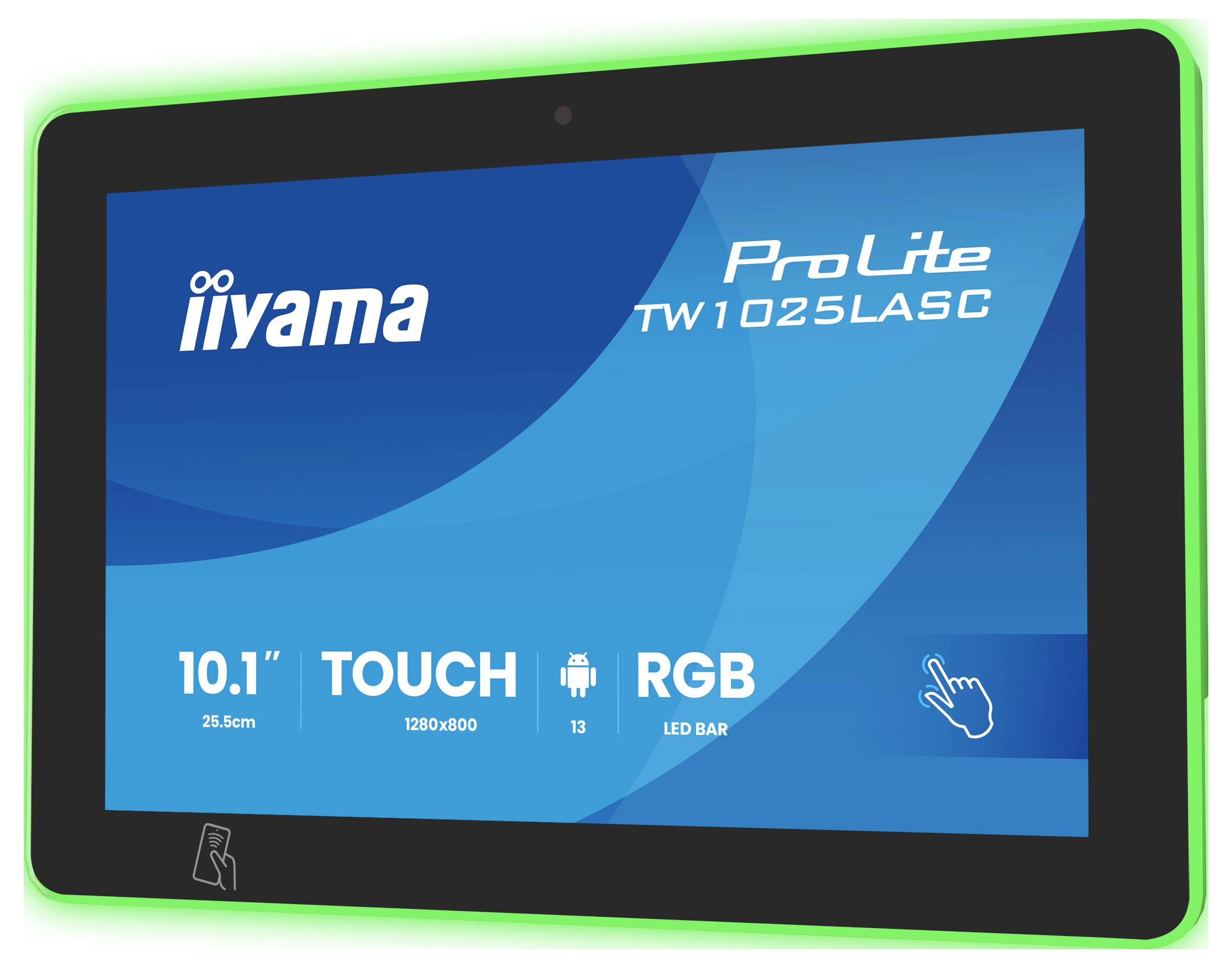

Tablet screen displaying 'iiyama ProLite TW1025LASC' with features: 10.1" display, 1280x800 resolution, Android, RGB LED bar.

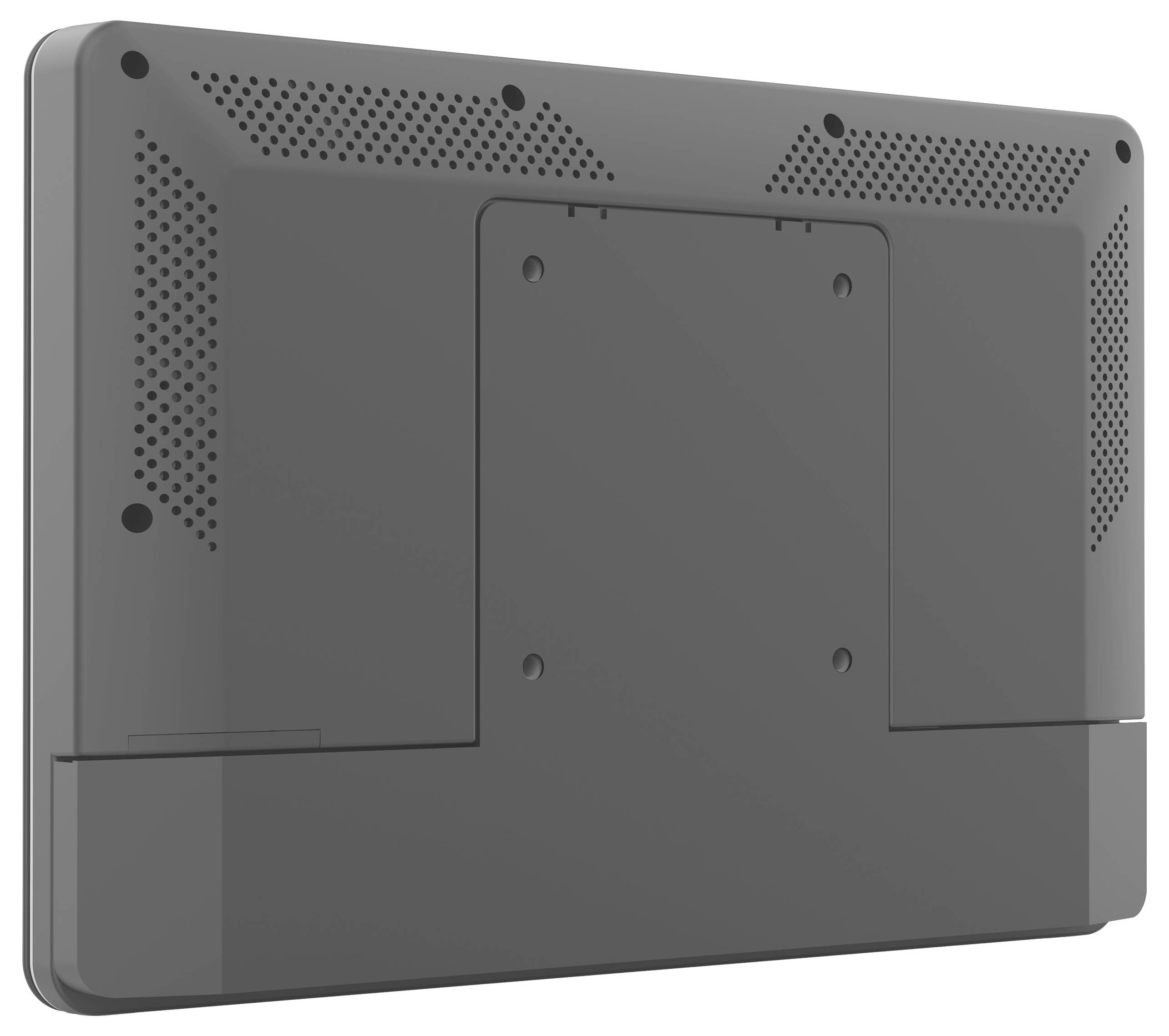

Back view of a rectangular electronic device with perforated sections for ventilation. No visible ports or buttons. Appears to mount to a surface.

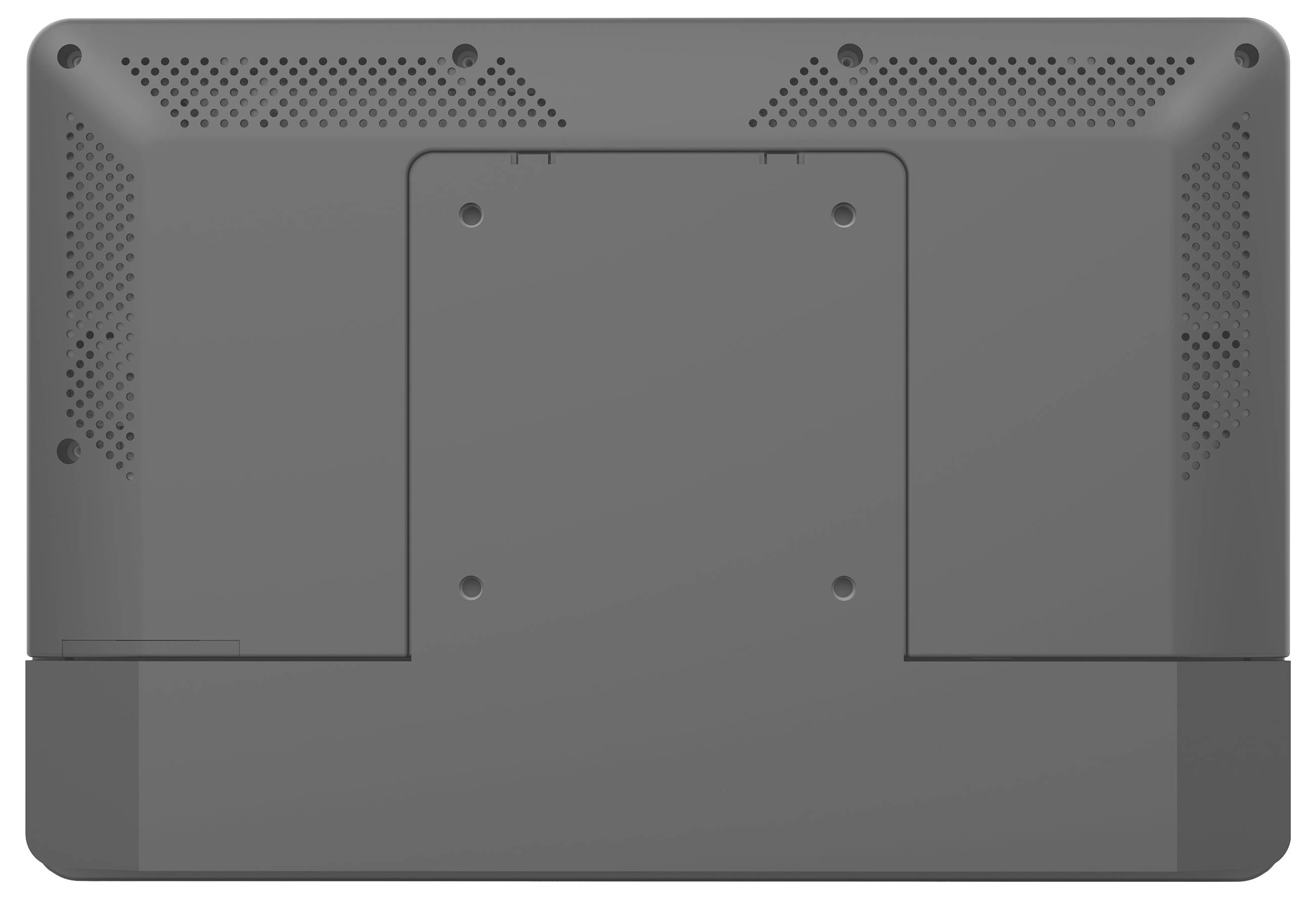

The image shows the bottom view of a laptop, displaying screw placements and ventilation openings on a dark, flat surface.

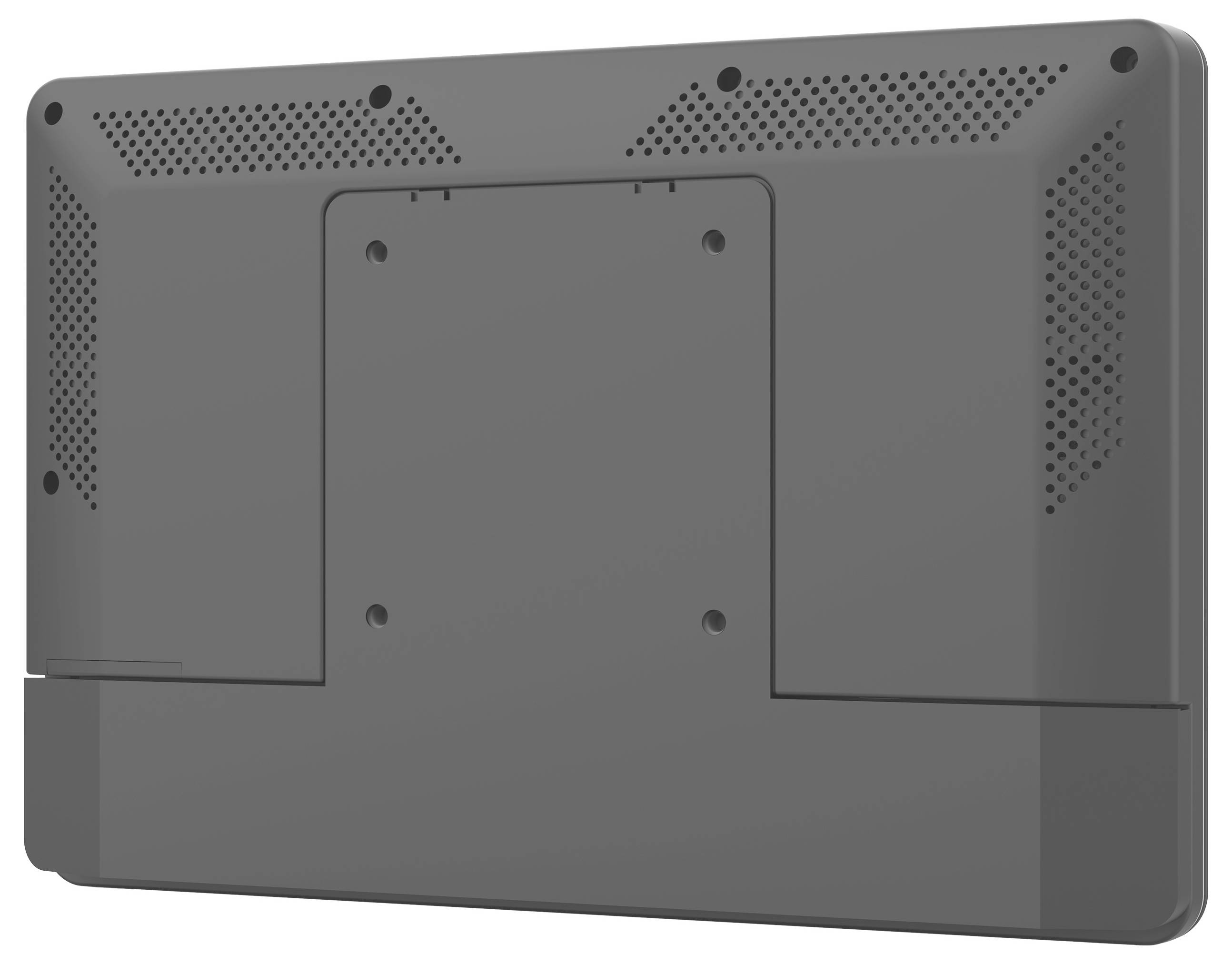

'Back view of a grey electronic device with ventilation holes and a central panel for wall mounting.'

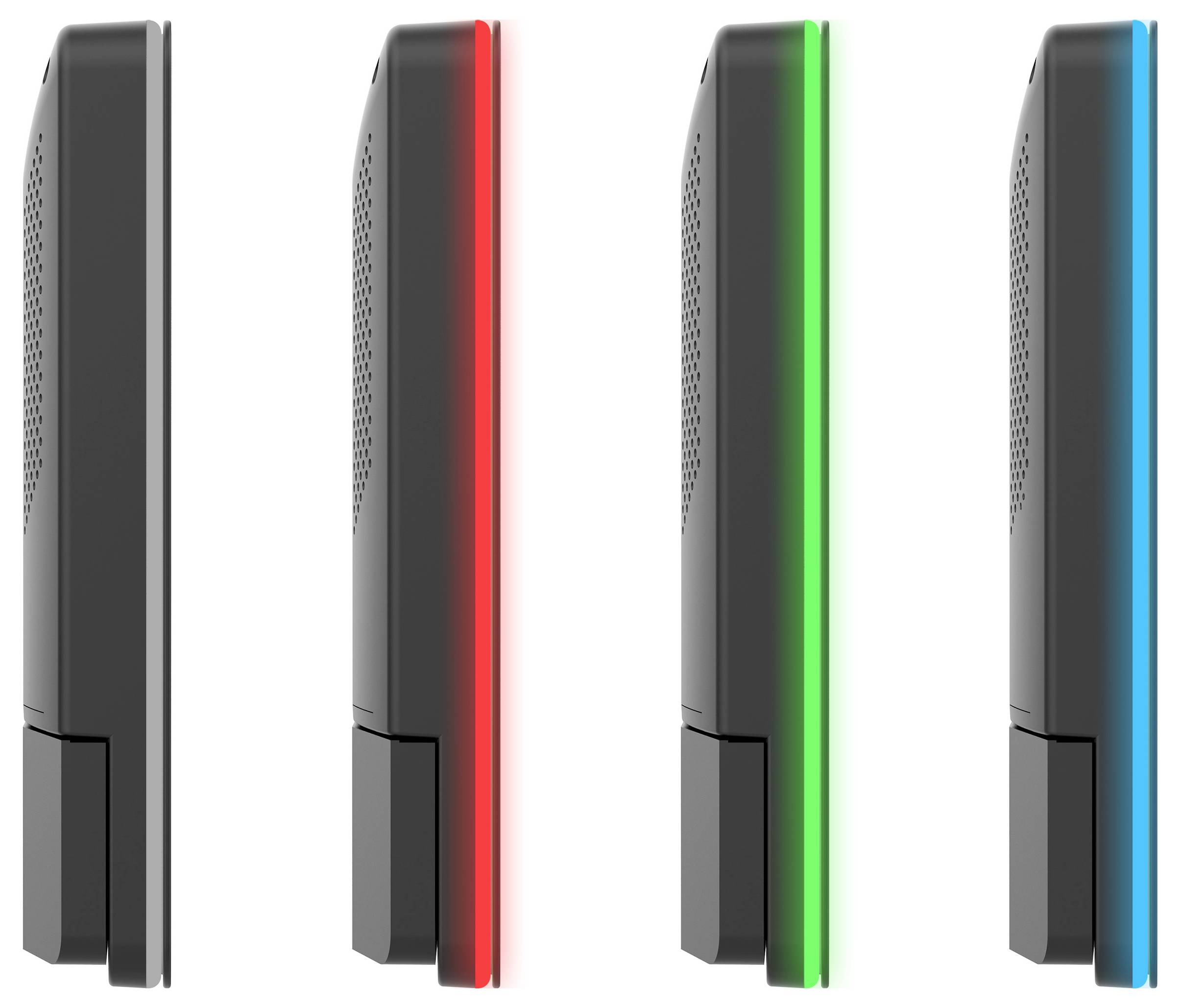

Four devices with illuminated edges in red, green, and blue, suggesting indicator lights or status signals.

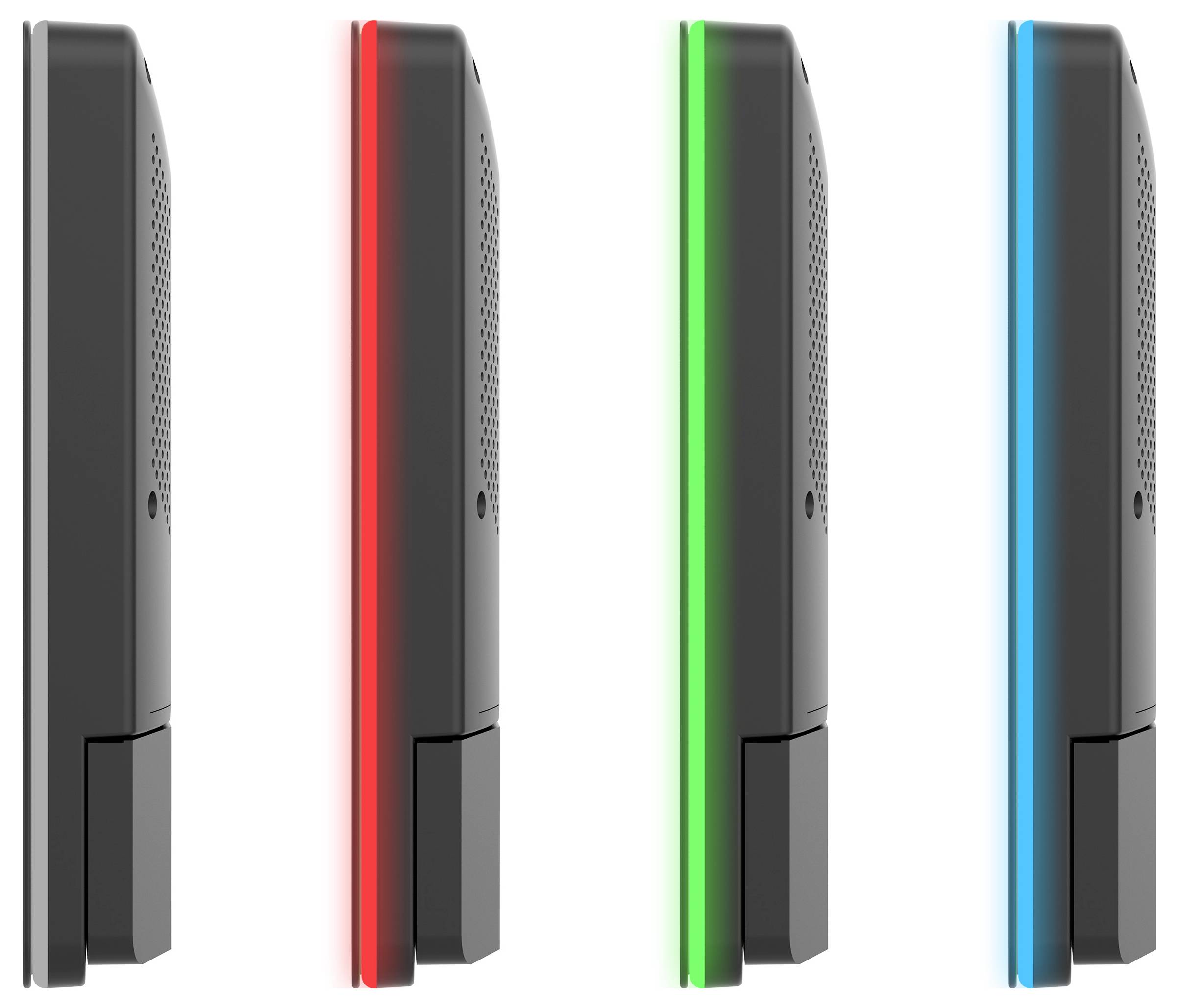

Four vertical rectangular devices in a row, each with a different LED color on the side: red, green, and blue from left to right.

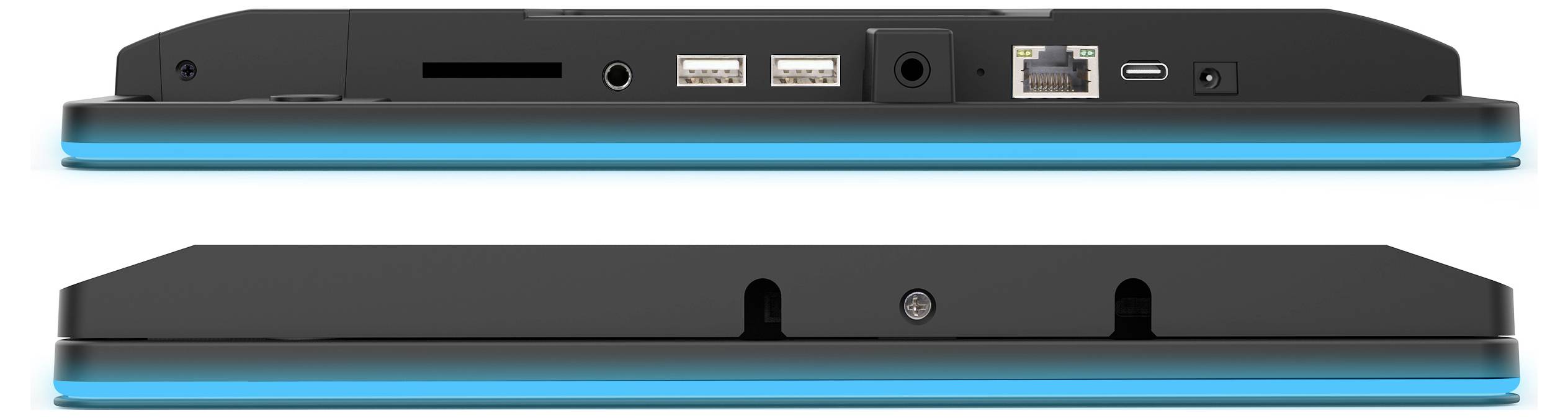

Two views of a black electronic device: front view with glowing blue lining, and rear view showing ports including USB, Ethernet, and charging port.

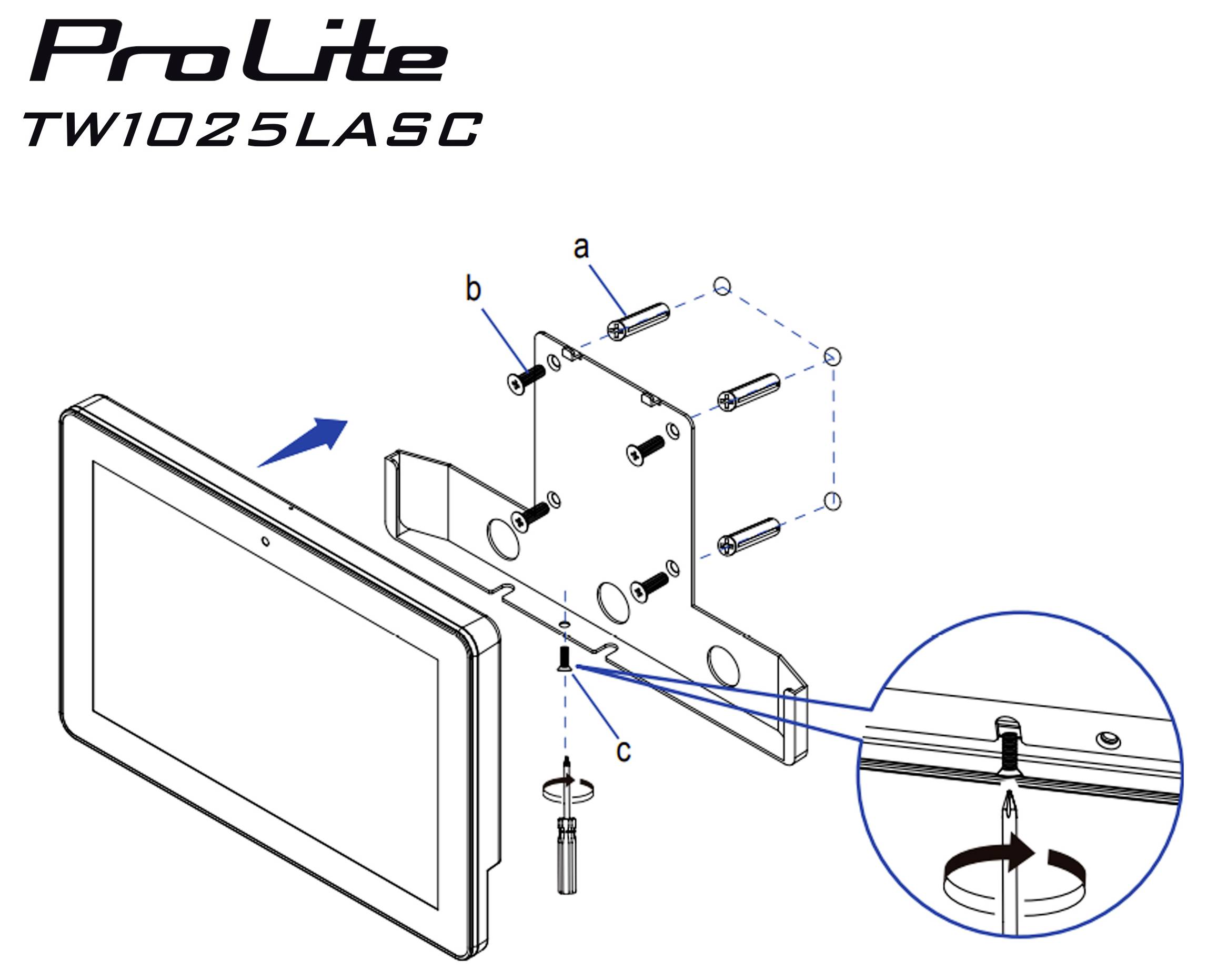

'ProLite' screen assembly diagram shows attaching screen to wall bracket with screws 'a', 'b', and 'c'.

1/10

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Iiyama ProLite Digital signage display

Screen size diagonal: 25.5 cm (10.1 inch)
Display resolution: 1280 x 800 Pixel
Energy efficiency rating (calc): n.rel.
Multi-Touch, Android™
Operating time (console): 24/7

Pre-contractual information under the EU Data Act

Technical specifications

Product type: Digital signage display

Screen size diagonal (inches): 10 inch

Features: Multi-Touch
Android™

Operating time (console): 24/7

Brightness: 450 cd/m²

Static contrast ratio: 1000 : 1

Viewing angle: 160°

Display resolution: 1280 x 800 Pixel

Dot pitch (horizontal): 0.169 mm

Dot pitch (vertical): 0.169 mm

Image format: 16:10

Network/internet function: WiFi
LAN

Wi-Fi: built-in

Controller: Touchscreen

No. of USB ports: 3 x

Interfaces: USB
RJ45
Audio stereo (3.5 mm jack)

Power consumption (standby): 0.5 W

: 75 x 75 mm

Factory colour: Black

Dim: (L x W x H) 600 cm x 259.5 mm x 178.5 mm

Width: 259.5 mm

Height: 178.5 mm

Depth: 28 mm

Weight: 1.1 kg

: n.rel.

Display: 25.7 cm (10.1 inch)

Display (cm): 25.7 cm

Screen size diagonal (cm): 25.5 cm

Screen size diagonal (inches): 10.1 inch

Power consumption (off): 0.3 W

Power consumption (ON): 10 W

Standby consumption: 0.5 W

Bluetooth: 5.2

Bluetooth: Yes

Contrast ratio (dyn): 1000 : 1

Length: 600 cm

Display properties: IPS

Touchscreen (display): Yes

10/100/1000 Mbps ports: 1 x

Audio power (max.): 4 W

Brightness: 390 cd/m²

Response time: 25 ms

Hor. viewing angle: 160°

Vertical viewing angle: 160°

Wi-Fi: Yes

UKCA: yes

Number of speakers: 2

Number of simultaneous touchpoints: 10

AC adapter included: yes

Weight (without stand): 1.6 kg

Ethernet LAN: yes

Colour depth: 8 Bit

Brightness: 390 cd/m²

Active display area (W x H): 216,6 x 135,4 mm

VESA mounting: yes

Built-in speaker(s): yes

Cable management: yes

Card reader integrated: yes

USB Touch port: yes

Quick start guide: yes

Megapixel (approx.): 5 MP

Built-in processor: yes

Built-in camera: yes

Glass thickness: 1.85 mm

Viewable size, horizontal: 21.7 cm

Viewable size, vertical: 13.5 cm
