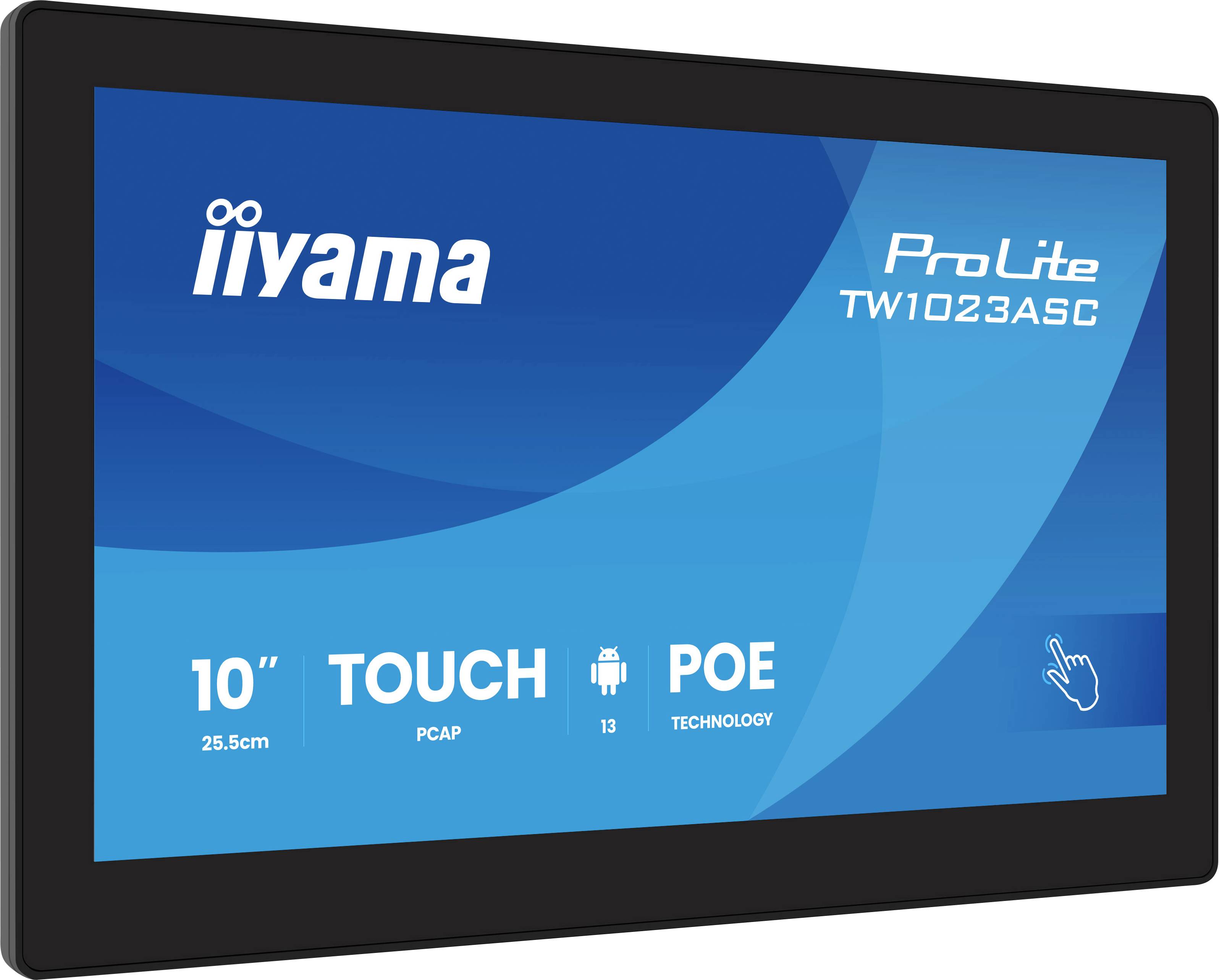

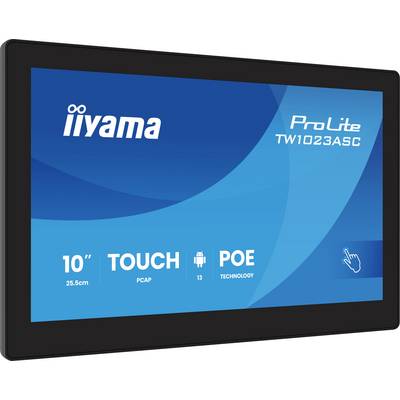

A tablet screen displaying 'iiyama ProLite TW1023ASC', featuring '10” touch', 'PCAP', 'Android 13', and 'POE Technology' with a blue background.

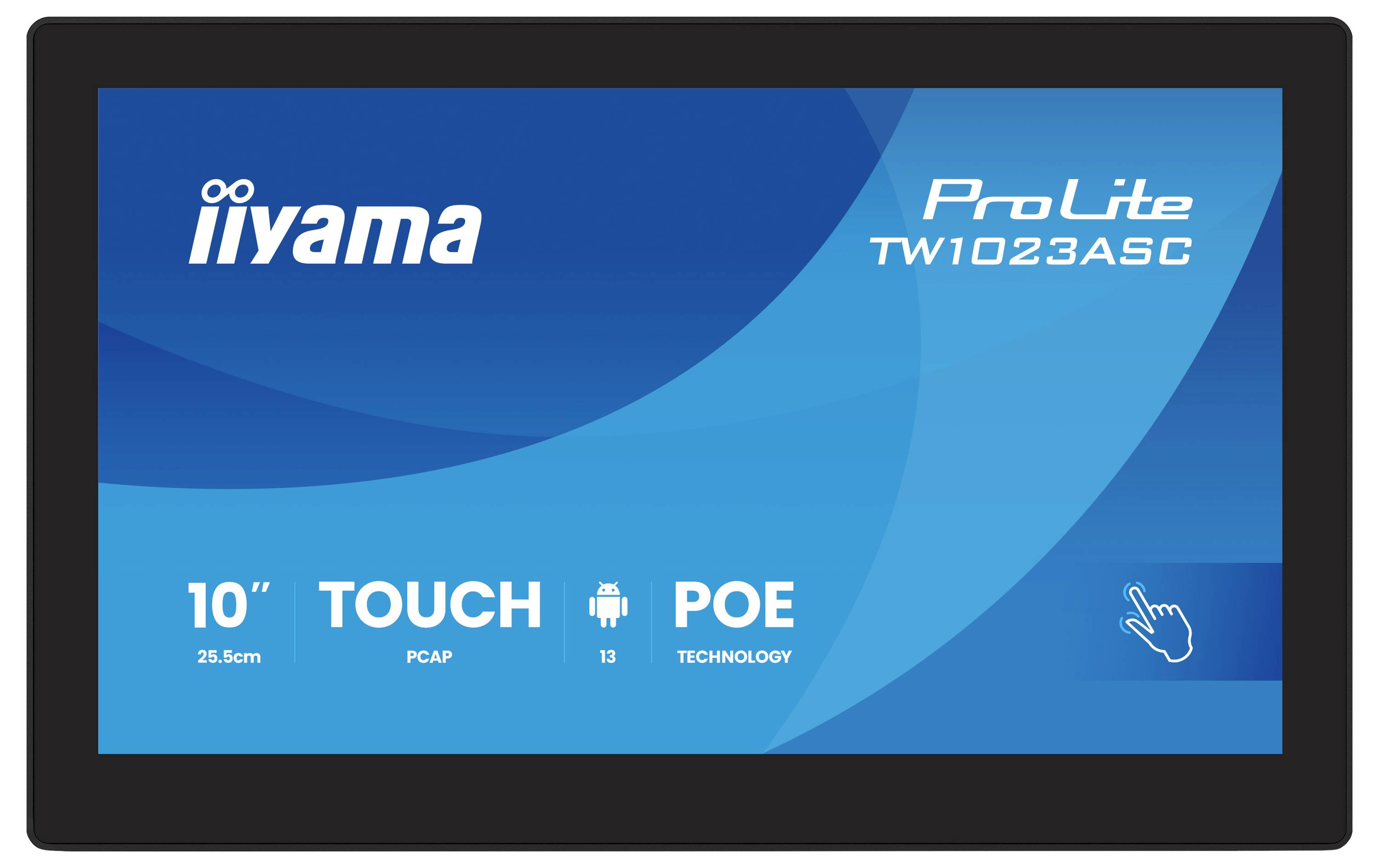

'iiyama ProLite TW1023ASC' display with '10” TOUCH' capability, 'PCAP', 'POE TECHNOLOGY', and Android icon on a blue background.

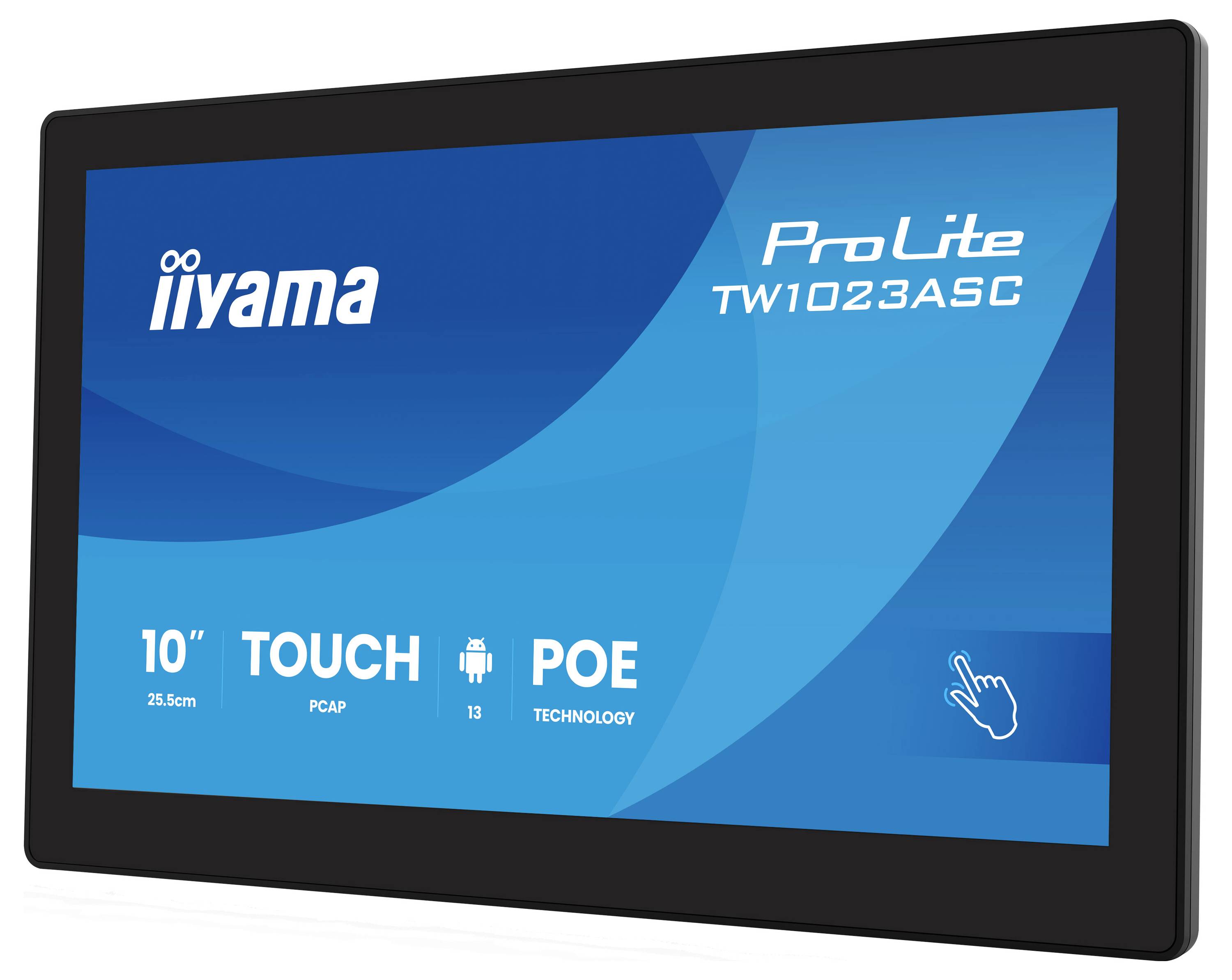

'Iiyama ProLite TW1023ASC' touchscreen monitor, 10-inch size, features PCAP technology and POE. Screen displays blue gradient with branding.

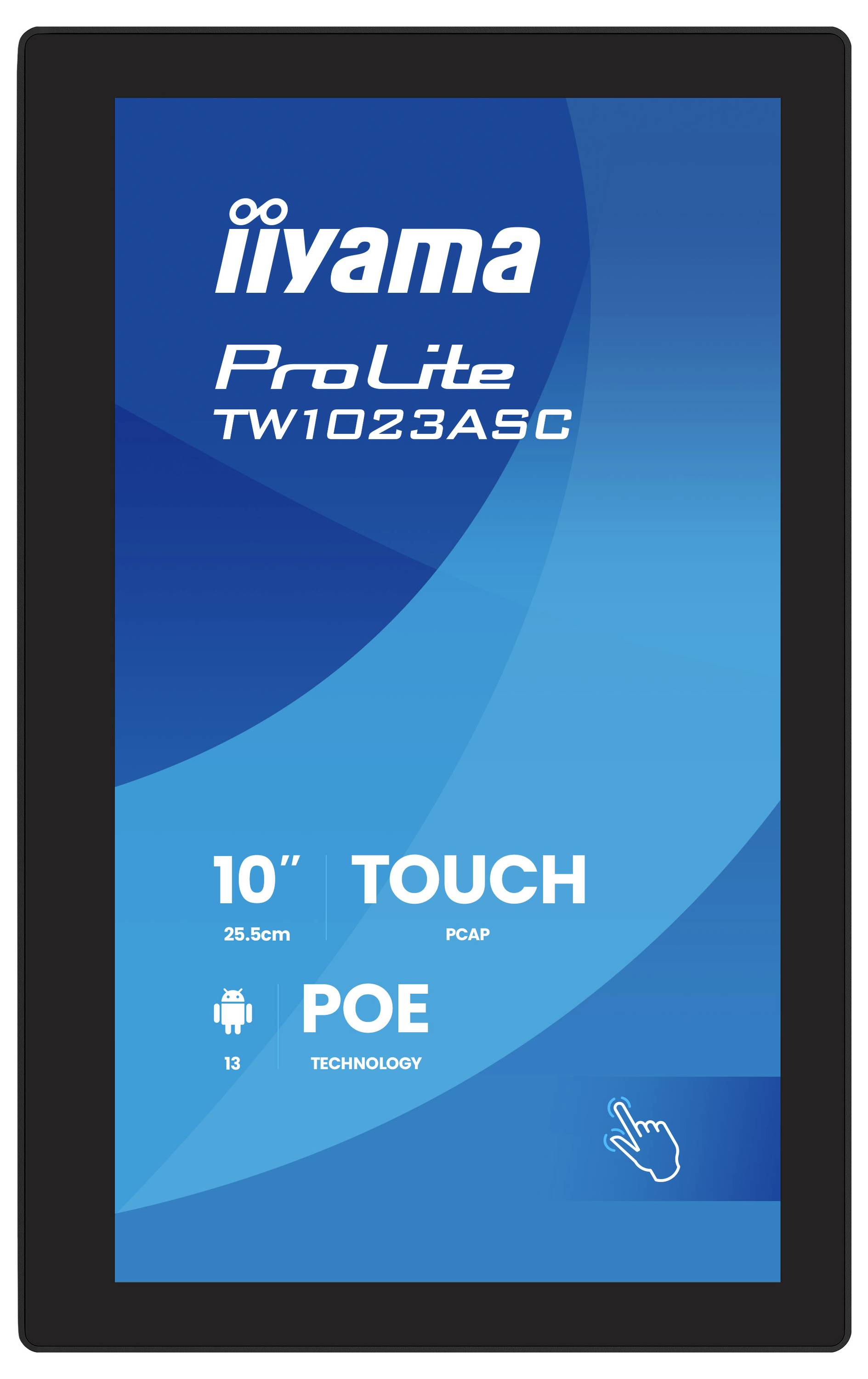

'Iiyama ProLite TW1023ASC', a 10-inch touch screen display with PCAP technology and POE capability, shown in a blue interface.

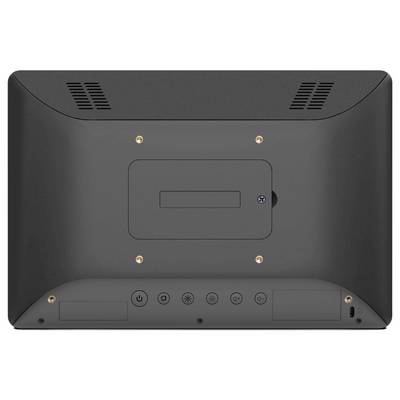

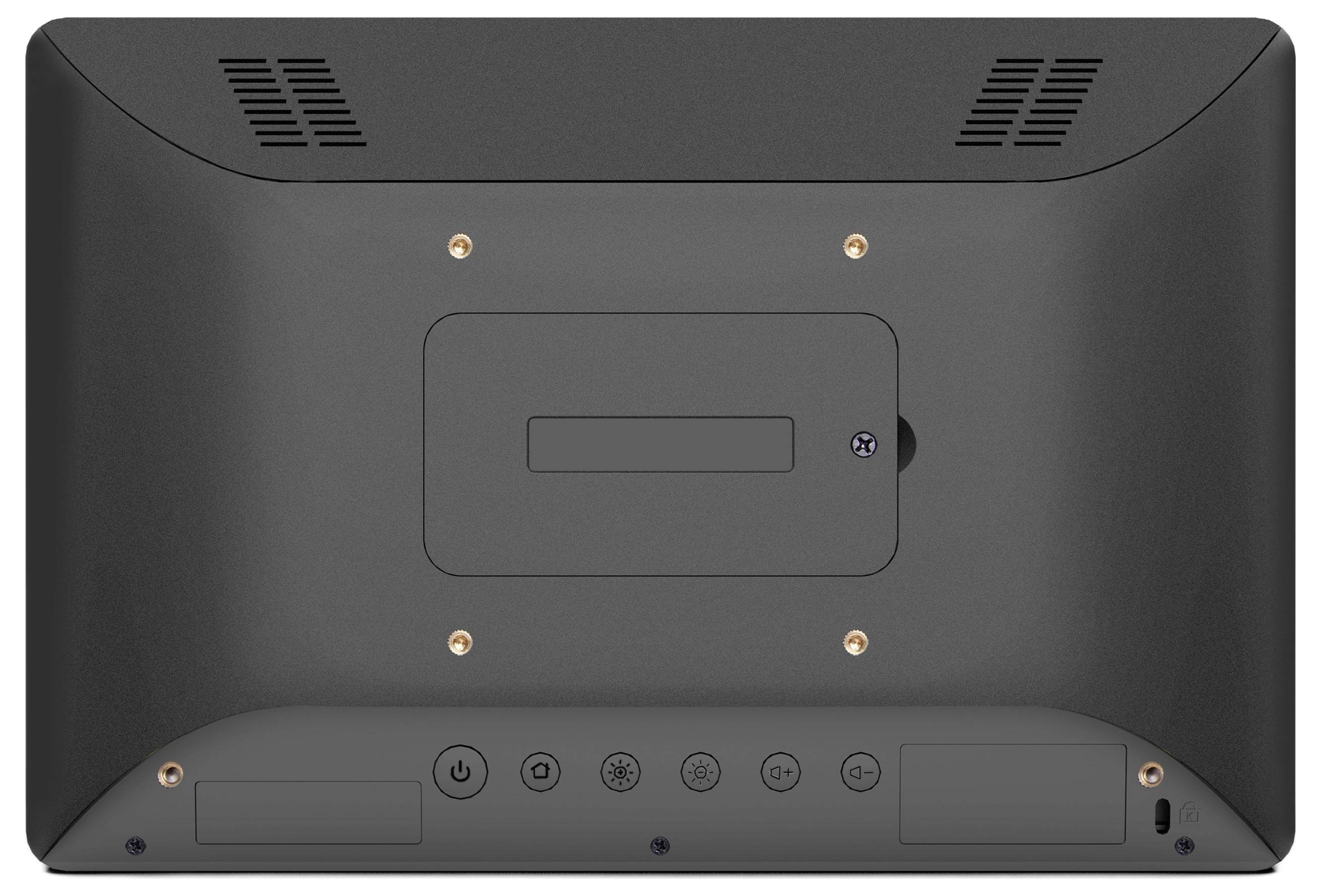

Rear view of a black electronic device with ventilation slots, mounting holes, and control buttons including power and settings.

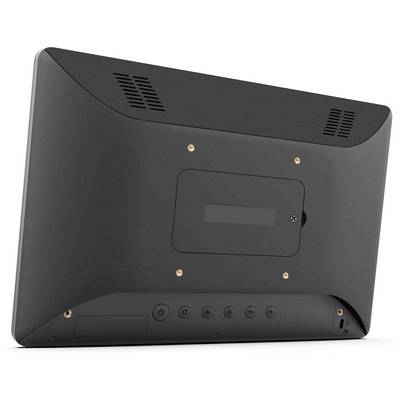

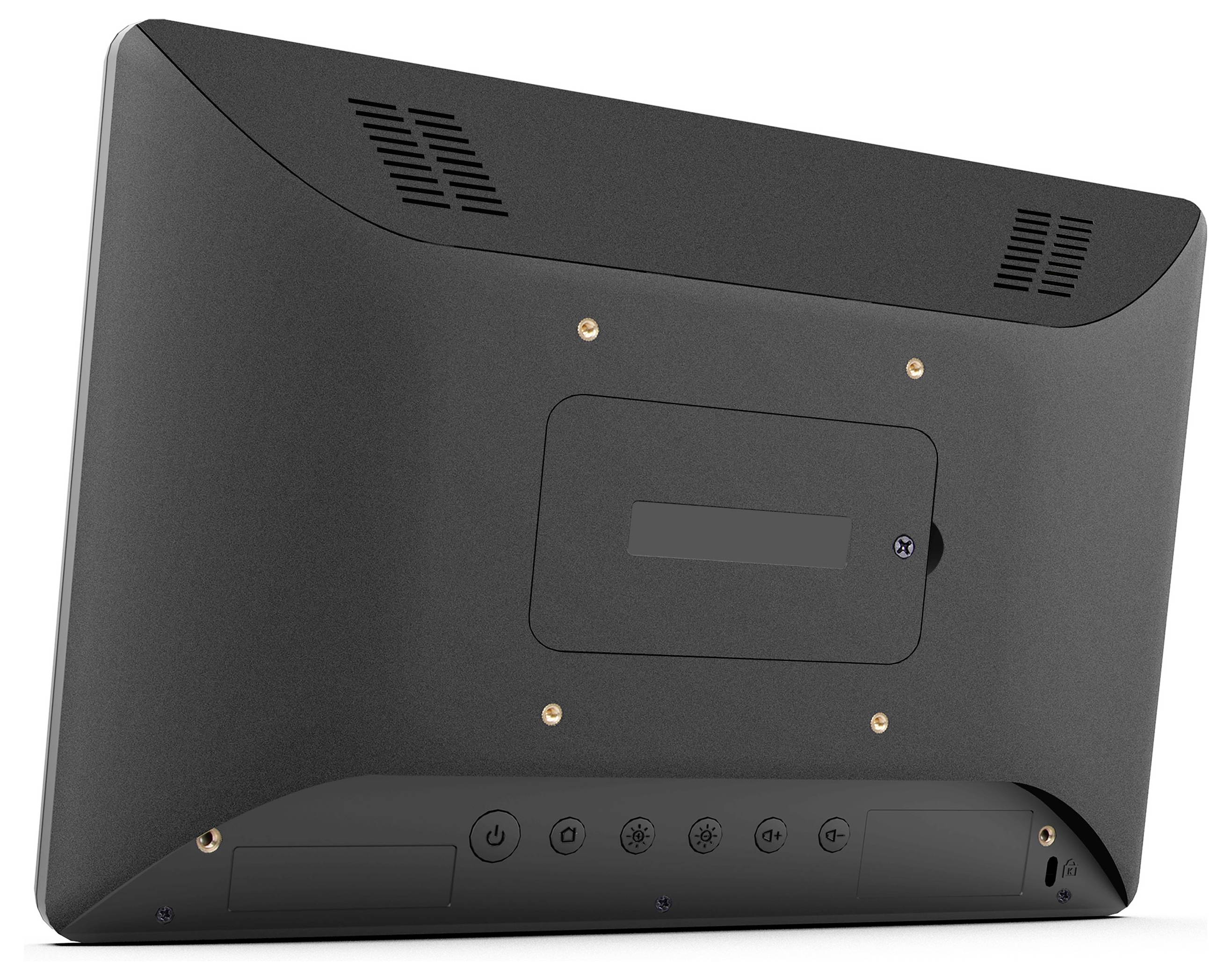

A black tablet with various ports and buttons is shown from the back view, featuring a ventilation grille and a rectangular panel.

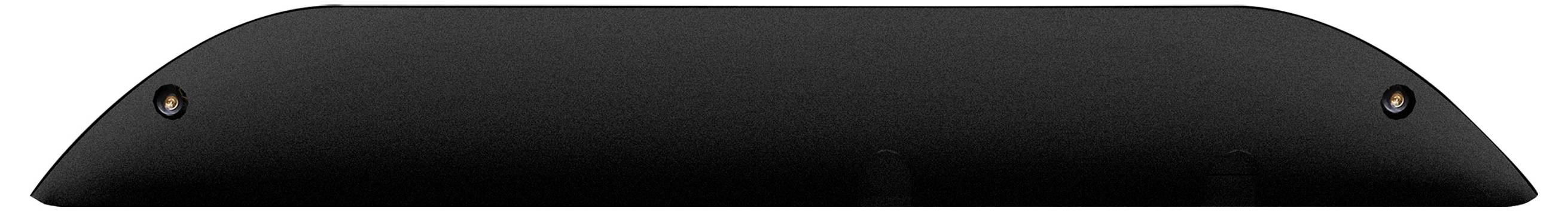

'A black tabletop arcade button with a sleek, rounded design, featuring two small recessed screw holes on either side for mounting.'

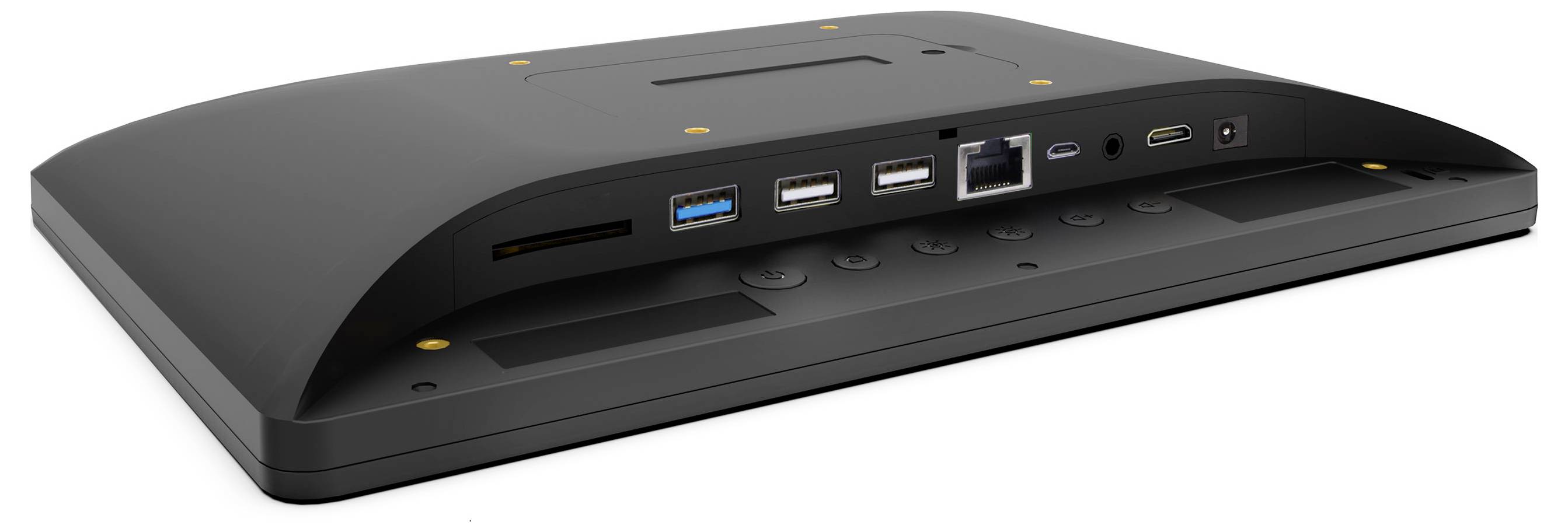

'A black electronic device with various ports including USB, HDMI, and Ethernet positioned on its rear side.'

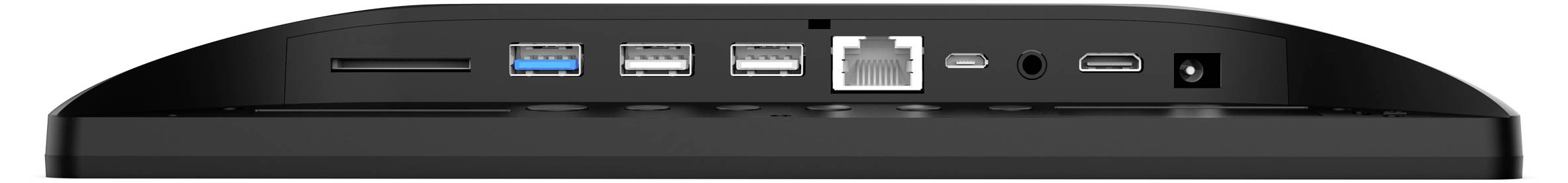

A back view of a retail terminal showing various ports: card reader slot, USB ports, Ethernet, and power connector.

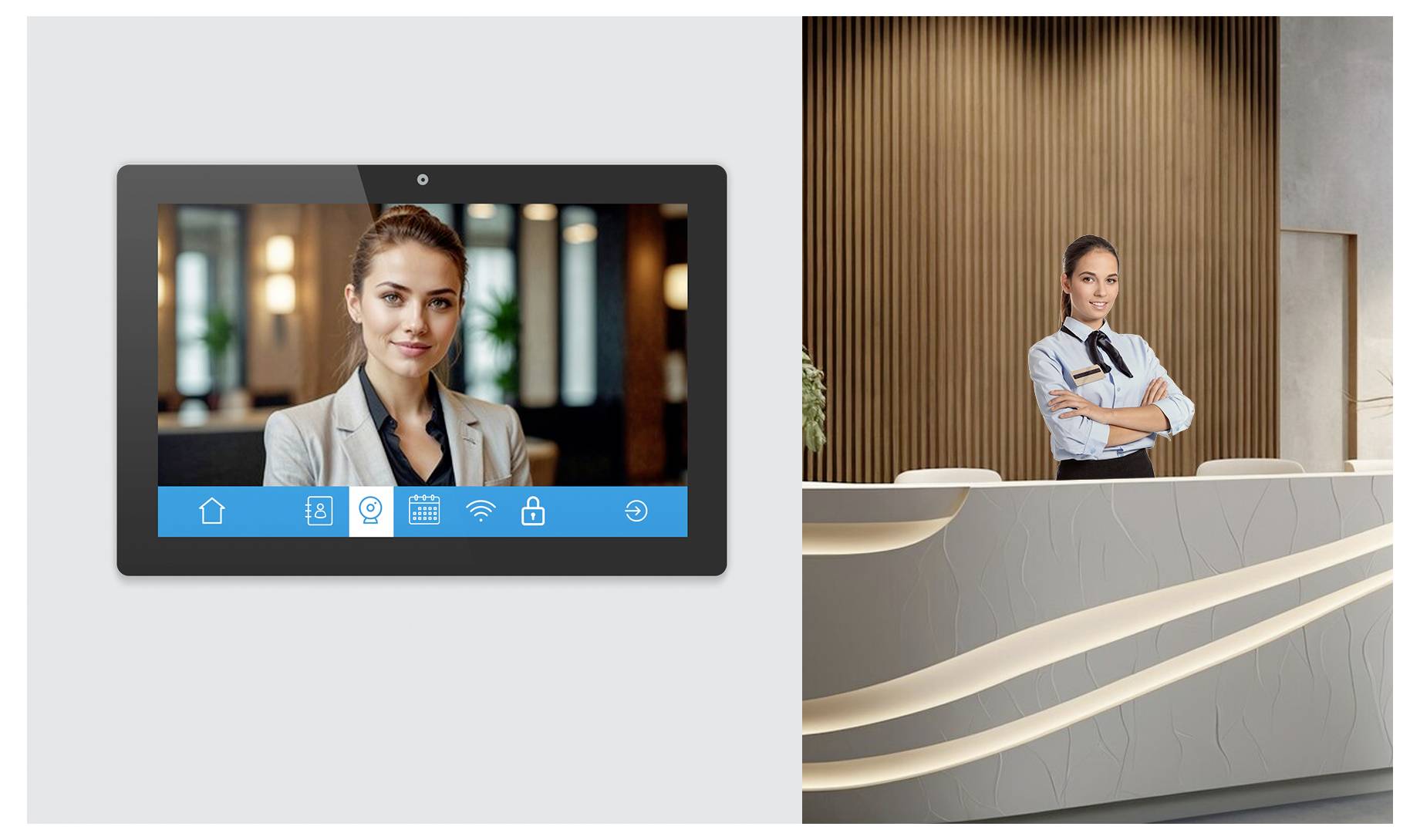

A touchscreen display shows a call interface with a woman's image. Beside it, a woman in a uniform stands at a reception desk.

1/10

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Iiyama ProLite Digital signage display

Highlights & Details

Screen size diagonal: 25.5 cm (10.1 inch)
Display resolution: 1280 x 800 Pixel
Energy efficiency rating (calc): n.rel.
Multi-Touch, Android™, Built-in speaker, Kiosk mode
Operating time (console): 24/7

Technical specifications

Contrast ratio: 1000:1
0.1692 x 0.1692 mm pixel distance
USB version 2.0/3.2 1st Gen 1 (3.1 Gen 1)
USB-Plug Micro-USB,USB typ-A
Built-in graphics card model Mali-G52 MC1
Installed operating system: Android™
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Product type: Digital signage display

Screen size diagonal (inches): 10 inch

Features: Multi-Touch
Android™
Built-in speaker
Kiosk mode

Display technology: LED

Operating time (console): 24/7

Brightness: 450 cd/m²

Static contrast ratio: 1000 : 1

Display resolution: 1280 x 800 Pixel

Image format: 16:10

Network/internet function: WiFi
LAN

Wi-Fi: built-in

Controller: Touchscreen

No. of HDMI connections: 1

No. of USB ports: 4 x

Interfaces: Gigabit LAN (1 Gbps)

Power consumption (standby): 0.5 W

: 100 x 100 mm

Factory colour: Black

Dim: (W x H x D) 255 x 172 x 30.5 mm

Width: 255 mm

Height: 172 mm

Depth: 30.5 mm

Height (without base): 17.2 cm

Device depth (without stand): 3.05 cm

Weight: 800 g

: n.rel.

Display: 25.7 cm (10.1 inch)

Display (cm): 25.7 cm

Screen size diagonal (cm): 25.5 cm

Screen size diagonal (inches): 10.1 inch

Power consumption (off): 0.3 W

Power consumption (ON): 18 W

Bluetooth: 5.2

Bluetooth: Yes

Display properties: IPS

Processor cores (No.): 4 x

No. of USB A 2.0 ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 1 x

Display resolution mode: HD

Touchscreen (display): Yes

Memory capacity: 32 GB

Microphone: Yes

Dot pitch: 0.169 mm

10/100/1000 Mbps ports: 1 x

Audio power (max.): 3 W

CPU speed: 2 GHz

Brightness: 450 cd/m²

Type: External

Response time: 25 ms

Input voltage: 12 V

: 4 GB

Processor/type: RK3568

Hor. viewing angle: 160°

Vertical viewing angle: 160°

Wi-Fi: Yes

UKCA: yes

Multi-touch: yes

RJ-45 ports quantity: 1

Number of simultaneous touchpoints: 10

Ethernet LAN: yes

Fingerprint resistant: yes

Colour depth: 8 Bit

Active display area (W x H): 216,6 x 135,4 mm

VESA mounting: yes

Micro-USB ports quantity: 1

Pallet gross width: 2.15 m

Pallet gross length: 100 cm

Pallet gross height: 120 cm

DC-in jack: yes

DVI port: no

USB port: yes

Built-in speaker(s): yes

Suitable for indoor use: yes

Cable management: yes

Card reader integrated: yes

PC Audio in: yes

Power adapter included: yes

Quick start guide: yes

Megapixel (approx.): 5 MP

Number of microphones: 1

Mini HDMI ports quantity: 1

Products per pallet: 256 Stück(e)

Package weight: 1.36 kg

Built-in processor: yes

Built-in camera: yes

Glass thickness: 1.25 mm

Viewable size, horizontal: 21.7 cm

Viewable size, vertical: 13.5 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3644671 Iiyama ProLite Digital signage display 25.5 cm 10.1 inch 1280 x 800 Pixel 24/7

Description

The ProLite TW1023AS-B3P is an intelligent and intuitive 10.1" (25.5 cm) touch-screen PC designed for highly frequented environments such as meeting rooms, information stations or catering establishments. Its 10-point PCAP touch technology provides a smooth and precise interaction. Fitted with Android 13 and powerful hardware, it enables easy installation of apps directly on the device and is thus a comprehensive all-in-one solution. Thanks to Power-over-Ethernet (PoE) both power and data are transferred via a single cable, WAS simplifies the installation and additional cables are unnecessary. With integrated microphone and speakers, the TW1023AS-B3P offers seamless, modern interaction in any environment. It also integrates easily with Iiyama's content management system (CMS) and gives you full control over your messages and advertising, both in landscape, portrait and face-up position. Together with the in-built 5-megapixel camera, microphone and loudspeakers, it offers limitless, interactive installation options.

This text is machine translated.

Scope of delivery

Connection cable
Quick guide.

Hints

HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
