Iiyama ProLite Digital signage display 39.5 cm 15.6 inch 1920 x 1080 Pixel 24/7
EAN:
Part number:
Item no:
Iiyama ProLite Digital signage display
Highlights & Details
- Screen size diagonal: 39.5 cm (15.6 inch)
- Display resolution: 1920 x 1080 Pixel
- Energy efficiency rating (calc): n.rel.
- Multi-Touch, Android™, Built-in speaker, Kiosk mode
- Operating time (console): 24/7
Technical specifications
- Screen technology: LED
- Contrast ratio: 1000:1
- 0.1792 x 0.1792 mm pixel distance
- Installed operating system: Android™
- USB version 2.0
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
- Supported positioning: Indoors
- Processor family: ARM Rockchip
- Product type
Digital signage display
- Screen size diagonal (inches)
15 inch
- Features
Multi-Touch
Android™
Built-in speaker
Kiosk mode
- Display technology
LED
- Operating time (console)
24/7
- Brightness
450 cd/m²
- Static contrast ratio
1000 : 1
- Viewing angle
170°
- Display resolution
1920 x 1080 Pixel
- Dot pitch (horizontal)
0.179 mm
- Dot pitch (vertical)
0.179 mm
- Image format
16:9
- Network/internet function
WiFi
LAN
- Wi-Fi
built-in
- Controller
Touchscreen

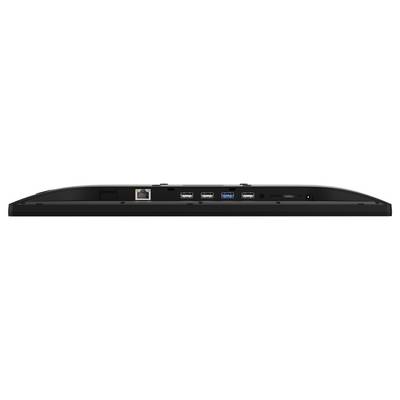

- No. of HDMI connections
1
- No. of USB ports
3 x

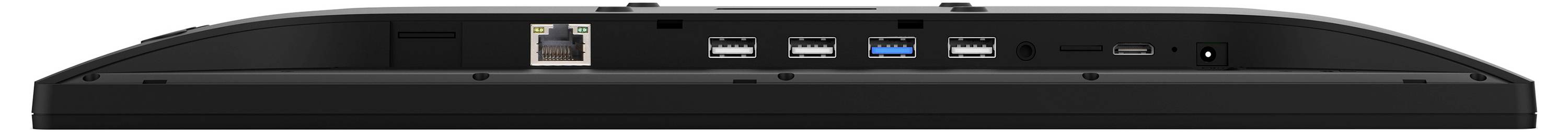

- Interfaces
Wi-Fi 5 (IEEE 802.11ac)
Wi-Fi 4 (IEEE 802.11)
USB
- Power consumption (standby)
0.5 W
100 x 100 mm
- Factory colour
Black
- Dim
(W x H x D) 387 x 244 x 30.5 mm
- Width
387 mm
- Height
244 mm
- Depth
30.5 mm
- Weight
1.5 kg
n.rel.
- Display
39.6 cm (15.6 inch)
- Resolution (max.)
1920 x 1080 p
- Screen resolution
Full HD (1920 x 1080 Pixel)
- Display (cm)
39.6 cm
- Screen size diagonal (cm)
39.5 cm
- Screen size diagonal (inches)
15.6 inch
- Power consumption (off)
0.3 W
- Power consumption (ON)
9 W
- Bluetooth
5.2
- Bluetooth
Yes
- Display properties
IPS
- No. of HDMI ports
1 x
- Processor cores (No.)
4 x
- Display resolution mode
Full HD
- Touchscreen (display)
Yes
- HDCP
Yes
- Dot pitch
0.179 mm
- 10/100/1000 Mbps ports
1 x
- Audio power (max.)
4 W
- CPU speed
2 GHz
- Brightness
450 cd/m²
- Type
External
- Response time
30 ms
- Processor/type
RK3568
- Hor. viewing angle
170°
- Vertical viewing angle
170°
- Wi-Fi
Yes
- UKCA
yes
- Number of speakers
2
- Multi-touch
yes
- Number of simultaneous touchpoints
10
- Ethernet LAN
yes
- Colour depth
8 Bit
- Active display area (W x H)
344,2 x 193,6 mm

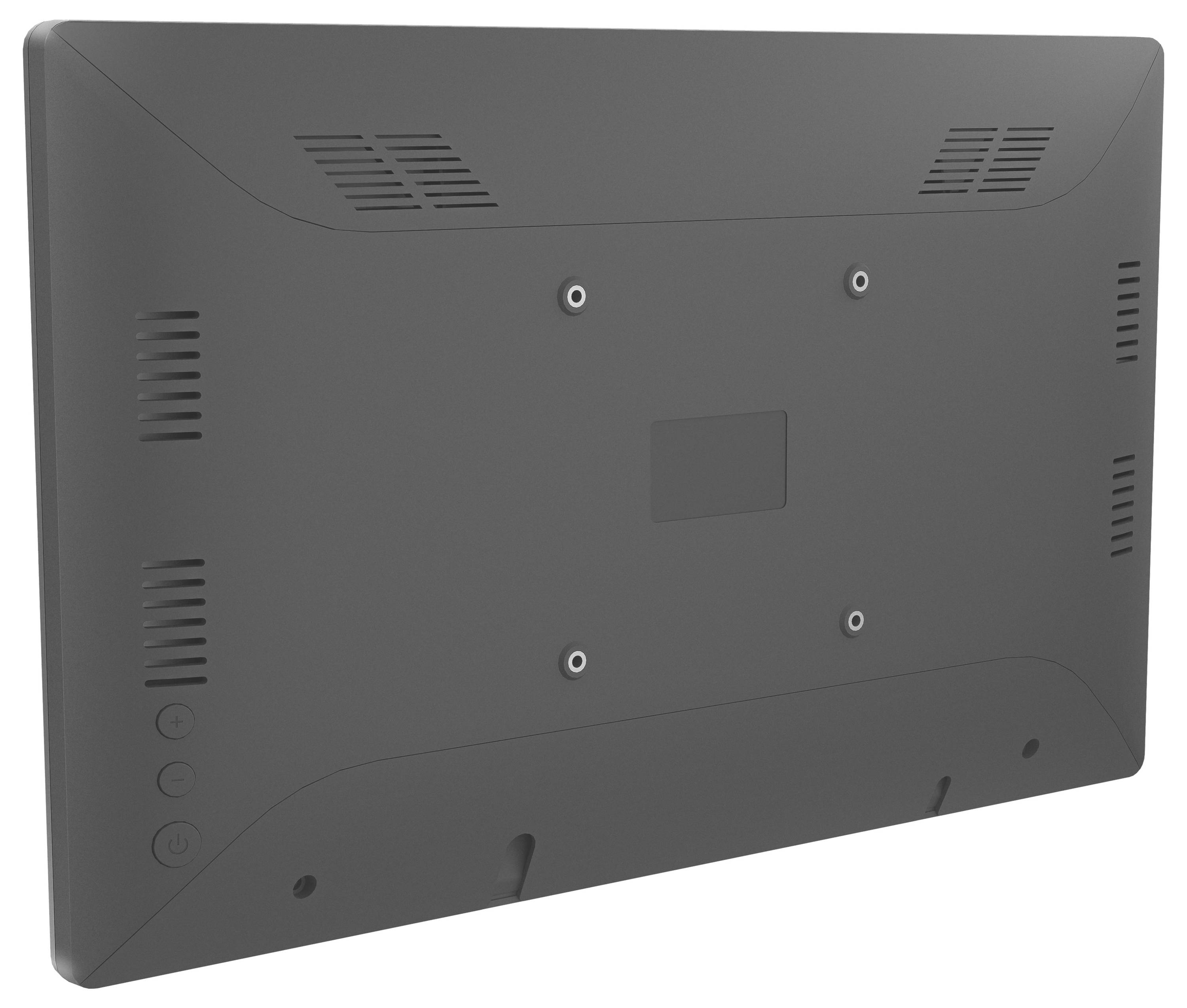

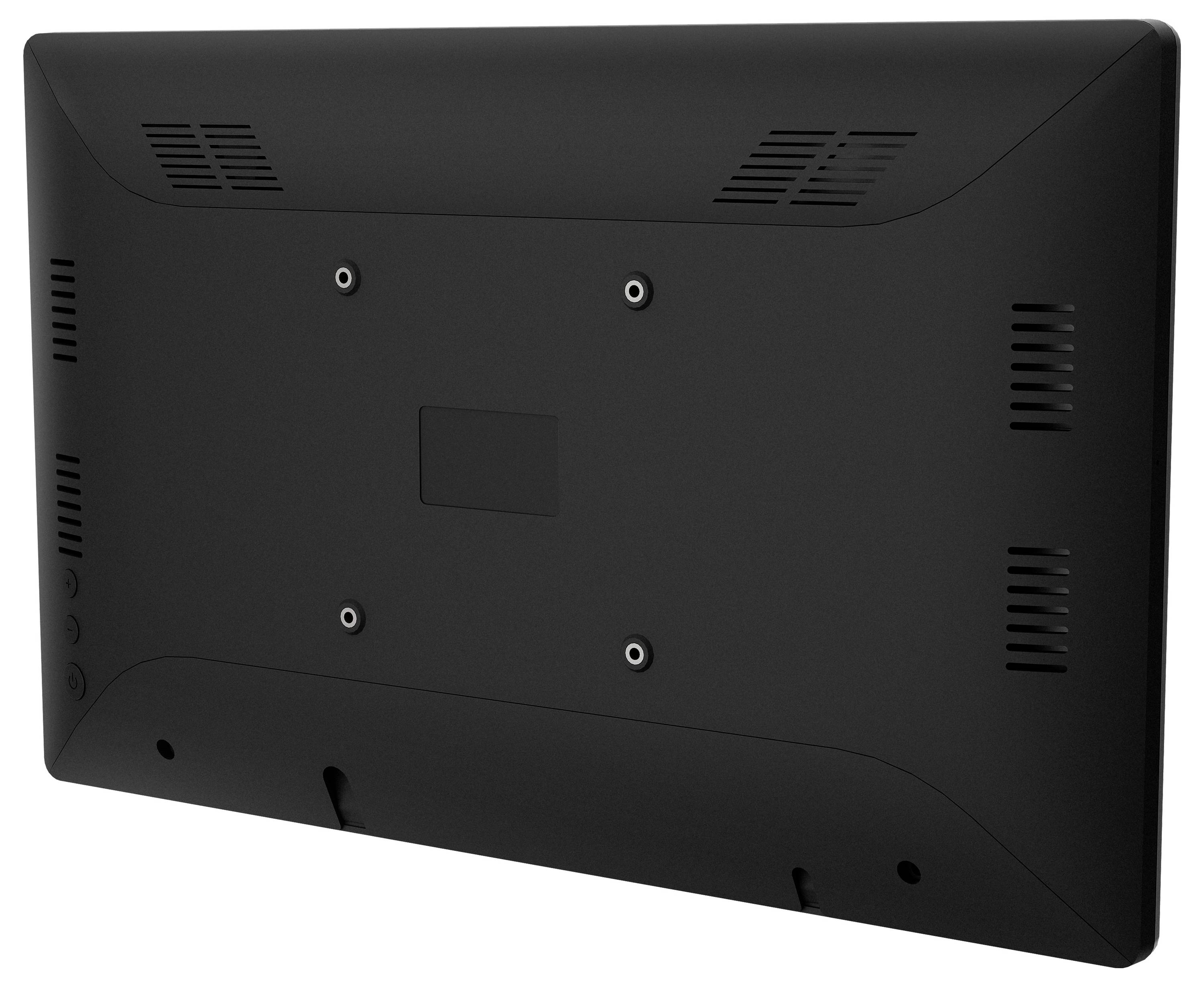

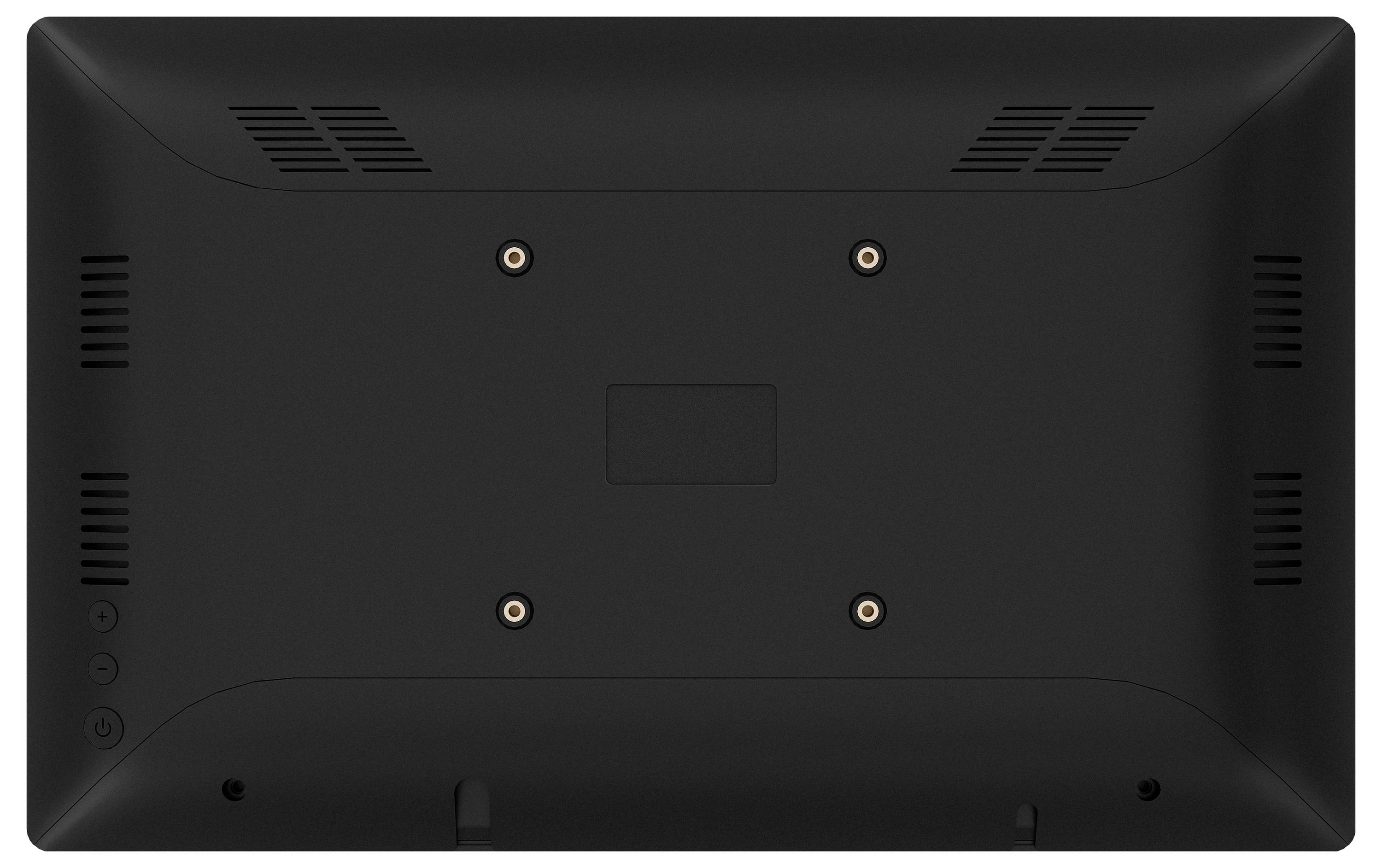

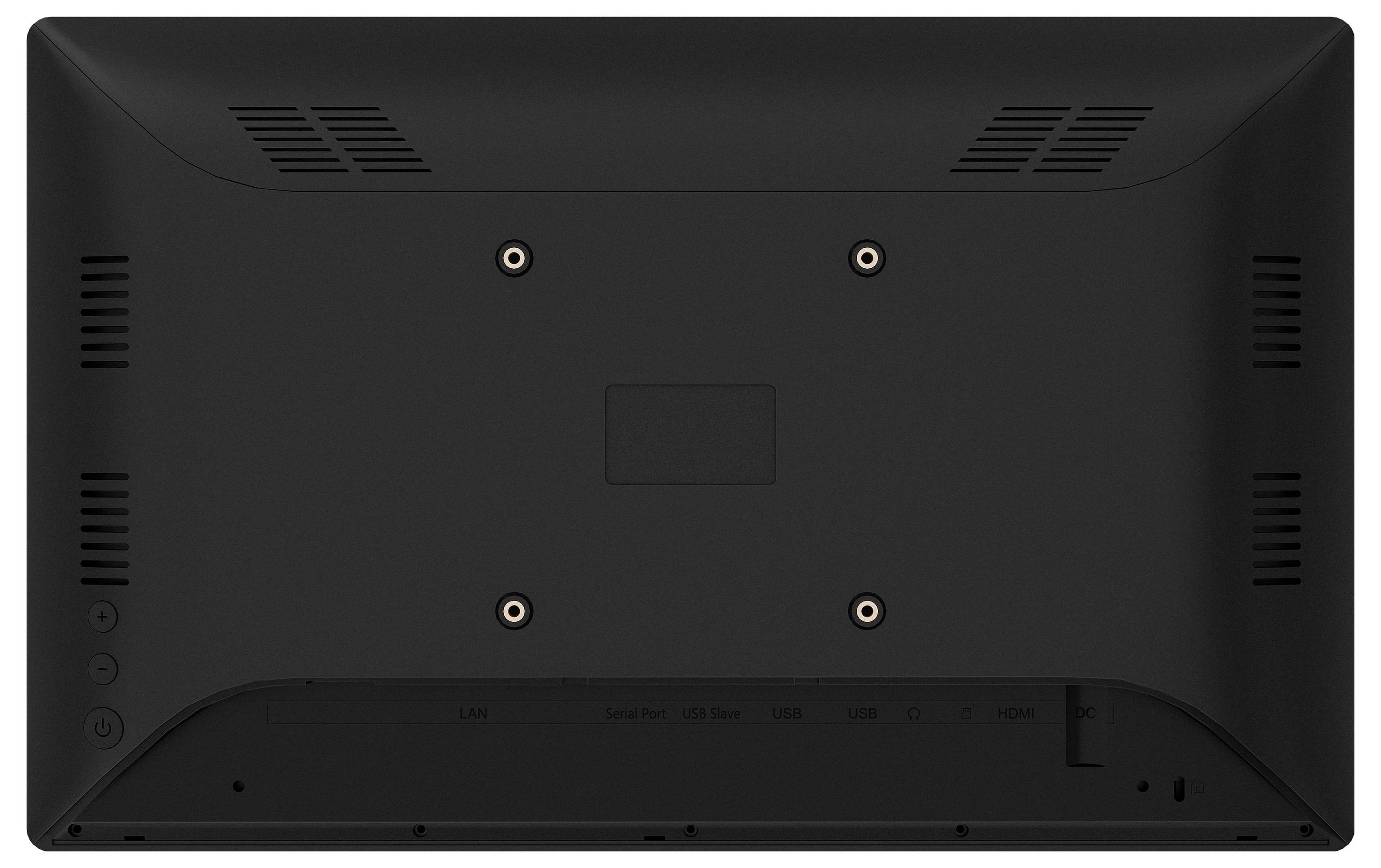

- VESA mounting
yes
- Microphone in
yes
- Built-in speaker(s)
yes
- On Screen Display (OSD)
yes
- Cable management
yes
- Card reader integrated
yes
- Power adapter included
yes
- USB Touch port
yes
- Quick start guide
yes
- Mini HDMI ports quantity
1
- Package weight
2.45 kg
- Built-in processor
yes
- Glass thickness
1.8 mm
- Viewable size, horizontal
34.4 cm
- Viewable size, vertical
19.4 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3644646 Iiyama ProLite Digital signage display 39.5 cm 15.6 inch 1920 x 1080 Pixel 24/7
Description

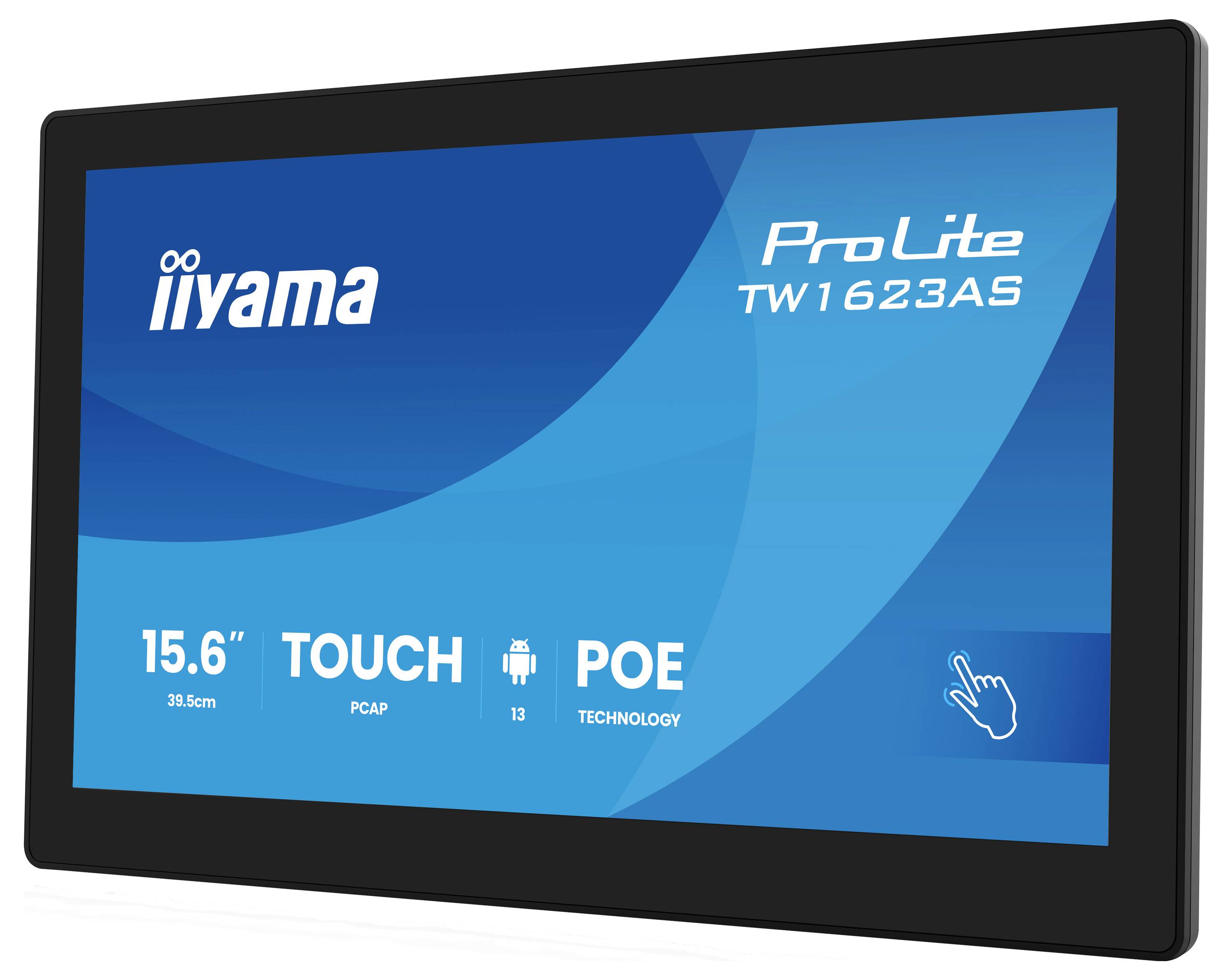

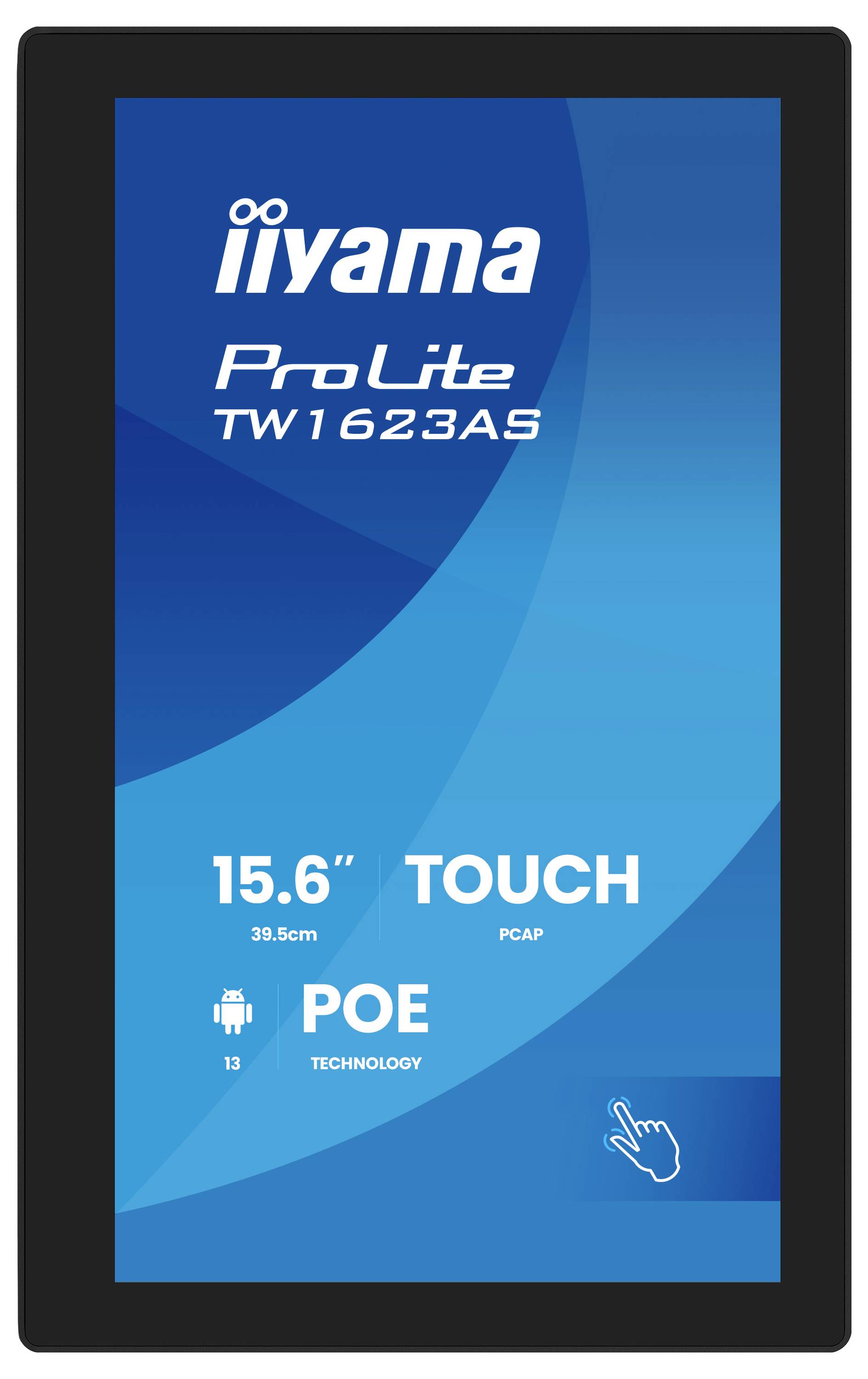

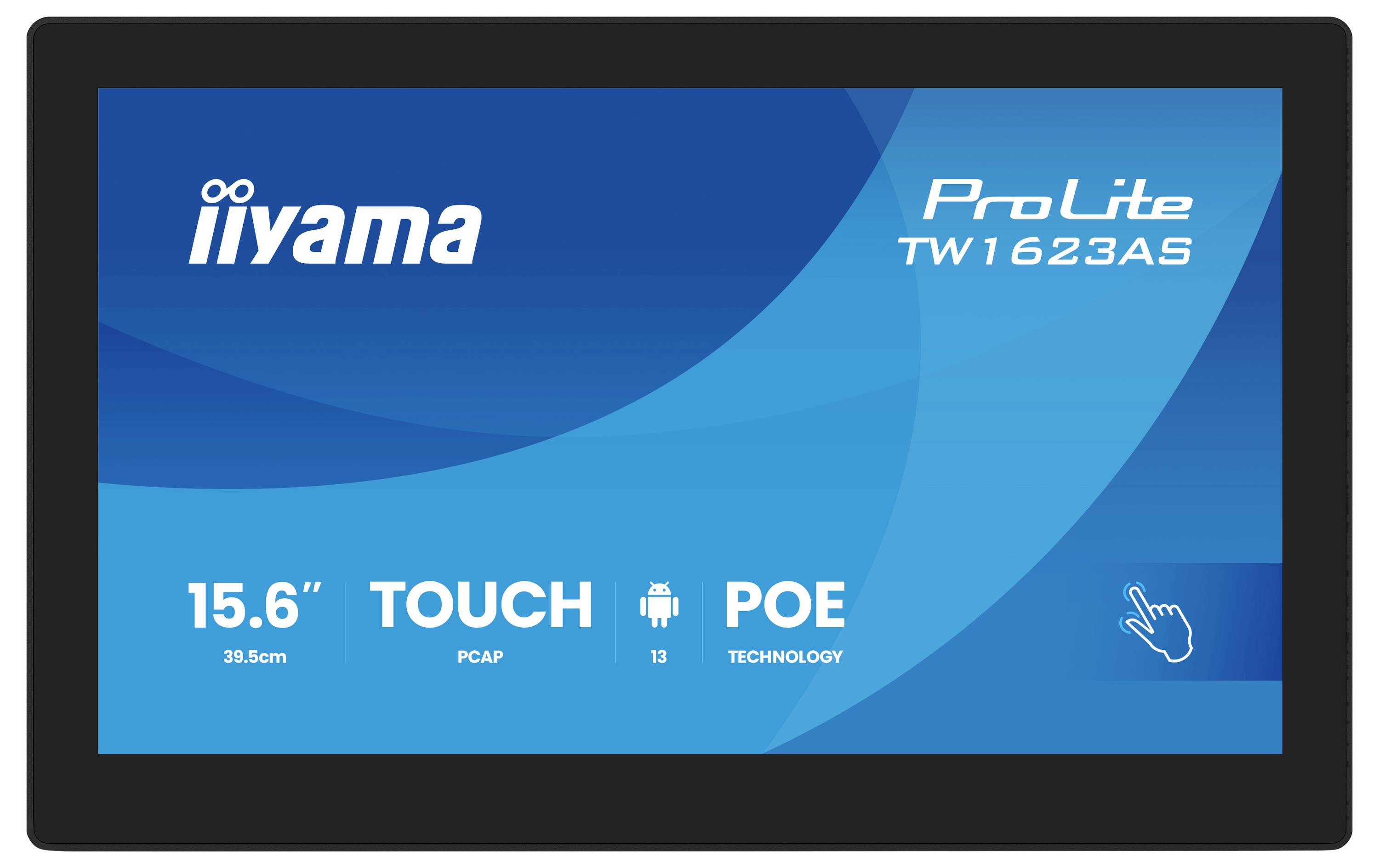

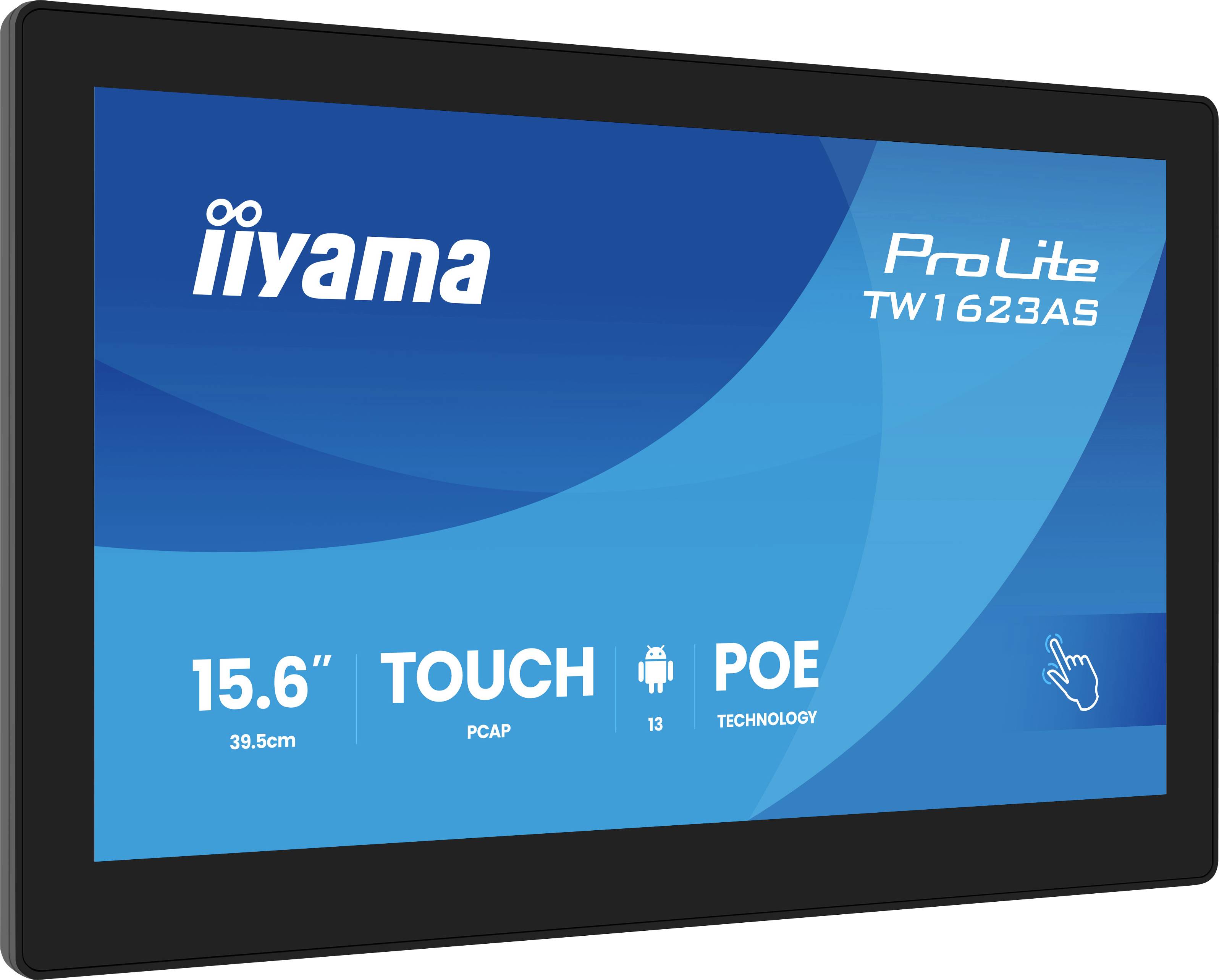

The ProLite TW1623AS-B3P is an intelligent and intuitive 15.6" (39.5 cm) touch-screen PC designed for highly frequented environments such as meeting rooms, information stations or catering establishments. Its 10-point PCAP touch technology provides a smooth and precise interaction. Fitted with Android 13 and powerful hardware, it enables easy installation of apps directly on the device and is thus a comprehensive all-in-one solution. Thanks to Power-over-Ethernet (PoE) both power and data are transferred via a single cable, WAS simplifies the installation and additional cables are unnecessary. With integrated microphone and speakers, the TW1623AS-B3P offers seamless, modern interaction in any environment. It also integrates easily with Iiyama's content management system (CMS) and gives you full control over your messages and advertising, both in landscape, portrait and face-up position.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Connection cable
- Quick guide.
