Name: Iiyama ProLite Digital signage display 60.5 cm 23.8 inch 1920 x 1080 Pixel 24/7
Brand: Iiyama
SKU: 3629745

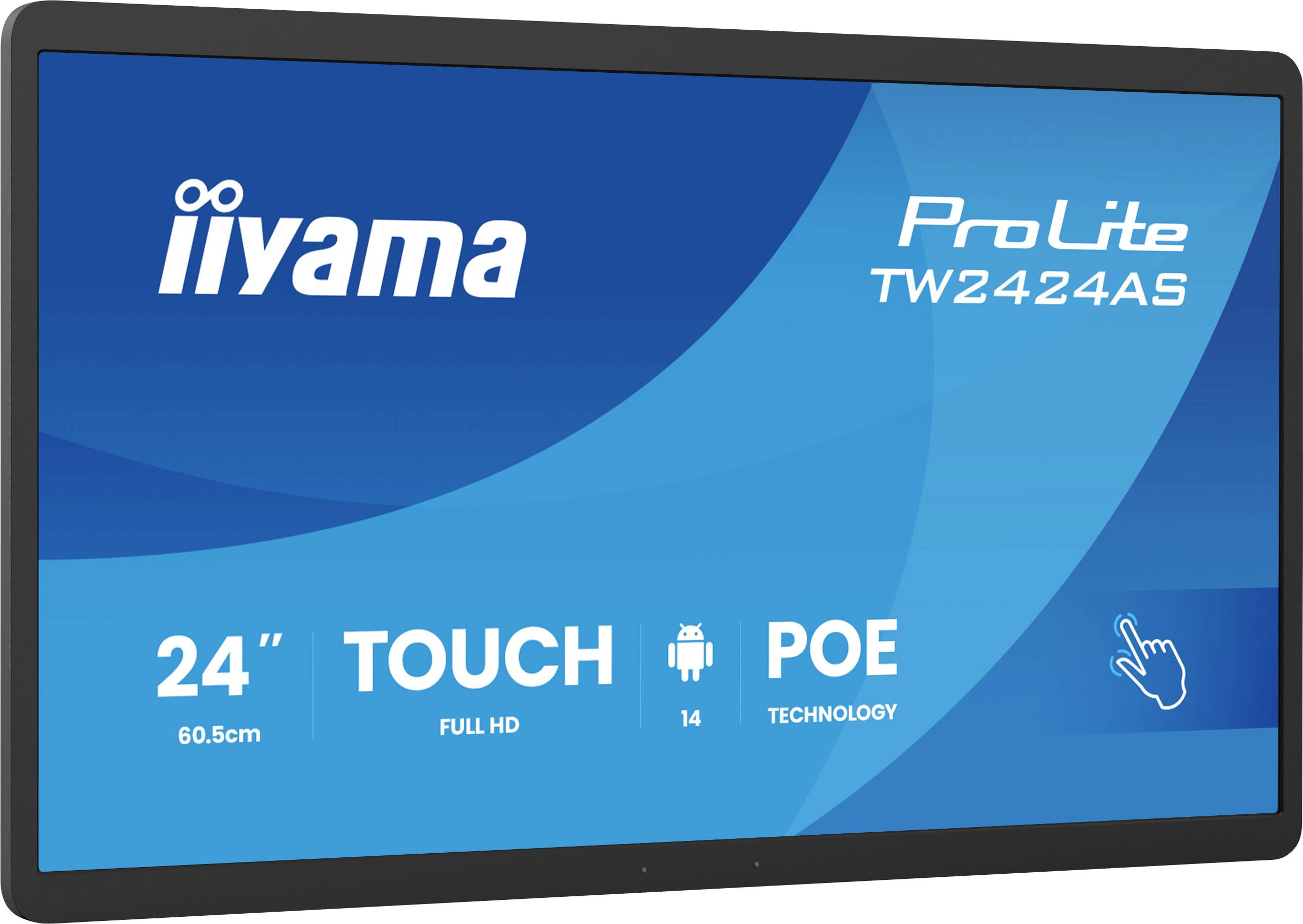

iiyama ProLite TW2424AS screen display. Features: 24-inch, touch capability, full HD, Android 14, and POE technology.

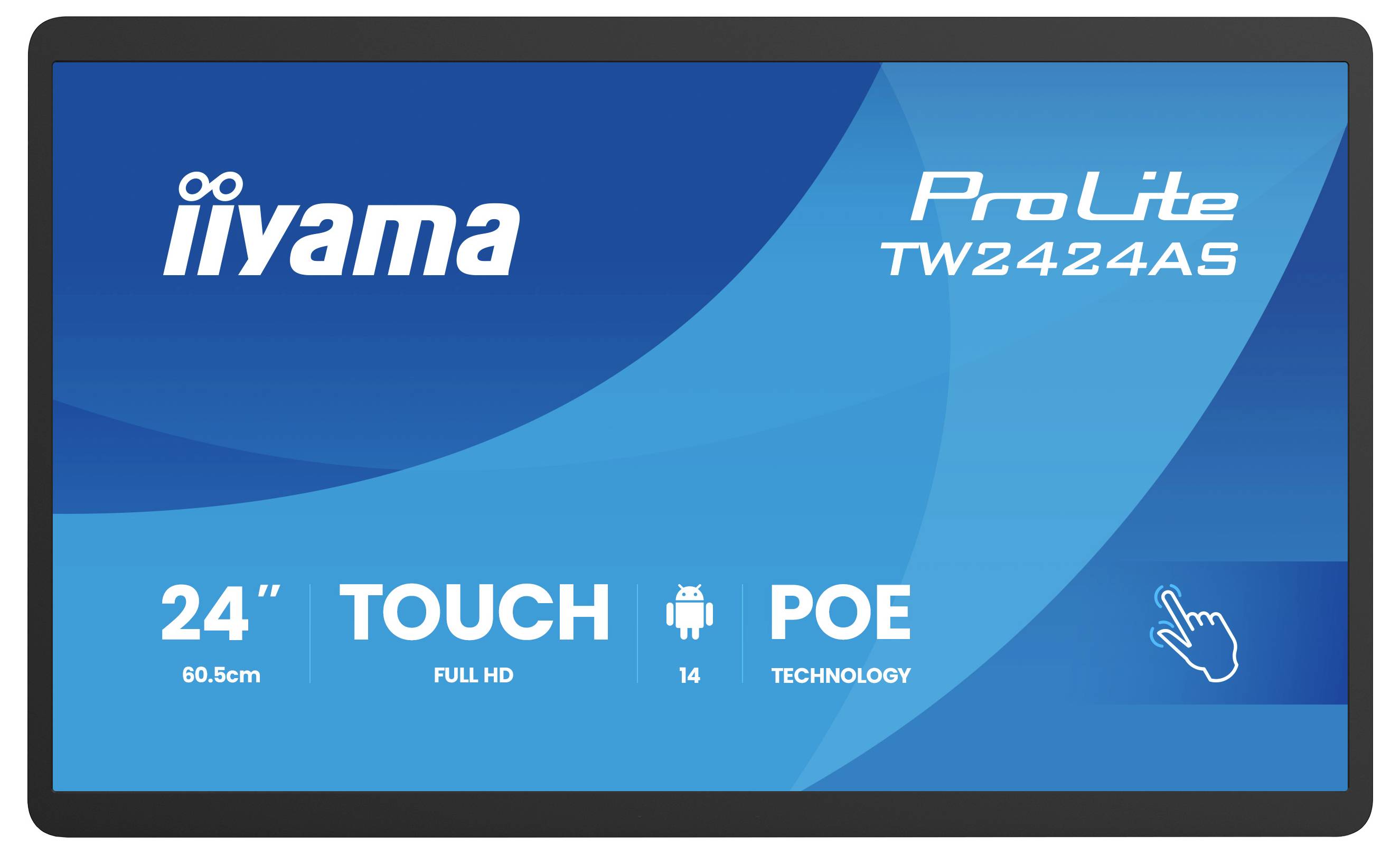

'iiyama ProLite TW2424AS' screen display with text: '24" FULL HD, TOUCH, Android 14, POE TECHNOLOGY' and an icon of a finger touching.

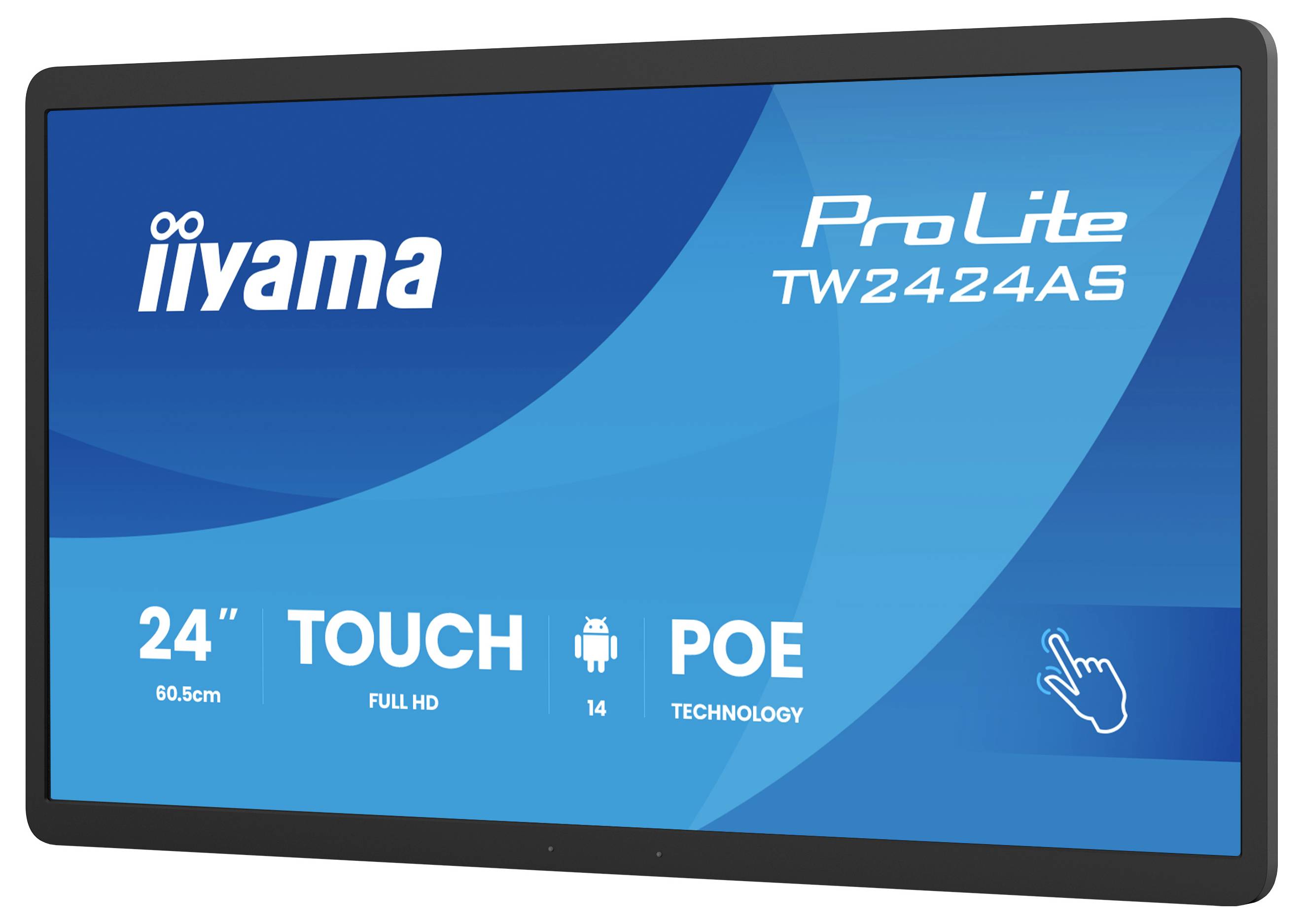

'ProLite TW2424AS' touchscreen display by iiyama, 24 inches, Full HD, POE technology, Android 14 compatible.

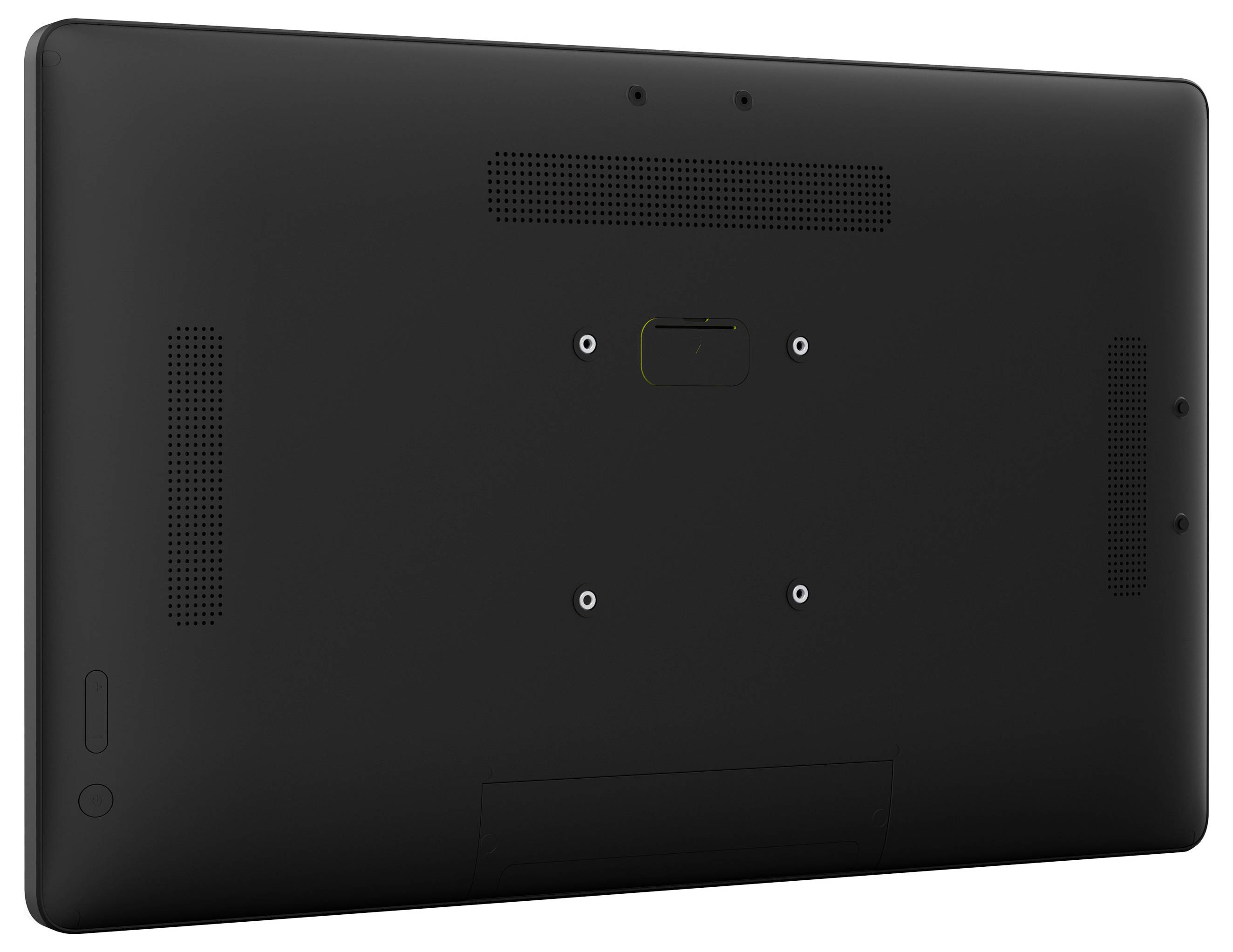

The image shows the back view of a black, sleek, flat-screen electronic device with visible speaker grilles and mounting points.

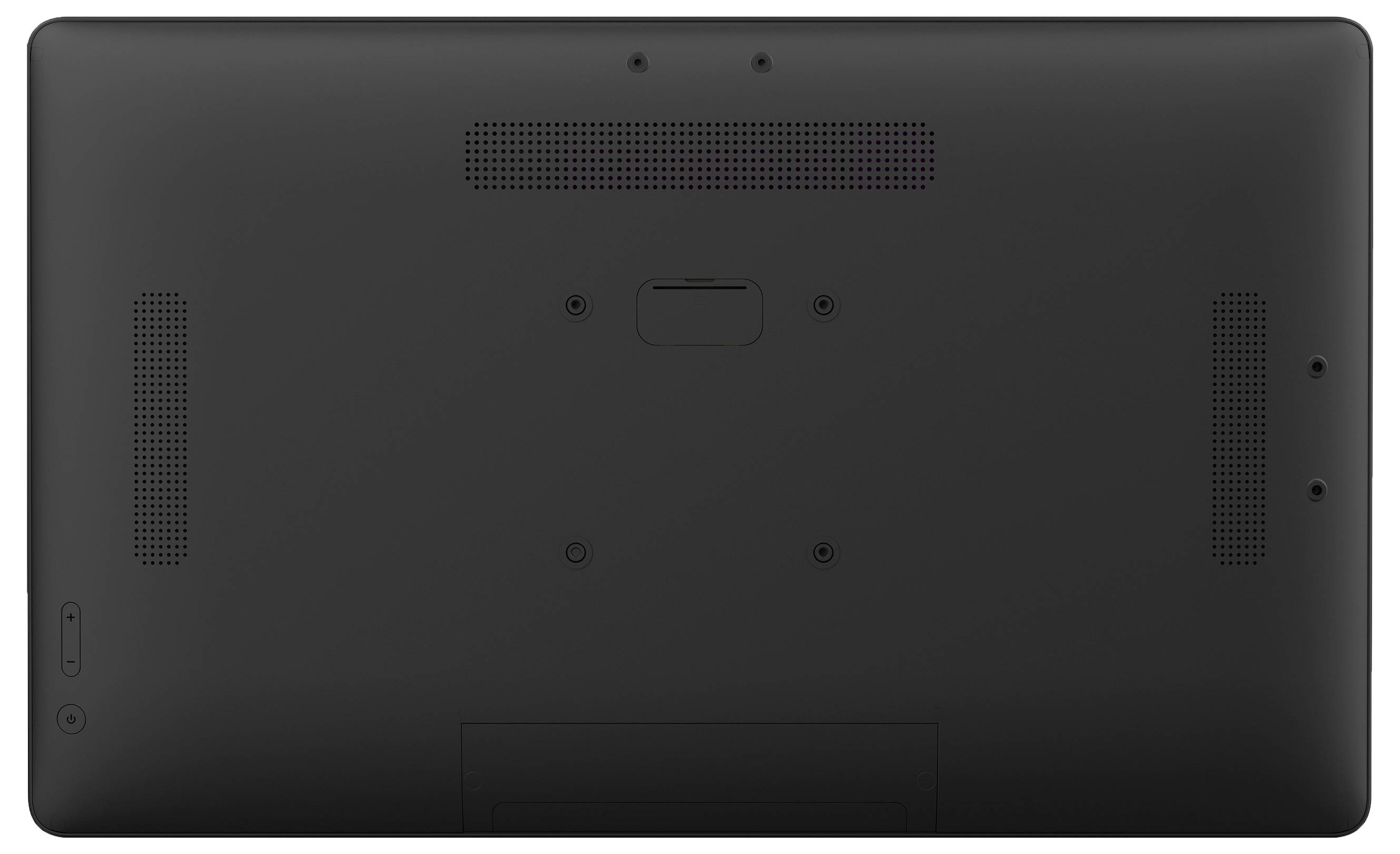

Back view of a flat-screen monitor showing mounting holes and ventilation grids, suitable for wall attachment or adjustable stands.

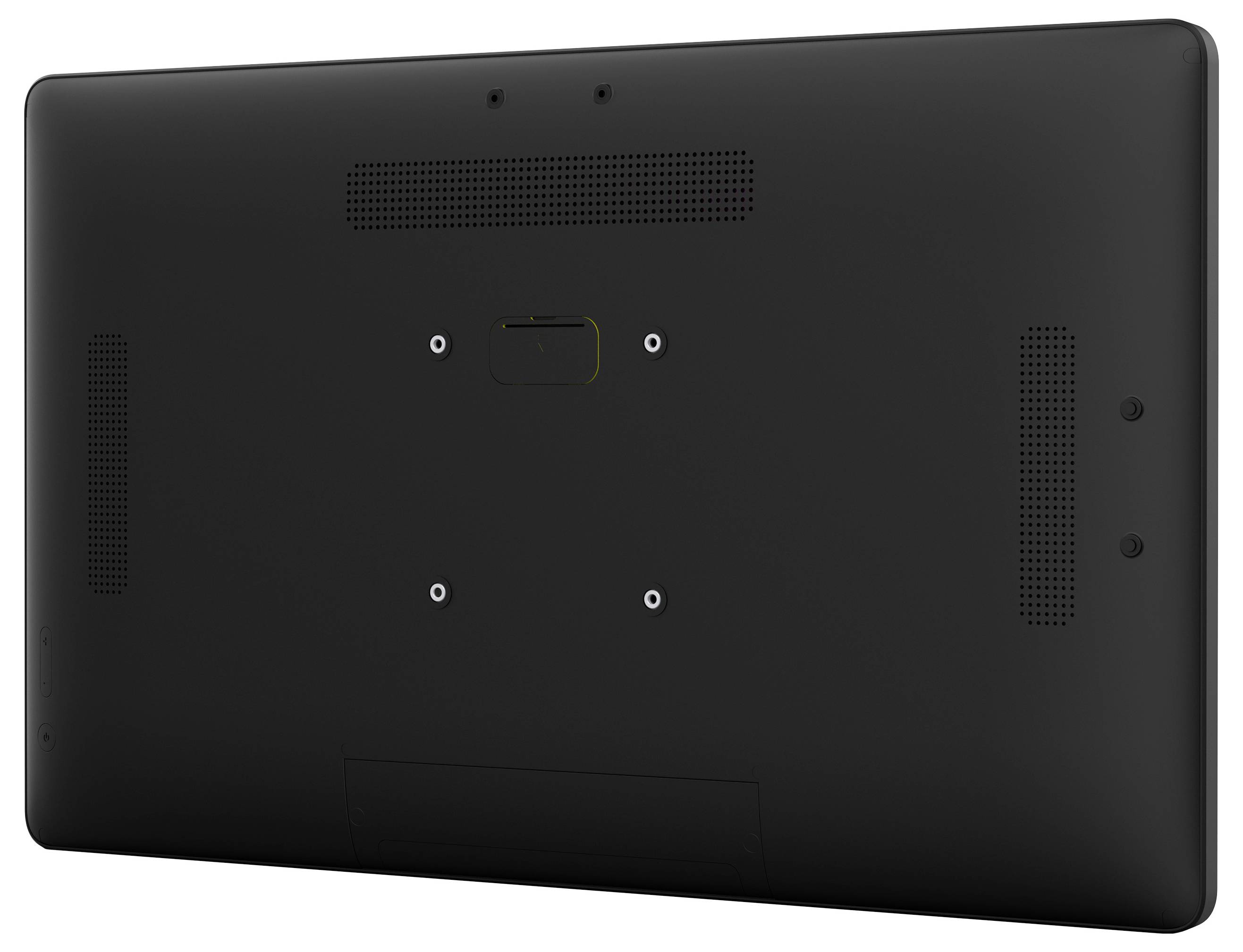

The image shows the back view of a large flat-screen monitor, featuring a matte black finish and multiple circular ventilation holes.

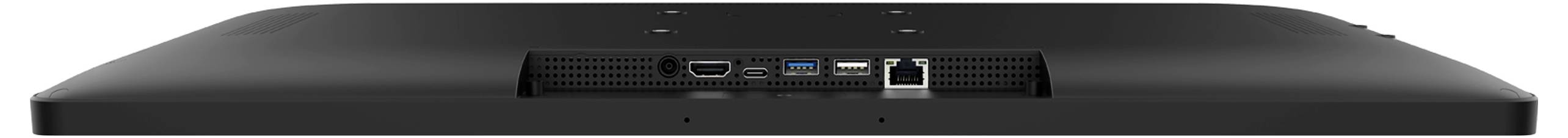

'Back view of a monitor with visible ports: HDMI, VGA, USB, and Ethernet ports located in the center of the panel.'

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Iiyama ProLite Digital signage display

Screen size diagonal: 60.5 cm (23.8 inch)
Display resolution: 1920 x 1080 Pixel
Energy efficiency rating (calc): n.rel.
Android™, Thin bezel design, Multi-Touch, Built-in speaker, Built-in memory
Operating time (console): 24/7

Pre-contractual information under the EU Data Act

Technical specifications

Contrast ratio: 1000:1
0.275 x 0.275 mm pixel distance
WLAN standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac),Wi-Fi 4 (802.11n),802.11g,802.11a,802.11b

Product type: Digital signage display

Screen size diagonal (inches): 24 inch

Features: Android™
Thin bezel design
Multi-Touch
Built-in speaker
Built-in memory

Display technology: LCD

Operating time (console): 24/7

Brightness: 450 cd/m²

Static contrast ratio: 1000 : 1

Viewing angle: 178°

Display resolution: 1920 x 1080 Pixel

Dot pitch (horizontal): 0.275 mm

Dot pitch (vertical): 0.275 mm

Image format: 16:9

Network/internet function: WiFi
LAN

Wi-Fi: b/g/n/ac

Controller: Touchscreen

No. of USB ports: 2 x

Interfaces: USB
RJ45
Audio stereo (3.5 mm jack)

Power consumption (standby): 0.5 W

: 100 x 100 mm

Factory colour: Black

Dim: (L x W x H) 600 cm x 550 mm x 336 mm

Width: 550 mm

Height: 336 mm

Depth: 28 mm

Weight: 4.24 kg

: n.rel.

Display: 60.5 cm (23.8 inch)

Screen resolution: Full HD (1920 x 1080 Pixel)

Display (cm): 60.5 cm

Screen size diagonal (cm): 60.5 cm

Screen size diagonal (inches): 23.8 inch

Power consumption (off): 0.3 W

Power consumption (ON): 17.5 W

Standby consumption: 0.5 W

Bluetooth: 5.3

Bluetooth: Yes

Length: 600 cm

Display properties: IPS

Touchscreen (display): Yes

HDCP: Yes

Microphone: Yes

10/100/1000 Mbps ports: 1 x

Audio power (max.): 10 W

Brightness: 450 cd/m²

Type: External

Response time: 14 ms

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Wi-Fi: Yes

UKCA: yes

Number of speakers: 2

Number of simultaneous touchpoints: 10

AC adapter included: yes

Ethernet LAN: yes

Colour depth: 8 Bit

Brightness: 450 cd/m²

Active display area (W x H): 527 x 296,5 mm

VESA mounting: yes

Built-in speaker(s): yes

Cable management: yes

USB Touch port: yes

Flicker-free technology: yes

Quick start guide: yes

Mean time between failures (MTBF): 50000 h

Package weight: 6.2 kg

Power cable length: 1.8 m

Viewable size, horizontal: 52.7 cm

Viewable size, vertical: 29.6 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3629745 Iiyama ProLite Digital signage display 60.5 cm 23.8 inch 1920 x 1080 Pixel 24/7

Description

The interactive touch panel PC ProLite TW2424AS-B3P is the perfect choice for environments with Hohem usage. The IPS panel, which is integrated in a slim and elegant frame, provides both an excellent color performance with wide viewing angles as well as noticeably sharper images. The in-cell 10pt. PCAP-Touch technology provides for a smooth and natural touch-experience. This monitor can be used in landscape and portrait mode as well as with the display upwards in 24/7-mode. The pre-installed Android 14 operating system allows you to easily adjust the monitor by installing apps directly on it. In combination with the 32 GB storage, Wi-Fi connection, LAN (RJ45) and HDMI connections, the monitor is ideal for POS systems or retail information points to inform customers about your products, as well as for almost limitless Smart home applications. Thanks to Power-over-Ethernet (PoE) both power and data are transferred via a single cable, WAS simplifies the installation and additional cables are unnecessary. It also integrates easily with iiiSignage², the content management system (CMS) from Iiyama, giving you full control over your messages and advertising.

This text is machine translated.

Scope of delivery

AC adapter

Hints

HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
