Name: Iiyama ProLite Digital signage display EEC: G (A - G) 163.8 cm (64.5 inch) 3840 x 2160 Pixel 24/7 Android™, Multi-Touch,
Brand: Iiyama
SKU: 3644642

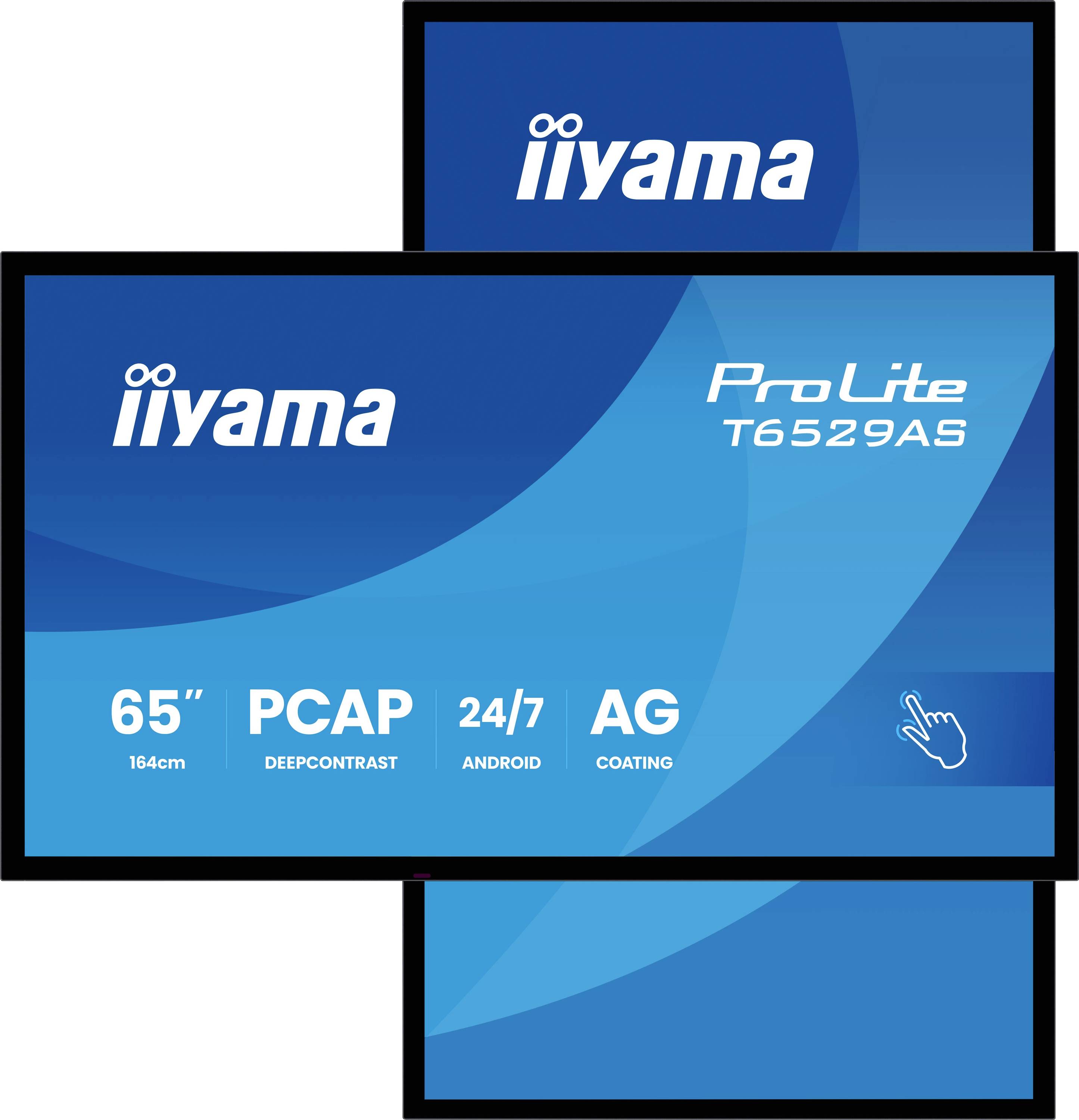

'Image of iiyama ProLite T6529AS screen display, showing specifications: 65" size, PCAP, DeepContrast, 24/7 Android, AG coating.'

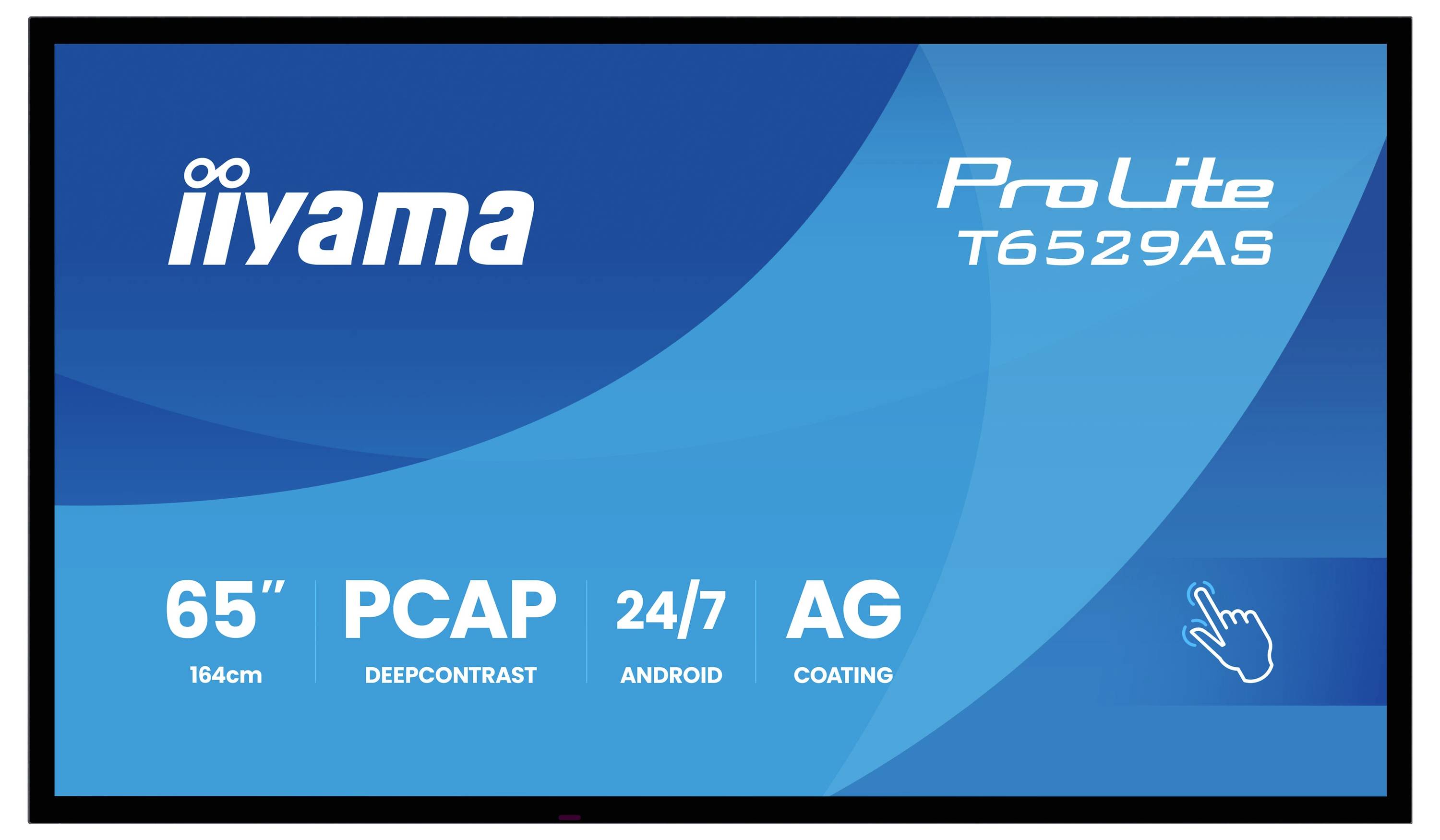

'Blue screen displaying iiyama ProLite T6529AS, 65 inch 164cm, PCAP, deep contrast, 24/7 Android, AG coating, with a touch icon.'

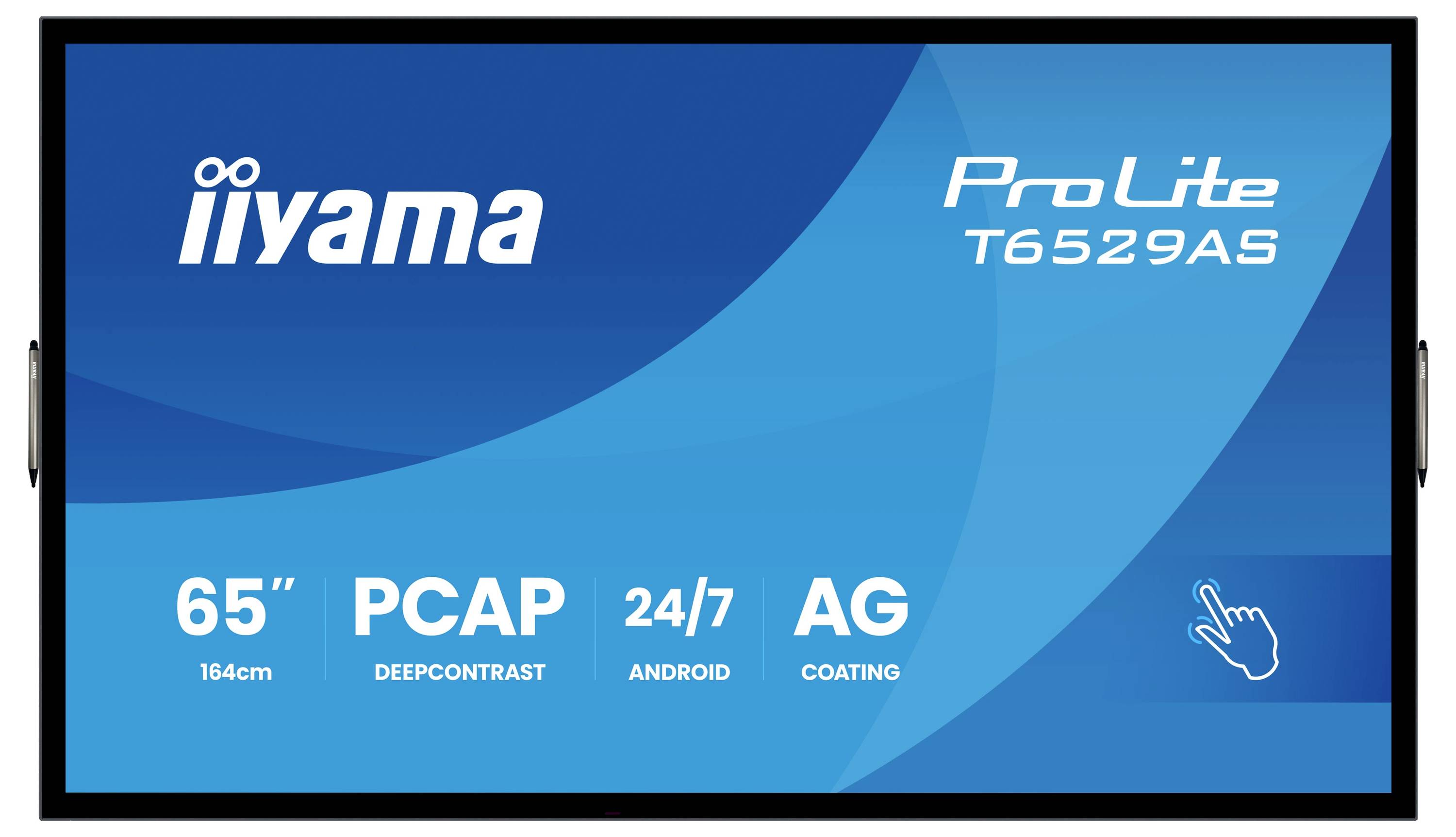

Touchscreen display featuring 'iiyama ProLite T6529AS' branding, with key specifications: 65" size, PCAP, 24/7 Android, AG coating.

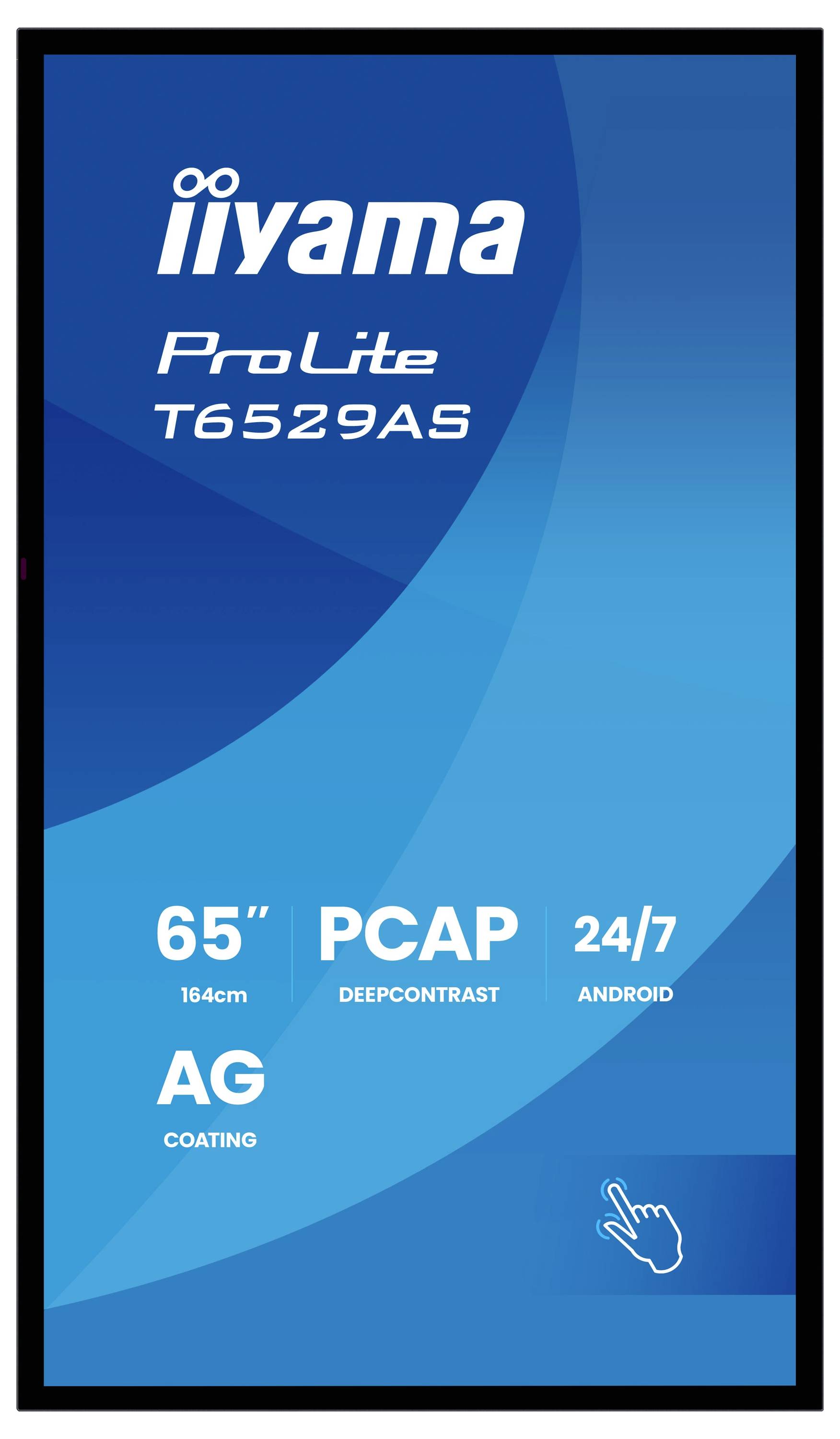

'ProLite T6529AS', a 65-inch display with AG coating, deep contrast, and PCAP technology. 24/7 usage, Android system, by iiyama.

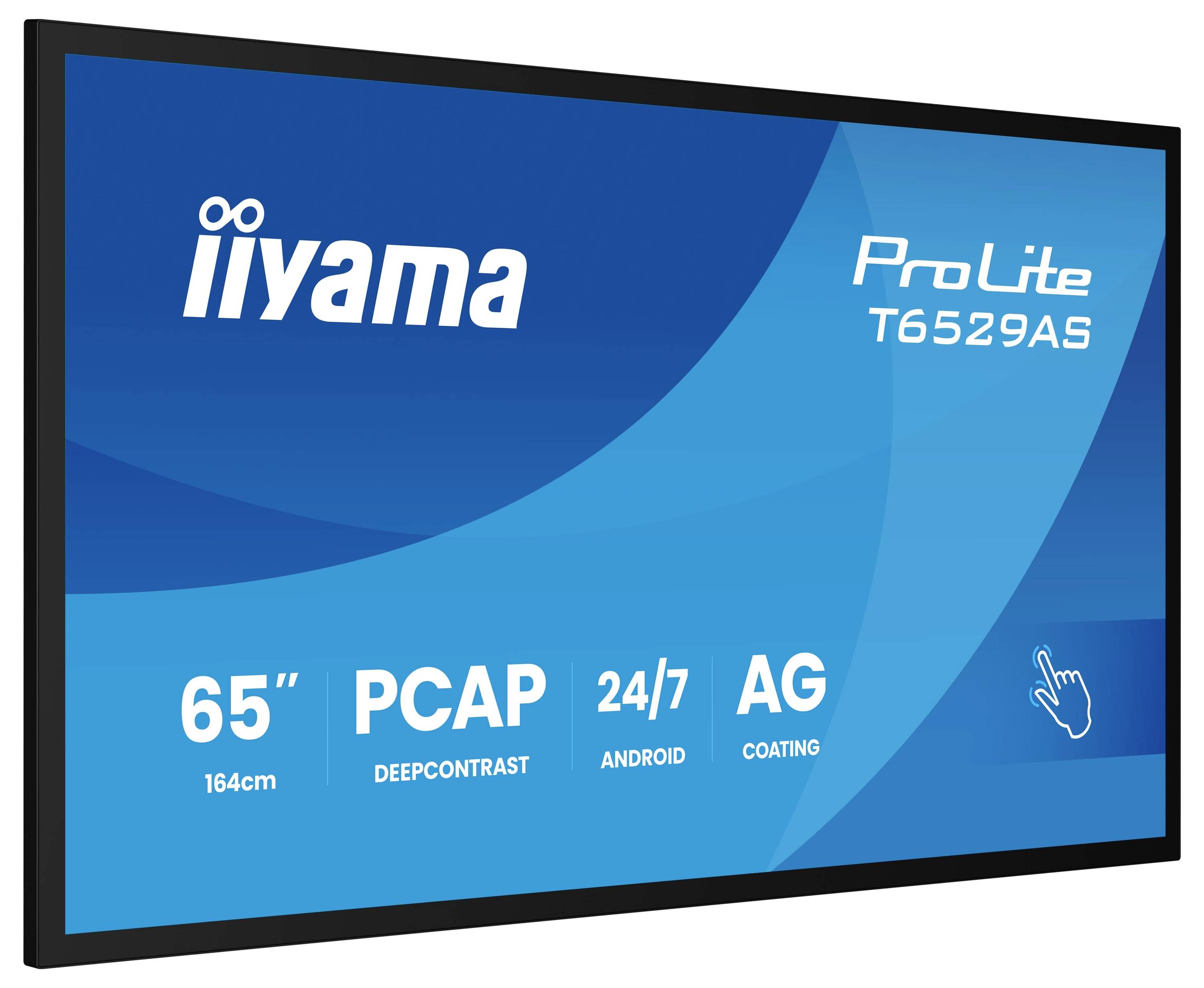

A 65-inch interactive display showing the text: 'iiyama ProLite T6529AS', with features like 'PCAP', '24/7', 'Android', 'AG Coating'.

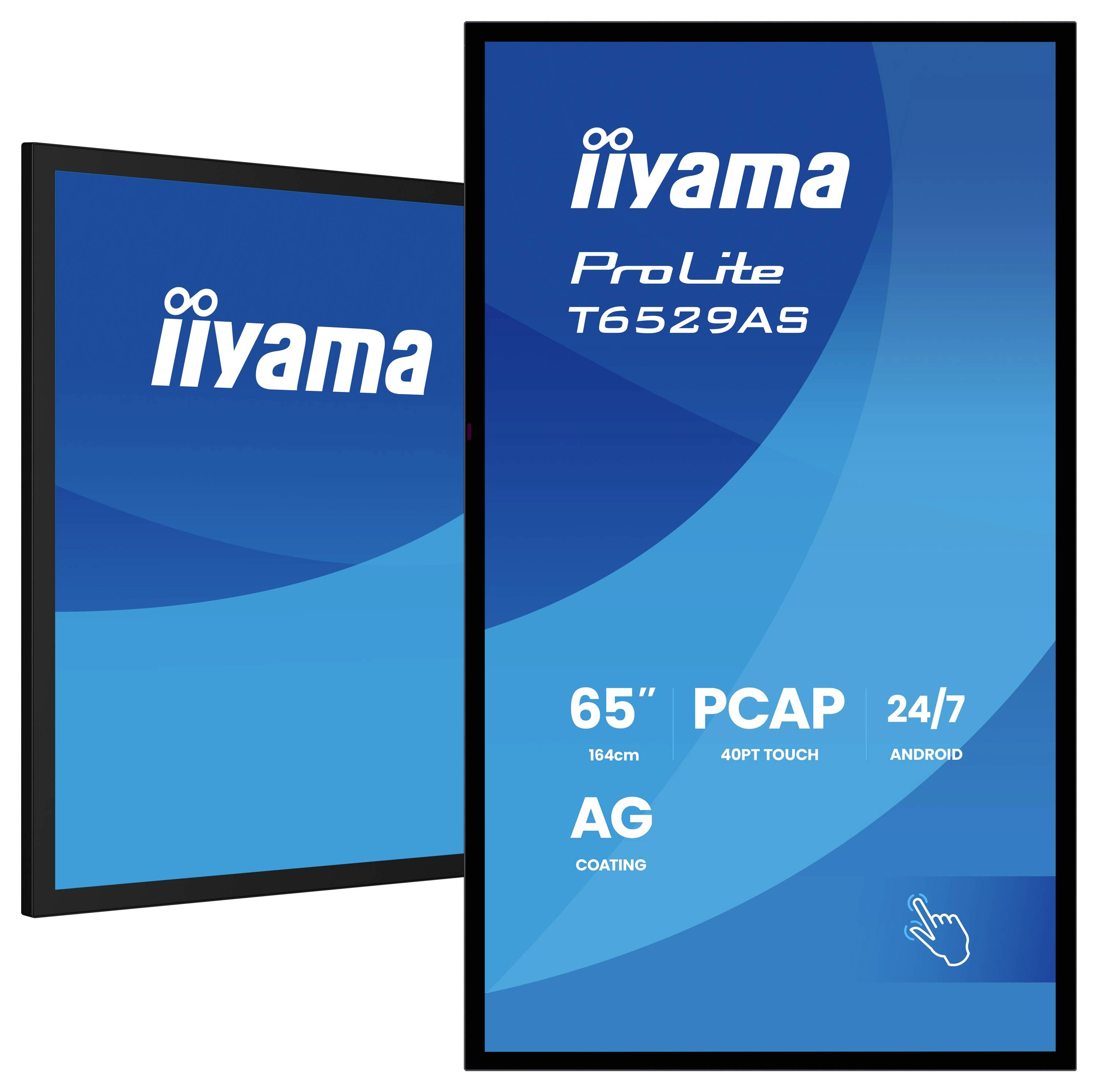

'Iiyama ProLite T6529AS' display with 65-inch screen, PCAP touch, anti-glare coating, designed for continuous 24/7 Android use.

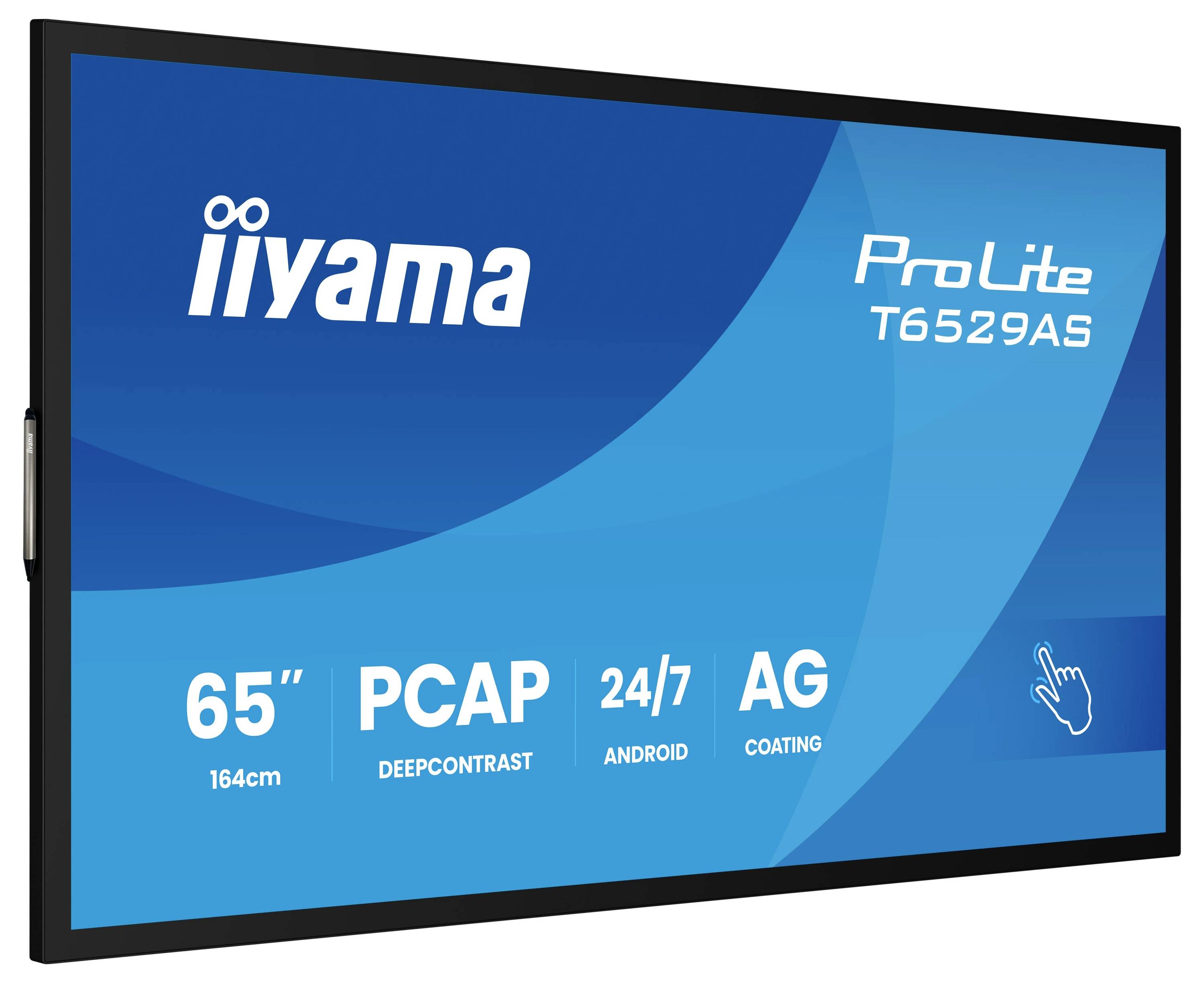

'iiyama ProLite T6529AS' 65-inch touchscreen display featuring PCAP, DeepContrast, 24/7 operation, Android, and AG coating.

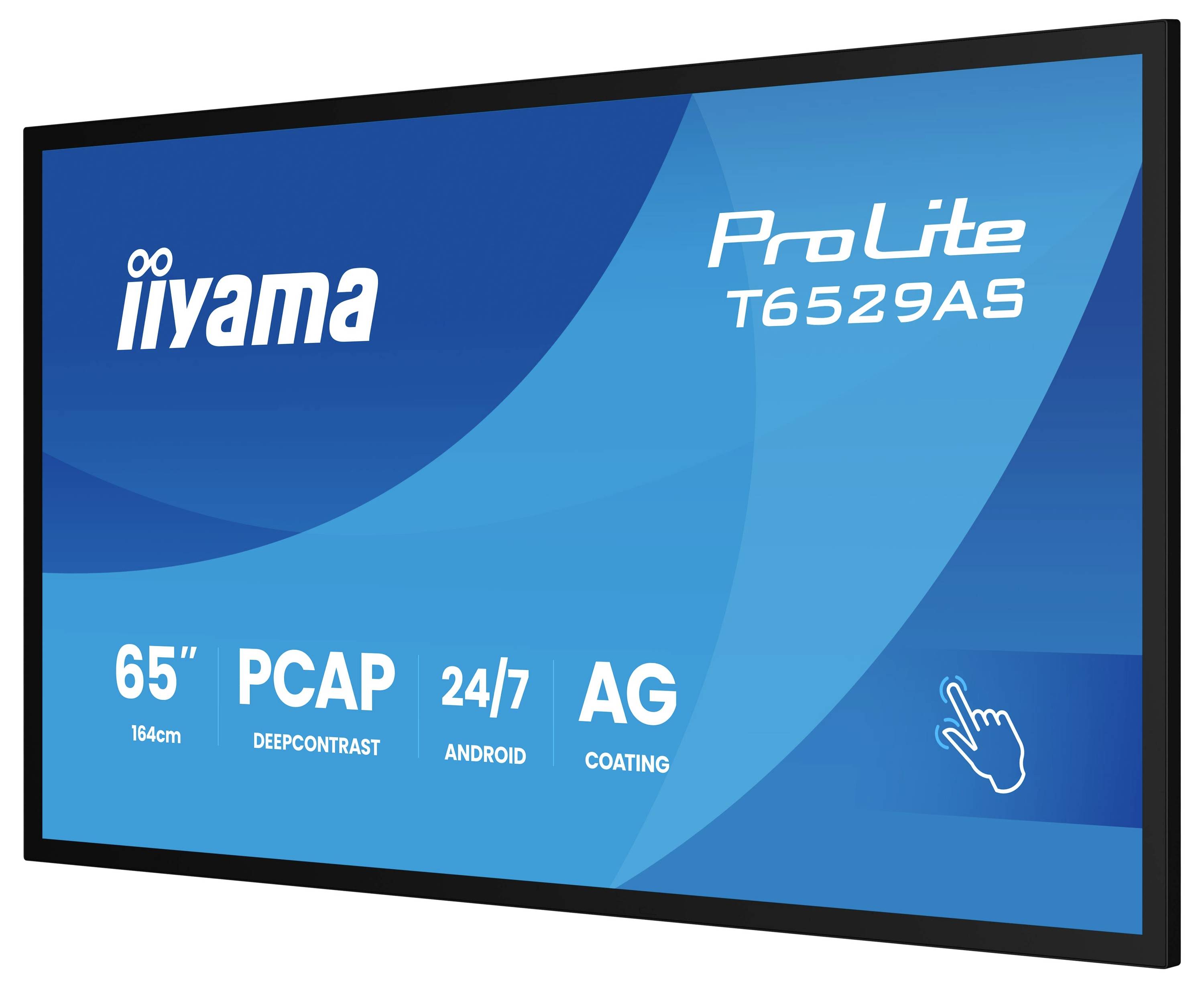

'ProLite T6529AS' touchscreen monitor, 65 inches, features PCAP technology, deep contrast, Android OS, anti-glare coating, 24/7 usage.

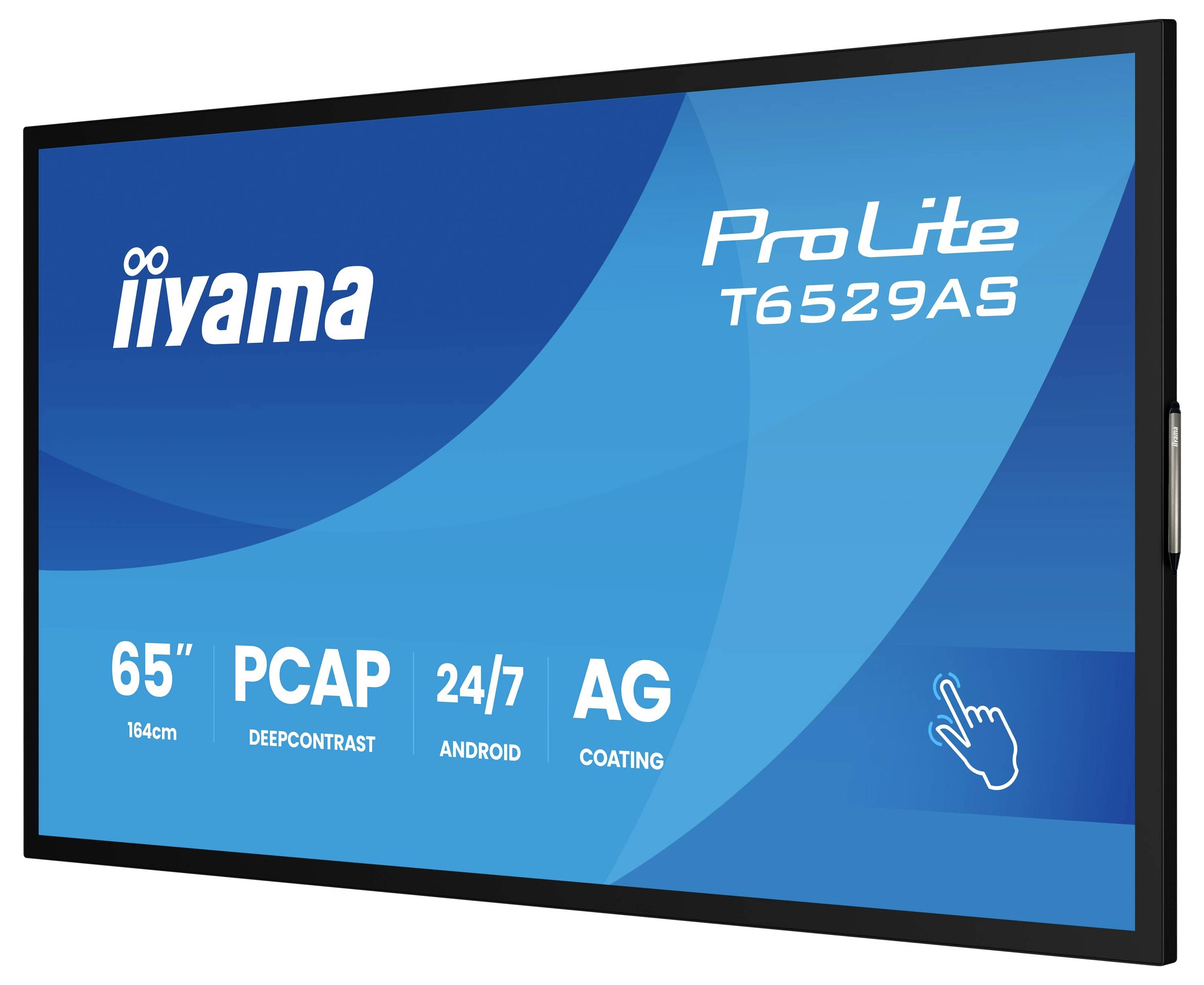

A large display screen with 'iiyama ProLite T6529AS' showcased, featuring 65-inch PCAP, 24/7 operation, Android, and AG coating.

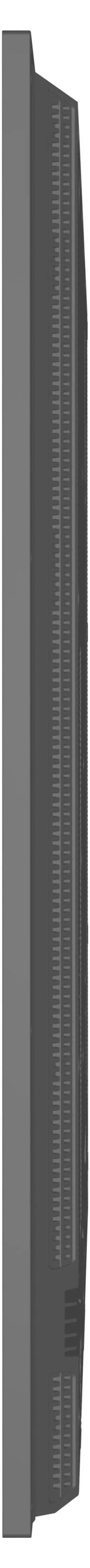

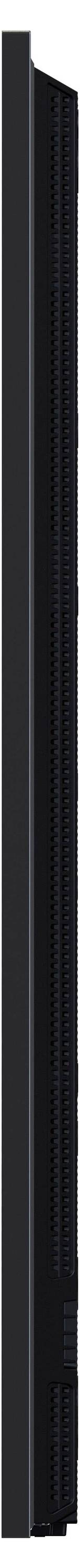

A black, tall, and slim rectangular object stands vertically, possibly a speaker or electronic device component.

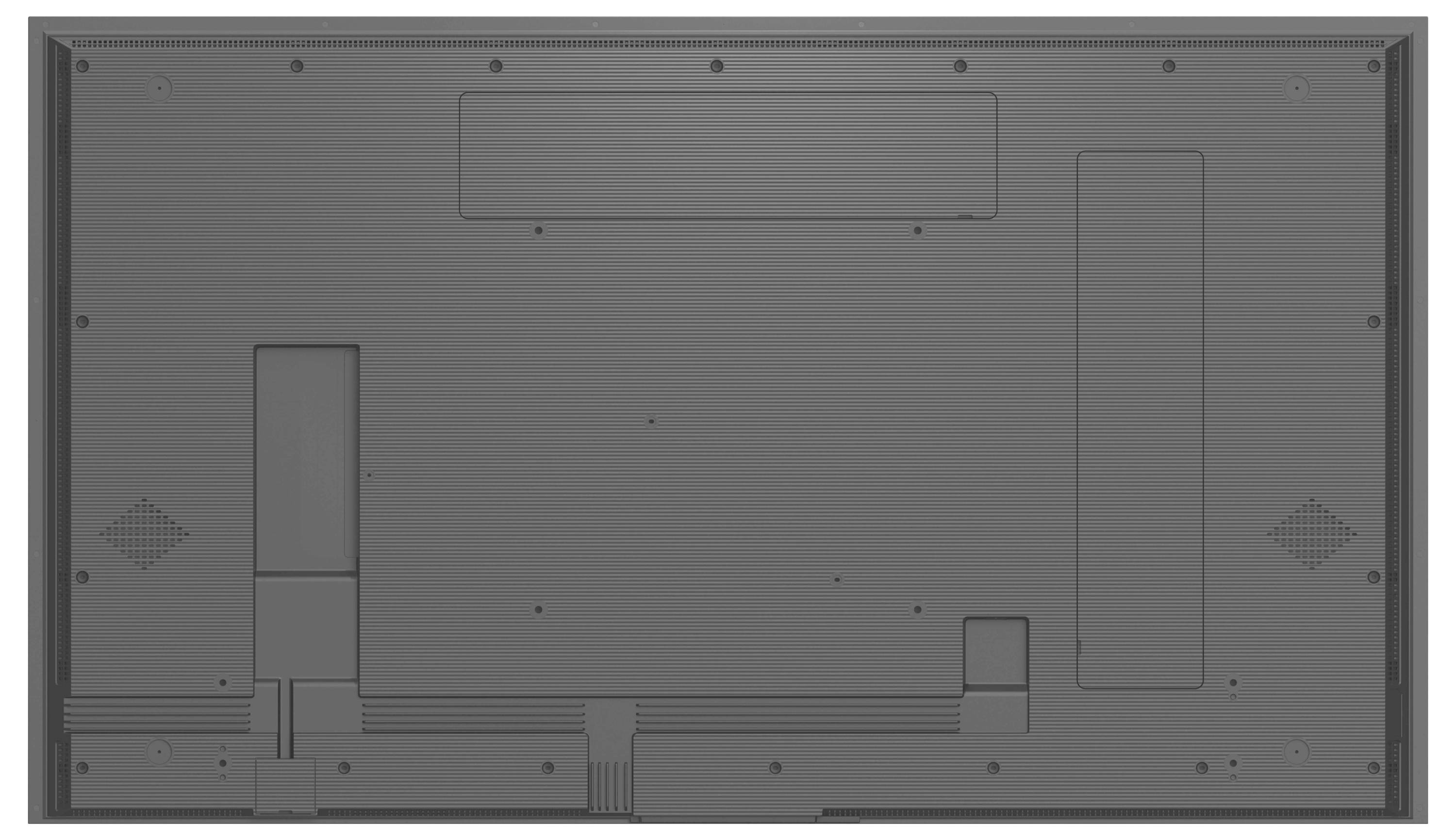

Back view of a flat-screen television, showing mounting points, connection ports, and vent grilles, with a uniform dark gray finish.

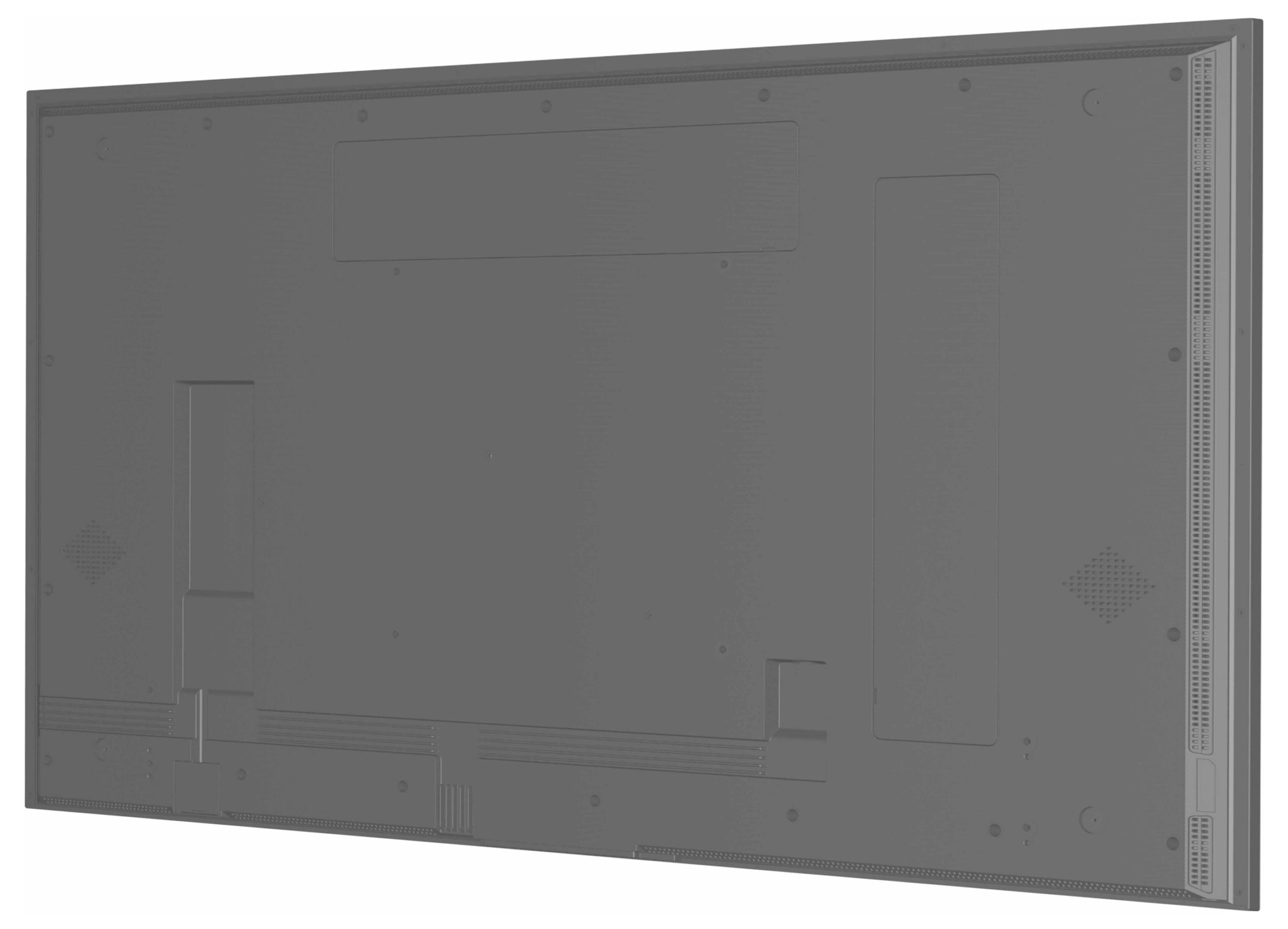

A large, flat-screen display viewed from the back, showing panel structure and ventilation patterns without visible branding or ports.

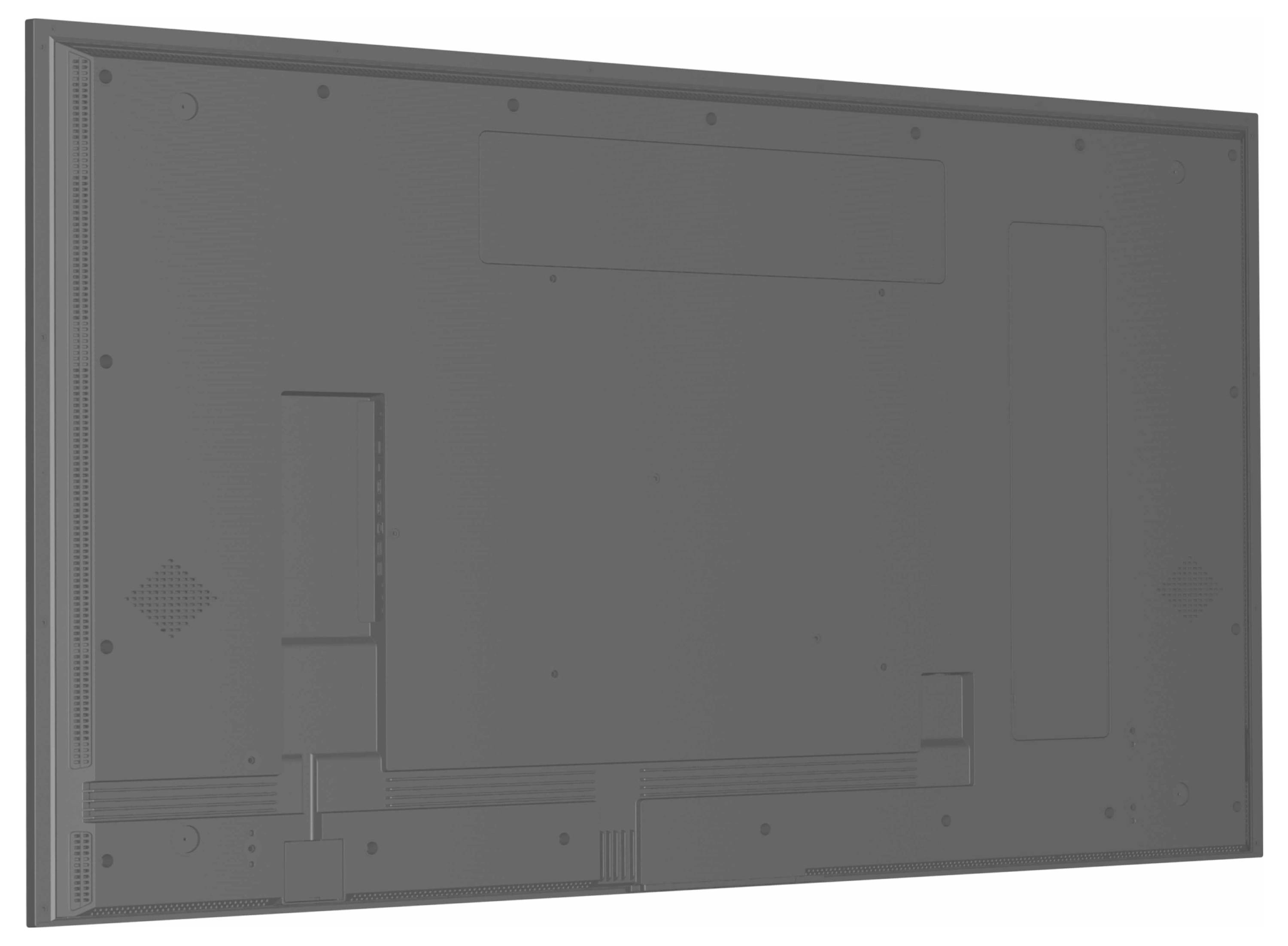

The image shows the back view of a flat rectangular object, likely a television or monitor, with visible ports and mounting fixtures.

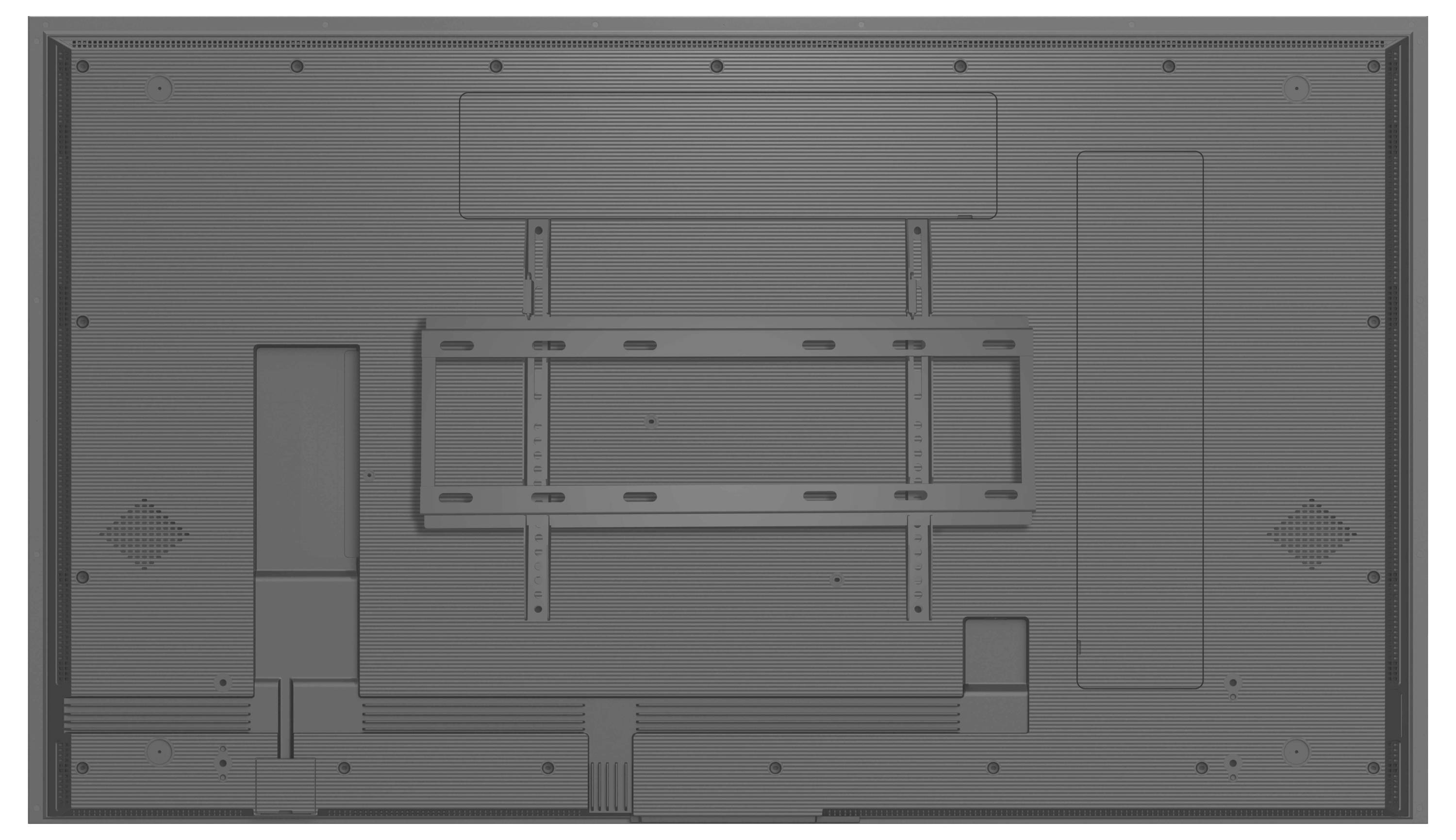

'Back view of a flat screen television showing mounting brackets, ventilation panels, and connection ports.'

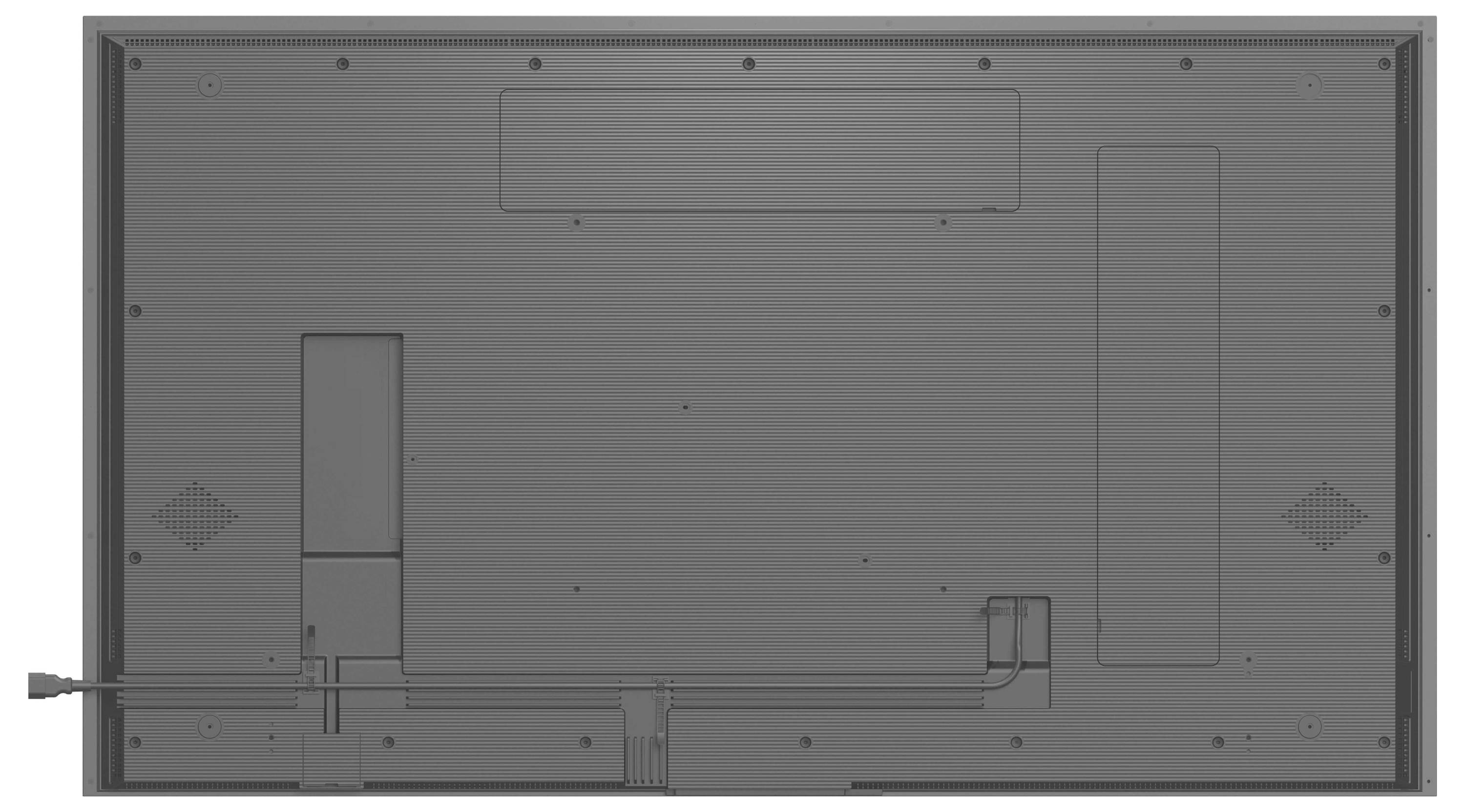

The back view of a flat-screen television showing input ports, power cord, and mounting brackets.

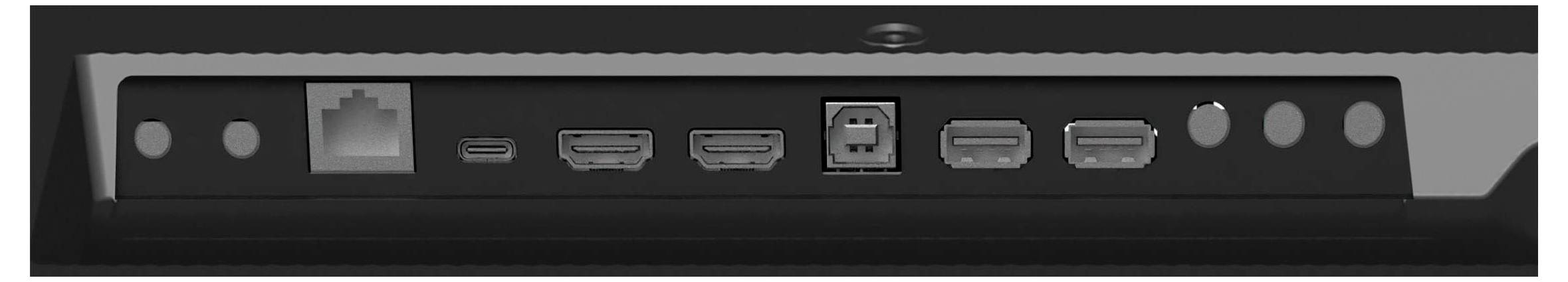

The image shows a close-up of a panel with various ports, including Ethernet, HDMI, USB, and audio jacks, on an electronic device.

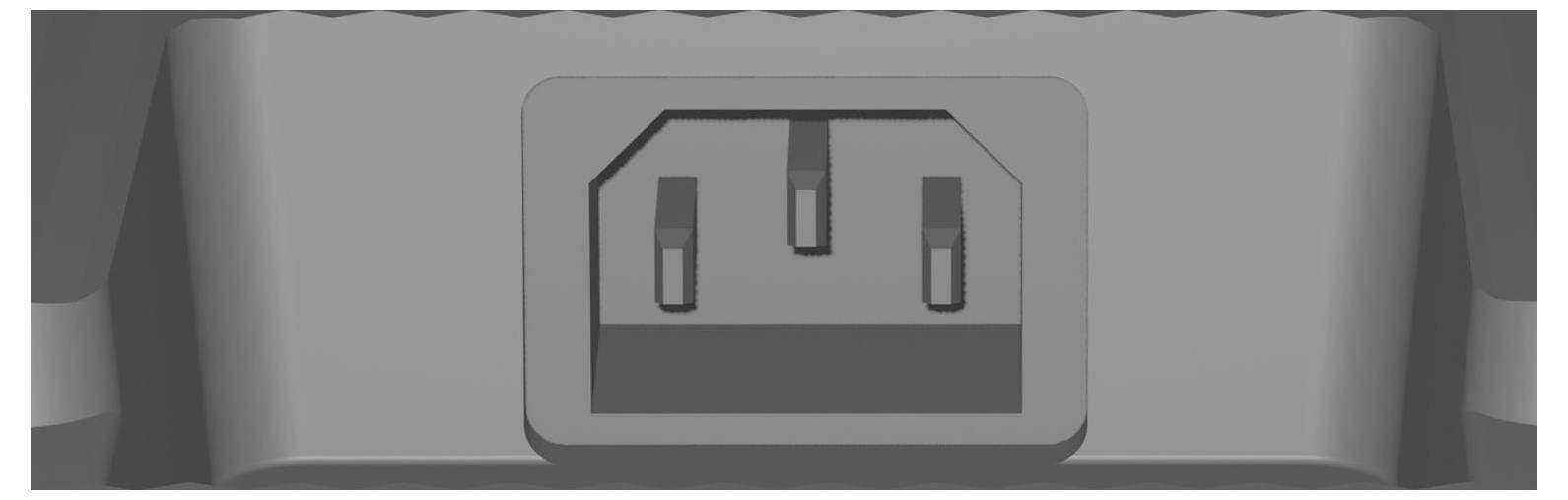

A close-up image of an IEC 60320 C14 power socket, typically found on power supplies and equipment for connecting a power cable.

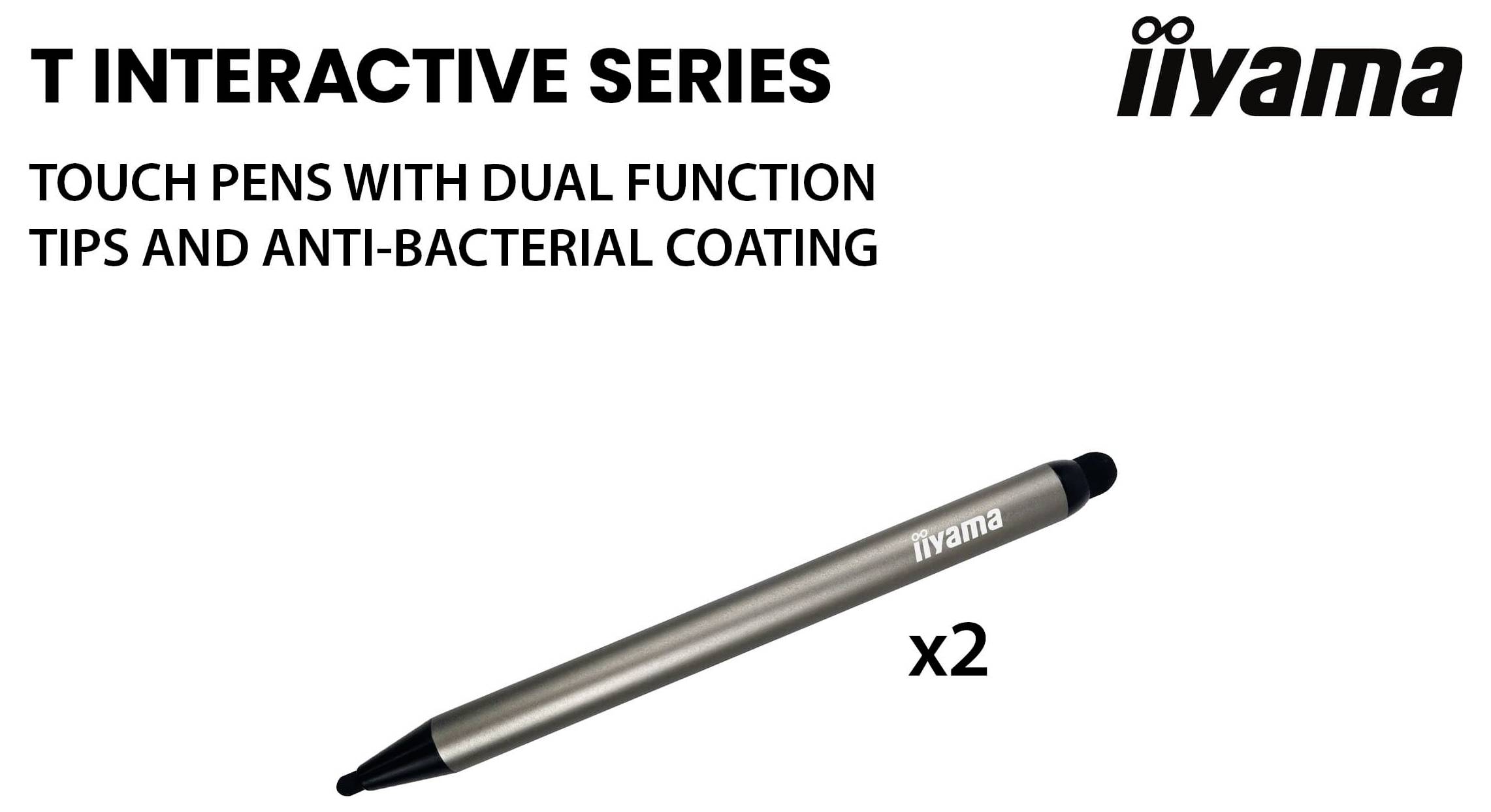

'T Interactive Series' touch pens with dual function tips and anti-bacterial coating, shown in a set of two.

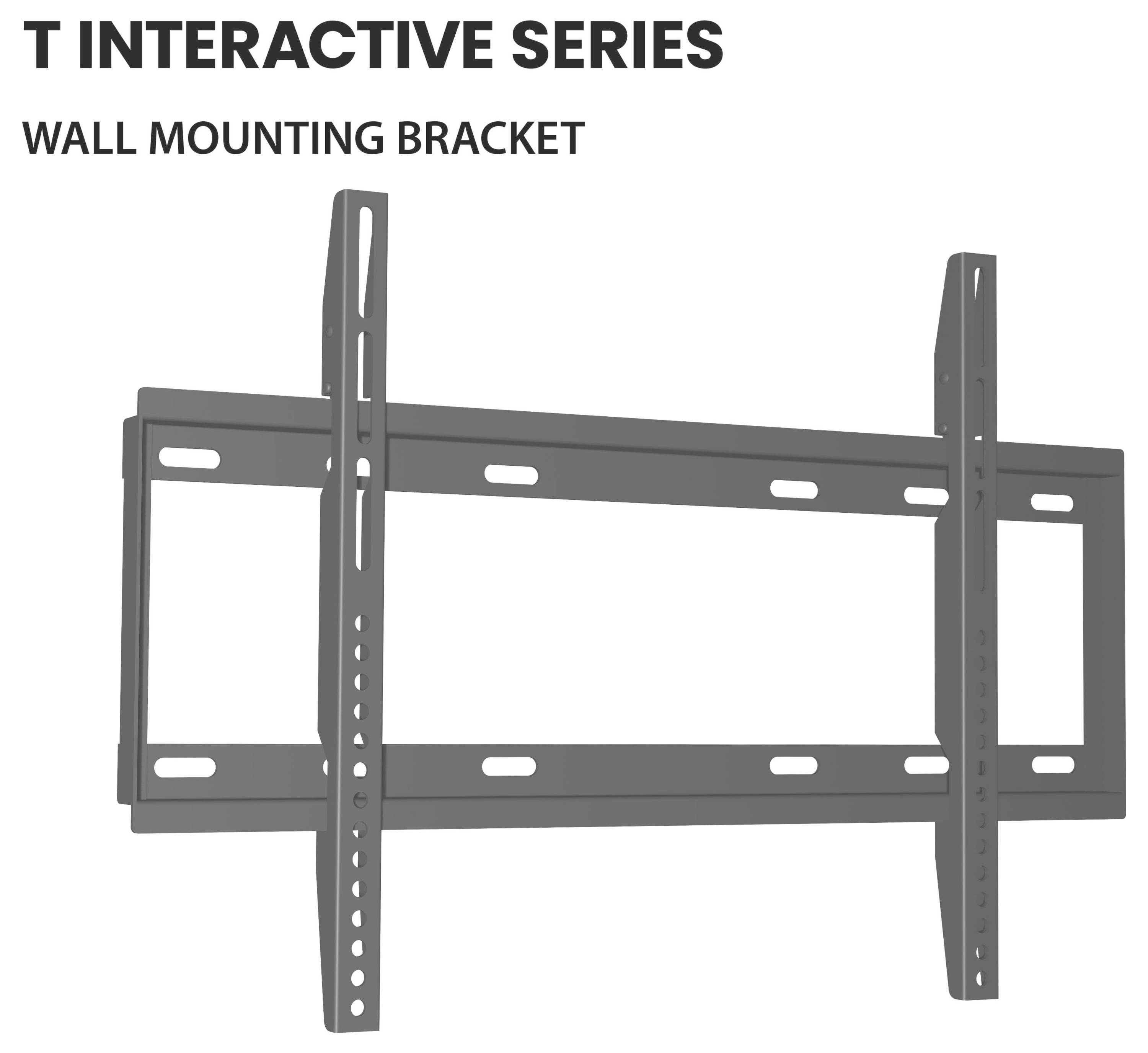

'Wall Mounting Bracket' - An illustration of a metal wall bracket designed for mounting the T Interactive Series screens.

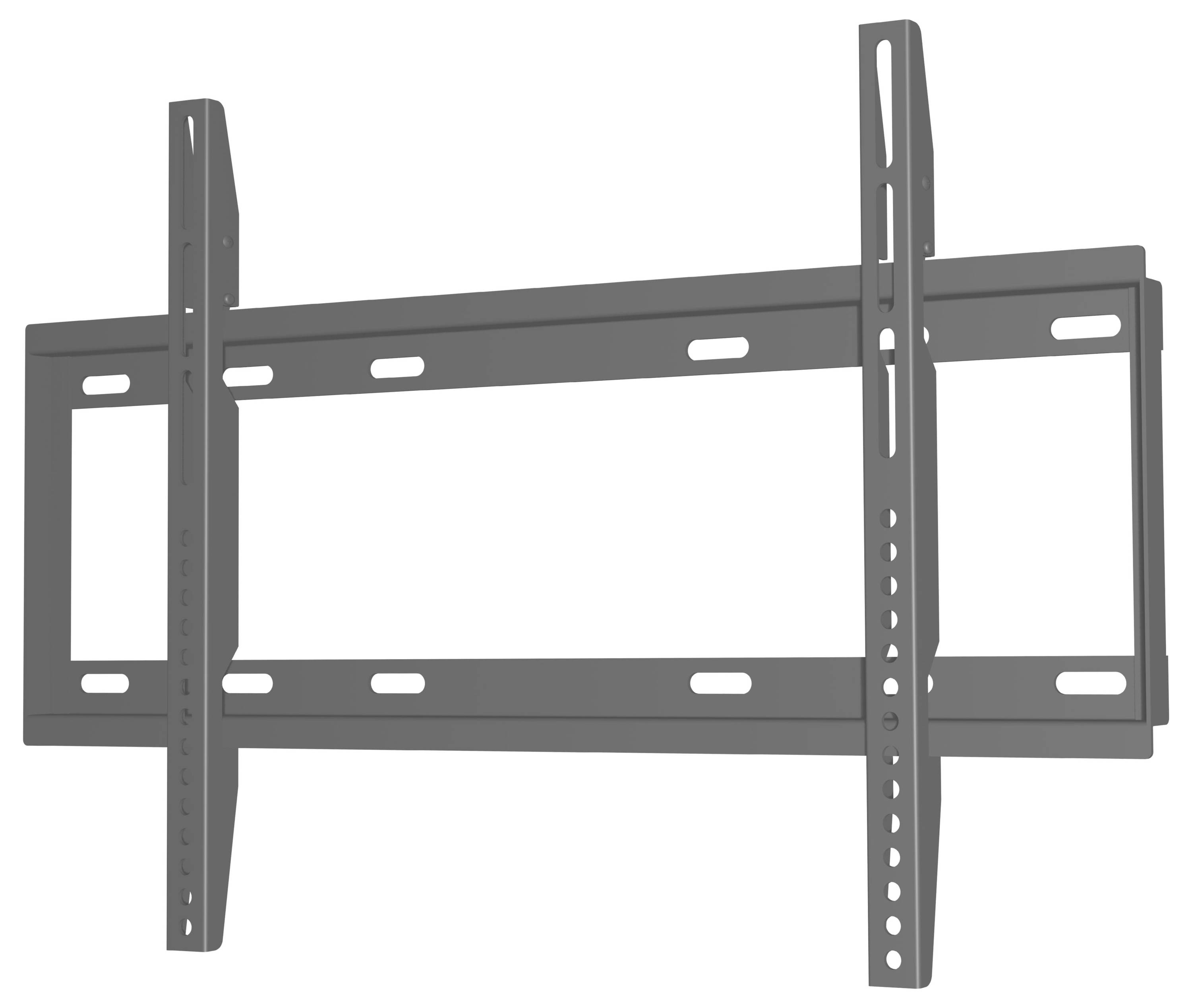

A flat, gray TV wall mount bracket designed for securely holding televisions.

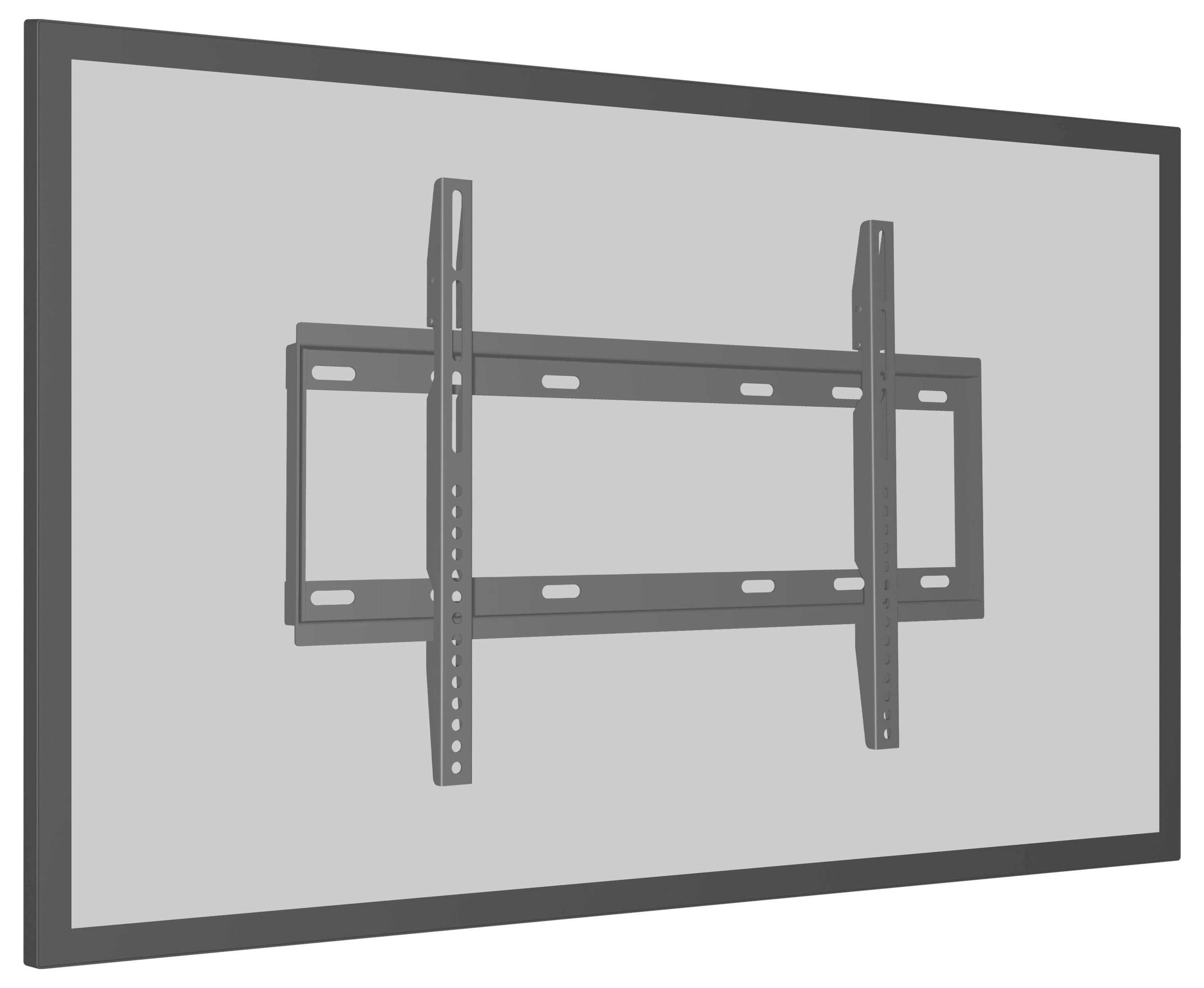

Wall-mounted TV bracket, shown without a TV, highlighting multiple slots for adjustable height and width settings.

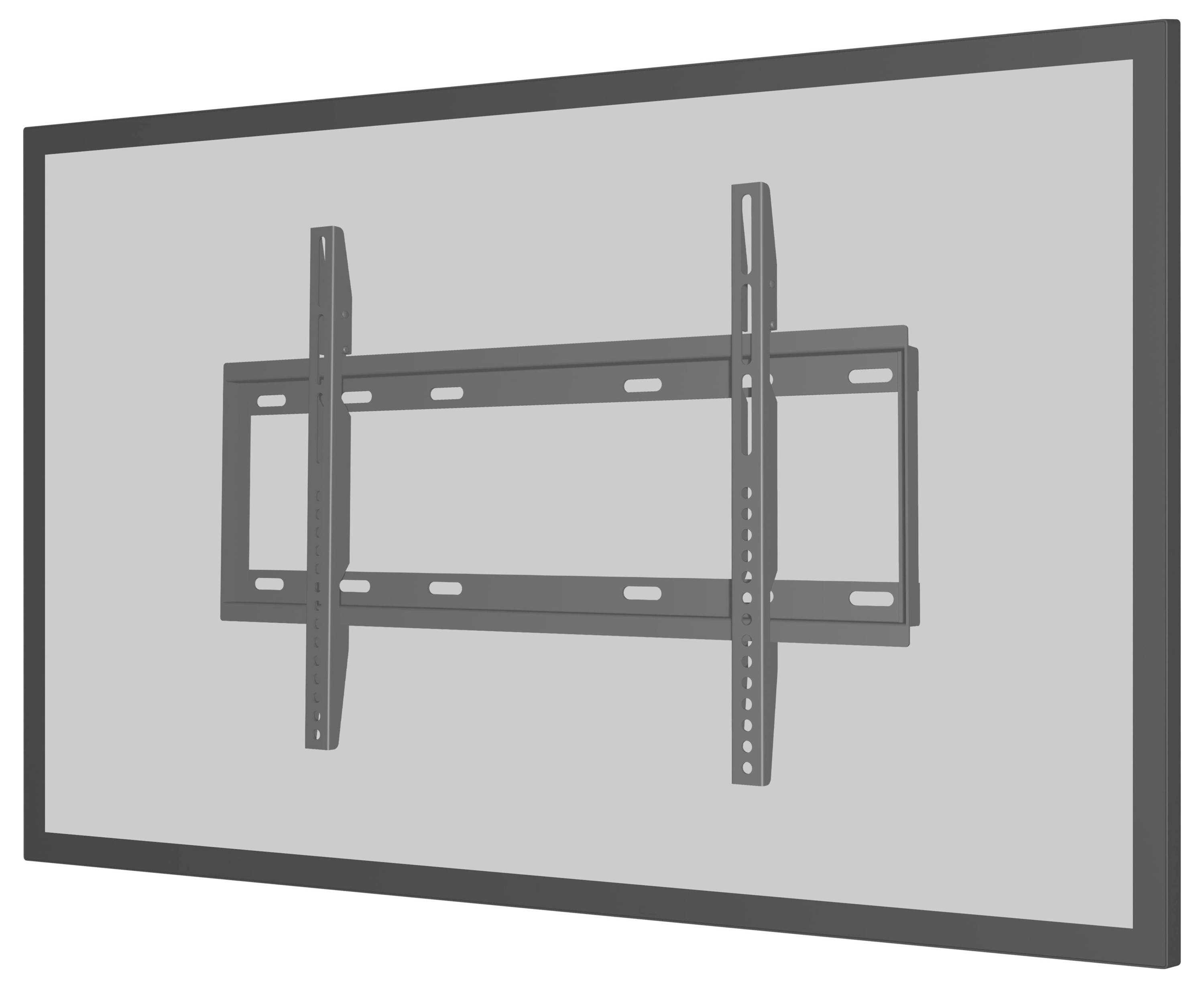

'Wall mount bracket attached to a flat screen TV on a light gray background, showing slots for adjustable fittings.'

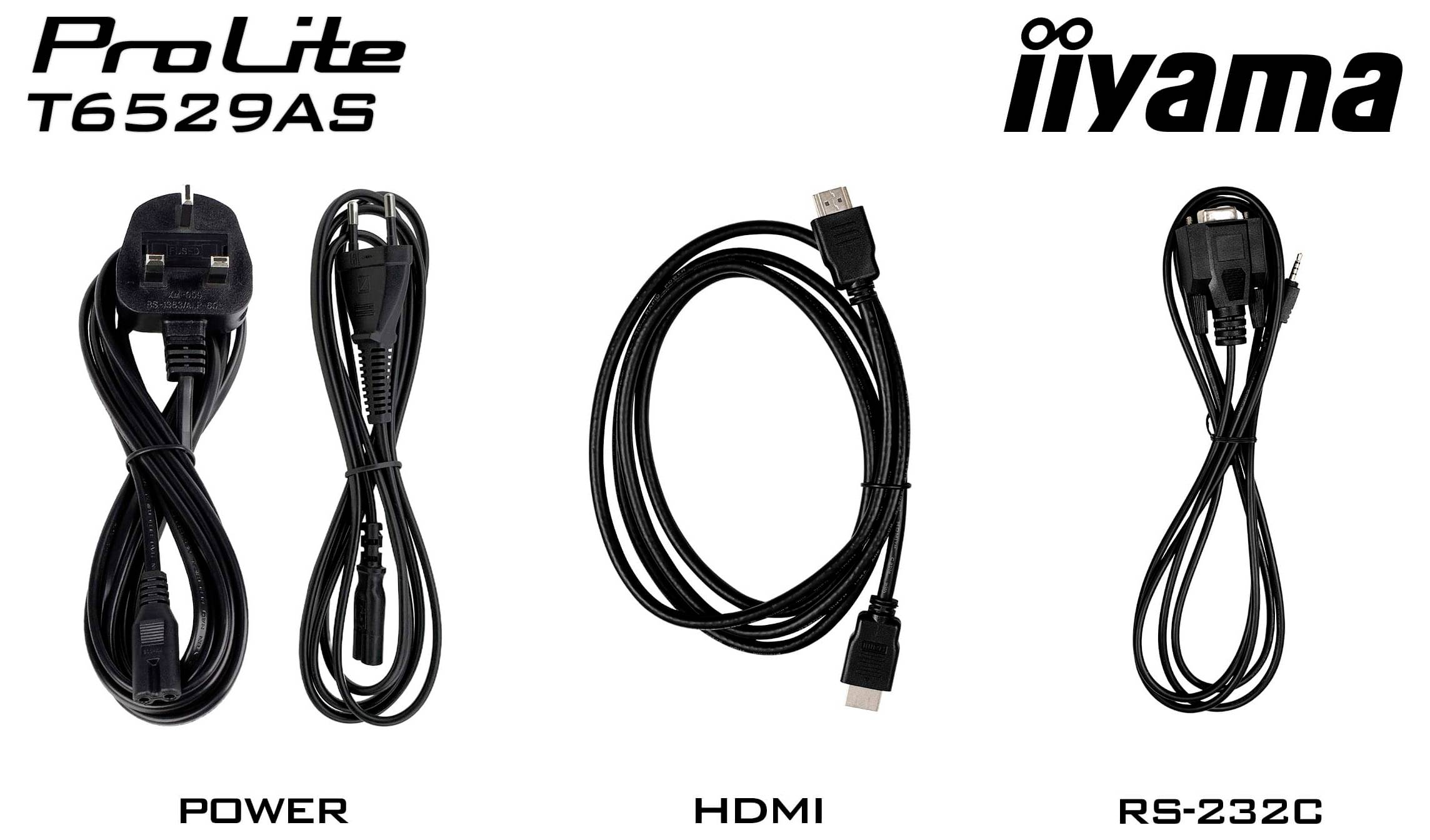

'iiyama ProLite T6529AS' accessories: power cable, HDMI cable, and RS-232C cable displayed side by side.

1/24

Product data sheet

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Iiyama T6529AS-B1AG Signage Display Interactive flat screen 163.8 cm (64.5") LED WLAN 500 CD/m² 4K Ultra HD black Touch screen Integrated processor Android 24/7

Screen size 163.8 cm (64.5 inch)
Display resolution: 3840 x 2160 Pixel
Android™, Multi-Touch, Kiosk mode
Operating time (console): 24/7

Pre-contractual information under the EU Data Act

Technical specifications

Panel type VA
Screen technology: LED
HD type 4K Ultra HD
Contrast ratio 4000:1
0.372 x 0.372 mm pixel distance
HDMI version 1.4/2.0
USB version 2.0
Supported positioning: Indoors
Built-in graphics card model: ARM Mali-G51
Installed operating system: Android™
WLAN-standards Wi-Fi 5 (802.11ac)

Product type: Digital signage display

Features: Android™
Multi-Touch
Kiosk mode

Display technology: LED

Operating time (console): 24/7

Brightness: 420 cd/m²

Static contrast ratio: 4000 : 1

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Display resolution: 3840 x 2160 Pixel

Dot pitch: 0.372 mm

Image format: 16:9

Response time: 6.5 ms

Network/internet function: WiFi
LAN

Wi-Fi: built-in

Controller: Touchscreen

No. of HDMI connections: 2

No. of USB ports: 2 x

Power supply (details): 100 - 240 V

Power consumption (standby): 0.5 W

: 400 x 400 mm

Factory colour: Black

Width: 1447.3 mm

Height: 852.3 mm

Depth: 42.8 mm

Weight: 38.5 kg

: G (A - G)

Dim: (W x H x D) 1447.3 x 852.3 x 42.8 mm

Display: 163.8 cm (64.5 inch)

Display (cm): 163.8 cm

Screen size diagonal (cm): 164 cm

Screen size diagonal (inches): 64.5 inch

Power consumption (off): 0.3 W

Power consumption (ON): 118 W

Device depth (without stand): 42.8 mm

No. of HDMI ports: 2 x

Processor cores (No.): 4 x

Touchscreen (display): Yes

HDCP: Yes

Memory capacity: 32 GB

Height (without base): 852.3 mm

Weight (without base): 38.5 kg

10/100/1000 Mbps ports: 1 x

Audio power (max.): 20 W

Brightness: 500 cd/m²

Type: internal

: 4 GB

Wi-Fi: Yes

UKCA: yes

Anti-glare screen: yes

Multi-touch: yes

Operating temperature (T-T): 0 - 40 °C

Number of simultaneous touchpoints: 20

Ethernet LAN: yes

RS-232C: yes

Active display area (W x H): 1428,5 x 803,5 mm

Remote control included: yes

VESA mounting: yes

Number of built-in speakers: 2

DVI port: no

USB port: yes

Built-in speaker(s): yes

Number of stylus pens: 2

On Screen Display (OSD): yes

USB Type-C DisplayPort Alternate Mode: yes

Horizontal scan range: 28 - 160 kHz

Quick start guide: yes

Batteries included: yes

Mean time between failures (MTBF): 50000 h

LED backlight: yes

Operating relative humidity (H-H): -20 - 60 %

Number of OSD languages: 8

Package weight: 47.3 kg

Built-in processor: yes

Stylus pen: yes

Glass thickness: 3.7 mm

Remote (IR) input: 1

Remote (IR) output: 1

Viewable size, horizontal: 142.8 cm

Viewable size, vertical: 80.3 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3644642 Iiyama ProLite Digital signage display EEC: G (A - G) 163.8 cm (64.5 inch) 3840 x 2160 Pixel 24/7 Android™, Multi-Touch,

Description

The ProLite T6529AS-B1AG is a 65-inch (163.9-inch) all-in-one PCAP touch screen display designed to meet the changing needs of modern working environments, especially Huddle Spaces, where creativity, flexibility and seamless sharing are the focus. This interactive display with Android operating system offers a user-friendly and highly adaptable experience. You can install your favorite apps directly on your device to create custom workflows that are tailored to your environment - be it in a collaborative meeting area, an innovation center, or an educational break room. The USB-C loop-through function simplifies connectivity, since multiple displays can be easily connected in series while transferring power, data and videos - all via a single cable. This reduces the cable clutter and setup time and is thus Ideal for dynamic working areas. The included wall bracket makes installation simple and safe. With iiSignage² (CMS), iControl (DMS) and iiShare (wireless presentation) you have full control over content and messages, even remotely - perfect for updating common information or brand visualizations during working hours. The integrated Eshare APP enables wireless screen sharing and collaboration, and supports interaction between multiple users and real-time idea creation. The T6529AS-B1AG is not just a screen - it is a collaboration tool that strengthens teams, optimizes communication and makes every meeting a success.
