Iiyama ProLite LED EEC E (A - G) 60.5 cm (23.8 inch) 1920 x 1080 p 16:9 4 ms DisplayPort IPS LED
EAN:
Part number:
Item no:
Iiyama ProLite LED
Highlights & Details
- Screen size 60.5 cm (23.8 inch) Full HD, 1920 x 1080 p;Response time: 4 msEnergy efficiency rating (calc): E (A - G)
- Interfaces: DisplayPort;Height adjustable, Tiltable, Blue light reduction, Flicker-free technology, VESA Mount 100 x 100 mm, Built-in speakers
Technical specifications
- Screen technology: LED
- Contrast ratio: 1000:1
- Contrast ratio (dynamic): 5000000:1
- 0.2745 x 0.2745 mm pixel distance
- OmniTaps multi-touch compatibility: Yes
- Market Positioning: Business

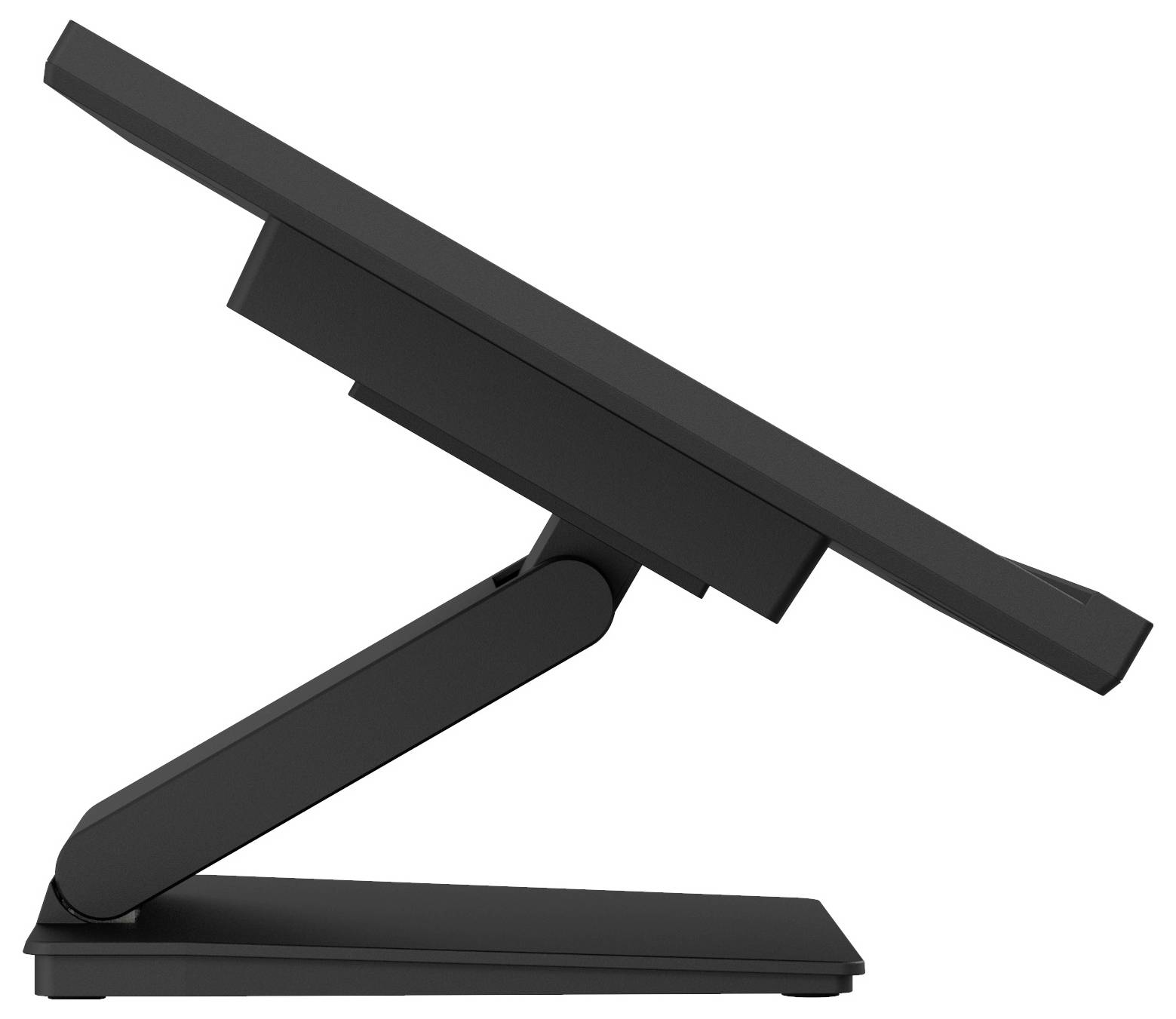

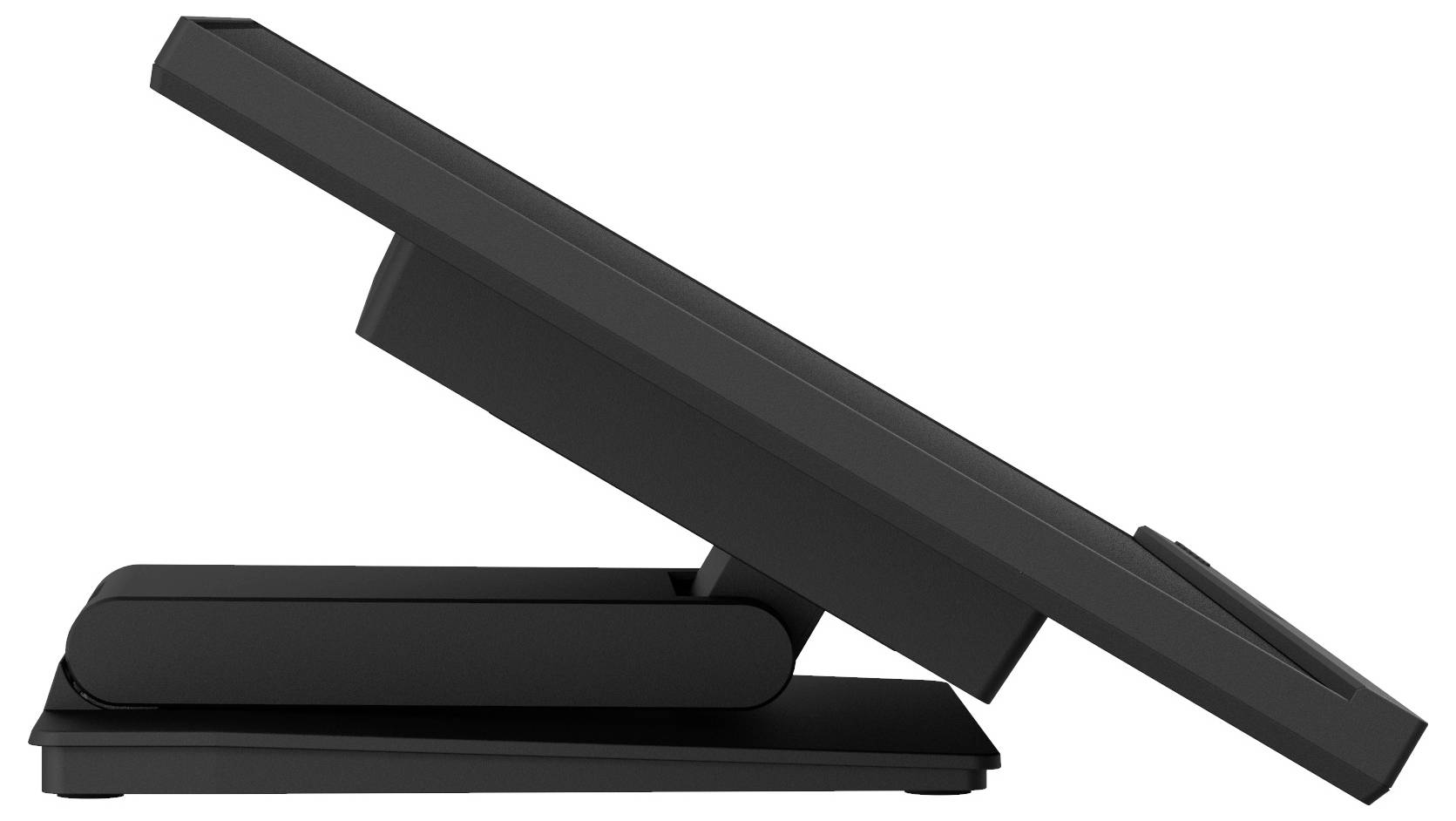

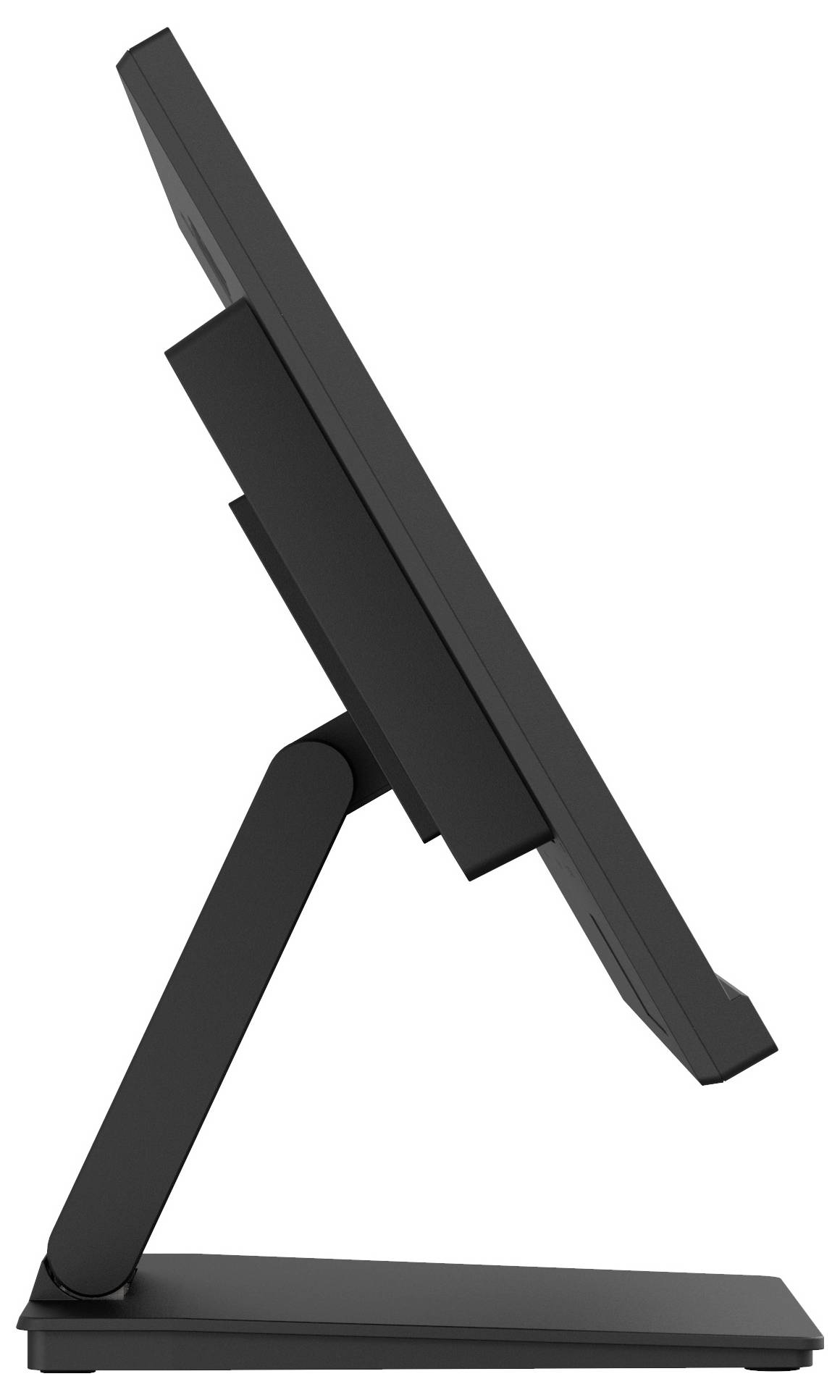

- Tilt angle range -5 - 90°
- Supported positioning: Horizontal/vertical
- Product type
LED
- Resolution (max.)
1920 x 1080 p
- Screen size diagonal (cm)
60.5 cm
- Screen size diagonal (inches)
23.8 inch
- Screen size diagonal (inches)
24 inch
- Image format
16:9
- Panel technology
IPS LED
- Touchscreen (display)
Yes
- Frame rate
83 Hz
- Response time
4 ms
- Brightness
300 cd/m²
- Contrast ratio (dyn)
5000000 : 1
- Static contrast ratio
1000 : 1
- Dot pitch
0.274 mm
- Factory colour
Black

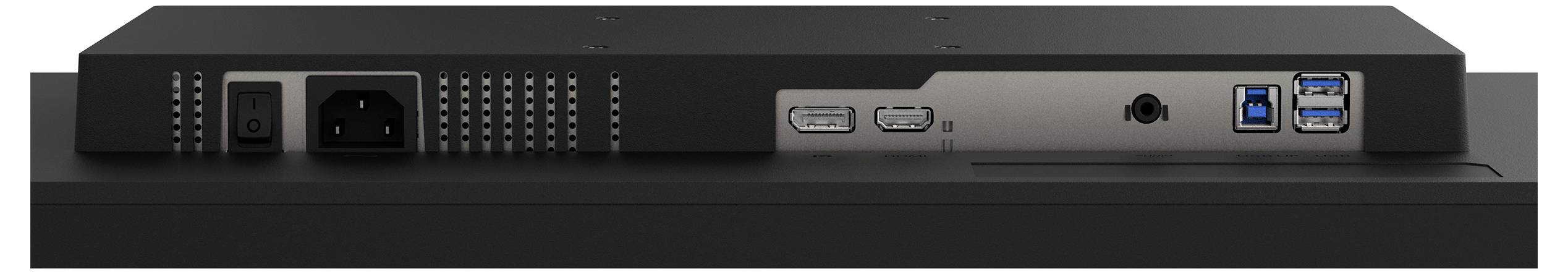

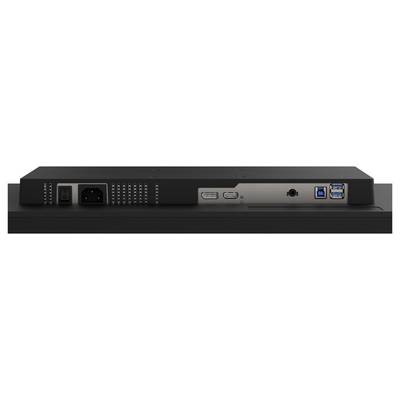

- Interfaces
DisplayPort
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- Features
Height adjustable
Tiltable
Blue light reduction
Flicker-free technology
VESA Mount 100 x 100 mm
Built-in speakers
- Audio power (max.)
4 W
- Inclination
-5/+90
- Power consumption (standby)
0.5 W
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- Screen coating
Anti-glare
- Curved monitor
No
- Width
540 mm
- Height
373 mm
- Depth
241 mm
- Weight
5.4 kg
- Power supply (details)
100 - 240 V
- Dim
(W x H x D) 540 x 373 x 241 mm
- Screen size/position settings
Tilt
- Display size
24 inch - 29 inch
- Display type
16:9
- Range of uses
Home
- Display resolution mode
Full HD
- Wall mounting option

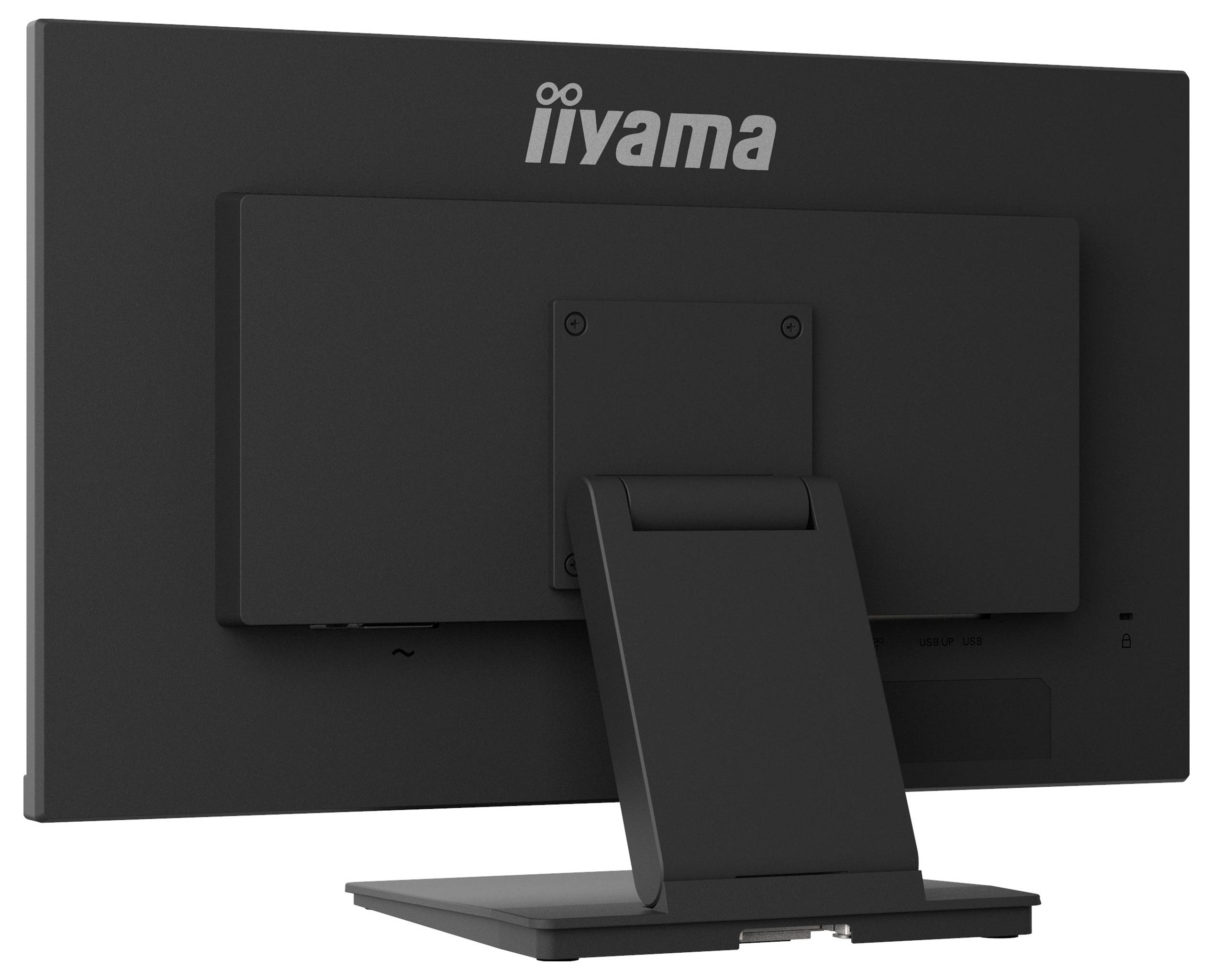

100 x 100 mm VESA standard
E (A - G)
- Display
60.5 cm (23.8 inch)
- Screen resolution
Full HD (1920 x 1080 Pixel)
- Display (cm)
60.5 cm
- Power consumption (off)
0.3 W
- Power consumption (ON)
17 W
- Display properties
IPS
- Display resolution
1920 x 1080 Pixel
- HDCP
Yes
- Type
internal
100 x 100 mm
- UKCA
yes
- Number of speakers
2
- Anti-glare screen
yes
- Operating temperature (T-T)
5 - 35 °C

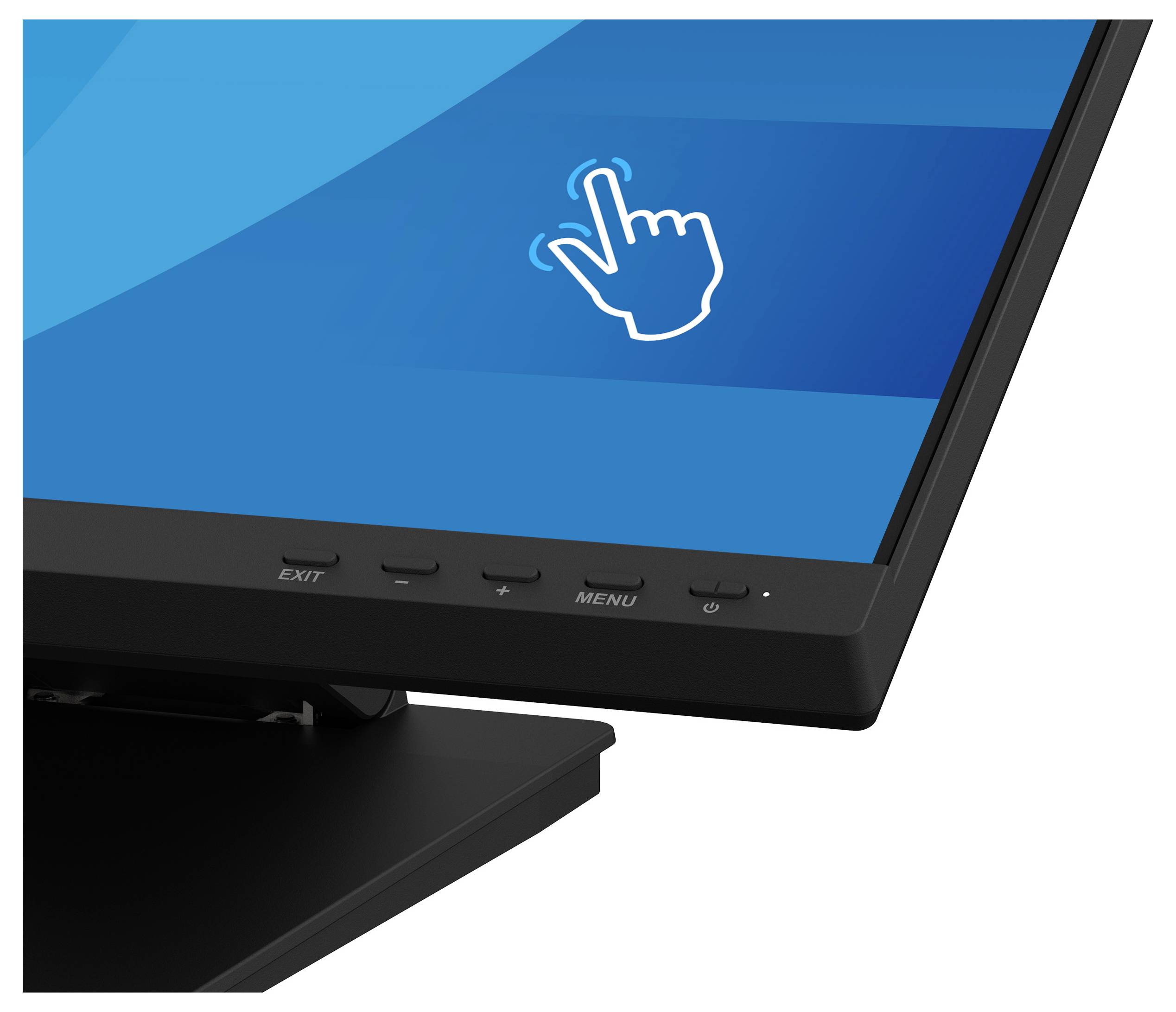

- Number of simultaneous touchpoints
10
- Headphone out
yes
- Cable lock slot
yes
- Storage relative humidity (H-H)
10 - 90 %
- Colour depth
8 Bit
- Wall mountable
yes
- VESA mounting
yes
- Height adjustment
yes
- NVIDIA G-SYNC
no
- Built-in USB hub
yes
- Number of upstream ports
1
- USB Type-A downstream ports quantity
2
- Built-in speaker(s)
yes
- Adjustable height (max)
11.1 cm
- Full HD
yes
- AMD FreeSync
no
- Cable management
yes
- Horizontal scan range
30 - 83 kHz
- USB Touch port
yes
- Flicker-free technology
yes
- Low Blue Light technology
yes
- Quick start guide
yes
- Energy consumption (SDR) per 1000 hours
17 kWh
- Positional accuracy
2 mm
- Mean time between failures (MTBF)
50000 h
- HDMI
yes
- Megapixel (approx.)
2.1 MP
- LED backlight
yes
- Operating relative humidity (H-H)
20 - 80 %
- Storage temperature (T-T)
-20 - 60 °C
- Number of OSD languages
10
- Package weight
7.1 kg
- Plug and Play
yes
- Built-in camera
no
- Tilt adjustment
yes
- Viewable size, horizontal
52.7 cm
- Viewable size, vertical
29.6 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3644653 Iiyama ProLite LED EEC E (A - G) 60.5 cm (23.8 inch) 1920 x 1080 p 16:9 4 ms DisplayPort IPS LED
Description

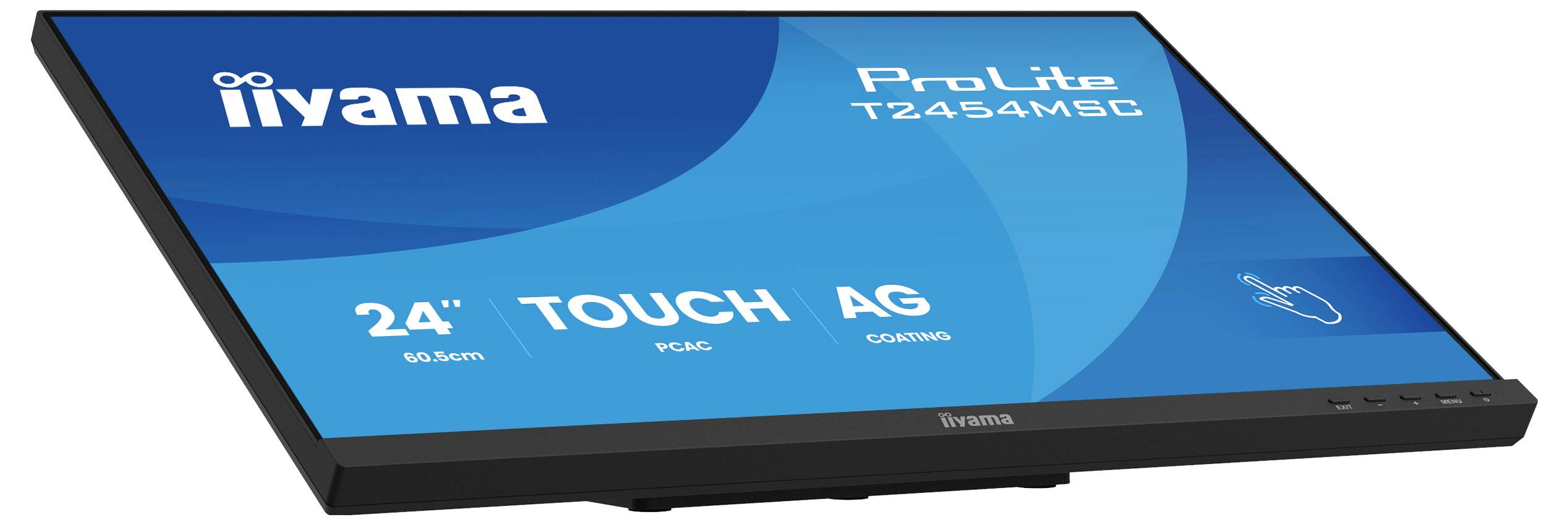

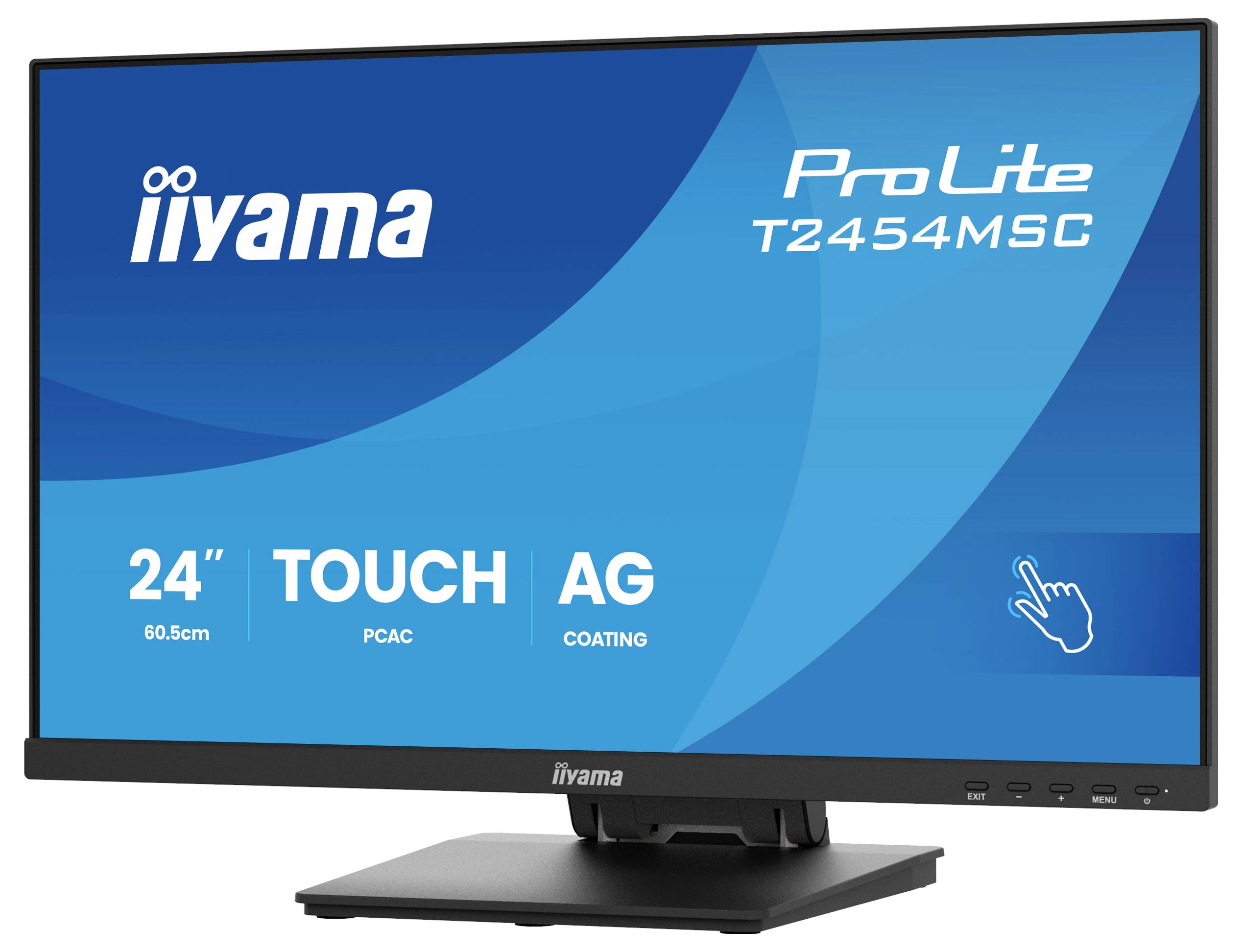

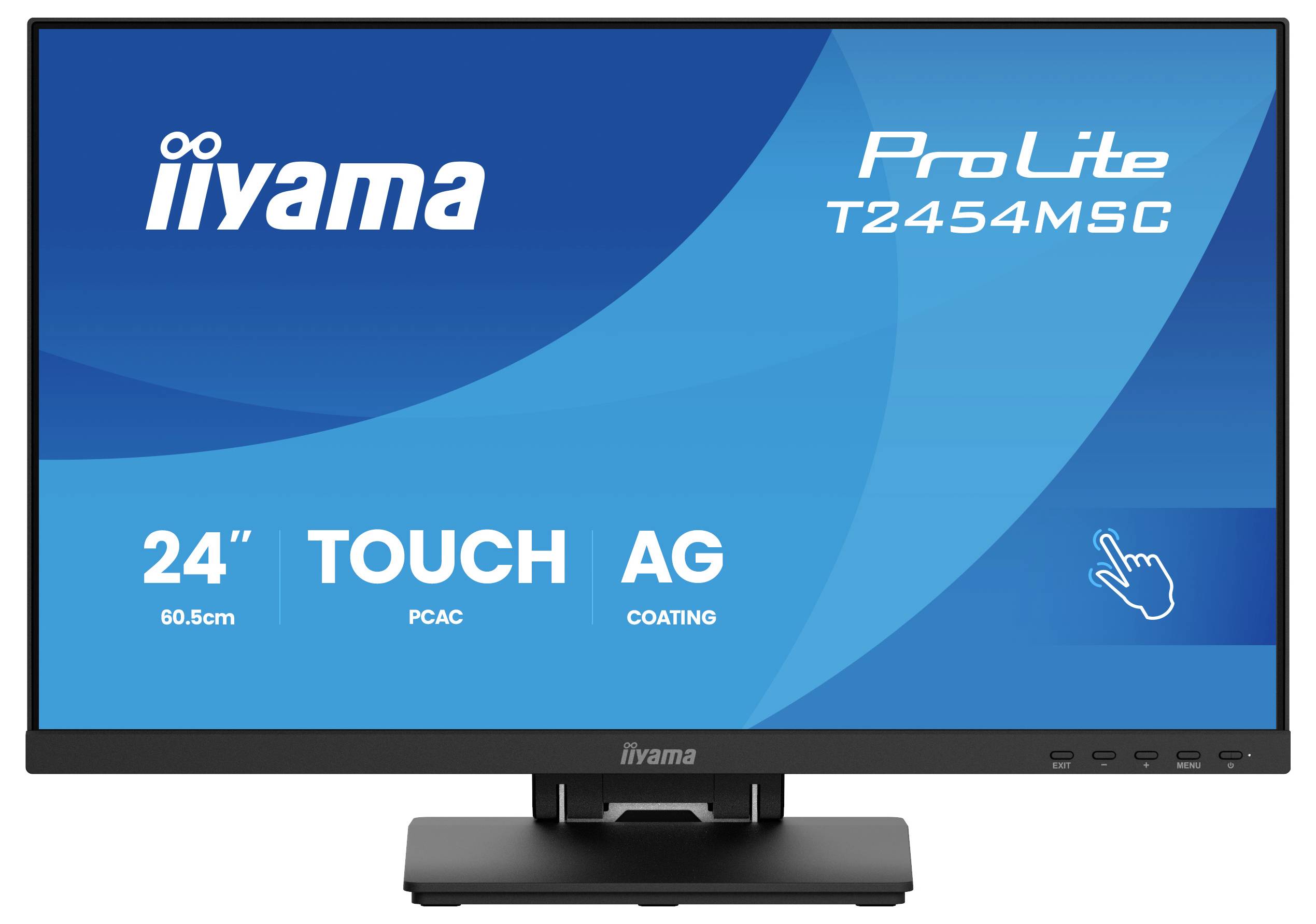

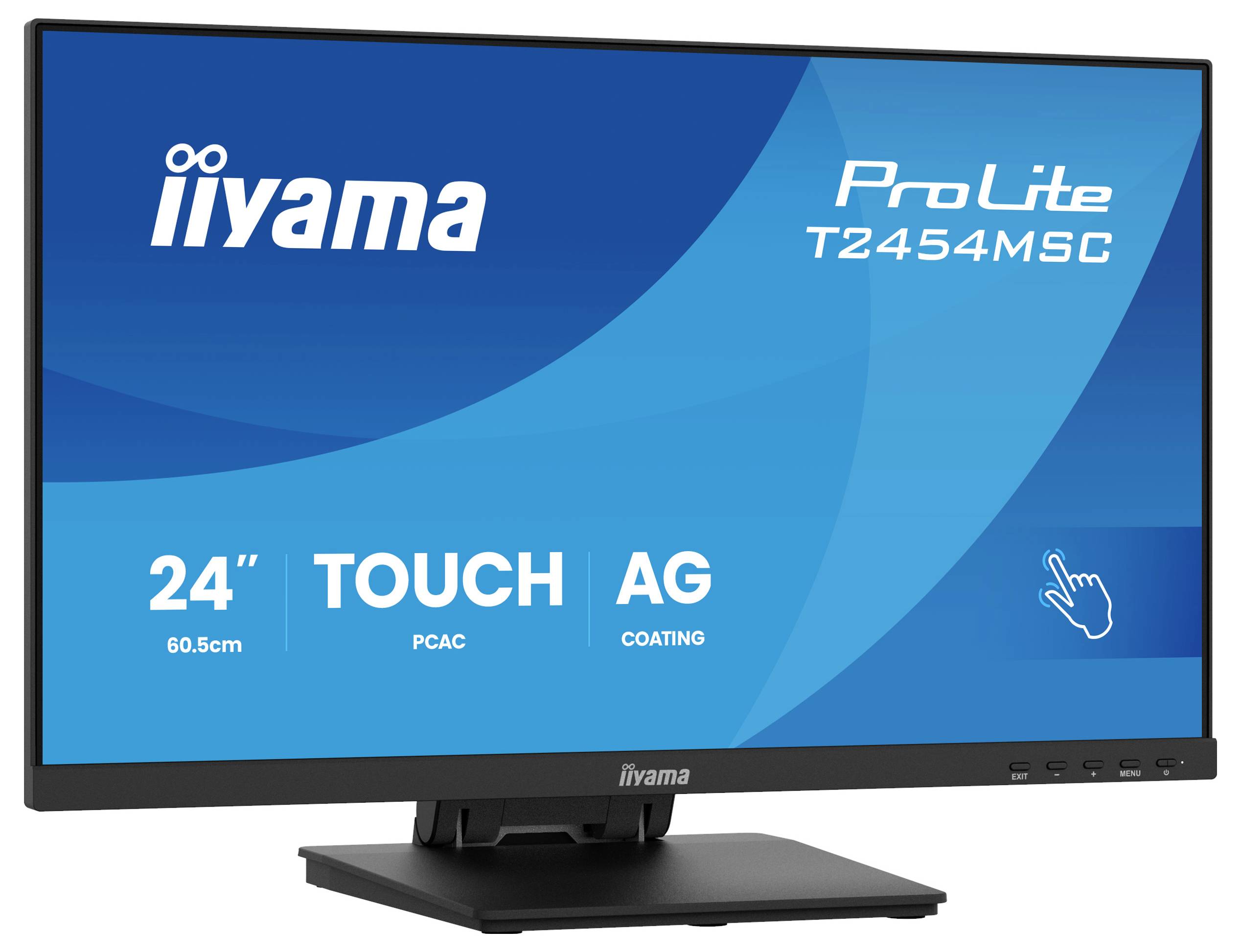

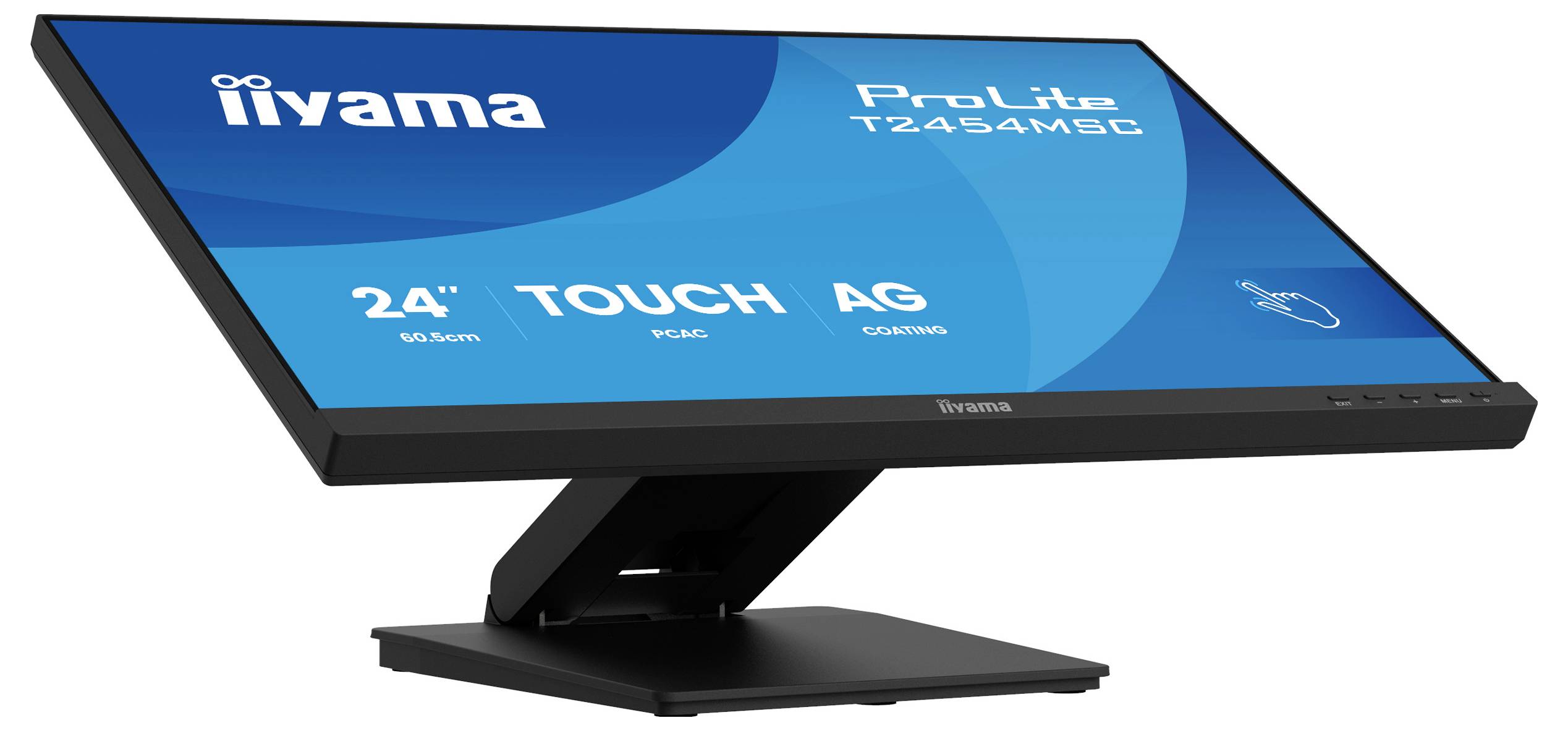

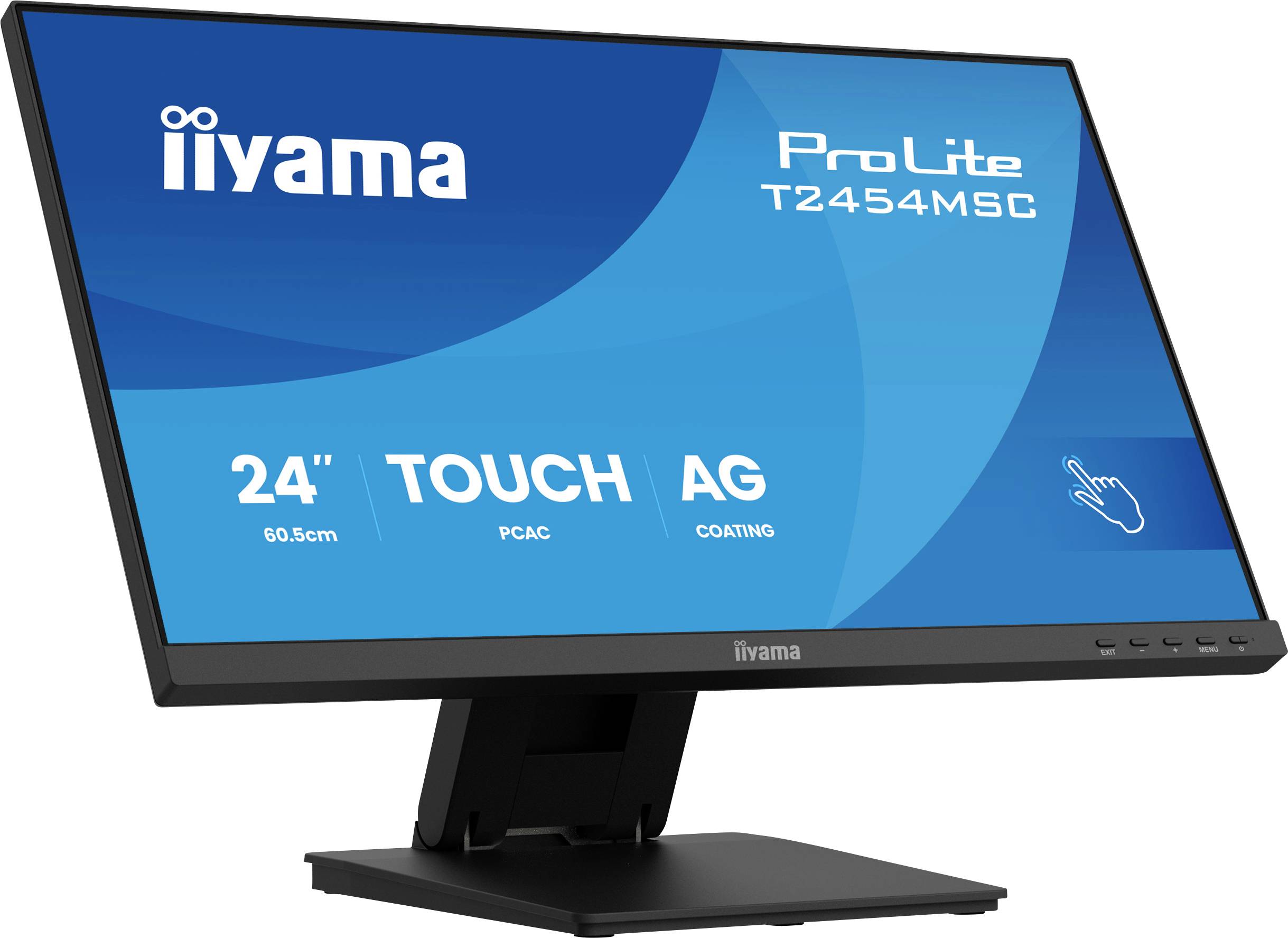

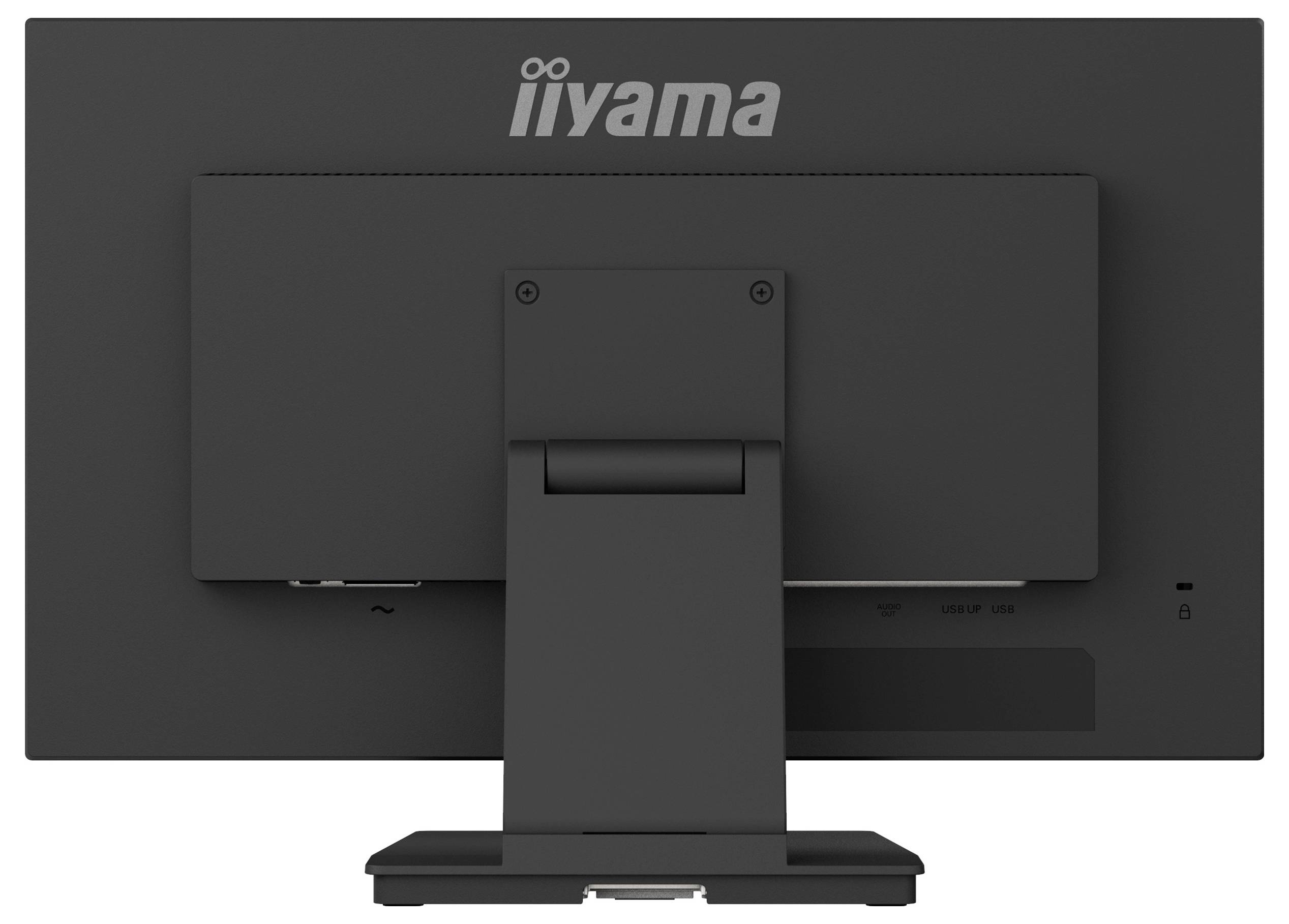

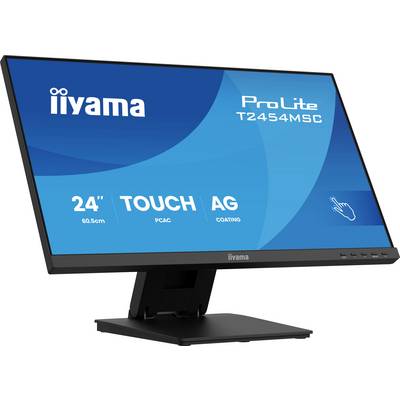

Immersive interaction and elegant design – discover the T2454MSC-B3AG, a dynamic 23.8" (60.5 cm) full HD touch-screen monitor, which was developed for an extraordinary interactive experience. With intuitive 10-point touch technology (InCell PCAP), which ensures a smooth and precise touch response as well as low light reflection. The lively colors of the IPS panel inspire users with precise and natural interaction from every viewing angle. The sleek and stylish design, the anti-glare coated surface offers durability, ease of cleaning and is perfect for business and commercial environments, dining areas, healthcare facilities and public areas. With its adaptable ergonomics, the clear cable routing, integrated audio and the seamless connectivity (HDMI, DisplayPort, USB 3.2-Hub), it is the ideal choice for POS, self-service solutions and interactive signage.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Cable
- Quick guide.
