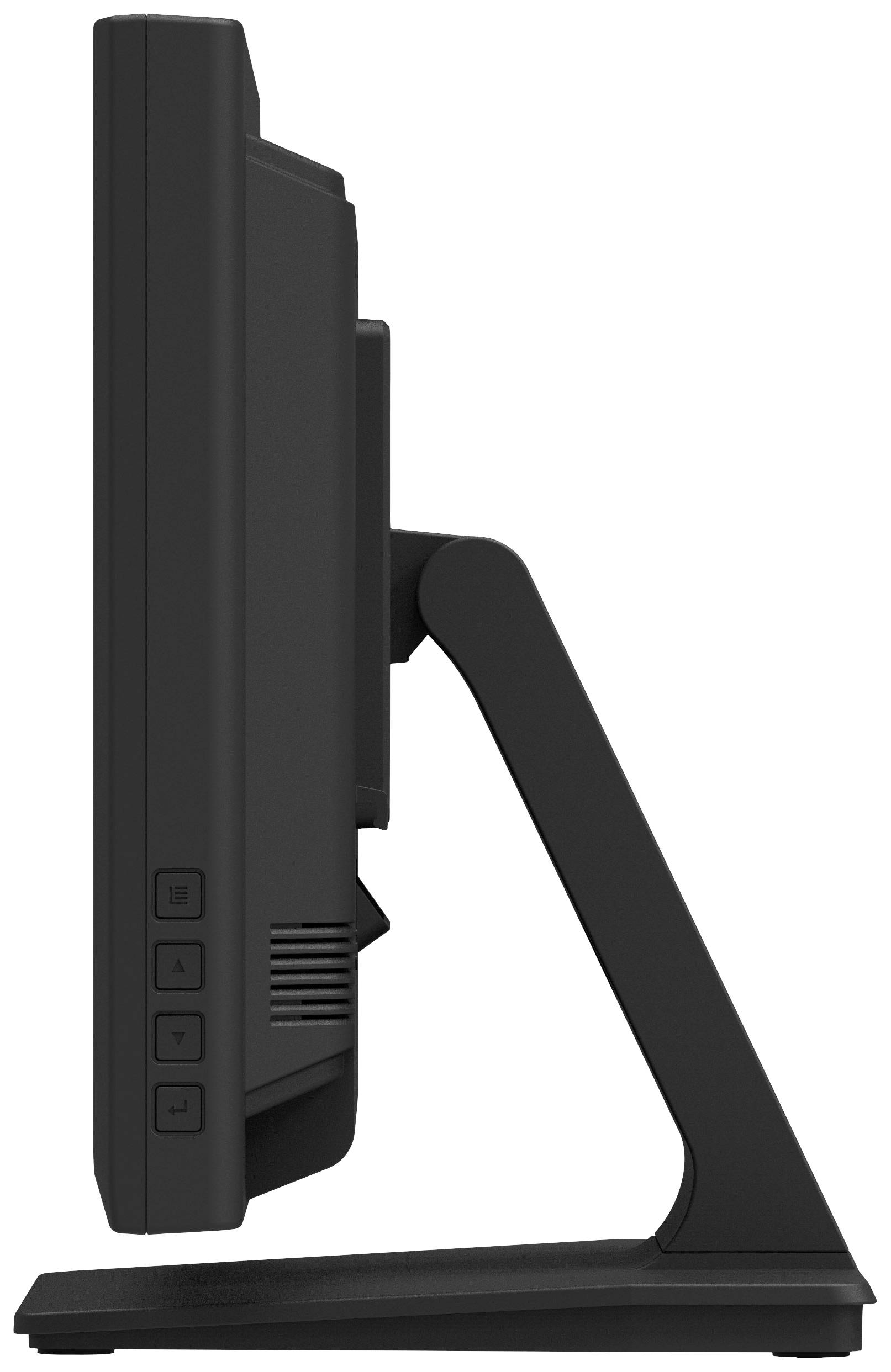

Flat monitor positioned sideways, with a black bezel, mounted on a stand, displaying no visible screen contents, with buttons on the side.

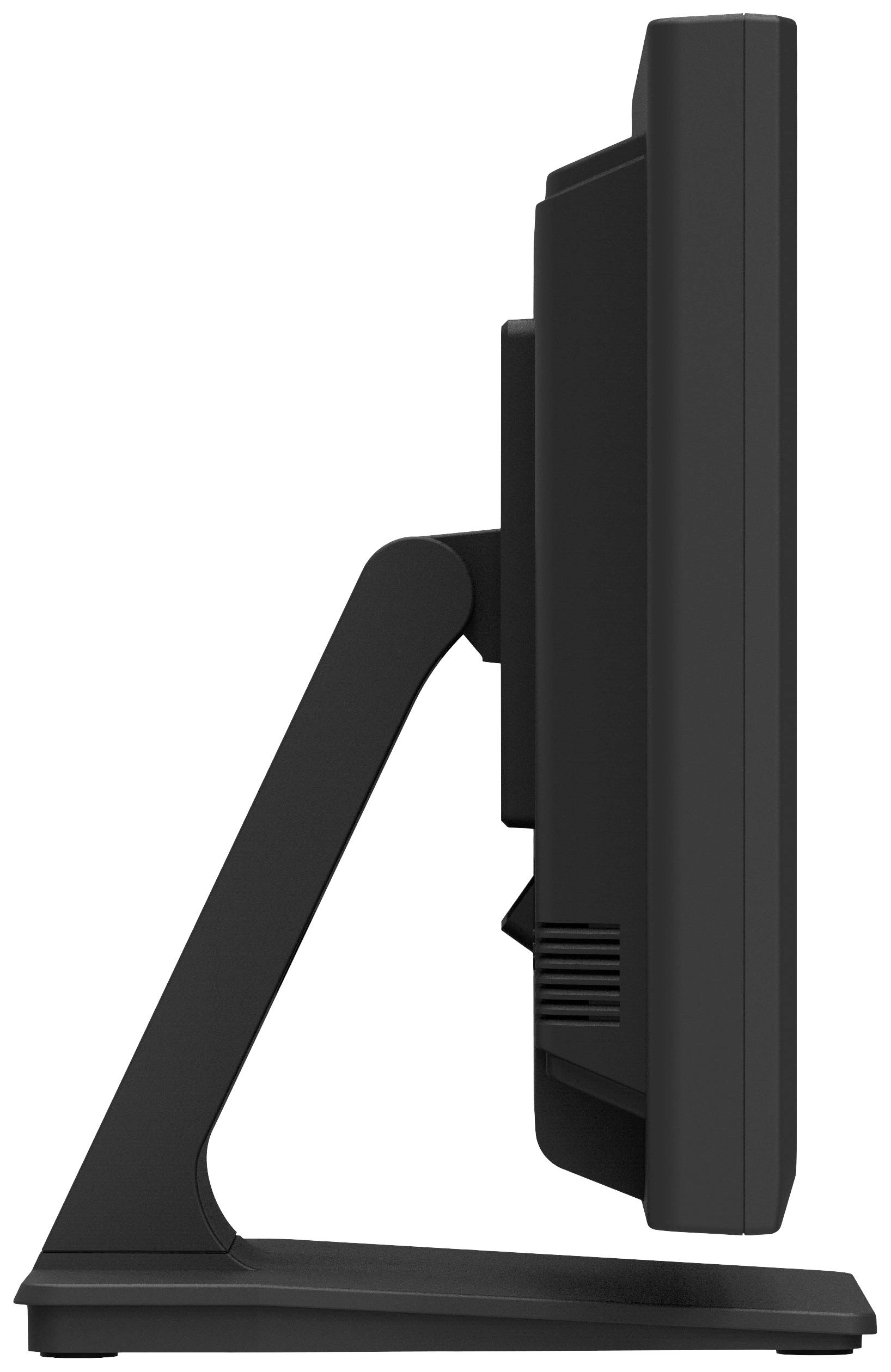

A monitor viewed from the side on a stand, demonstrating its slim design and adjustable tilt angle.

1/5

Product data sheet

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

15" resistive touch, VA-panel, 1024x768,

Highlights & Details

Screen size 38.1 cm (15 inch)
Energy efficiency rating (calc): E (A - G)
Interfaces: HDMI™, DisplayPort, Audio line out, VGA;Response time: 18 ms;Touchscreen, VESA Mount 100 x 100 mm, Blue light reduction, Built-in speakers, Tiltable

Technical specifications

Product type: Touchscreen

Image format: 4:3

Response time: 18 ms

Contrast ratio (dyn): 2500 : 1

Static contrast ratio: 2500 : 1

Brightness: 280 cd/m²

Hor. viewing angle: 176°

Vertical viewing angle: 176°

Panel technology: VA LCD

Dot pitch: 0.297 mm

Wall mounting option: 100 x 100 mm VESA standard

Factory colour: Black

Features: Touchscreen
VESA Mount 100 x 100 mm
Blue light reduction
Built-in speakers
Tiltable

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

Interfaces: HDMI™
DisplayPort
Audio line out
VGA

No. of DisplayPort: 1 x

Width: 351 mm

Height: 307 mm

Depth: 200 mm

Dim: (W x H x D) 351 x 307 x 200 mm

Weight: 4.1 kg

Power consumption (standby): 1.5 W

Display type: Touch display

Display size: - 23 inch

: E (A - G)

Screen coating: Matt
Anti-glare
Scratch-resistant

Display: 38.1 cm (15 inch)

Screen size/position settings: Tilt

Audio power (max.): 1 W

Inclination: -5/+90

Power supply (details): 100 - 240V 50/60Hz

Touchscreen (display): Yes

Resolution (max.): 1024 x 768 p

Display (cm): 38.1 cm

Screen size diagonal (cm): 38 cm

Screen size diagonal (inches): 15 inch

: 11 kWh/year

Power consumption (off): 0.3 W

Power consumption (ON): 16 W

Frame rate: 60 Hz

Range of uses: Home

Display resolution mode: XGA

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Interfaces

Width

Screen size diagonal (inches)

Depth

Height

Response time

Image format

Panel technology

Iiyama ProLite T1531SR-B1S Touchscreen EEC: E (A - G) 38.1 cm (15 inch) 1024 x 768 p 4:3 18 ms HDMI™, DisplayPort, Audio line out, VGA VA LCD

Item no:3123533

This article

HDMI™DisplayPortAudio line outVGA

351 mm

15 inch

200 mm

307 mm

18 ms

4:3

VA LCD

Iiyama 17" Resistive Touchscreen EEC: E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, DisplayPort, VGA TN LCD

Item no:2904004

HDMI™DisplayPortVGA

387 mm

17 inch

239 mm

378 mm

5 ms

5:4

TN LCD

Iiyama 21,5" WHITE Bonded PCAP Touchscreen EEC: C (A - G) 54.6 cm (21.5 inch) 1920 x 1080 p 16:9 5 ms HDMI™, DisplayPort, USB A (USB 3.2 1st gen) IPS LED

Item no:2904006

HDMI™DisplayPortUSB A (USB 3.2 1st gen)

494 mm

21.5 inch

240 mm

362 mm

5 ms

16:9

IPS LED

Iiyama 23,8" Bonded PCAP Touchscreen EEC: E (A - G) 60.5 cm (23.8 inch) 1920 x 1080 p 16:9 5 ms HDMI™, DisplayPort, USB A (USB 3.2 1st gen) IPS LED

Item no:2904008

HDMI™DisplayPortUSB A (USB 3.2 1st gen)

562 mm

23.8 inch

48 mm

337 mm

5 ms

16:9

IPS LED

Iiyama 17" PCAP Bezel Touchscreen EEC: E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, DisplayPort, VGA TN LCD

Item no:2904010

HDMI™DisplayPortVGA

387 mm

17 inch

240 mm

387 mm

5 ms

5:4

TN LCD

Iiyama 21,5" Bonded PCAP Touchscreen EEC: D (A - G) 54.6 cm (21.5 inch) 1920 x 1080 p 16:9 5 ms HDMI™, DisplayPort, USB A (USB 3.1 1st gen) IPS LED

Item no:2904011

HDMI™DisplayPortUSB A (USB 3.1 1st gen)

513 mm

21.5 inch

47 mm

300 mm

5 ms

16:9

IPS LED

Iiyama 24" WHITE Bonded PCAP Touchscreen EEC: E (A - G) 60.5 cm (23.8 inch) 1920 x 1080 p 16:9 14 ms HDMI™, DisplayPort, USB A (USB 3.1 1st gen) IPS LED

Item no:2904012

HDMI™DisplayPortUSB A (USB 3.1 1st gen)

567 mm

23.8 inch

254 mm

385 mm

14 ms

16:9

IPS LED

Iiyama ProLite Bonded PCAP 10P Touch Touchscreen EEC: E (A - G) 68.6 cm (27 inch) 1920 x 1080 p 16:9 5 ms HDMI™, DisplayPort, USB A (USB 3.1 1st gen) IPS LED

Item no:3048383

HDMI™DisplayPortUSB A (USB 3.1 1st gen)

614 mm

27 inch

49 mm

365 mm

5 ms

16:9

IPS LED

Iiyama PROLITE WHITE PCAP Touch Touchscreen EEC: E (A - G) 48.3 cm (19 inch) 1280 x 1024 p 5:4 14 ms HDMI™, DisplayPort, VGA, Audio line in, Audio line out IPS LED

Item no:3048384

HDMI™DisplayPortVGAAudio line inAudio line out

432 mm

19 inch

240 mm

414 mm

14 ms

5:4

IPS LED

Iiyama PCAP Bezel Free Front, 10P Touch Touchscreen EEC: E (A - G) 38.1 cm (15 inch) 1024 x 768 p 4:3 8 ms HDMI™, VGA, Audio line out IPS LED

Item no:3048385

HDMI™VGAAudio line out

341 mm

15 inch

198 mm

308 mm

8 ms

4:3

IPS LED

Documents & Downloads

Datasheet

Datasheet 3123533 Iiyama ProLite T1531SR-B1S Touchscreen EEC: E (A - G) 38.1 cm (15 inch) 1024 x 768 p 4:3 18 ms HDMI™, DisplayPort, Audio

User & Safety Instructions

User & Safety Instructions 3123533 Iiyama ProLite T1531SR-B1S Touchscreen EEC: E (A - G) 38.1 cm (15 inch) 1024 x 768 p 4:3 18 ms HDMI™, DisplayPort, Audio

Description

The ProLite T1531SR-B1S is equipped with the five-wire resistive technology. The monitor has an analogue D-sub input and digital HDMI and DisplayPort inputs, and the touch screen can be connected via USB, WAS provides great flexibility. The adjustable screen position (up to 90° upwards) in combination with the option of wall mounting makes the panel comfortable and space saving. The ProLite T1531SR-B1S can be used in a variety of environments and is particularly recommended for shops, restaurants and industrial environments.

Touch technology - resistive
Touch monitors based on five-wire resistive technology are extremely durable and can be used in a variety of environments.

VA technology
VA technology offers higher contrast, better color reproduction and wider viewing angle than TN technology. The picture looks good regardless of the viewing angle.

IP54
The IP code classifies devices according to their resistance to foreign bodies and water. IP54 means that the monitor can be operated in dusty environments and is resistant to water jets.

Stereo speakers
The monitor is equipped with high-quality stereo loudspeakers.

VESA standard
You can attach the screen to any VESA-compatible bracket/mounting arm.
