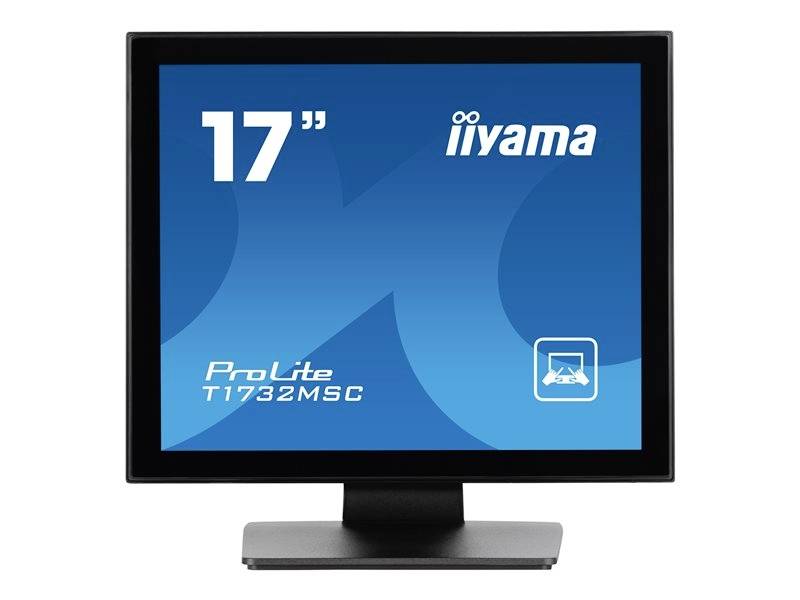

Iiyama ProLite T1732MSC-B1SAG Touchscreen EEC: E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, DisplayPort, VG
EAN:
Part number:
Item no:
T17X 17" PCAP anti-glare coated, bezel
Highlights & Details
- Screen size 43.2 cm (17 inch)
- Energy efficiency rating (calc): E (A - G)
- Interfaces: HDMI™, DisplayPort, VGA, Audio line out;Response time: 5 ms;Touchscreen, VESA Mount 100 x 100 mm, Blue light reduction, Tiltable
Technical specifications
- Product type
Touchscreen
- Image format
5:4
- Response time
5 ms
- Contrast ratio (dyn)
1000 : 1
- Static contrast ratio
1000 : 1
- Brightness
250 cd/m²
- Hor. viewing angle
85°
- Vertical viewing angle
85°
- Panel technology
TN LCD
- Dot pitch
0.264 mm
- Wall mounting option
100 x 100 mm VESA standard
- Points of contact
10
- Factory colour
Black
- Features
Touchscreen
VESA Mount 100 x 100 mm
Blue light reduction
Tiltable
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- Interfaces
HDMI™
DisplayPort
VGA
Audio line out
- No. of DisplayPort
1 x
- Width
387 mm
- Height
378 mm
- Depth
240 mm
- Dim
(W x H x D) 387 x 378 x 240 mm
- Weight
4.9 kg
- Power consumption (standby)
1.5 W
- Display type
Touch display
- Display size
- 23 inch
E (A - G)
- Screen coating
Matt
Anti-glare
Scratch-resistant
- Display
43.2 cm (17 inch)
- Screen size/position settings
Tilt
- Audio power (max.)
1 W
- Inclination
-5/+90
- OSB languages
English
German
French
Japanese
Italian
Spanish
- Power supply (details)
100 - 240V 50/60Hz
- Touchscreen (display)
Yes
- Resolution (max.)
1280 x 1024 p
- Display (cm)
43.2 cm
- Screen size diagonal (cm)
43 cm
- Screen size diagonal (inches)
17 inch
12 kWh/year
- Power consumption (off)
0.3 W
- Power consumption (ON)
20 W
- Frame rate
80 Hz
- Range of uses
Home
- Display resolution mode
Full HD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3123551 Iiyama ProLite T1732MSC-B1SAG Touchscreen EEC: E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, DisplayPort, VG
User & Safety Instructions
User & Safety Instructions 3123551 Iiyama ProLite T1732MSC-B1SAG Touchscreen EEC: E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, DisplayPort, VG
Description
Discover the Iiyama ProLite T1732MSC-B1SAG, a monitor that combines performance and reliability for an improved user experience. This 17" LCD monitor with LED backlight and a native resolution of 1280 x 1024 brings your content to life with lively colors and clear images. The Projected Capacitive Touch (P-CAP) technology offers a responsive 10-point multi-touch experience and is thus Ideal for interactive applications.
The monitor was developed for versatility and is equipped with HDMI, VGA and DisplayPort interfaces, which enable easy integration in every setup. The angle of inclination of the monitor can be adjusted from -5 to +90 degrees, WAS ensures an optimum viewing comfort during longer use. The Edge-to-Edge-Glass is not only visually attractive, but also anti-glare and scratch-proof and thus especially durable. The energy-efficient design of the Iiyama ProLite T1732MSC-B1SAG corresponds to the new energy class E and makes it a good choice for users who are looking for a reliable and environment-friendly monitor.
Responsive touch technology
Fitted with the Projected Capacitive Touch (P-CAP) technology, the Iiyama ProLite T1732MSC-B1SAG offers a responsive 10-point multi-touch experience that enables an efficient and intuitive interaction for different applications.
Versatile connectivity options
This monitor has a wide range of interfaces, including HDMI, VGA and DisplayPort, which ensure compatibility with a wide range of devices for seamless integration into any setup.
Optimal viewing comfort
With a tilt angle of -5 to +90 degrees, users can easily find the most comfortable viewing position, WAS increases productivity over long periods of use.
Durable and clear display
The anti-glare and scratch-resistant edge-to-edge glass in combination with a brightness of 250 cd/m2 offers a clear and long-lasting display surface suitable for different environments.
Efficient power consumption
The monitor complies with the new standards of power class E and offers an economical power consumption in both operating and standby mode, WAS makes it an energy-efficient choice for users.
This text is machine translated.
The monitor was developed for versatility and is equipped with HDMI, VGA and DisplayPort interfaces, which enable easy integration in every setup. The angle of inclination of the monitor can be adjusted from -5 to +90 degrees, WAS ensures an optimum viewing comfort during longer use. The Edge-to-Edge-Glass is not only visually attractive, but also anti-glare and scratch-proof and thus especially durable. The energy-efficient design of the Iiyama ProLite T1732MSC-B1SAG corresponds to the new energy class E and makes it a good choice for users who are looking for a reliable and environment-friendly monitor.
Responsive touch technology
Fitted with the Projected Capacitive Touch (P-CAP) technology, the Iiyama ProLite T1732MSC-B1SAG offers a responsive 10-point multi-touch experience that enables an efficient and intuitive interaction for different applications.
Versatile connectivity options
This monitor has a wide range of interfaces, including HDMI, VGA and DisplayPort, which ensure compatibility with a wide range of devices for seamless integration into any setup.
Optimal viewing comfort
With a tilt angle of -5 to +90 degrees, users can easily find the most comfortable viewing position, WAS increases productivity over long periods of use.
Durable and clear display
The anti-glare and scratch-resistant edge-to-edge glass in combination with a brightness of 250 cd/m2 offers a clear and long-lasting display surface suitable for different environments.
Efficient power consumption
The monitor complies with the new standards of power class E and offers an economical power consumption in both operating and standby mode, WAS makes it an energy-efficient choice for users.
This text is machine translated.
Features
- 17" LCD monitor with LED backlight and a native resolution of 1280 x 1024
- Projected Capacitive Touch (P-CAP) technology for a responsive 10-point multi-touch experience
- Extensive connection possibilities with HDMI, VGA and DisplayPort interfaces
- Inclination adjustment from -5 to +90 degree for comfortable viewing
- Energy-efficient design with a power consumption of only 11.9 W in operating mode
Scope of delivery
- Cable
- Quick guide.
