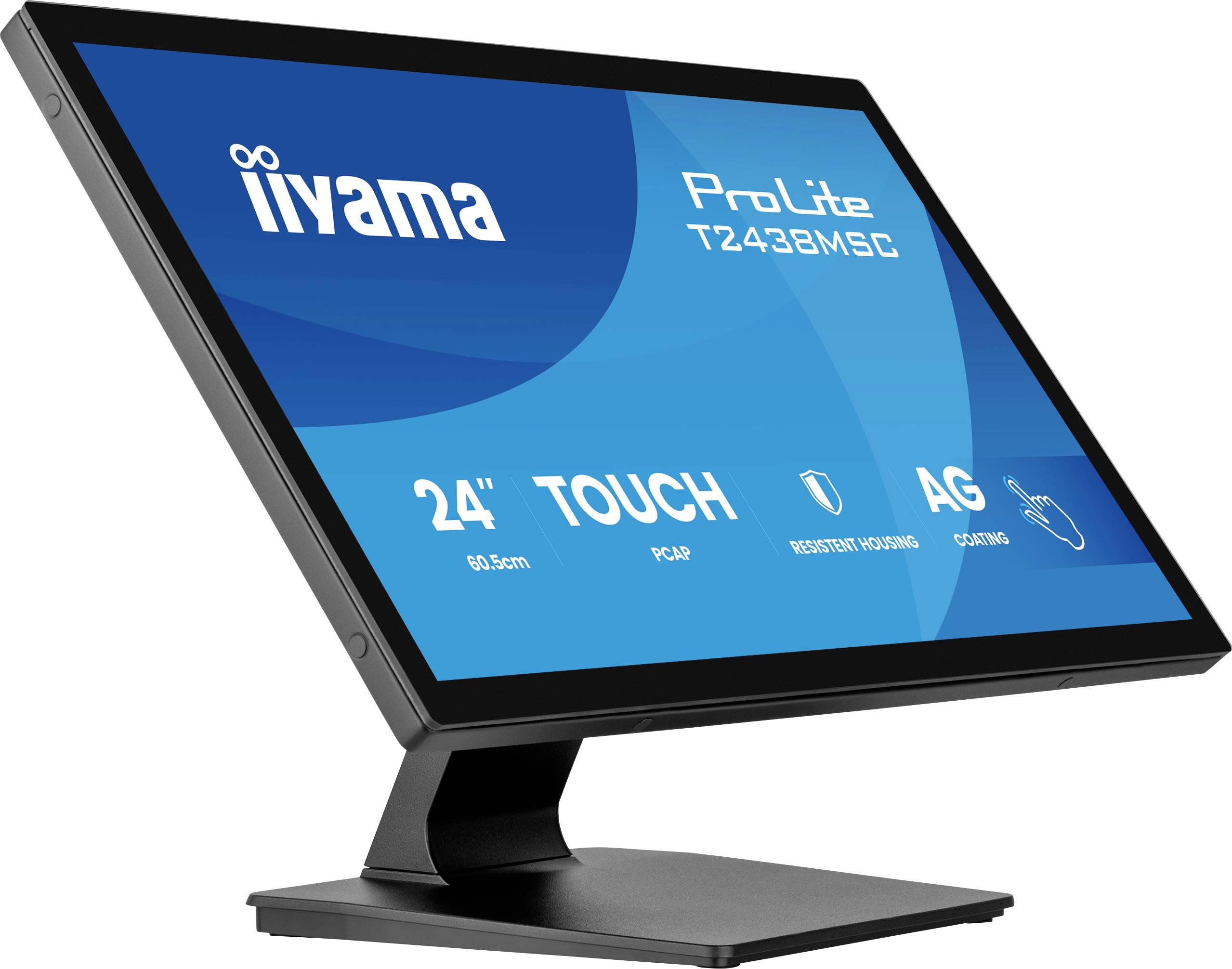

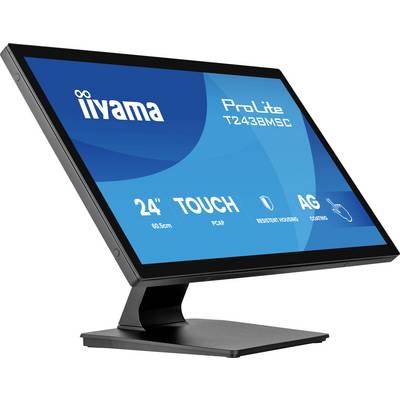

A 24-inch Iiyama ProLite T2435MSC touchscreen monitor with ergonomic stand, featuring anti-glare technology, and connectivity icons.

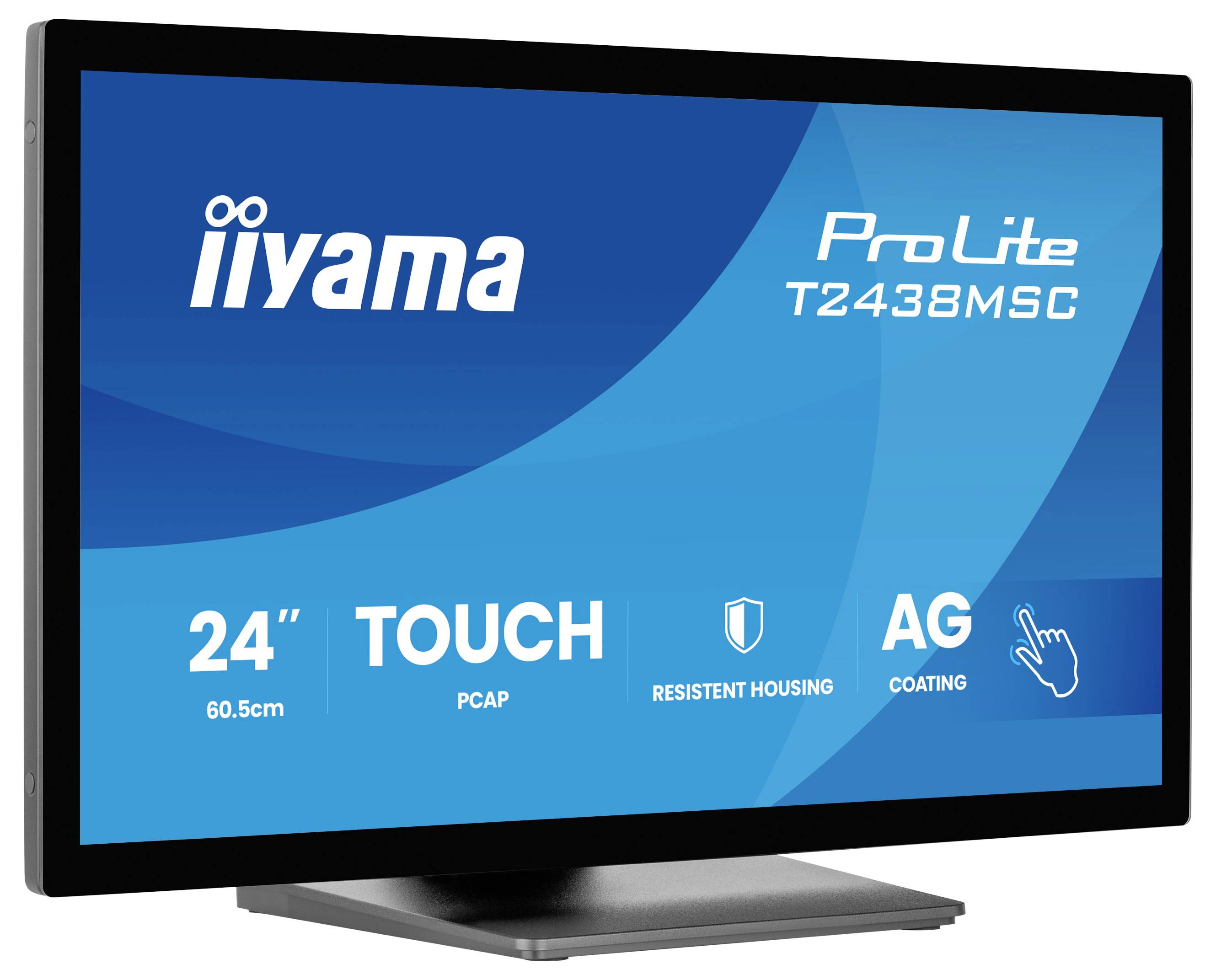

'Iiyama ProLite T2438MSC touchscreen monitor, 24 inches, PCAP technology, resistant housing, anti-glare coating, 60.5 cm display.'

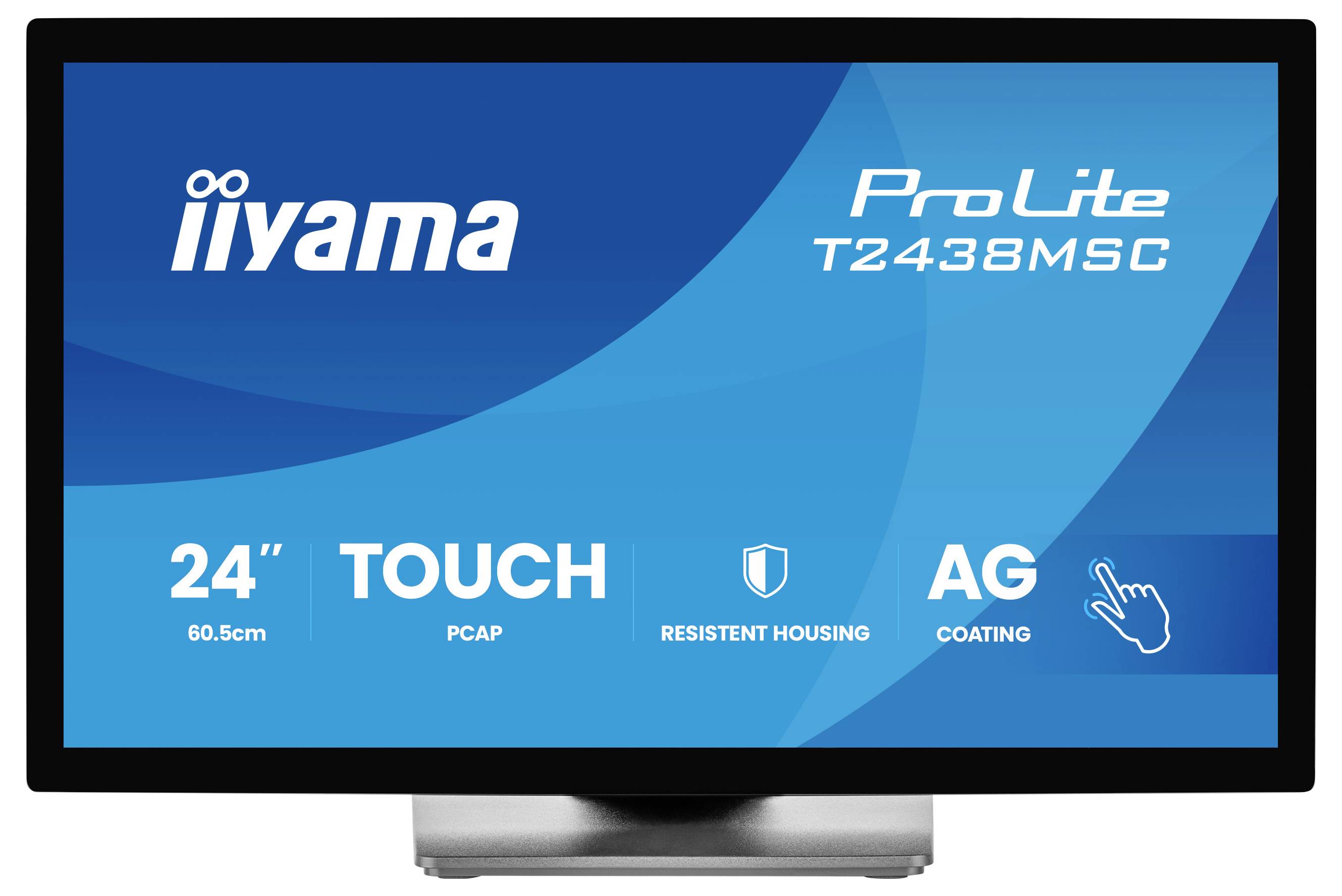

The image shows a screen with the text 'iiyama ProLite T2438MSC', featuring a 24-inch touch display, resistant housing, and anti-glare coating.

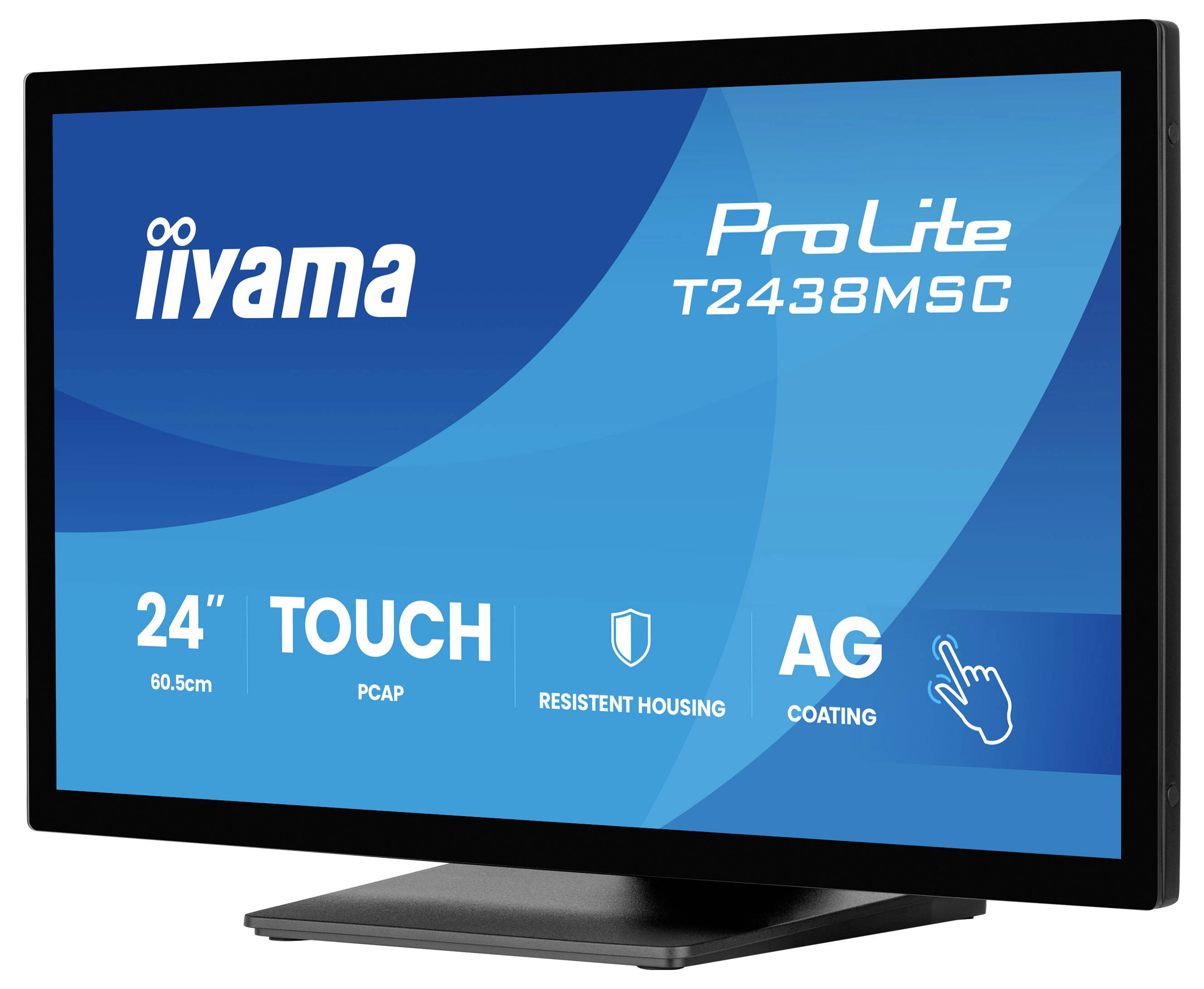

A computer monitor displaying branding for 'iiyama ProLite T2438MSC', featuring a 24-inch touch screen with AG coating and resistant housing.

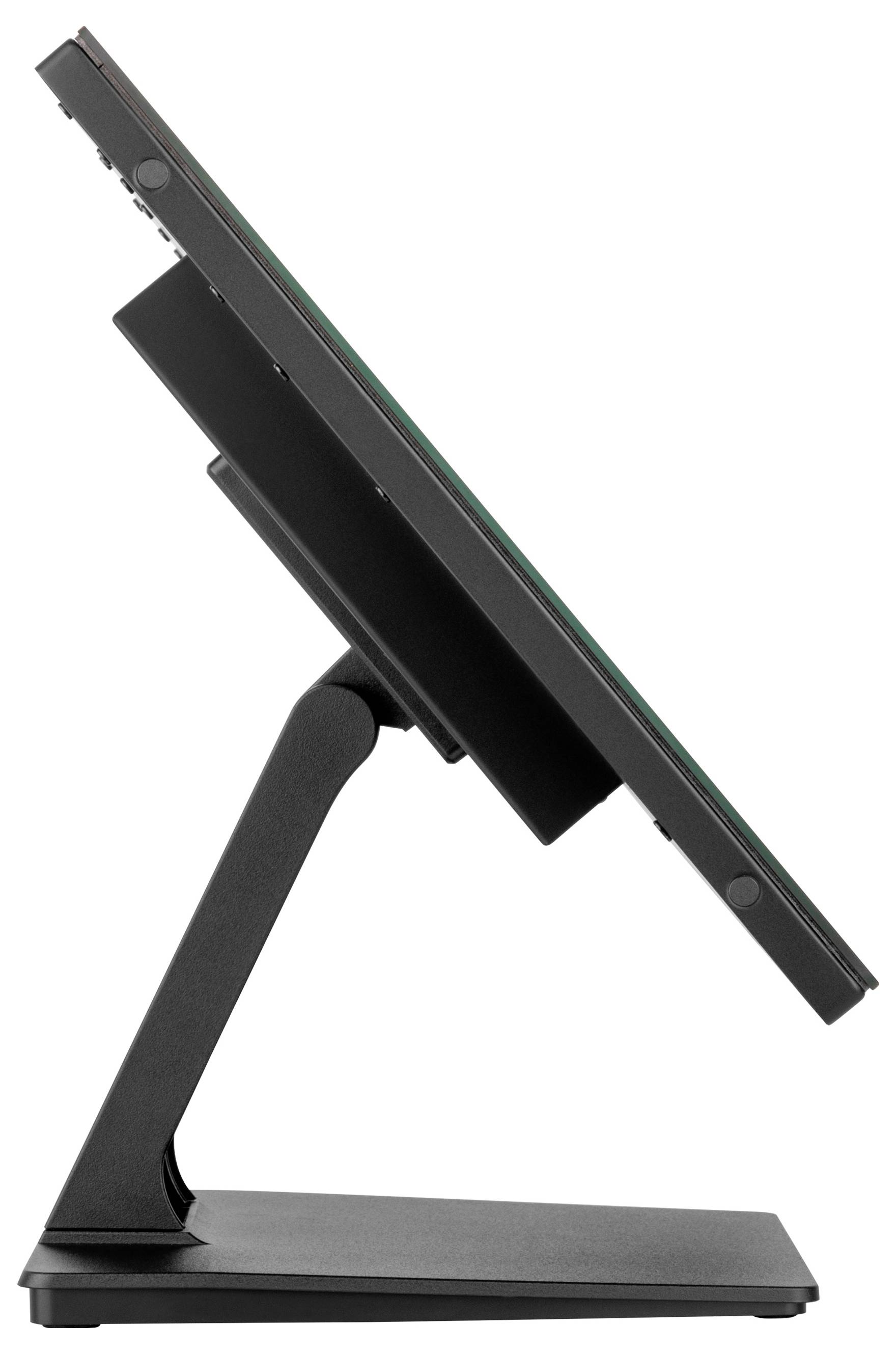

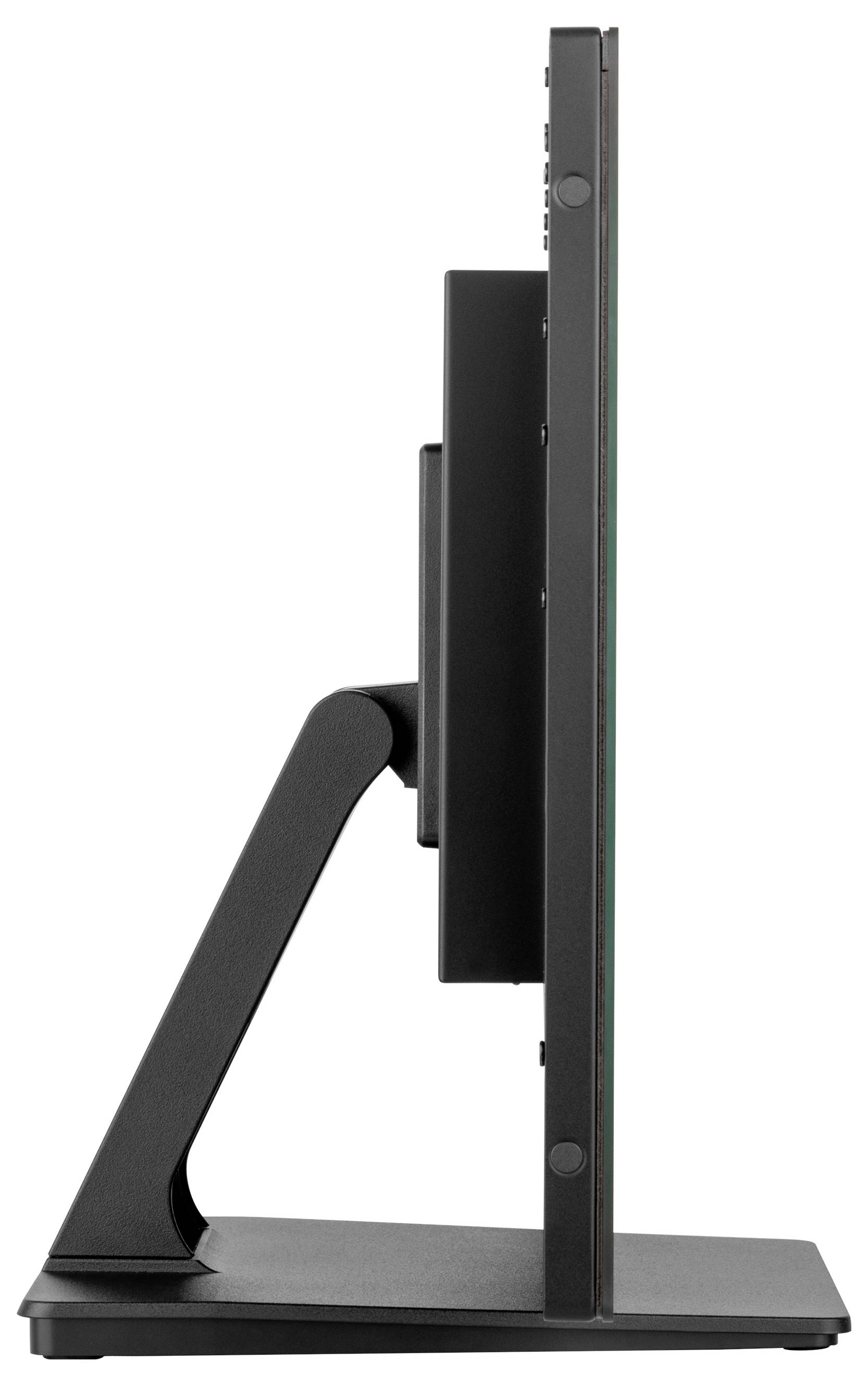

A side view of a slim computer monitor with a sturdy black stand. The screen is thin, highlighting its modern, sleek design.

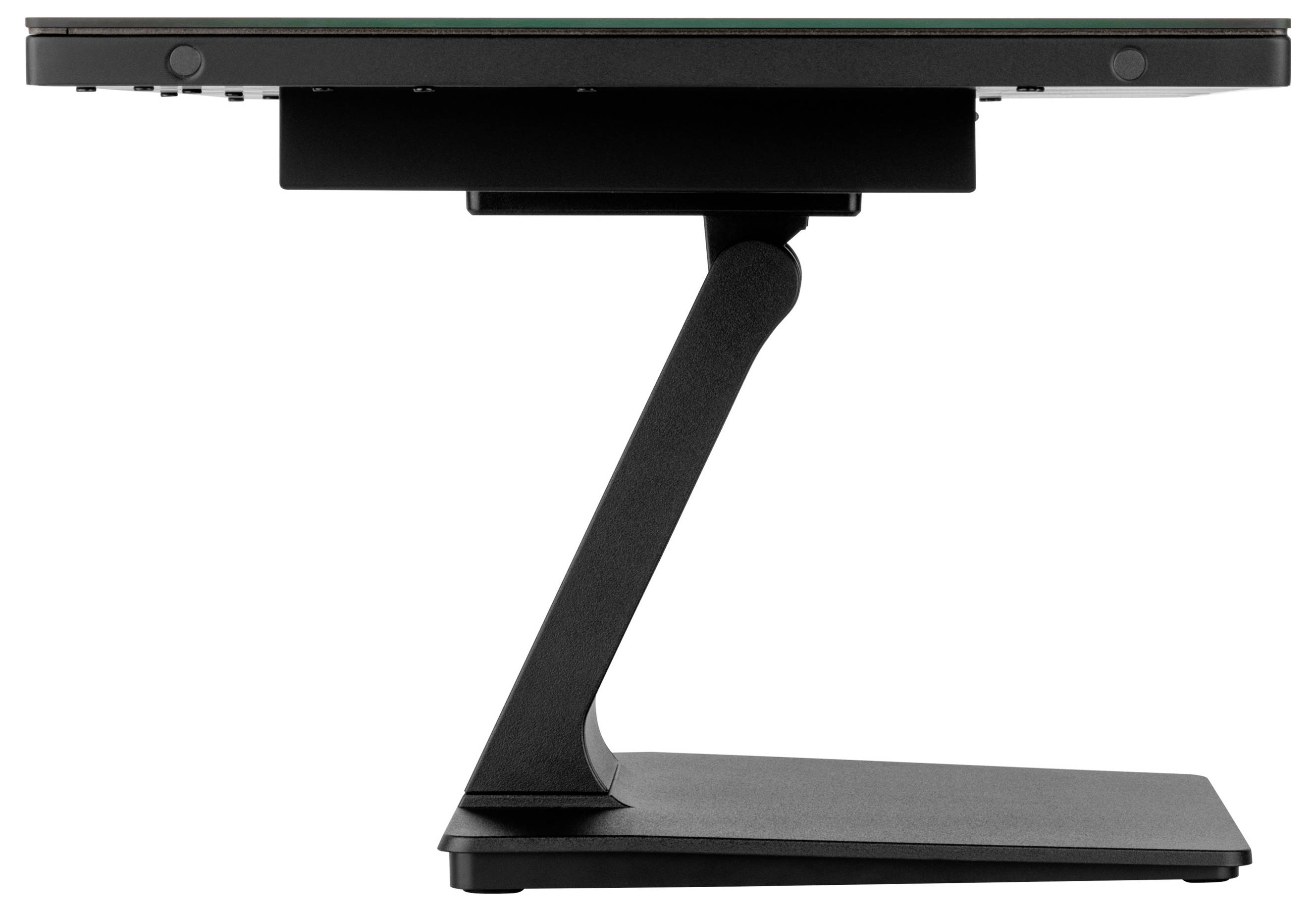

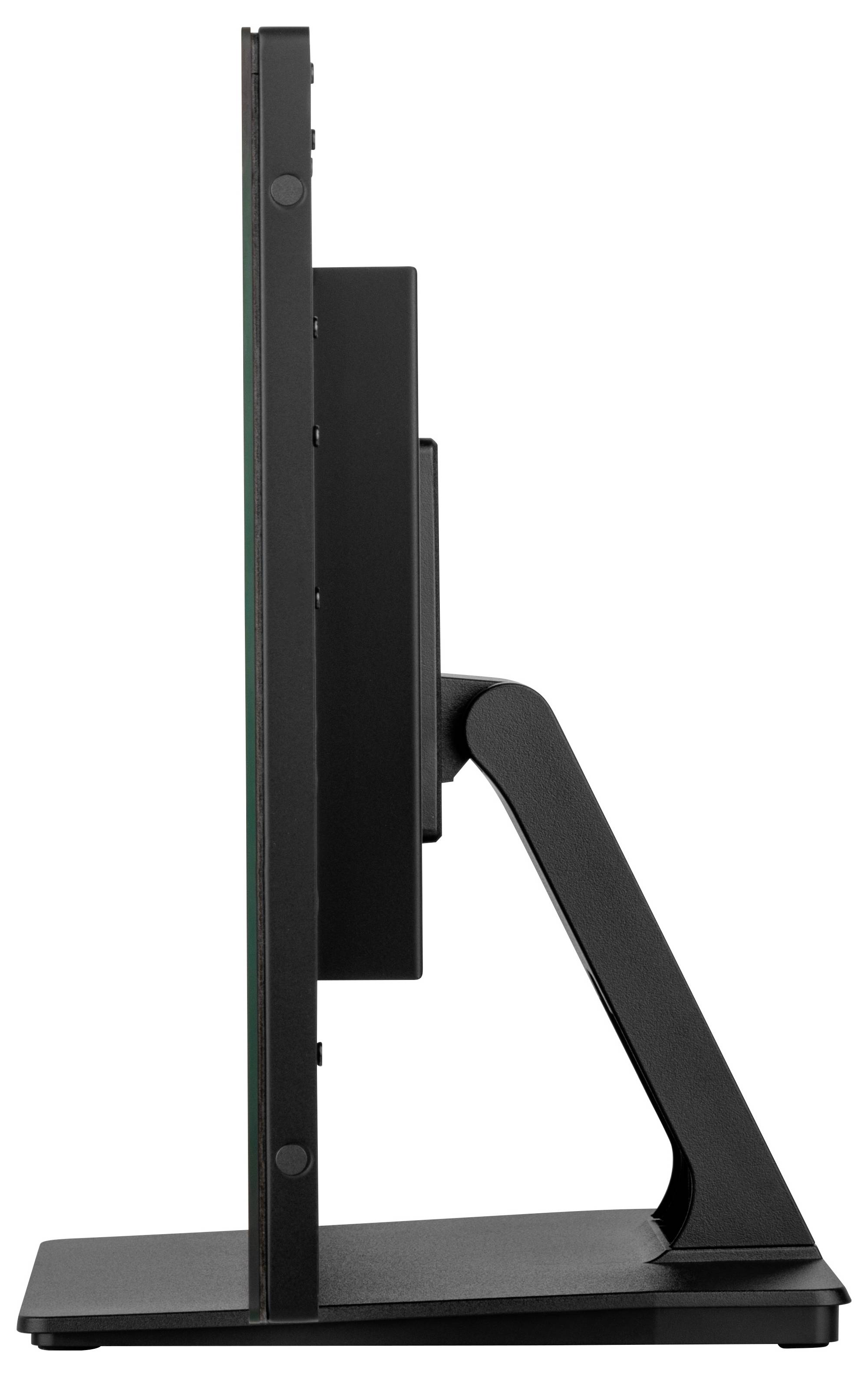

A side view of a flat-screen monitor on a sleek, angled stand placed on a rectangular base.

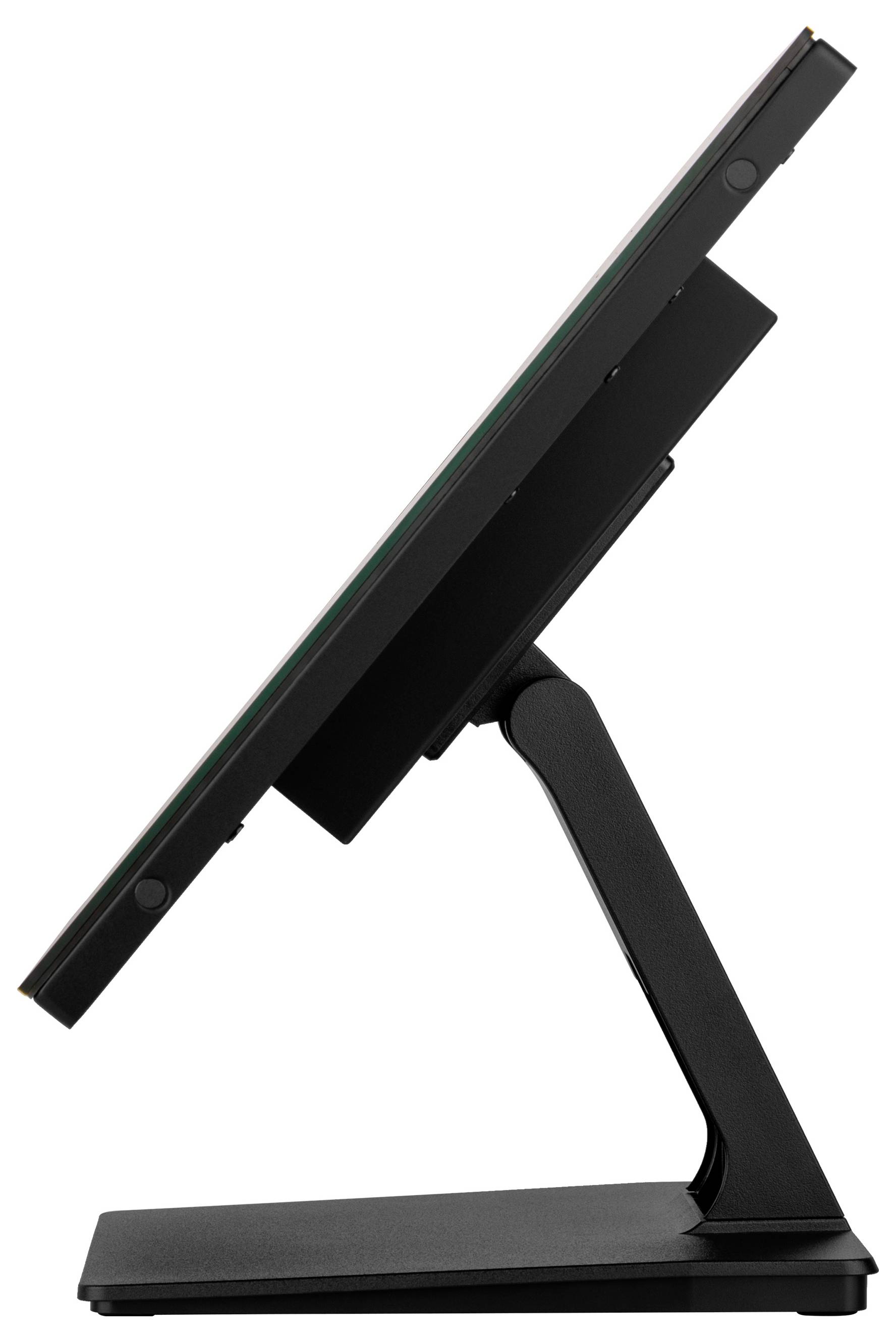

Side view of a black touchscreen monitor with a slim, sleek design, displaying its adjustable stand for optimal viewing angles.

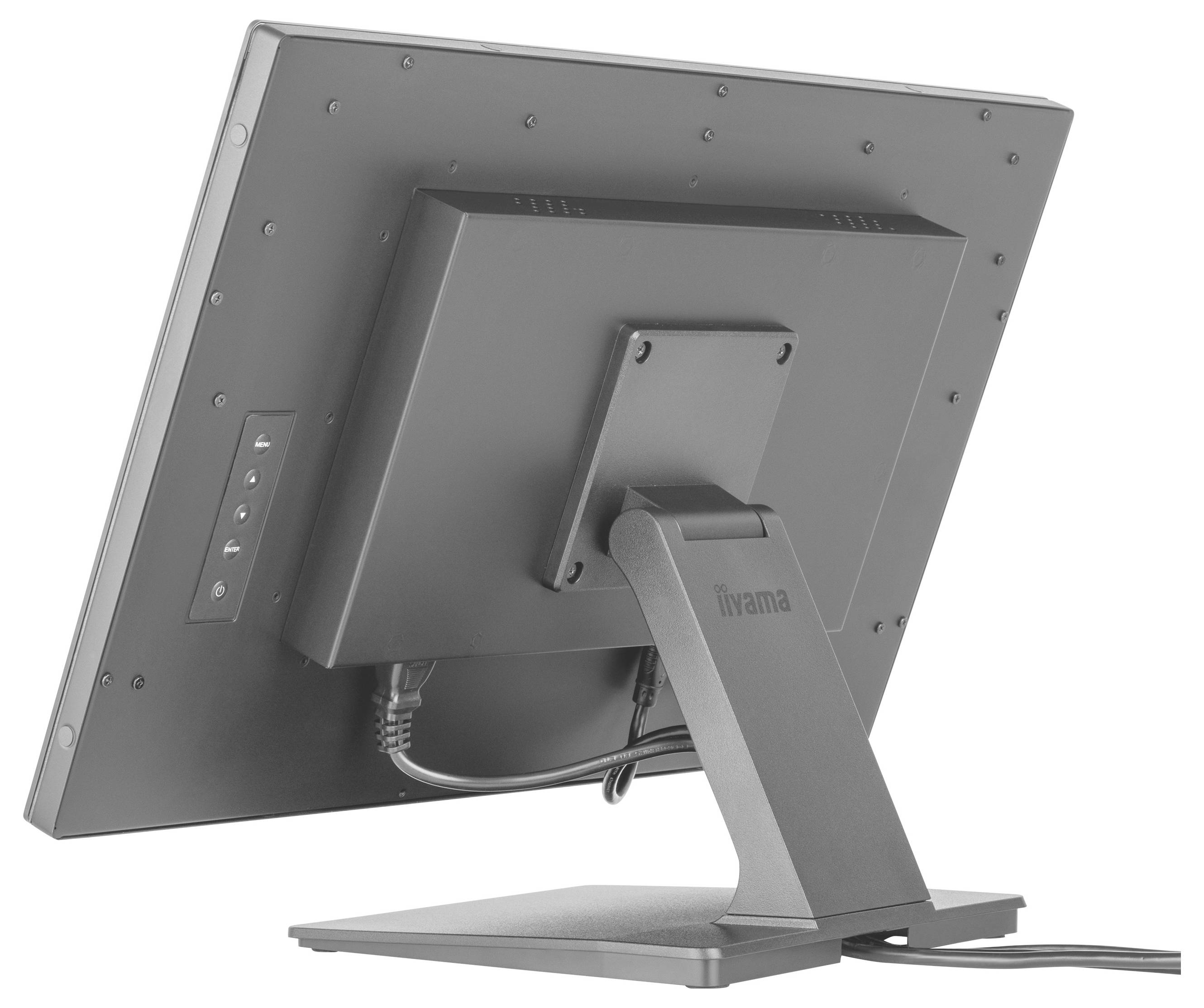

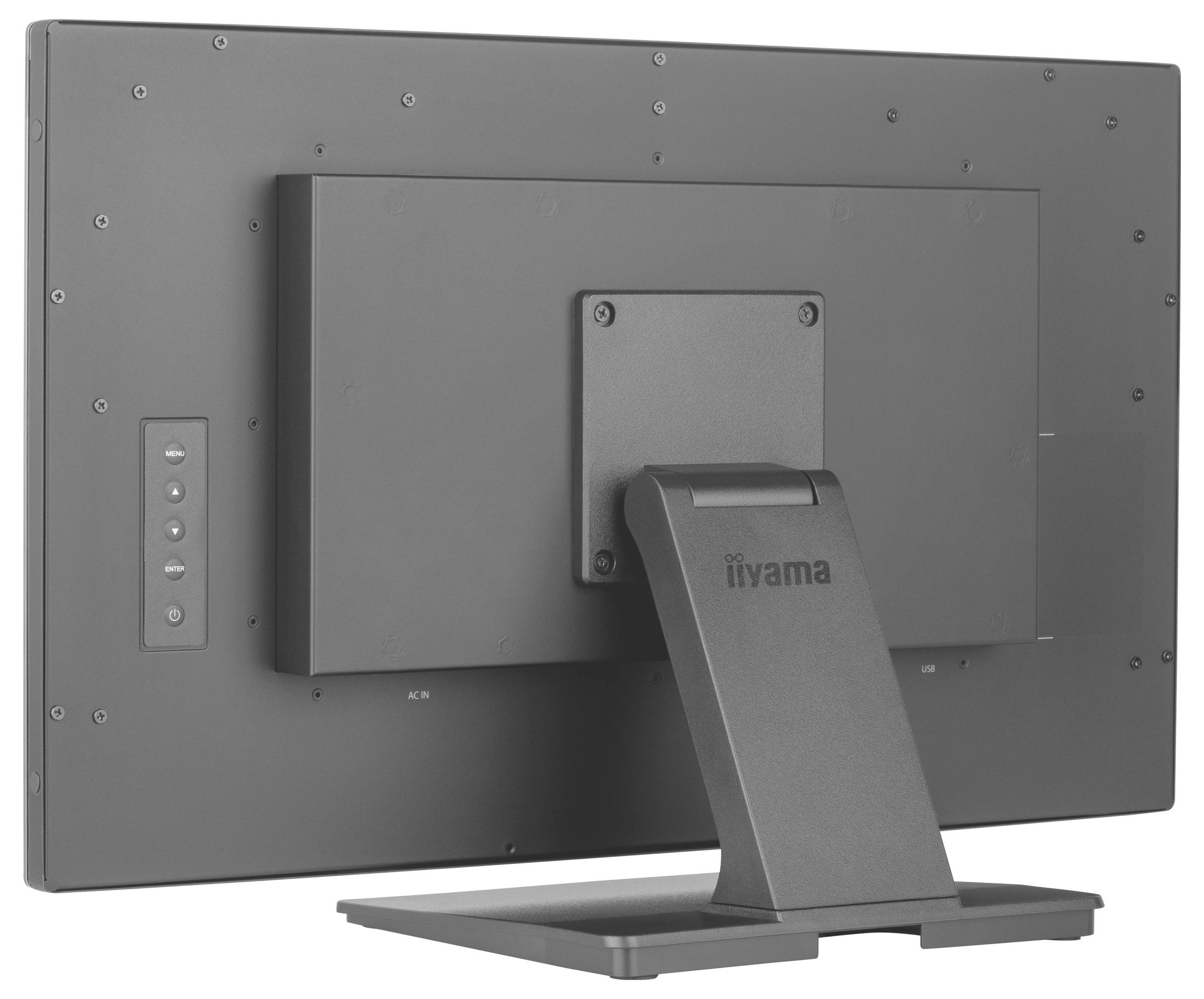

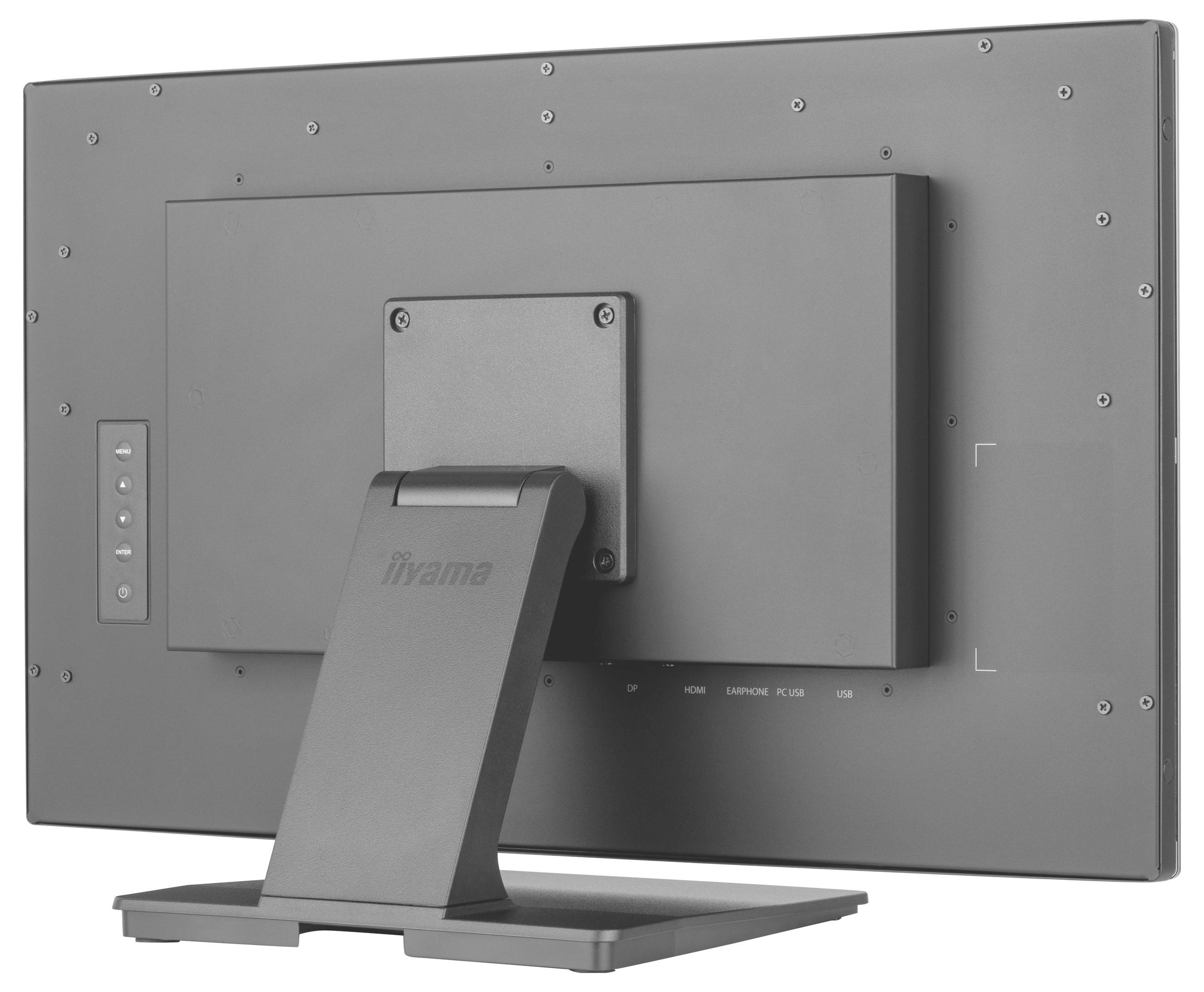

A computer monitor viewed from the back, showing the stand and connection ports, positioned on a flat surface.

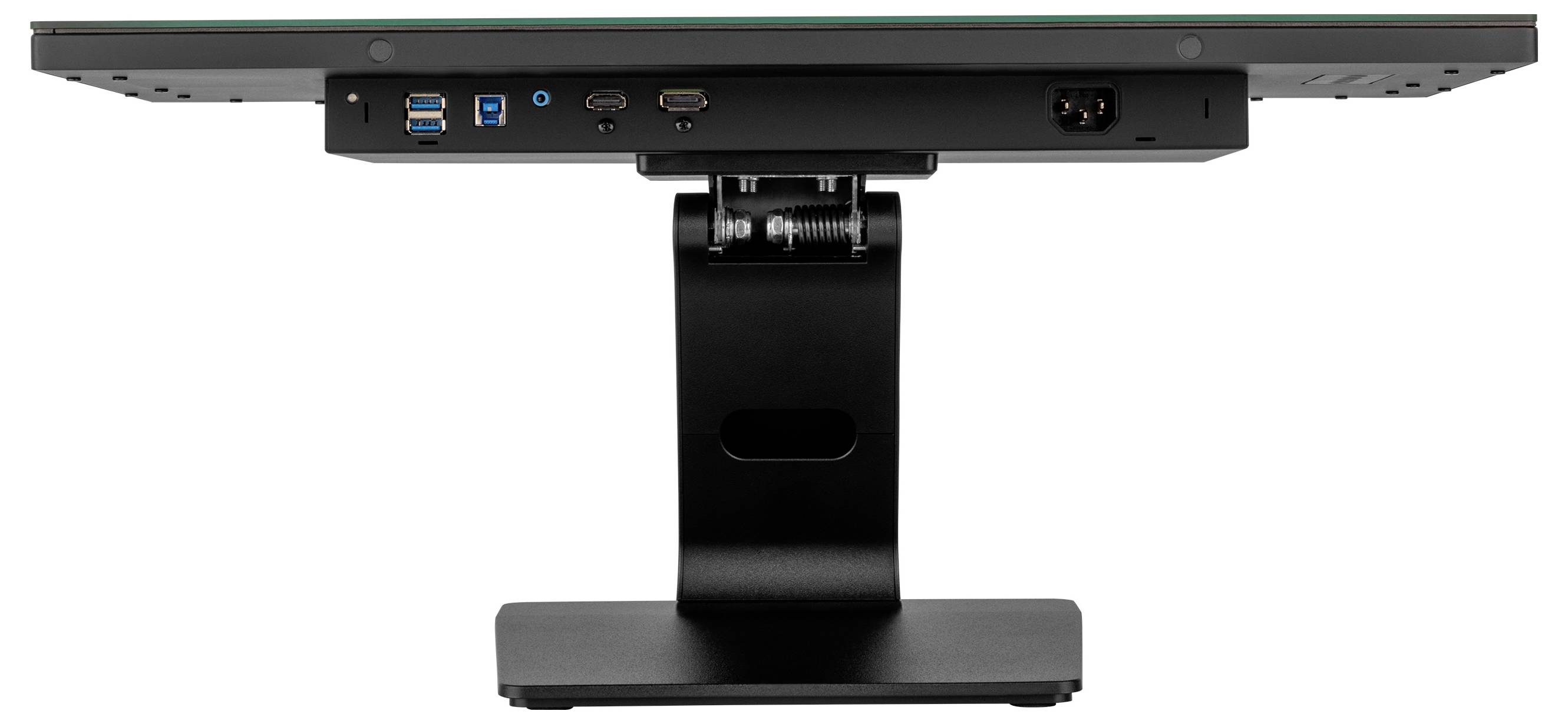

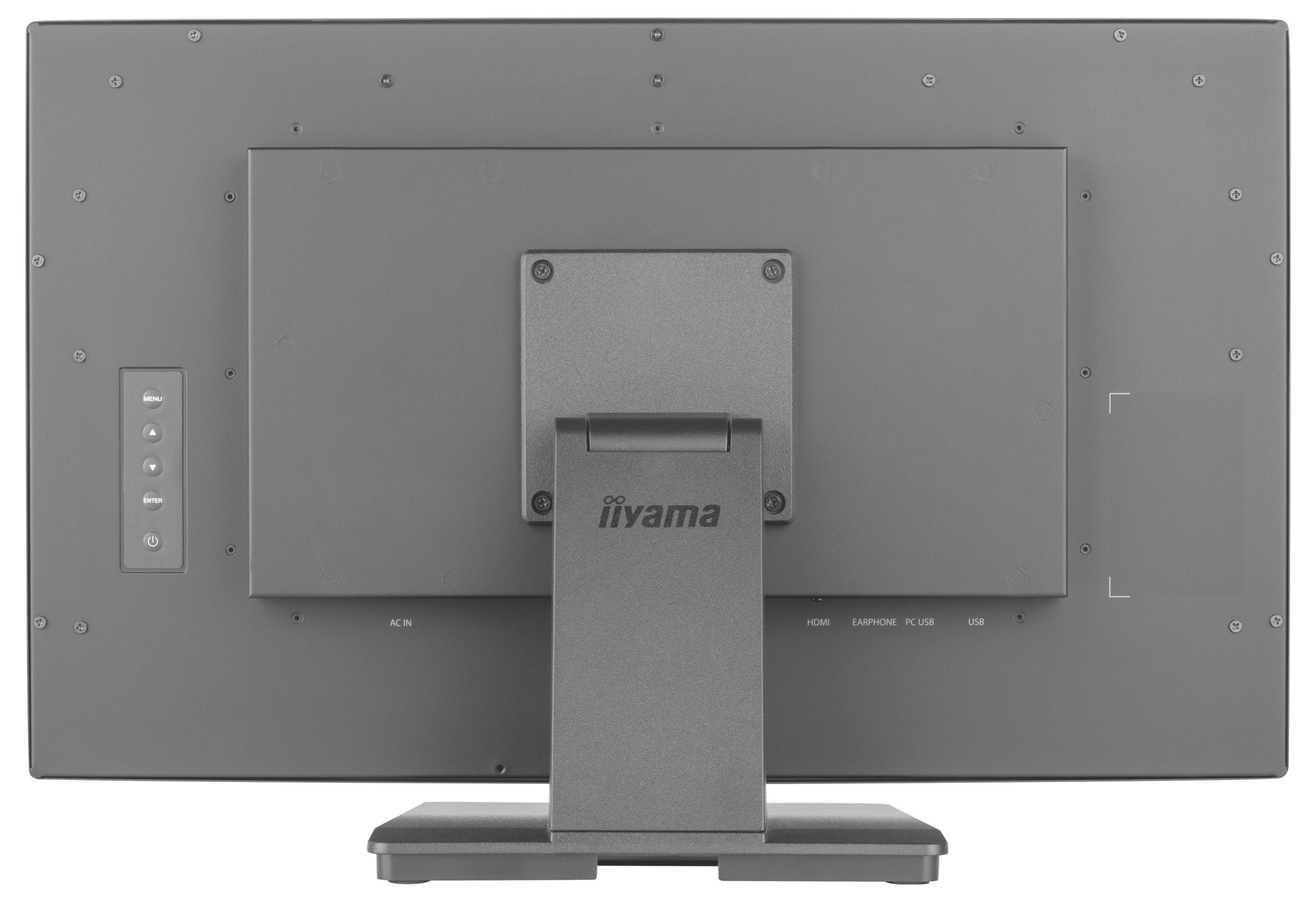

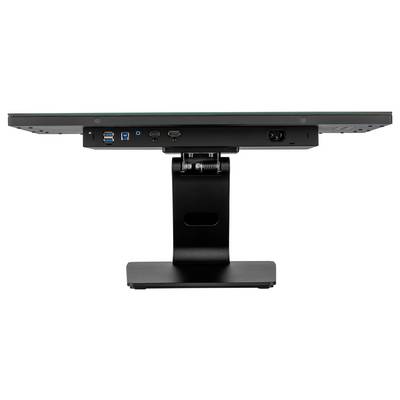

Back view of a computer monitor with a stand, showing USB, HDMI, and power ports. The focus is on connectivity options available.

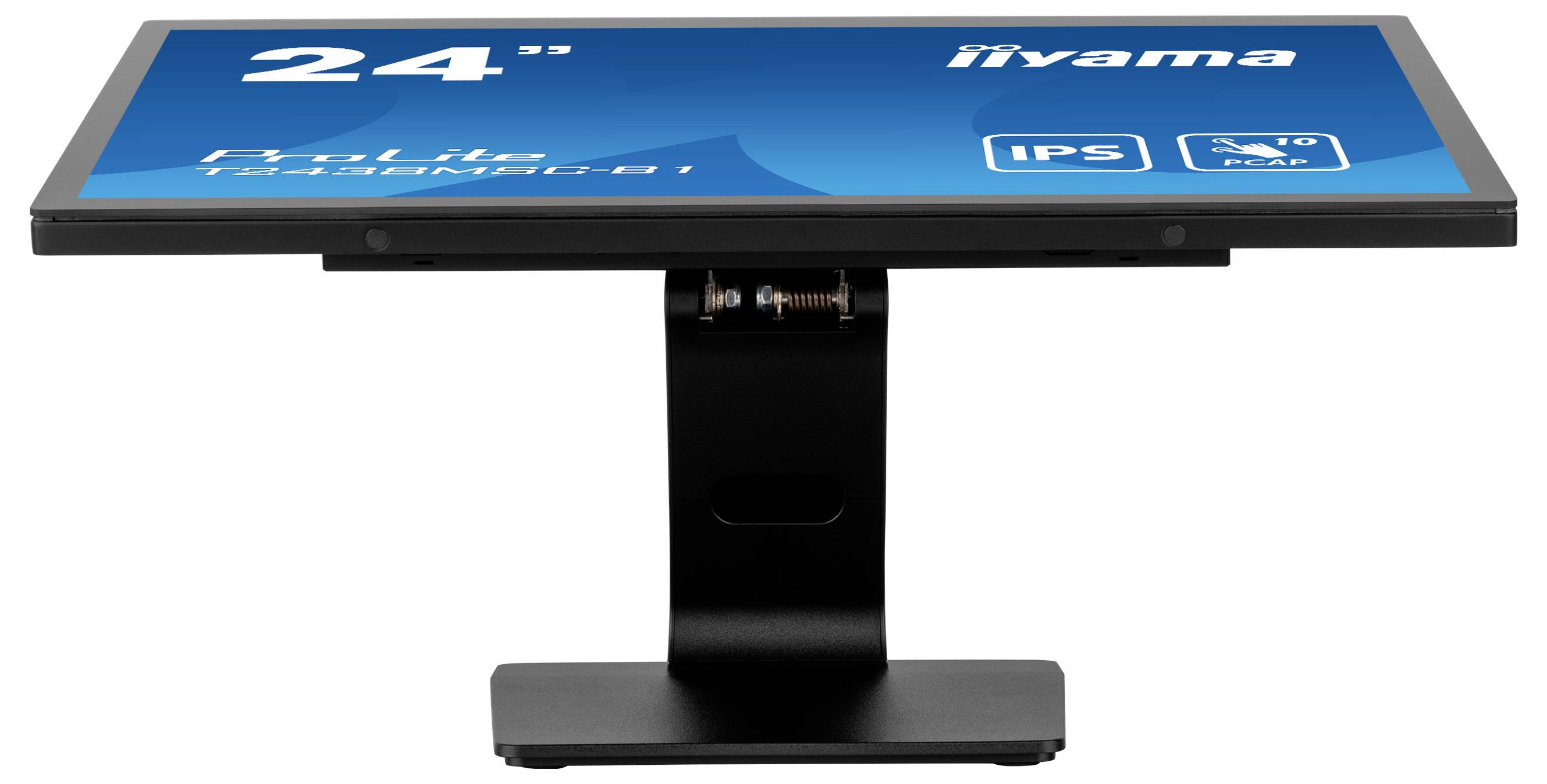

'Iiyama 24" monitor with IPS display, 3 ms response time' shown on a tilting stand.

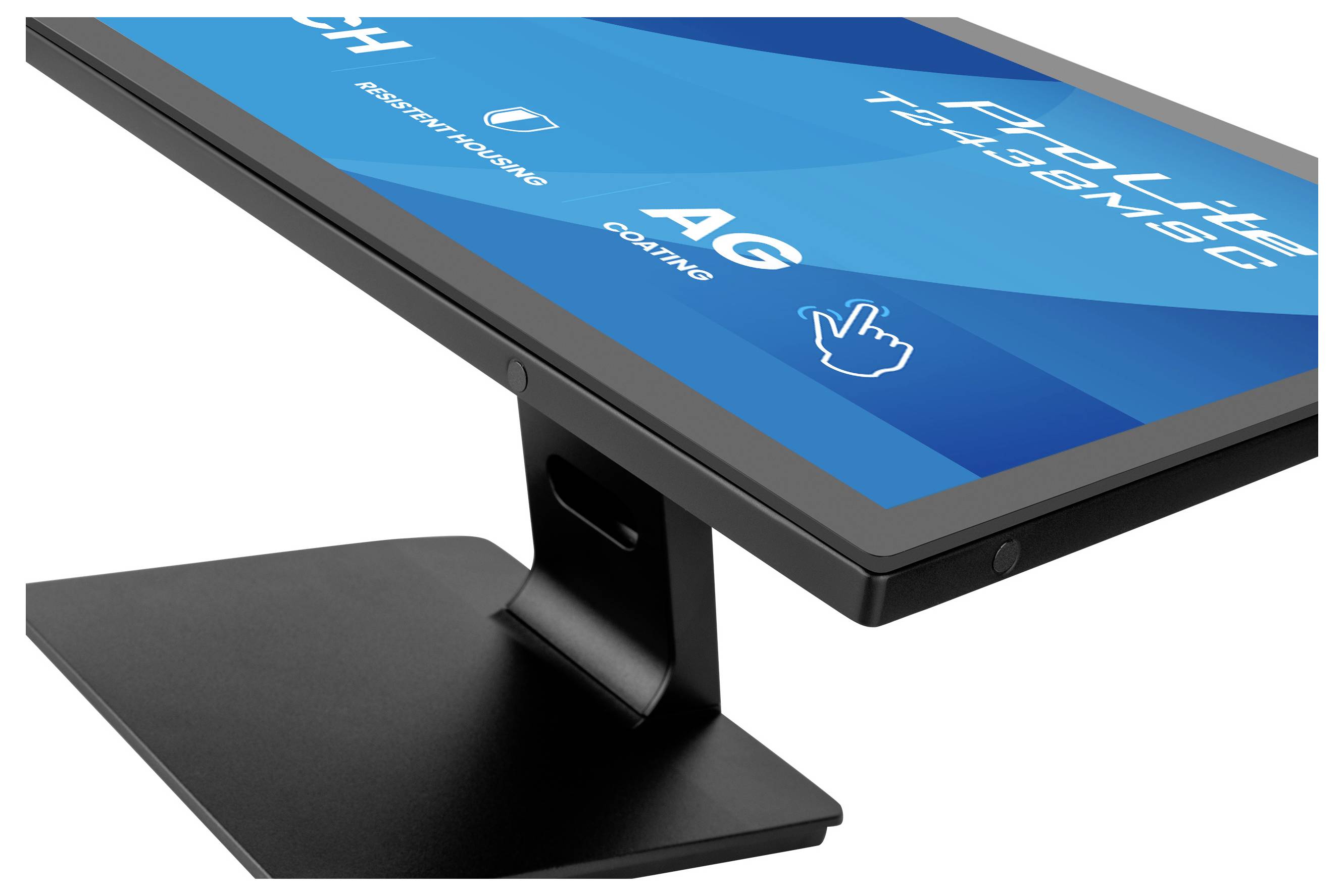

A side view of a digital screen with a sturdy black stand, displaying blue graphics and text related to monitor specifications.

1/16

Product data sheet

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Iiyama ProLite Touchscreen

Highlights & Details

Screen size 60.5 cm (23.8 inch) Full HD, Response time: 5 msEnergy efficiency rating (calc): E (A - G)
Interfaces:

Technical specifications

Contrast ratio 1300:1
0.275 x 0.275 mm pixel distance
Number of downstream ports: 2
International protection class (IP code): IP1X
User controls: Picture adjust (brightness, contrast, i-style color, adv. Contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, colored. Temp.), image settings (video mode adjust, blue light reducer, Sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), Extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touch: Finger, glove (latex), capacitive stylus
Control panel: Menu, scroll up/ eco, scroll down/ volume, enter/ input select, Power

Product type: Touchscreen

Screen size diagonal (cm): 60.5 cm

Screen size diagonal (inches): 23.8 inch

Screen size diagonal (inches): 24 inch

Image format: 16:9

Panel technology: VA LED

Touchscreen (display): Yes

Frame rate: 120 Hz

Response time: 5 ms

Brightness: 600 cd/m²

Factory colour: Multicolour

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB ports: 2 x

Audio power (max.): 4 W

Power consumption (standby): 1.5 W

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Width: 562 mm

Height: 366 mm

Depth: 240 mm

Weight: 8 kg

Power supply (details): 100 - 240 V

Dim: (W x H x D) 562 x 366 x 240 mm

Display size: 24 inch - 29 inch

Display resolution mode: Full HD

: E (A - G)

Display: 60.5 cm (23.8 inch)

Display (cm): 60.5 cm

Power consumption (off): 0.3 W

Power consumption (ON): 22 W

Cable length: 1.5 m

Display properties: IPS

Display resolution: 1920 x 1080 Pixel

HDCP: Yes

Type: internal

: 100 x 100 mm

UKCA: yes

Number of speakers: 2

Number of simultaneous touchpoints: 10

Colour depth: 8 Bit

Brightness: 525 cd/m²

Active display area (W x H): 527 x 296,5 mm

VESA mounting: yes

Built-in USB hub: yes

Built-in speaker(s): yes

On Screen Display (OSD): yes

Cable management: yes

Horizontal scan range: 30 - 138 kHz

HDMI cable length: 1.5 m

USB Touch port: yes

Flicker-free technology: yes

Low Blue Light technology: yes

Quick start guide: yes

Positional accuracy: 2 mm

Mean time between failures (MTBF): 50000 h

HDMI: yes

Package weight: 10 kg

Bezel width (side): 1.73 cm

Bezel width (top): 2.03 cm

Bezel width (bottom): 2.03 cm

Glass thickness: 3.6 mm

Power cable length: 1.8 m

Viewable size, horizontal: 52.7 cm

Viewable size, vertical: 29.6 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729160 Iiyama ProLite Touchscreen EEC E (A - G) 60.5 cm (23.8 inch) 16:9 5 ms VA LED

Description

The ProLite T2438MSC-B2 is a fast-reacting 23.8" (60.5 cm) full HD touch-screen monitor for demanding and commercial environments. The IPS panel provides clear, vivid images with wide viewing angles – Ideal for workstations, service counters or customer-oriented installations. The DeepContrast PCAP+ 10-point touch technology offers precise and smooth operation. The scratch-proof (7H) edge-to-edge glass surface with anti-fingerprint coating and IPX1 protection ensure a long life and a neat appearance. A robust metal housing, adjustable tilt stand and integrated cable management ensure ergonomic installation. With speakers, HDMI, DisplayPort and USB-3.2 hub as well as support for landscape, portrait and face-up format, the monitor can be used in versatile ways – Ideal for the retail trade, POS systems and professional work areas.
