Iiyama SDM-L Slot PC-Module, Intel® Core™ i3-12
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- CPU Intel® i3-1220P
- RAM 8GB DDR4
- SSD: 256GB M.2
- Graphics: Intel® UHD graphics for 12 processors. Generation
- Sound card: Built-in high definition audio
- LAN 10/100/1000M adapter
- Wi-Fi 802.11 a/b/g/n/ac/ax (M.2 NVME)
- Bluetooth 5.3
- Operating system: Windows 11 Lot Enterprise (SAC) 64 Bit
- Video output : USB-C x2 (DP 1.4 old mode, 4K @60Hz), HDMI x1 (2.0, 4K @60Hz)
- USB A: X4 (v.3.2 1st Gen, 5Gbit)
- USB-C: X2 (v.3.2 1st Gen, 5Gbit)
- Headset connector: (Audio & microphone)
- LAN x1 (RJ45)
- Power consumption: 72W typical, 0.5W standby
- Interfaces
USB type A
USB C®
HDMI™
RJ45
Headphone/mic combo jack (3.5 mm)
- Factory colour
Multicolour
- Dim
(L x W x H) 200 cm x 19.2 mm x 2.5 mm
- Width
19.2 mm
- Height
2.5 mm
- Depth
11 mm
- Weight
400 g
- Length
200 cm
- No. of HDMI ports
1 x
- Keyboard layout
Keyboard not included
- CPU series
Intel® Core™ i3
- Model
SDM31201BC-1L
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3308265 Iiyama SDM-L Slot PC-Module, Intel® Core™ i3-12
User & Safety Instructions
User & Safety Instructions 3308265 Iiyama SDM-L Slot PC-Module, Intel® Core™ i3-12
Description

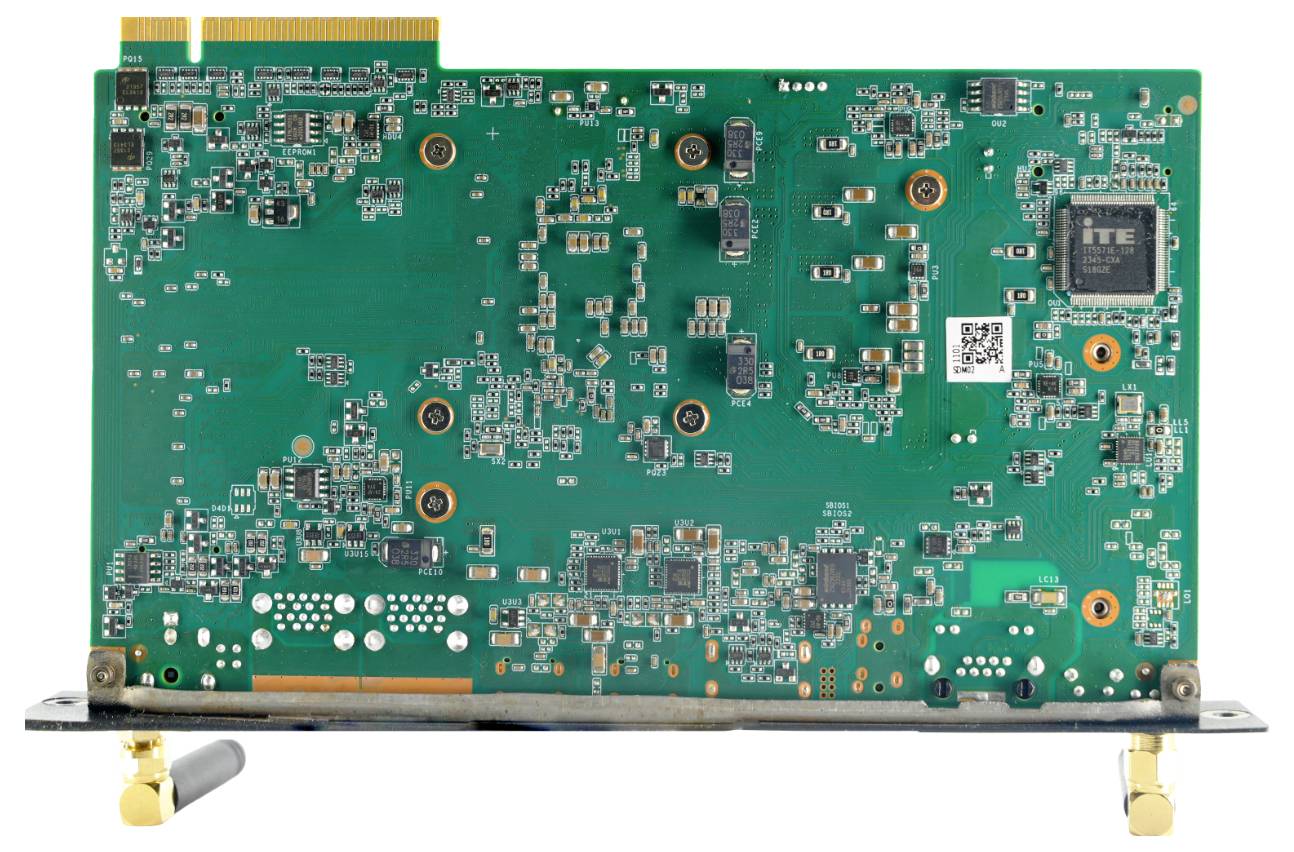

This Intel® Core™ i3 processor-based mini-SDM-L PC transforms your ProLite LH54 series and LH75 series (50" and larger) large format Iiyama display into a stand-alone solution. It comes with a powerful Intel® processor, built-in Ultra HD graphics and a fast SSD. In addition, it has 4 USB 3.2 Gen1 ports and 2 type C connectors (USB3.2 + DP OLD).
This text is machine translated.
This text is machine translated.
Hints
HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
