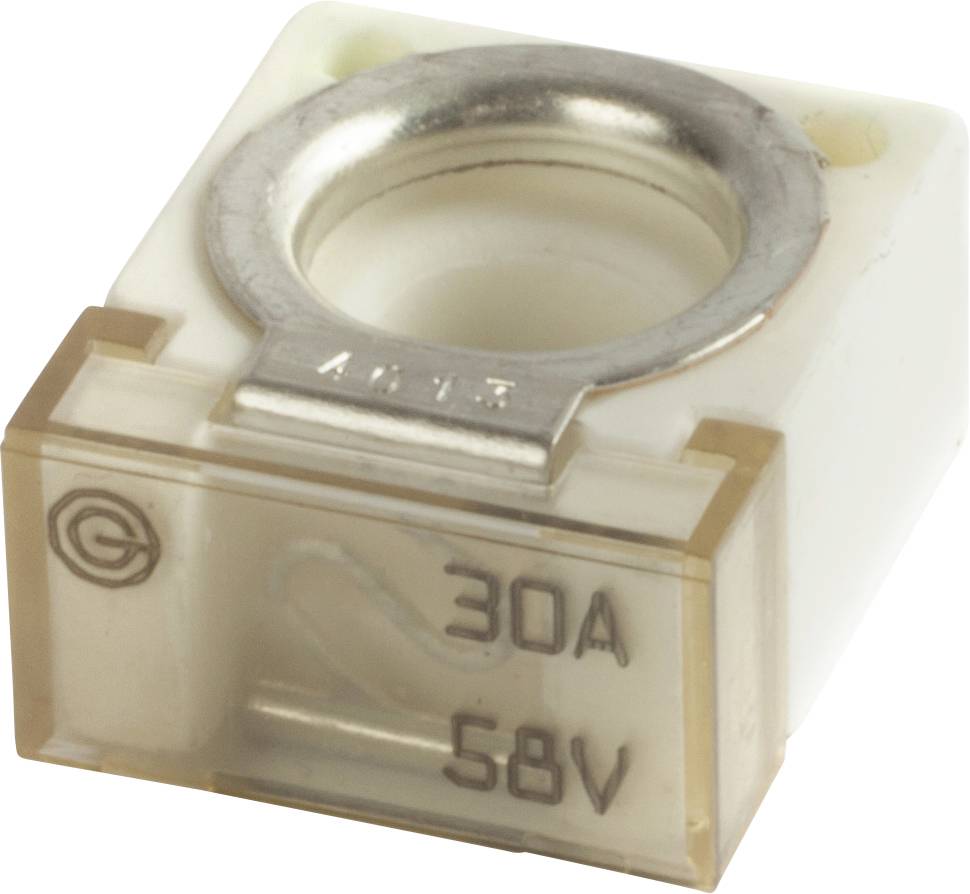

iMaXX cubeOTO CF030 Car standard blade-type fuse 30 A Transparent 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
CubeOTO fuse 58 Vdc 30A
- Complies with international specifications, ISO 8820-6
- Case material: Ceramic
- Integrated, long-lasting melting element made of copper alloy, tin-plated
- Application-specific melting element developed and produced in the EU
- Visible element behind transparent cover
- Safety technology with single bolt mounting, M8 connection
- Use an insulating nut or an equivalent alternative
- Innovative, space-saving slow-blow fuse series
Technical specifications
- CF030
- Factory colour
Transparent
- Product type
Car standard blade-type fuse
- Content
1 pc(s)
- Nominal voltage
58 V
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Height
11.8 mm
- Width
20 mm
- Length
23 mm
- Industrial packaging
Yes
Documents & Downloads
Datasheet
Datasheet 3532679 iMaXX cubeOTO CF030 Car standard blade-type fuse 30 A Transparent 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3532679 iMaXX cubeOTO CF030 Car standard blade-type fuse 30 A Transparent 1 pc(s)
Description
CubeOTO fuse 58 Vdc 30A
