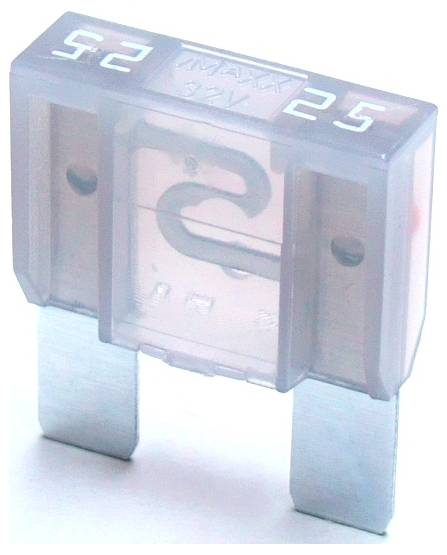

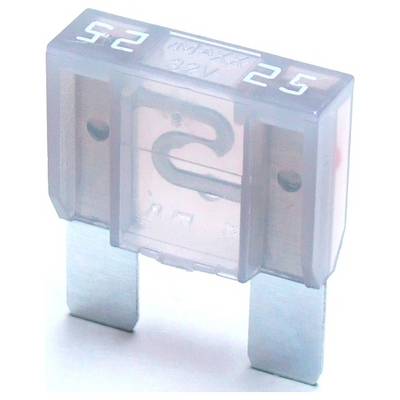

iMaXX maxiOTO F9025 Maxi blade-type fuse 25 A Grey 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MaxiOTO automotive blade-type fuse 32 Vdc 25 A
- Complies with international specifications, ISO 8820-3, SAE J1888 and other standards.
- Element visible from the side, transparent fuse casing.
- Check the fuse in the fuse block using the semi-protected test points on the top.
- Robust housing design for high blade stability.
- Safe and reliable operation thanks to one-piece design.
- Self-extinguishing, transparent and color-coded housing material.
- High-temperature resistant plastics for the fuse casing.
- Safe and reliable time-delayed function through specially developed element shapes.
- Independent of the plug-in direction, nominal current specification in two directions at the top (OCR font).
Technical specifications
- F9025
- Factory colour
Grey
- Product type
Maxi blade-type fuse
- Content
1 pc(s)
- Nominal voltage
32 V
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Height
34.1 mm
- Width
29.5 mm
- Length
9 mm
- Industrial packaging
Yes
Documents & Downloads
Datasheet
Datasheet 3532647 iMaXX maxiOTO F9025 Maxi blade-type fuse 25 A Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3532647 iMaXX maxiOTO F9025 Maxi blade-type fuse 25 A Grey 1 pc(s)
Description
MaxiOTO automotive blade-type fuse 32 Vdc 25 A
