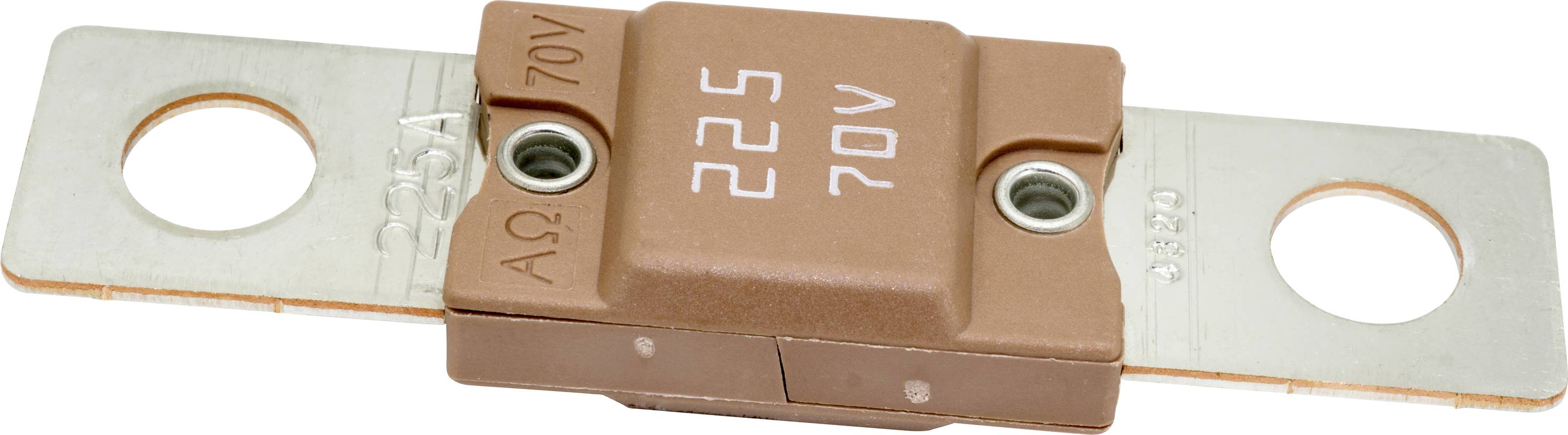

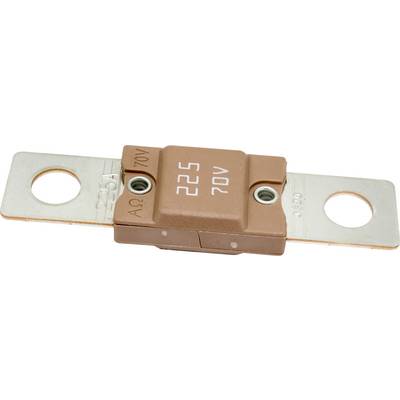

iMaXX megaOTO MGHV225 Fuse strip 225 A Tan 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MegapOTO fuse 70 Vdc 225 A
- Complies with international specifications, ISO 20934 and other standards
- Rugged, tin-plated copper alloy cutting plates
- Stable, riveted, color-coded thermoplastic casing
- M8 connection holes, 51 mm distance
- Nominal current specification in OCR font, on both sides
- Switch-off capacity 2500 A at 70 V DC
- Starting torque 12 Nm ± 1 Nm
Technical specifications
- MG HV225
- Factory colour
Tan
- Product type
Fuse strip
- Content
1 pc(s)
- Nominal voltage
70 V
- Nominal current
225 A
- Nominal current - rounded value
225 A
- Height
10.5 mm
- Width
16 mm
- Length
68 mm
- Industrial packaging
Yes
Documents & Downloads
Datasheet
Datasheet 3532672 iMaXX megaOTO MGHV225 Fuse strip 225 A Tan 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3532672 iMaXX megaOTO MGHV225 Fuse strip 225 A Tan 1 pc(s)
Description
MegapOTO fuse 70 Vdc 225 A
