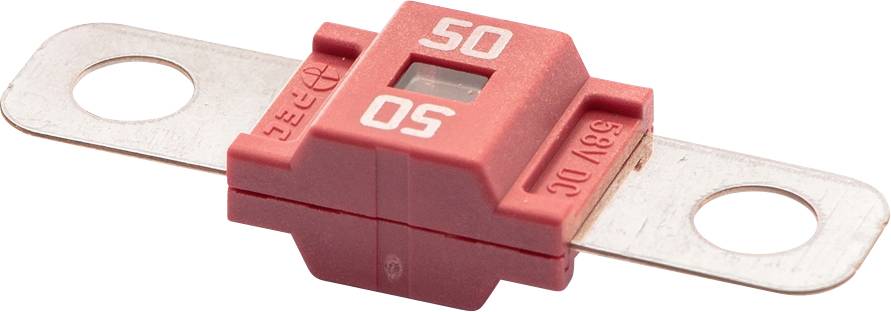

iMaXX midiOTO MDP050M6 Fuse strip 50 A Red 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MidiOTO fuse M6 58 Vdc 50 A
- Complies with international specifications, ISO 8820-5, JASO D612 and other standards
- Visible element through window
- PA6T casing, heat and chemical resistant
- Rugged, tin-plated copper alloy wings
- Colour-coded housing indicates current
- M6 port holes for 150 A – 200 A, 30 mm apart
- Starting torque 4.5 Nm ± 1 Nm
Technical specifications
- MDP050M6
- Factory colour
Red
- Product type
Fuse strip
- Content
1 pc(s)
- Nominal voltage
58 V
- Nominal current
50 A
- Nominal current - rounded value
50 A
- Height
8.24 mm
- Width
12 mm
- Length
41 mm
- Industrial packaging
Yes
Documents & Downloads
Datasheet
Datasheet 3532657 iMaXX midiOTO MDP050M6 Fuse strip 50 A Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3532657 iMaXX midiOTO MDP050M6 Fuse strip 50 A Red 1 pc(s)
Description
MidiOTO fuse M6 58 Vdc 50 A
This text is machine translated.
This text is machine translated.
