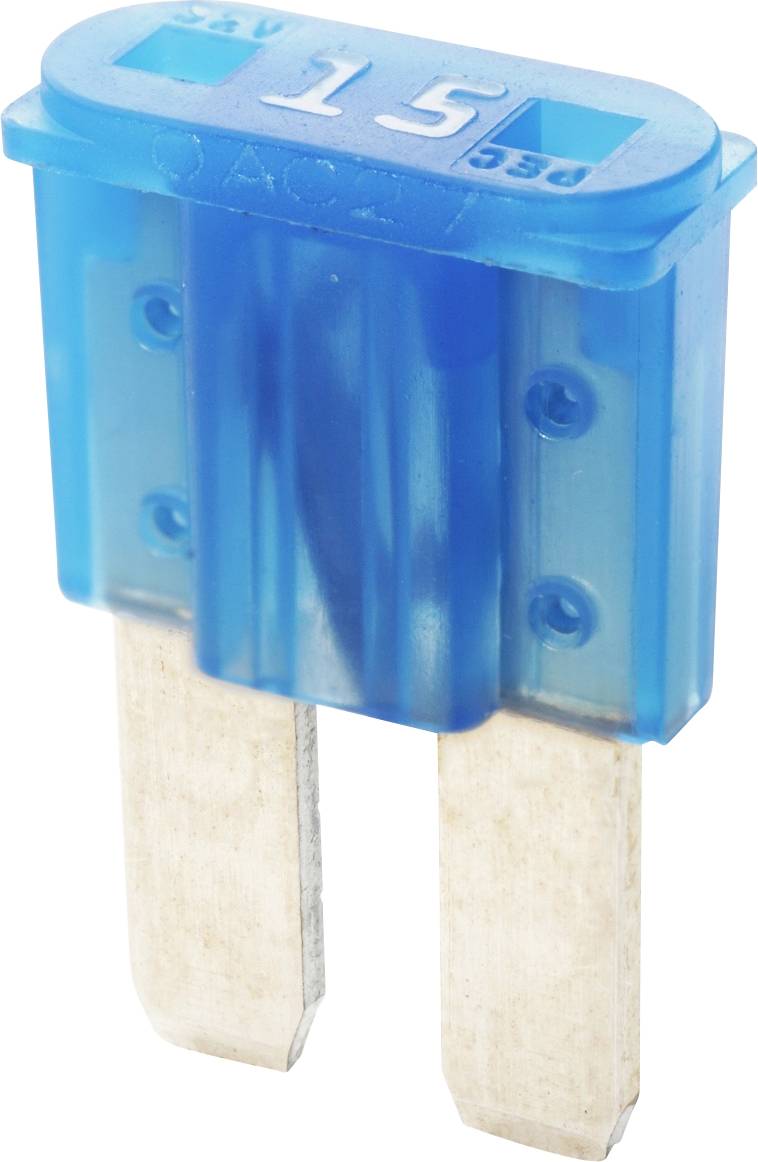

iMaXX mikrOTO II FM2015 Automotive super mini blade-type fuse 15 A Blue 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MICROTO II KFZ flat fuse 32 Vdc 15 A
- Complies with international specifications, ISO 8820-12
- Check fuse in the fuse block at the test points above
- Safety finger made of silver-plated zinc alloy
- Element visible from the side, semi-transparent fuse body
- Robust and stable housing design for high finger stability
- Safe and reliable operation thanks to one-piece design
- Nominal voltage 32 volt
- Colour-coded housing materials, rated voltage marked with OCR font at the top
- Used mainly in North American vehicles
Technical specifications
- FM2015
- Factory colour
Blue
- Product type
Automotive super mini blade-type fuse
- Content
1 pc(s)
- Nominal voltage
32 V
- Nominal current
15 A
- Nominal current - rounded value
15 A
- Height
15.3 mm
- Width
9.1 mm
- Length
3.8 mm
Documents & Downloads
Datasheet
Datasheet 3532629 iMaXX mikrOTO II FM2015 Automotive super mini blade-type fuse 15 A Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3532629 iMaXX mikrOTO II FM2015 Automotive super mini blade-type fuse 15 A Blue 1 pc(s)
Description
MICROTO II KFZ flat fuse 32 Vdc 15 A
