IMG Stageline DRIVE-08P Passive PA speaker 20 cm 8 inch 150 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

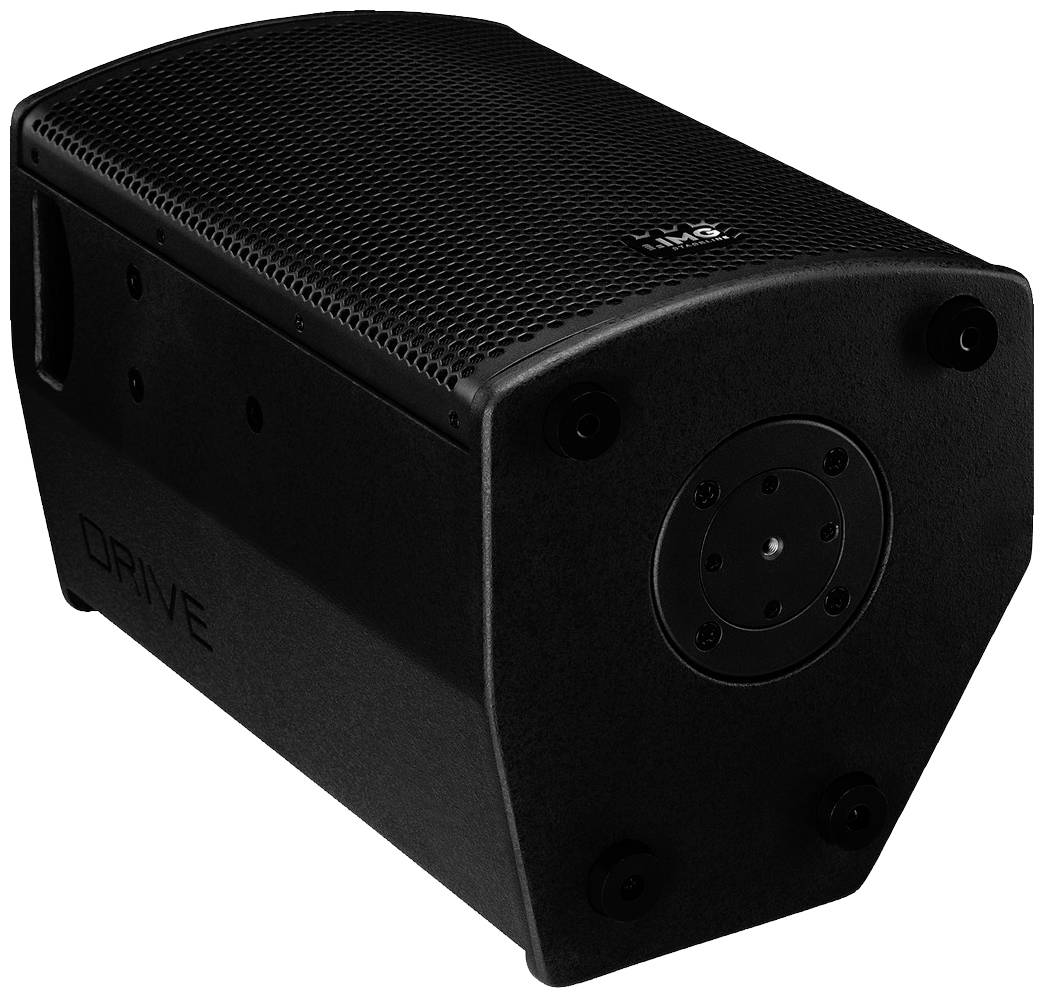

IMG Stageline DRIVE-08P professional PA speaker box, 300 W, black
- RMS capacity:150 W
- Max. load (W):300 W
- 8 inch
- 121 dB
Technical specifications

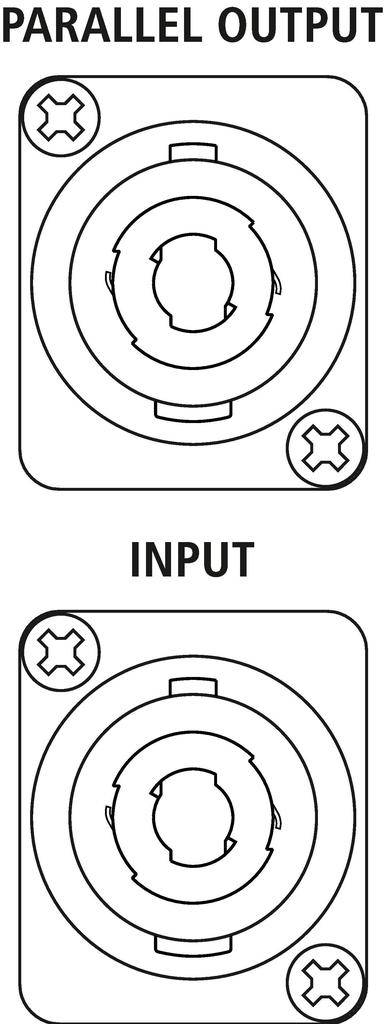

- System: 8/2-full rangeWoofer : 20 cm woofer (8")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Characteristic sound pressure 98 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Casing material: Birch plywoodMounting device: M8 threaded inserts, stand sleeveInputs : 1 X SPEAKER socketOutputs: 1 x SPEAKER socket par. Out
- Product type
Passive PA speaker
- Type
Passive, cable-bound
- RMS capacity
150 W
- Max. load
300 W
- Speaker size (cm)
20 cm
- Speaker size (inch)
8 inch
- Impedance
8 Ω
- Max. sound pressure
121 dB
- Frequency range
60 - 20000 Hz
- Dim
(W x H x D) 27 x 46 x 29 cm
- Weight
8.43 kg
- Content
1 pc(s)
- Width
27 cm
- Height
46 cm
- Depth
29 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584160 IMG Stageline DRIVE-08P Passive PA speaker 20 cm 8 inch 150 W 1 pc(s)
Description
With the passive speakers of the DRIVE series, they are provided with versatile, easy-to-use and robust PA loudspeakers. The high-quality birch plywood housings are robust enough for everyday use and are easy to handle due to the arrangement of the handles. This model offers a compact 8/2 full range system consisting of a 20 cm (8") bass and a 25 mm (1") horn tweeter. It has two SPEAKER terminals IN/OUT connections. Mounting is possible with the M8 threaded insert.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x DRIVE-08P Passive professional PA speaker box
