IMG Stageline DRIVE-10A Active PA speaker 25 cm 10 inch 200 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

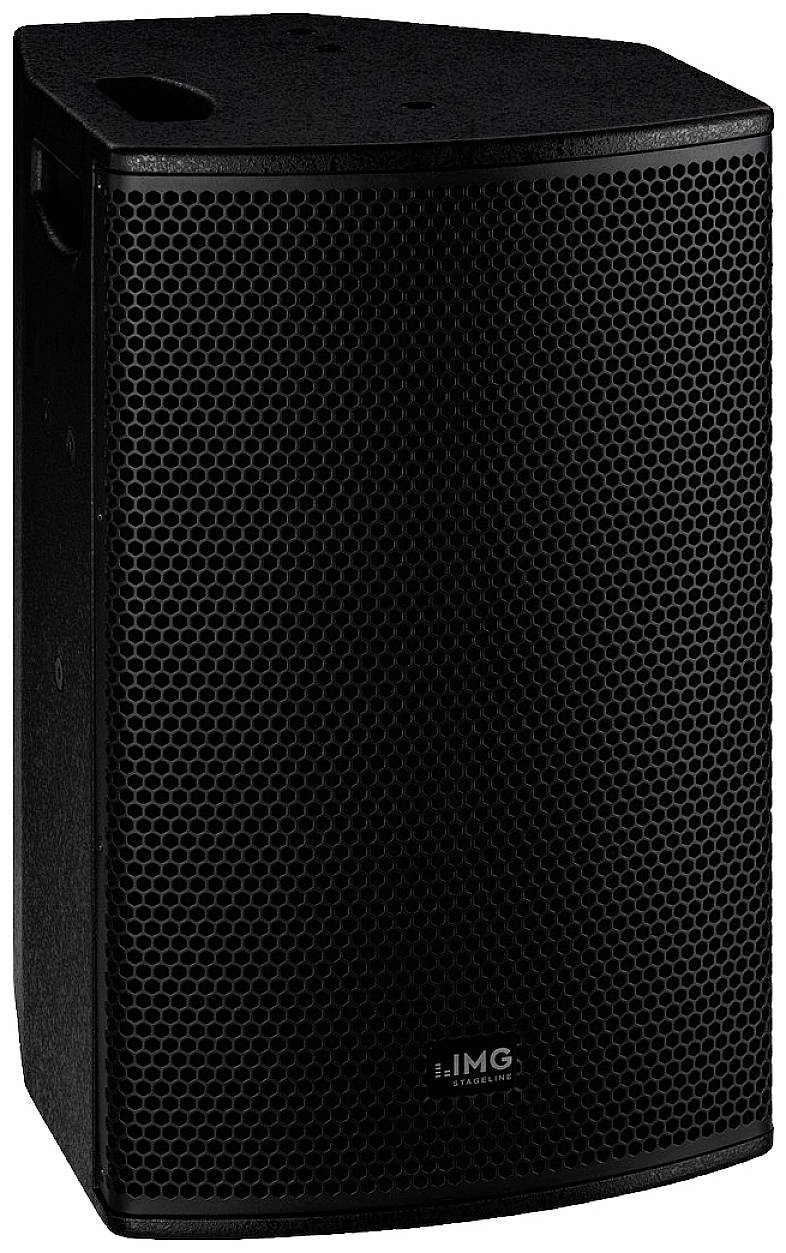

IMG Stageline DRIVE-10A active professional DSP speaker box with 2-channel amplifier, 200 W, black
- RMS power:200 W
- Max. power:400 W
- 10 inch
- 123 dB
Technical specifications

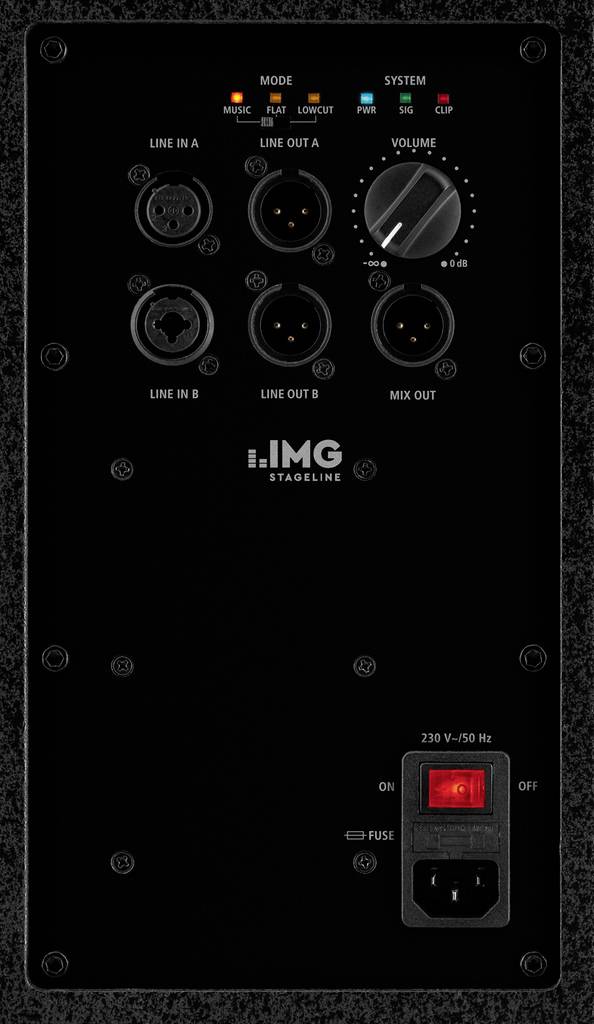

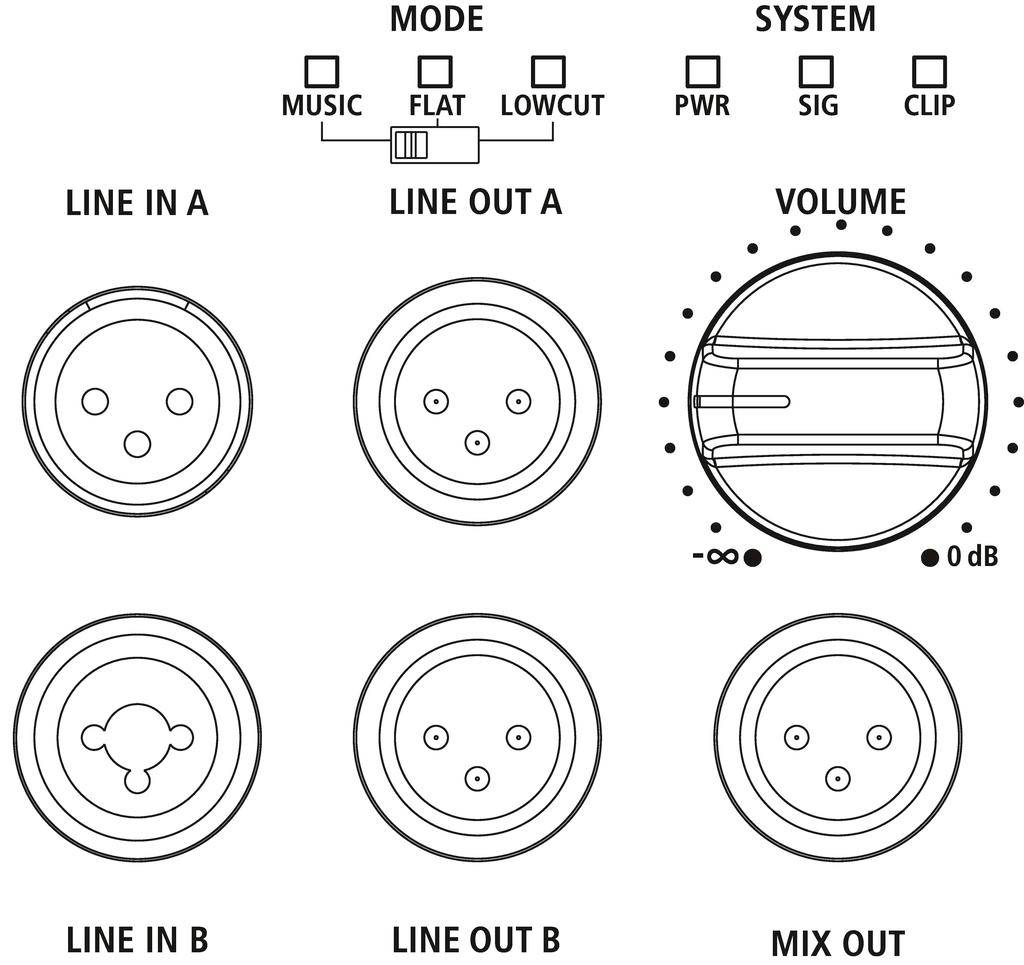

- Output power (total) : 400 W.Nominal power: DSP-controlled 200 W (140 + 60), low tone 140 W, high tone 60 W.Input signal 790 mV/40 kΩ (line, sym.)System: 10/2-full rangeWoofer : 25 cm woofer (10")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Characteristic sound pressure 98 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Casing material: Birch plywoodMounting device: M8 threaded inserts, stand sleevePower supply : ~ 230 V/50 Hz/350 VAInputs: 1 x XLR/6.3 mm combo: Line, 1 x XLR: LineOutputs : 2 x XLR par. Out, 1 x XLR Mix-OutOther: DSP-controlled limiter, 3 selectable presets
- Product type
Active PA speaker
- Type
Active, cable-bound
- RMS power
200 W
- Max. power
400 W
- Speaker size (cm)
25 cm
- Speaker size (inch)
10 inch
- Max. sound pressure
123 dB
- Interfaces
XLR out
XLR in
- Dim
(W x H x D) 320 x 530 x 350 mm
- Frequency range
55 - 20 000 Hz
- Weight
12.18 kg
- Content
1 pc(s)
- Width
320 mm
- Height
530 mm
- Depth
350 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584161 IMG Stageline DRIVE-10A Active PA speaker 25 cm 10 inch 200 W 1 pc(s)
Description

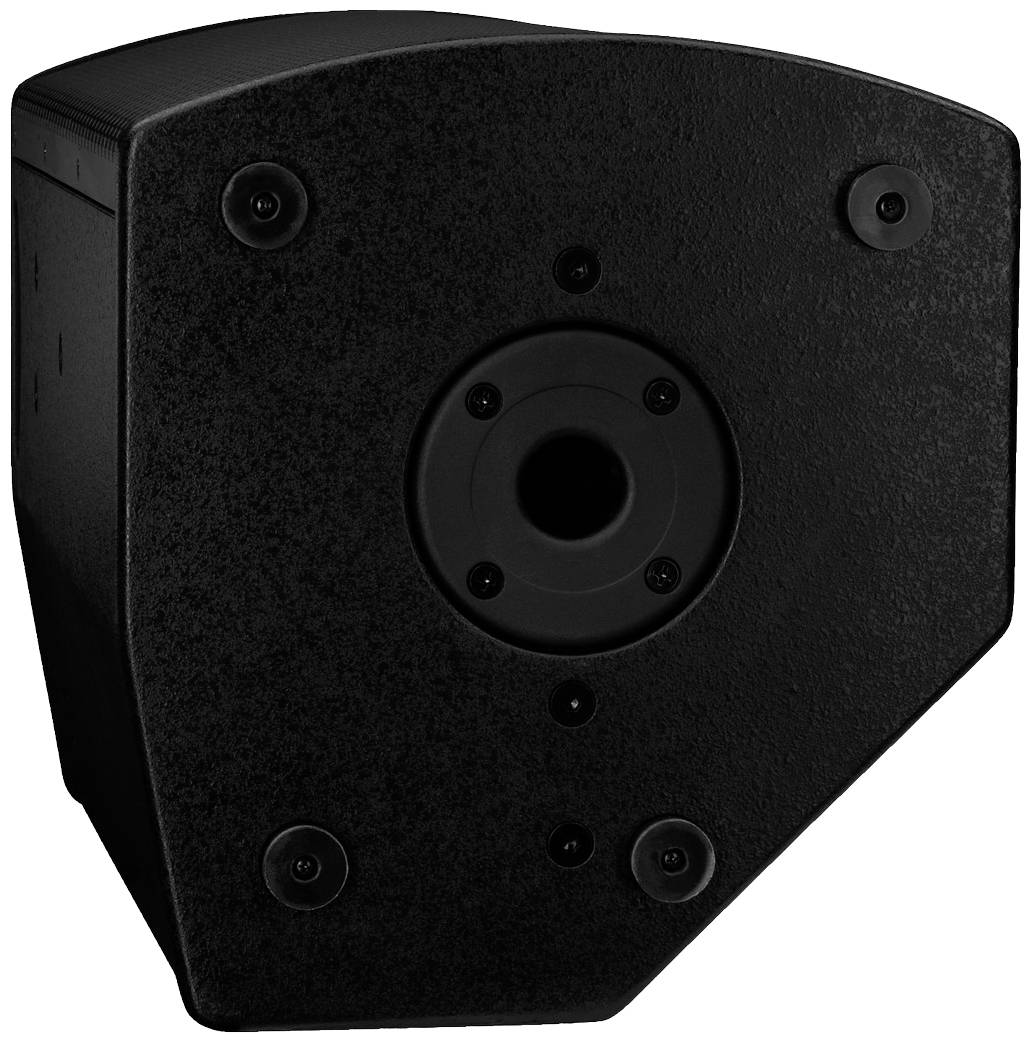

With the DRIVE series, they receive versatile, easy-to-use and robust PA loudspeakers with the latest DSP-controlled amplifier technology. With the selectable 3 presets, the suitable sound tuning is available for each application. The high-quality birch plywood housings are robust enough for everyday use and are easy to handle due to the arrangement of the handles. This model offers a compact, active 10/2 full range system consisting of a 25 cm (10") bass, a 25 mm (1") horn tweeter and a 2 channel amplifier. It has 2 line-in, 2 line-out and 1 mix-out connections. Mounting is possible with the M8 threaded insert.
This text is machine translated.
This text is machine translated.
Features
- 3 selectable presets: FLAT (linear tuning); MUSIC (slightly raised bass and treble); LOW CUT (with high pass for use with additional subwoofer)
Scope of delivery
- 1x DRIVE-10A active professional PA speaker box
