IMG Stageline DRIVE-10P Passive PA speaker 25 cm 10 inch 200 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
IMG Stageline DRIVE-10P Pro PA speaker box, 400 W, black
- RMS capacity:200 W
- Max. load (W):400 W
- 10 inch
- 123 dB
Technical specifications

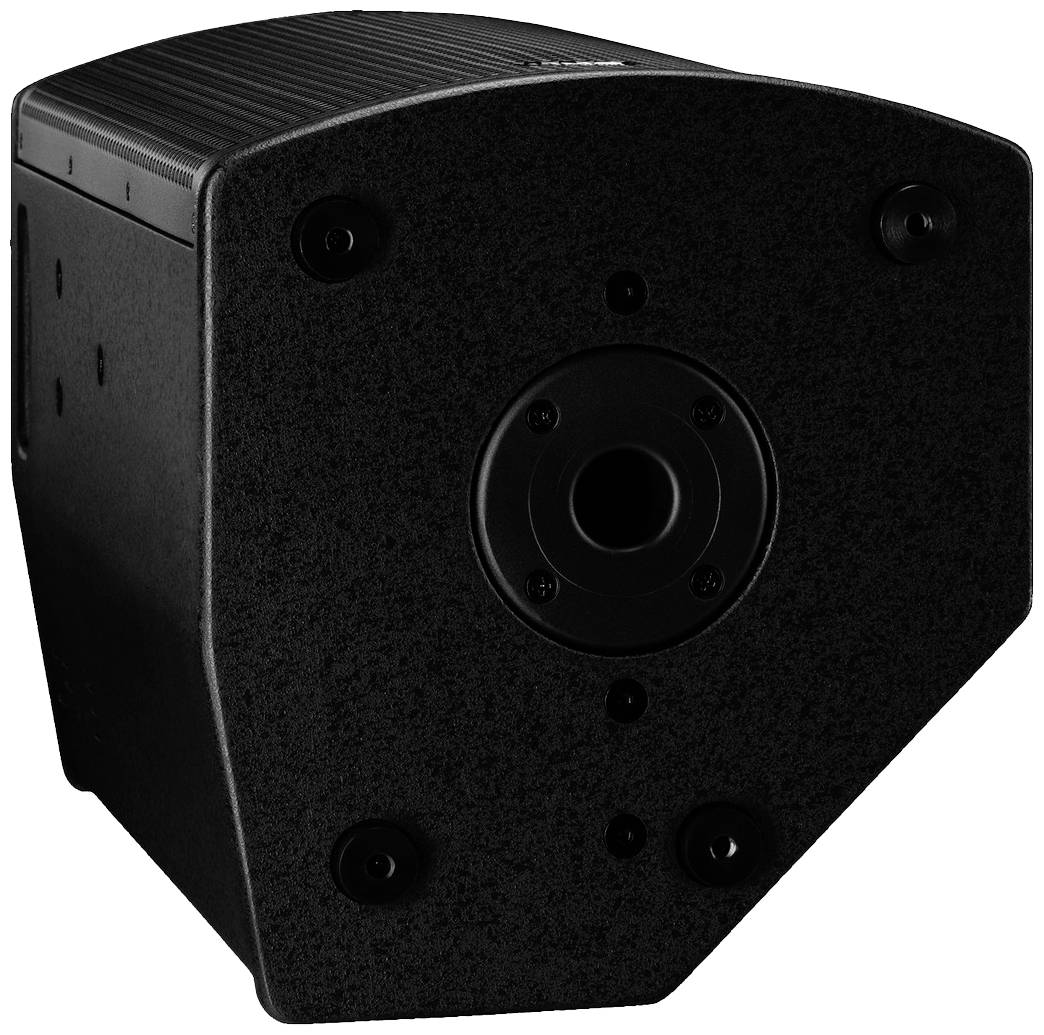

- System: 10/2-full rangeWoofer : 25 cm woofer (10")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Characteristic sound pressure 98 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Casing material: Birch plywoodMounting device: M8 threaded inserts, stand sleeveInputs : 1 X SPEAKER socketOutputs: 1 x SPEAKER socket par. Out
- Product type
Passive PA speaker
- Type
Passive, cable-bound
- RMS capacity
200 W
- Max. load
400 W
- Speaker size (cm)
25 cm
- Speaker size (inch)
10 inch
- Impedance
8 Ω
- Max. sound pressure
123 dB
- Frequency range
55 - 20 000 Hz
- Dim
(W x H x D) 32 x 53 x 35 cm
- Weight
11.25 kg
- Content
1 pc(s)
- Width
32 cm
- Height
53 cm
- Depth
35 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584162 IMG Stageline DRIVE-10P Passive PA speaker 25 cm 10 inch 200 W 1 pc(s)
Description

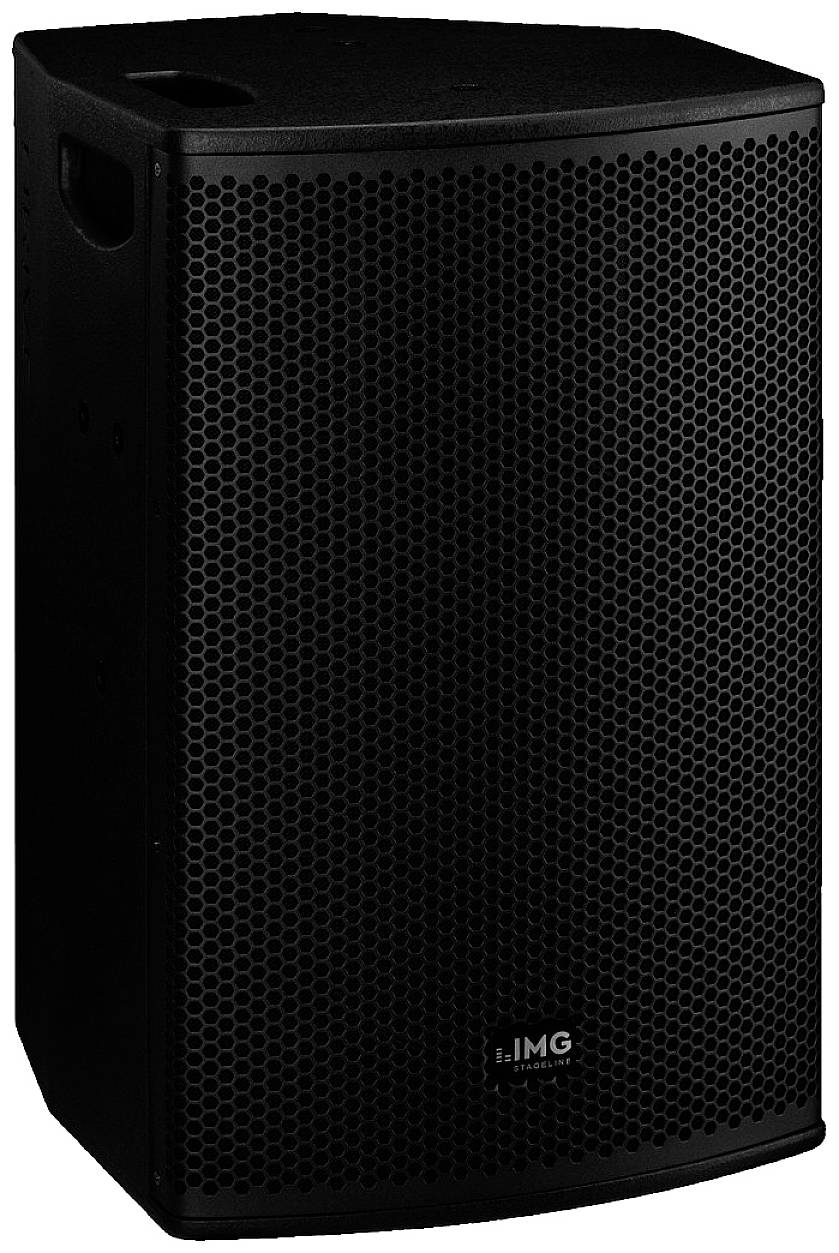

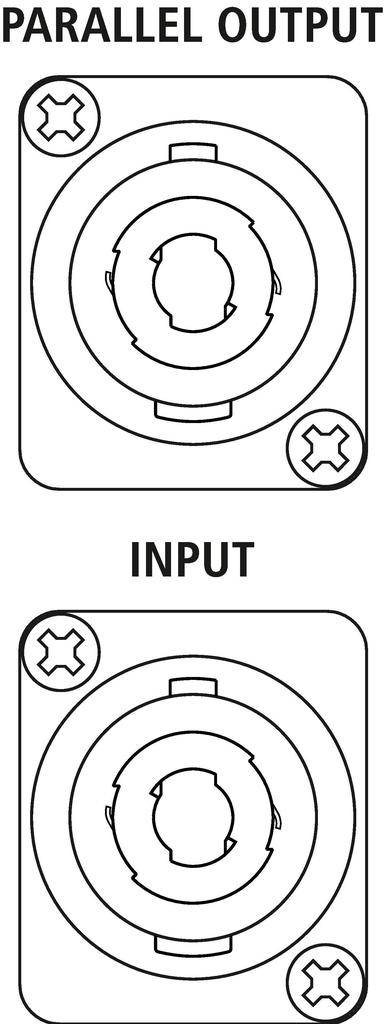

With the passive speakers of the DRIVE series, they are provided with versatile, easy-to-use and robust PA loudspeakers. The high-quality birch plywood housings are robust enough for everyday use and are easy to handle due to the arrangement of the handles. This model offers a compact 10/2 full range system consisting of a 25 cm (10") bass and a 25 mm (1") horn tweeter. It has two SPEAKER terminals IN/OUT connections. Mounting is possible with the M8 threaded insert.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x DRIVE-10P Passive professional PA speaker box
