IMG Stageline DRIVE-12A Active PA speaker 30 cm 12 inch 350 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

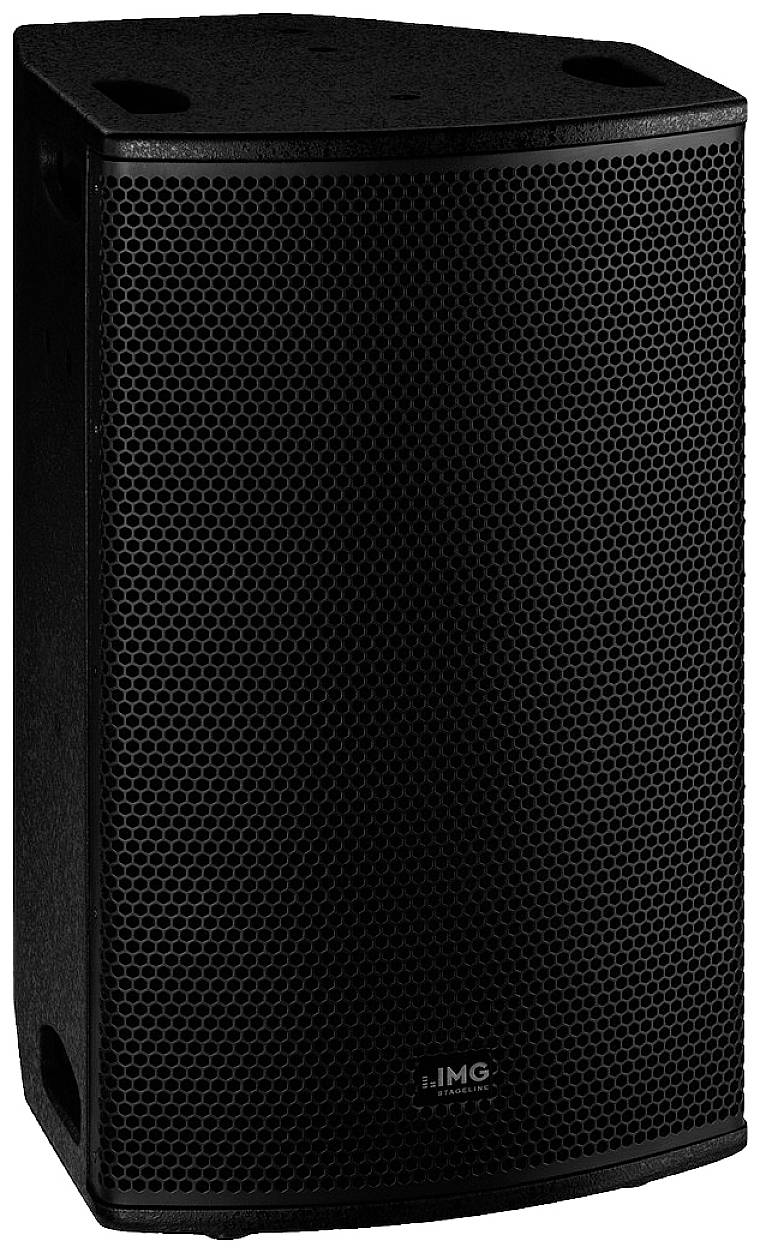

IMG Stageline DRIVE-12A active professional DSP speaker box with 2-channel amplifier, 350 W, black
- RMS power:350 W
- Max. power:700 W
- 12 inch
- 124 dB
Technical specifications
- Output power (total) 700 W.Nominal power: DSP-controlled 350 W (290 + 60), low tone 290 W, high tone 60 W.Input signal 790 mV/40 kΩ (line, sym.)System: 12/2-full rangeWoofer : 30 cm woofer (12")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Characteristic sound pressure 98 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Casing material: Birch plywoodMounting device: M8 threaded inserts, stand sleevePower supply : ~ 230 V/50 Hz/510 VAInputs: 1 x XLR/6.3 mm combo: Line, 1 x XLR: LineOutputs : 2 x XLR par. Out, 1 x XLR Mix-OutOther: DSP-controlled limiter, 3 selectable presets
- Product type
Active PA speaker
- Type
Active, cable-bound
- RMS power
350 W
- Max. power
700 W
- Speaker size (cm)
30 cm
- Speaker size (inch)
12 inch
- Max. sound pressure
124 dB
- Interfaces
XLR out
XLR in
- Dim
(W x H x D) 360 x 620 x 380 mm
- Frequency range
45 - 20000 Hz
- Weight
17.04 kg
- Content
1 pc(s)
- Width
360 mm
- Height
620 mm
- Depth
380 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584163 IMG Stageline DRIVE-12A Active PA speaker 30 cm 12 inch 350 W 1 pc(s)
Description

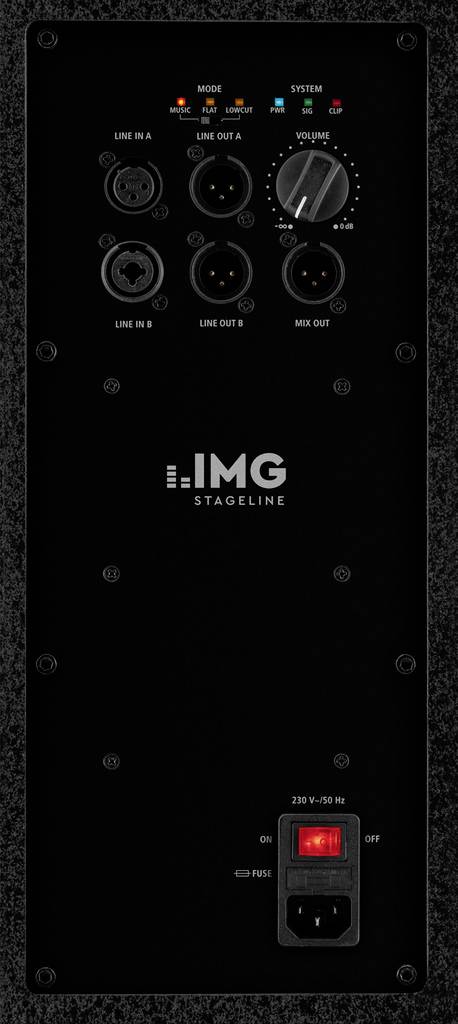

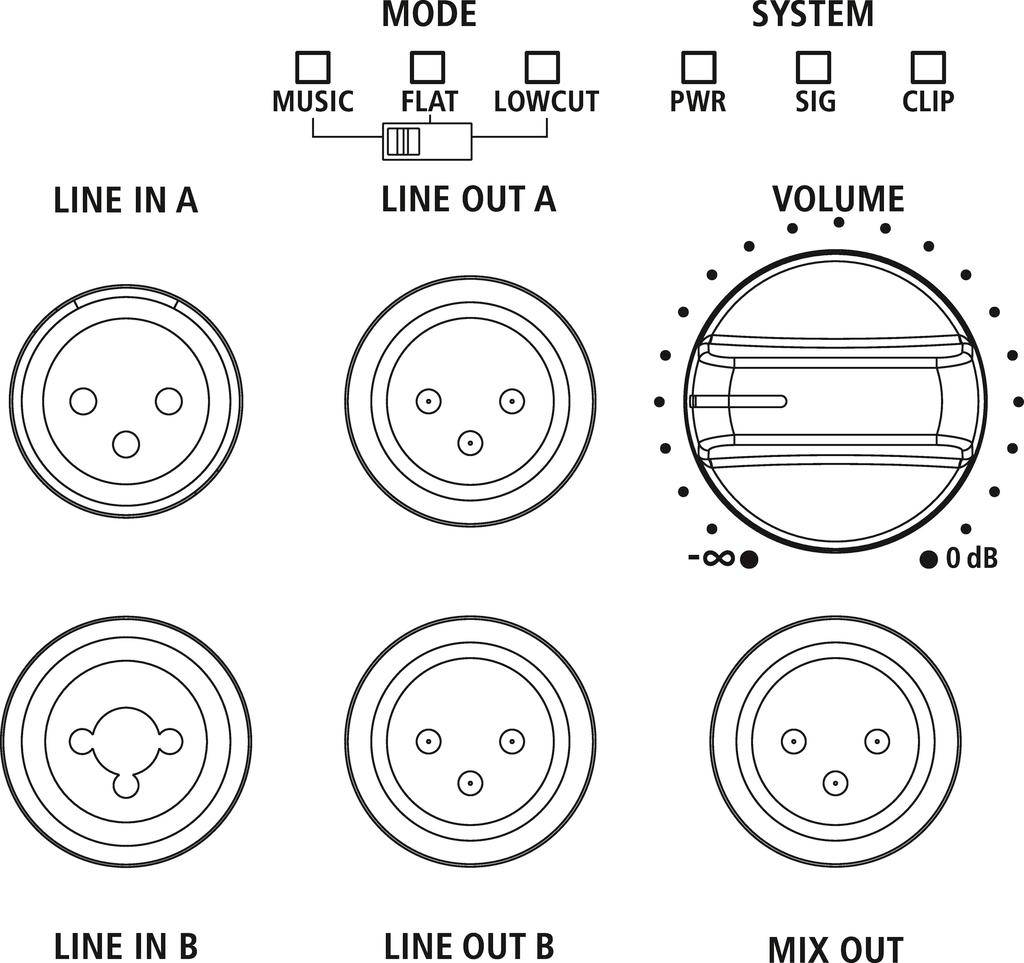

DRIVE-12A active professional DSP speaker box with 2-channel amplifier, 350 W, black: With the DRIVE series, you get versatile, easy-to-use and robust PA speakers with the latest DSP-controlled amplifier technology. With the selectable 3 presets, the suitable sound tuning is available for each application. The high-quality birch plywood housings are robust enough for everyday use and are easy to handle due to the arrangement of the handles. This model offers a compact, active 12/2 full range system consisting of a 30 cm (12") bass, a 25 mm (1") horn tweeter and a 2-channel amplifier. It has 2 line-in, 2 line-out and 1 mix-out connections. Mounting is possible with the M8 threaded insert.
This text is machine translated.
This text is machine translated.
Features
- 3 selectable presets: FLAT (linear tuning); MUSIC (slightly raised bass and treble); LOW CUT (with high pass for use with additional subwoofer)
Scope of delivery
- 1x DRIVE-12A active professional DSP speaker box
