IMG Stageline DRIVE-12P Passive PA speaker 30 cm 12 inch 250 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

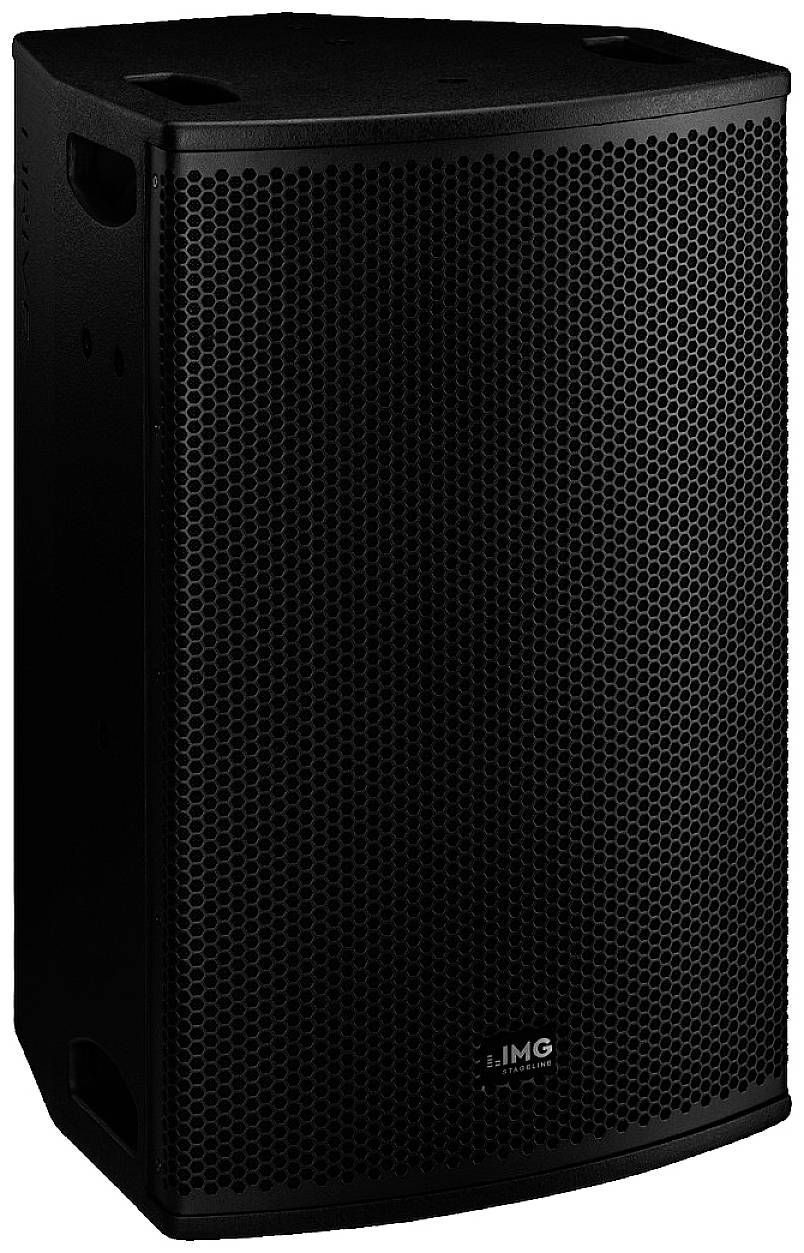

IMG Stageline DRIVE-12P professional PA speaker box, 500 W, black
- RMS capacity:250 W
- Max. load (W):500 W
- 12 inch
- 123 dB
Technical specifications

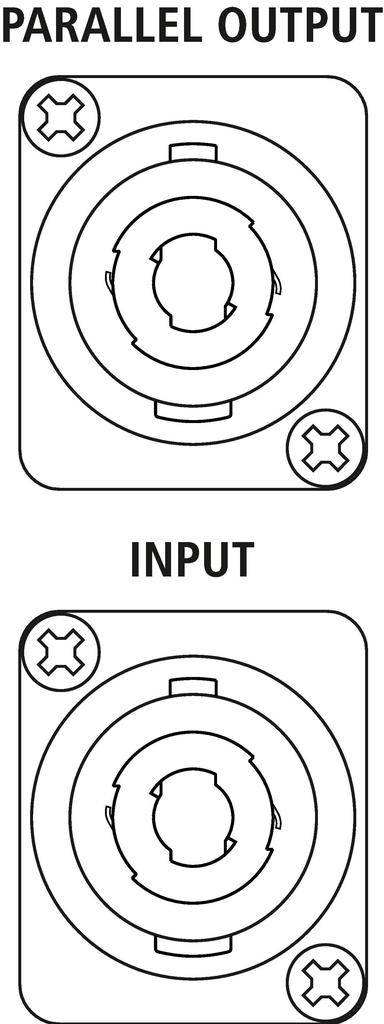

- System: 12/2-full rangeWoofer : 30 cm woofer (12")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Characteristic sound pressure 98 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Casing material: Birch plywoodMounting device: M8 threaded inserts, stand sleeveInputs : 1 X SPEAKER socketOutputs: 1 x SPEAKER socket par. Out
- Product type
Passive PA speaker
- Type
Passive, cable-bound
- RMS capacity
250 W
- Max. load
500 W
- Speaker size (cm)
30 cm
- Speaker size (inch)
12 inch
- Impedance
8 Ω
- Max. sound pressure
123 dB
- Frequency range
45 - 20000 Hz
- Dim
(W x H x D) 36 x 62 x 38 cm
- Weight
15.9 kg
- Content
1 pc(s)
- Width
36 cm
- Height
62 cm
- Depth
38 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584164 IMG Stageline DRIVE-12P Passive PA speaker 30 cm 12 inch 250 W 1 pc(s)
Description

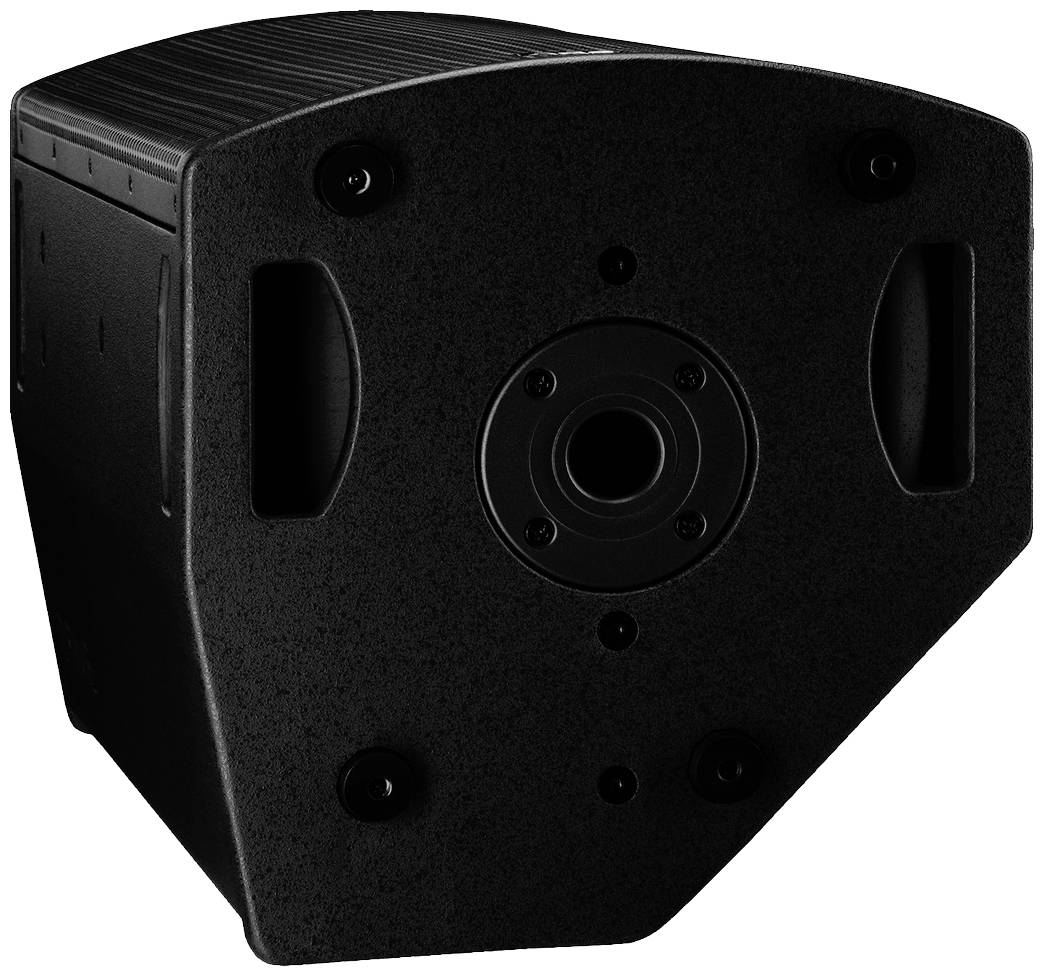

With the passive speakers of the DRIVE series, they are provided with versatile, easy-to-use and robust PA loudspeakers. The high-quality birch plywood housings are robust enough for everyday use and are easy to handle due to the arrangement of the handles. This model offers a compact 12/2 full range system consisting of a 30 cm (12") bass and a 25 mm (1") horn tweeter. It has two SPEAKER terminals IN/OUT connections. Mounting is possible with the M8 threaded insert.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x DRIVE-12P Passive professional PA speaker box
