IMG Stageline DRIVE-15A Active PA speaker 38 cm 15 inch 360 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

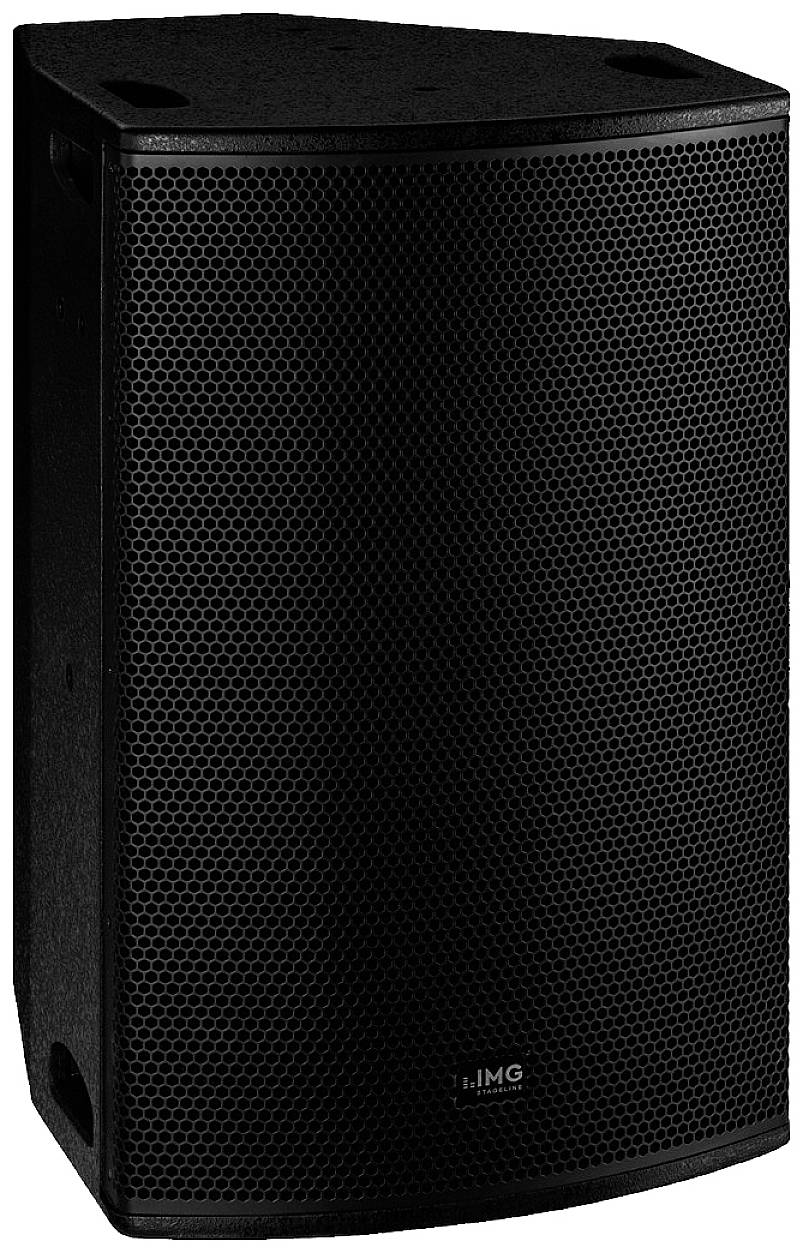

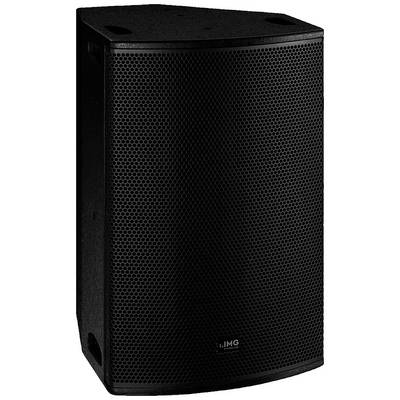

IMG Stageline DRIVE-15A active professional DSP speaker box with 2-channel amplifier, 360 W, black
- RMS power:360 W
- Max. power:750 W
- 15 inch
- 125 dB
Technical specifications

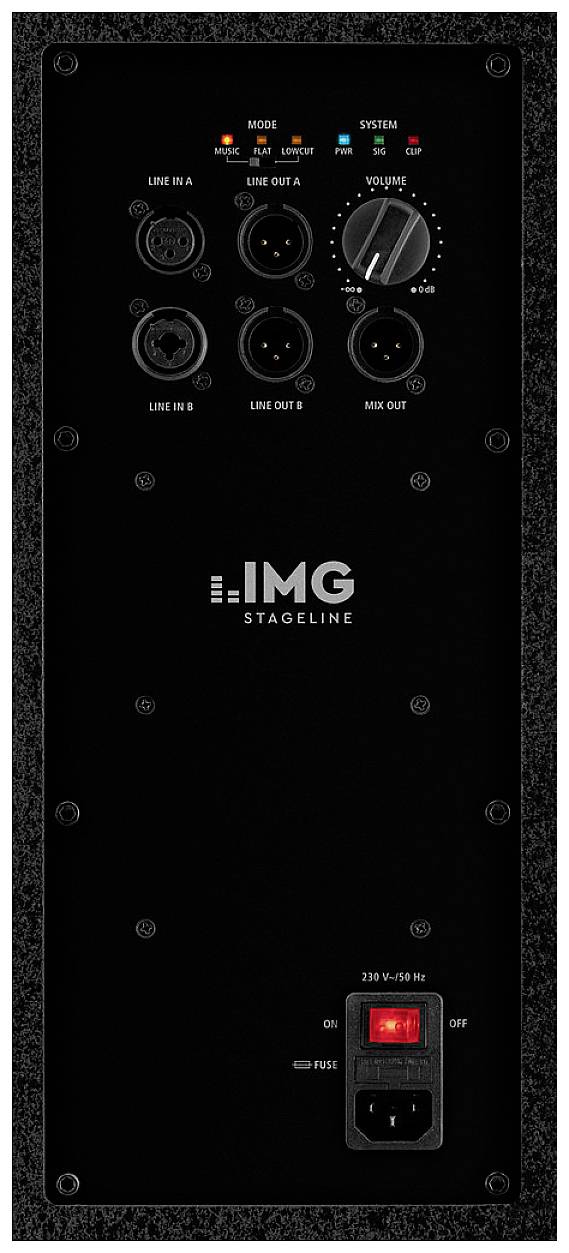

- Output power (total) 750 WRated power: DSP-controlled 360 W (300 + 60), bass 300 W, treble 60 W.Input signal 790 mV/40 kΩ (line, sym.)System: 15/2-full rangeWoofer : 38 cm woofer (15")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Characteristic sound pressure 98 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Casing material: Birch plywoodMounting device: M8 threaded inserts, stand sleevePower supply : ~ 230 V/50 Hz/550 VAInputs: 1 x XLR/6.3 mm combo: Line, 1 x XLR: LineOutputs : 2 x XLR par. Out, 1 x XLR Mix-OutOther: DSP-controlled limiter, 3 selectable presets
- Product type
Active PA speaker
- Type
Active, cable-bound
- RMS power
360 W
- Max. power
750 W
- Speaker size (cm)
38 cm
- Speaker size (inch)
15 inch
- Max. sound pressure
125 dB
- Interfaces
XLR out
XLR in
- Dim
(W x H x D) 415 x 695 x 455 mm
- Frequency range
40 - 20000 Hz
- Weight
22.04 kg
- Content
1 pc(s)
- Width
415 mm
- Height
695 mm
- Depth
455 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584165 IMG Stageline DRIVE-15A Active PA speaker 38 cm 15 inch 360 W 1 pc(s)
Description

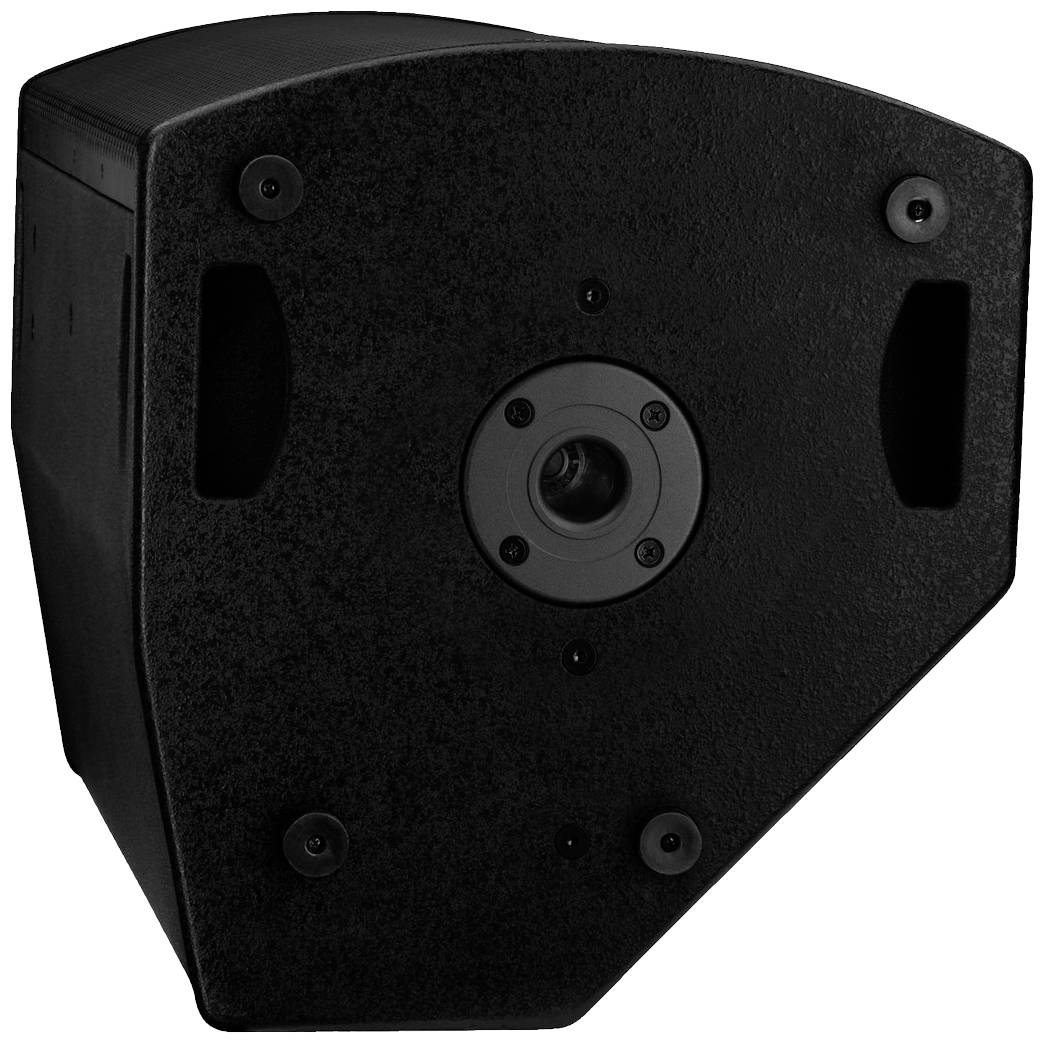

With the DRIVE series, they receive versatile, easy-to-use and robust PA loudspeakers with the latest DSP-controlled amplifier technology. With the selectable 3 presets, the suitable sound tuning is available for each application. The high-quality birch plywood housings are robust enough for everyday use and are easy to handle due to the arrangement of the handles. This model offers a compact, active 15/2 full range system consisting of a 38 cm (15") bass, a 25 mm (1") horn tweeter and a 2 channel amplifier. It has 2 line-in, 2 line-out and 1 mix-out connections. Mounting is possible with the M8 threaded insert.
This text is machine translated.
This text is machine translated.
Features

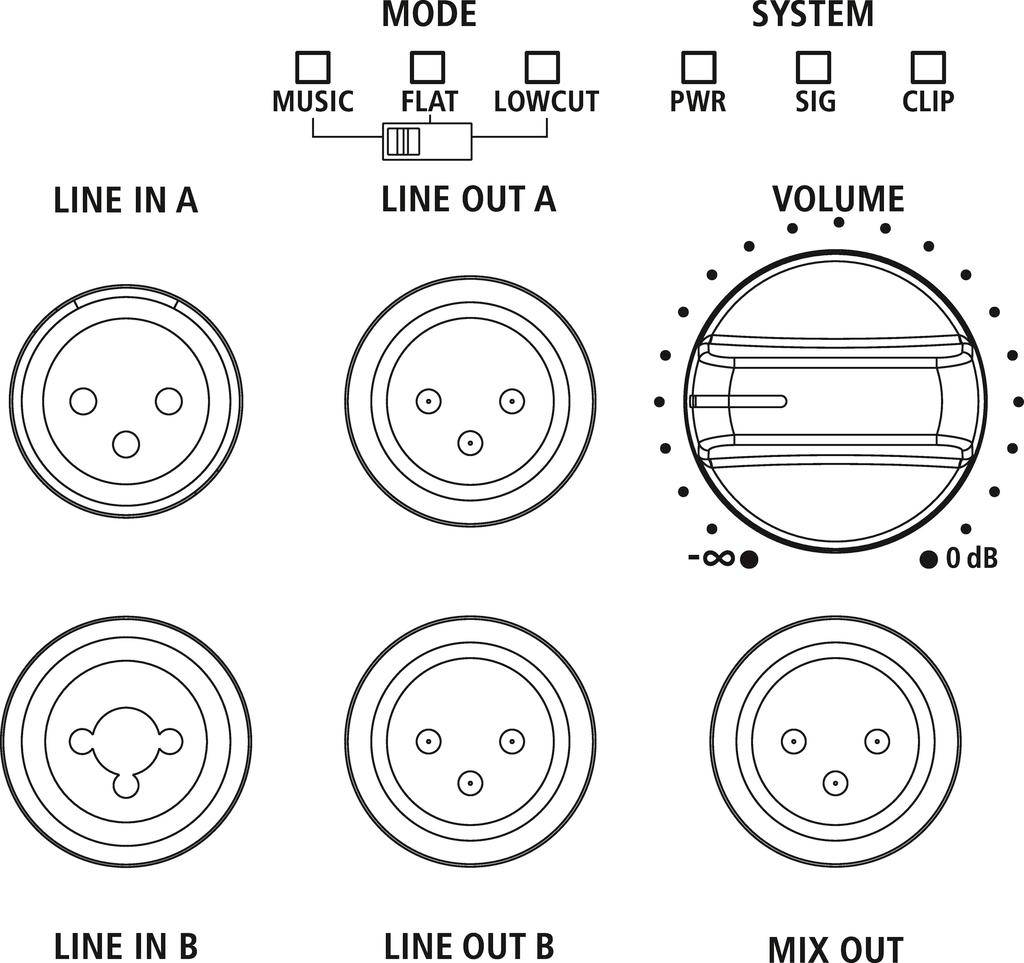

- 3 selectable presets: FLAT (linear tuning); MUSIC (slightly raised bass and treble); LOW CUT (with high pass for use with additional subwoofer)
Scope of delivery
- 1x DRIVE-15A active professional DSP speaker box
