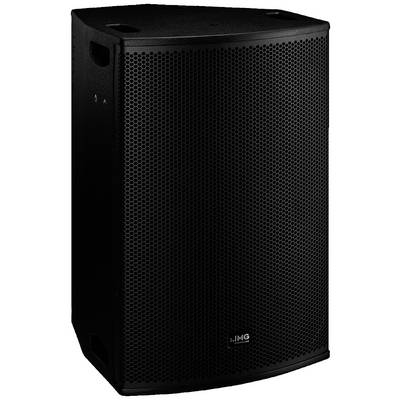

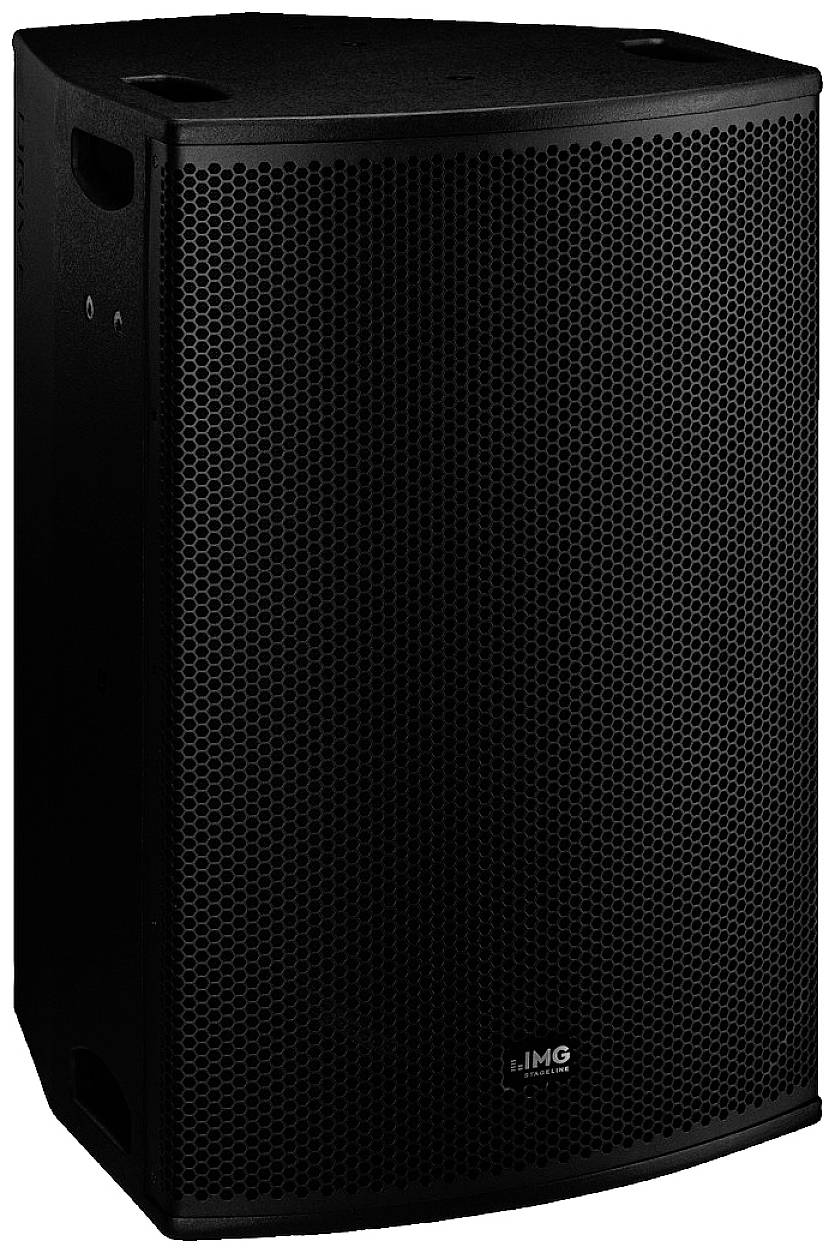

IMG Stageline DRIVE-15P Passive PA speaker 38 cm 15 inch 350 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
IMG Stageline DRIVE-15P professional PA speaker box, 700 W, black
- RMS capacity:350 W
- Max. load (W):700 W
- 15 inch
- 124 dB
Technical specifications

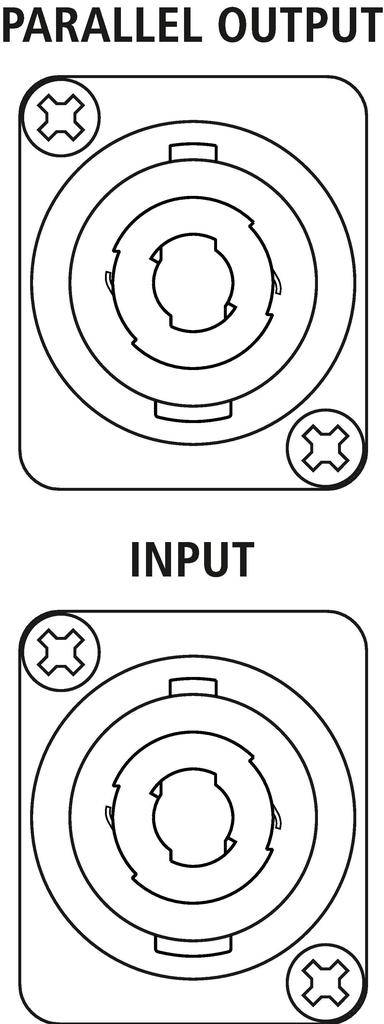

- System: 15/2-full rangeWoofer : 38 cm woofer (15")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Characteristic sound pressure 98 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Casing material: Birch plywoodMounting device: M8 threaded inserts, stand sleeveInputs : 1 X SPEAKER socketOutputs: 1 x SPEAKER socket par. Out
- Product type
Passive PA speaker
- Type
Passive, cable-bound
- RMS capacity
350 W
- Max. load
700 W
- Speaker size (cm)
38 cm
- Speaker size (inch)
15 inch
- Impedance
8 Ω
- Max. sound pressure
124 dB
- Frequency range
40 - 20000 Hz
- Dim
(W x H x D) 41.5 x 69.5 x 45.5 cm
- Weight
20.72 kg
- Content
1 pc(s)
- Width
41.5 cm
- Height
69.5 cm
- Depth
45.5 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584166 IMG Stageline DRIVE-15P Passive PA speaker 38 cm 15 inch 350 W 1 pc(s)
Description

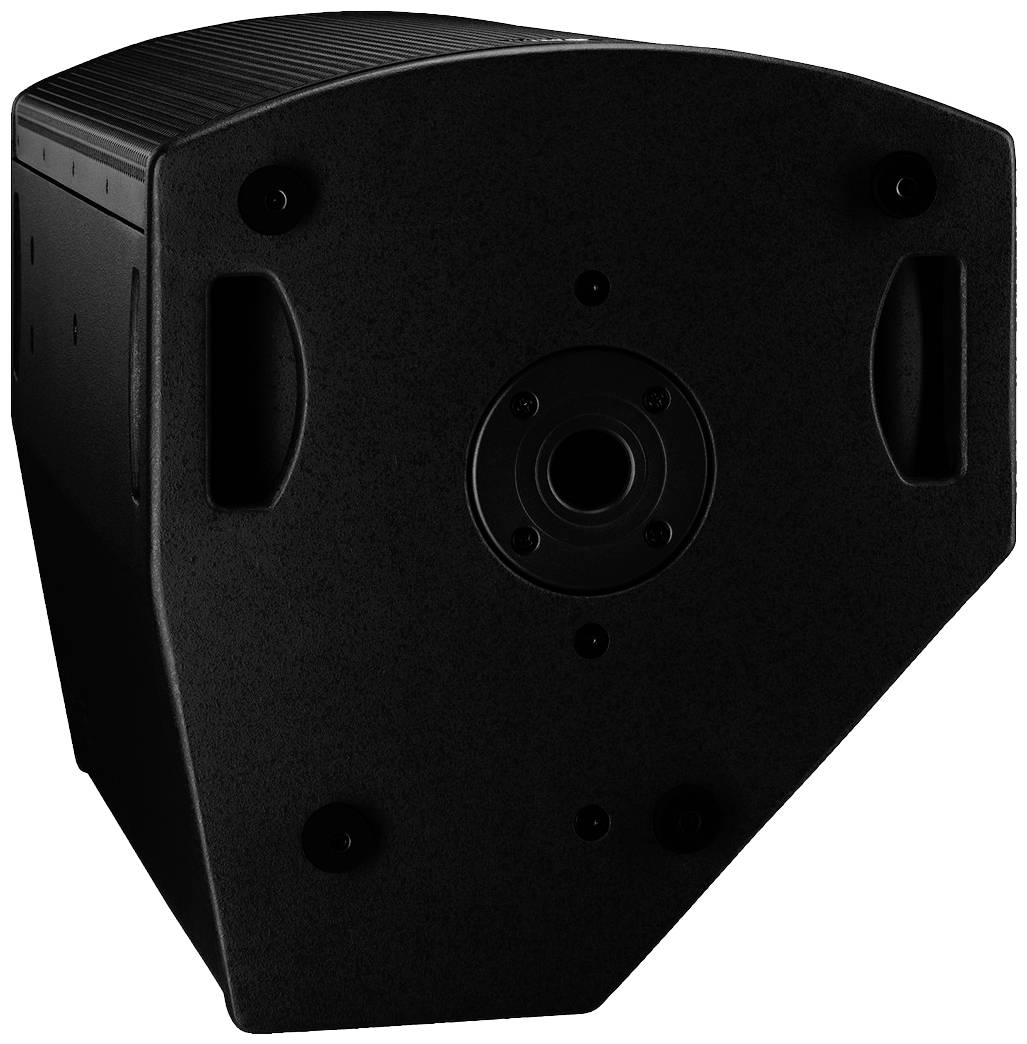

With the passive speakers of the DRIVE series, they are provided with versatile, easy-to-use and robust PA loudspeakers. The high-quality birch plywood housings are robust enough for everyday use and are easy to handle due to the arrangement of the handles. This model offers a compact 15/2 full range system consisting of a 38 cm (15") bass and a 25 mm (1") horn tweeter. It has two SPEAKER terminals IN/OUT connections. Mounting is possible with the M8 threaded insert.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x DRIVE-15P Passive professional PA speaker box
