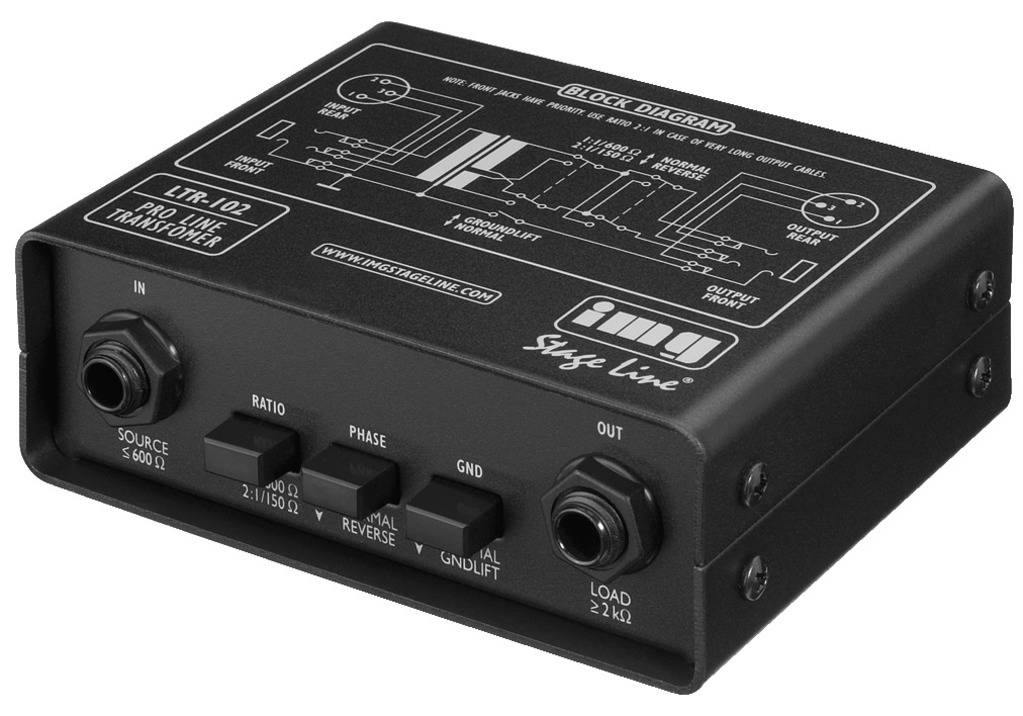

IMG Stageline LTR-102 Line transformer Line transformer
EAN:
Part number:
Item no:
Technical specifications
- Frequency range: 20-2 5000 Hz
- Transmission ratio: 1:1/2:1
- Input impedance: 600 Ohms
- Output impedance: 600 Ohms / 150 Ohm
- Optimum Source Impedance: 50-600 ohm
- Optimal Load Impedance:>=2 kOhm
- Max. Input voltage (1% distortion factor/40 Hz): 5 V
- Dimensions: 120 x 44 x 90 mm
- Weight: 0.6 kg
- Inputs: 1 x 6.3 mm jack, bal. 1 x XLR, bal.
- Outputs: 1 x 6.3 mm jack, bal. 1 x XLR, bal.
- Product type
Line transformer
n.rel.
- Dim
(L x W x H) 90 x 120 x 44 mm
- Weight
600 g
- Width
120 mm
- Height
44 mm
- Length
90 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331976 IMG Stageline LTR-102 Line transformer Line transformer
Description
Features
- Line transformers for optimal signal transmission of line devices to the mixer or amplifier. Interference caused by adjustment problems such as Ground loops are largely avoided by using a transformer coupling. Input and output are galvanically isolated. All inputs and outputs can be via 6.3 mm jack and XLR connectors can be used in both balanced and unbalanced. Line transformer
- Balanced and unbalanced inputs and outputs
- Output impedance can be switched to 1:1/600 ohms to 2:1/15 0 Ohm
- Phase position can be switched from 0° to 180°
- Ground-lift switch
- Mid symmetrical transducers
- Sturdy metal casing production partner 03/2013 cheaper line transformer. The processing and measured values of the LTR-102 are very tidy.
