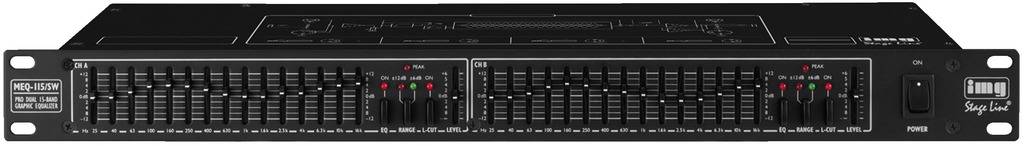

IMG Stageline MEQ-115/SW 2-channel 19" EQ
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 20-20000 Hz
- Control range: switchable +/-6/+/-12 dB
- 2 x 25/40/63/100/160 Control Frequencies:/400/630 Hz/1/1, 6/2, 5/4/6.3/10/16 kHz
- Low Cut: 20 Hz / -3 dB
- Inputs: 0.775V/50 kOhm
- Outputs: 0.775V/600 Ohm
- Signal-to-noise ratio S/N: 66 dB
- Distortion:< 0.1%
- Power supply 230 VWechsel/50Hz/6VA
- Permissible operating temperature: 0-40°C
- Dimensions: 482 x 44.5 x 165 mm, 1 HE
- Weight: 2.5 kg
- Product type
19" EQ
- No. of channels
2-channel
- Interfaces
6.3 mm jack out
6.3 mm jack in
XLR out
XLR in
- Width
48.2 cm
- Depth
16.5 cm
- Height
4.45 cm
- Dim
(W x H x D) 48.2 x 4.45 x 16.5 cm
- Weight
2.5 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332034 IMG Stageline MEQ-115/SW 2-channel 19" EQ
User & Safety Instructions 1332034 IMG Stageline MEQ-115/SW 2-channel 19" EQ
Description
Features
- Graphic Equaliser
- 2-channel version, 2 x 15 frequency control in the 2/3 octave distance
- Range of control switchable +/-6/+/-12 dB
- Peak display
- Switchable footfall filter (Low Cut)
- Control for total volume
- Bypass and ground lift switch
- Frequency control with center detent
- Inputs and outputs each with 2 x XLR and 2 x 6.3 mm jack
- This text is machine translated.
