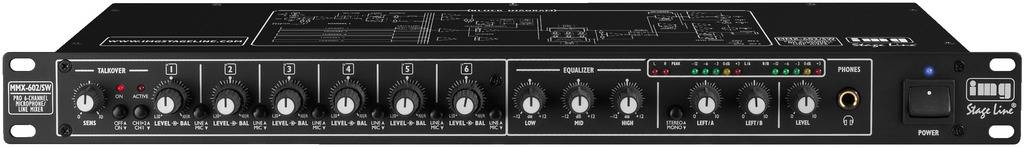

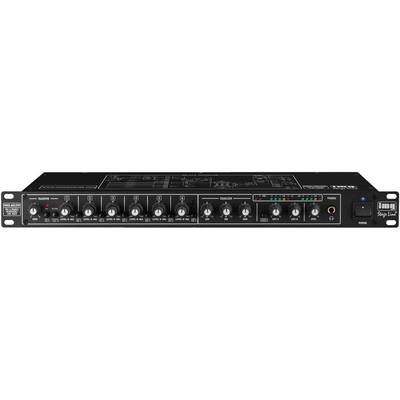

IMG Stageline MMX-602/SW Microphone mixer
EAN:
Part number:
Item no:
Technical specifications
- Line input, stereo: 100 mV/10 kOhm
- Microphone input: 1mV/6.6 kOhm
- Master output, stereo: 1 V/600 Ohm
- Record output, stereo: 310 mV/600 Ohm
- Headphones, stereo:> 8 Ohm
- Frequency range 20-20000 Hz
- 0.1 % distortion factor
- Signal-to-noise ratio: 62 dB, unfinished evaluates
- Sound controller, Depth: +/-12 dB/50 Hz
- Sound controller, the middle: +/-12 dB/1 kHz
- Sound controller, High: +/-12 dB/10 kHz
- Power supply 230 VWechsel/50 Hz/12 VA
- Permissible operating temperature: 0-40°C
- Dimensions: 482 x 47 x 208 mm, 1 HE
- Weight: 2.8 kg
- Line input, stereo: 6 x RCA L/R
- Microphone input: 6x XLR, bal.
- Master output, stereo: 1 x RCA L/R, 1 x XLR L/R, sym.
- Record output, stereo: 1 x RCA L/R
- Headphones: 1 x 6.3 mm jack
- Product type
Microphone mixer
- Factory colour
Black
- Dim
(W x H) 482 mm x 47 mm
- Weight
2.8 kg
- Width
482 mm
- Height
47 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332126 IMG Stageline MMX-602/SW Microphone mixer
User & Safety Instructions 1332126 IMG Stageline MMX-602/SW Microphone mixer
Description
Features
- Microphone line mixer, 6 channels
- 6 stereo line inputs, 6 balanced mono microphone inputs, switchable
- Adjustable Auto-talkover (-12 dB), switchable for channel 1 or channel 1+2
- Balance control for the stereo input channels
- 3-way tone control
- 12-V-Phantom power can be activated
- LED VU meter, Peak-LED
- Master- and record output
- Output can be switched stereo/mono
- Adjustable headphone output
- 482-mm-Rack Installation (19"), 1 HE
- This text is machine translated.
