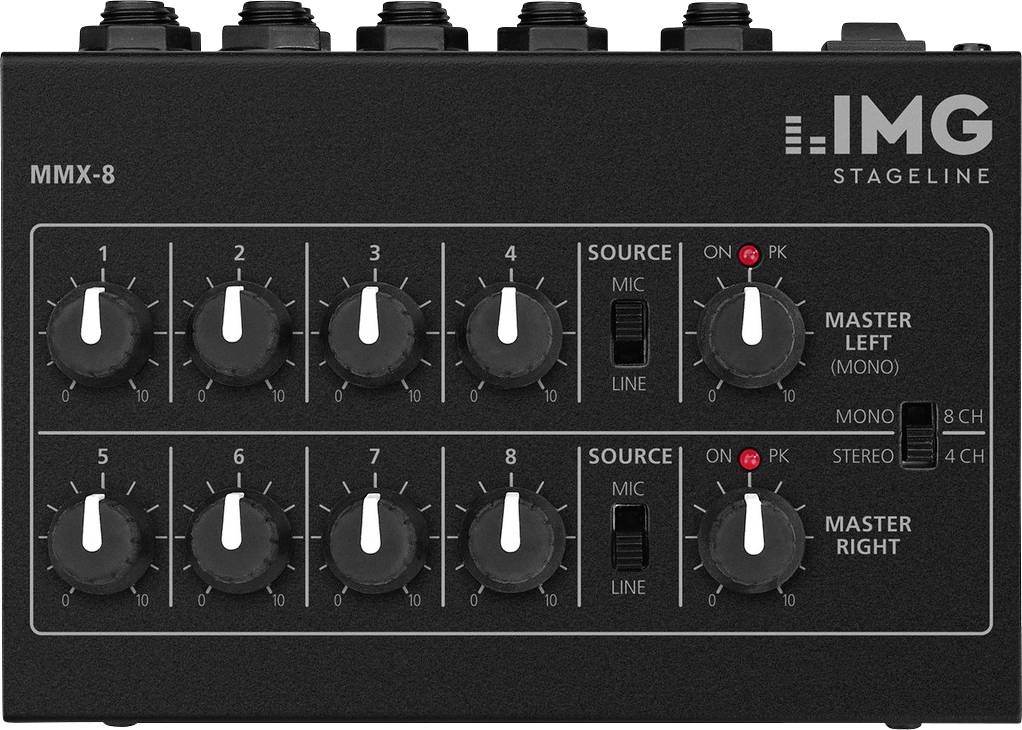

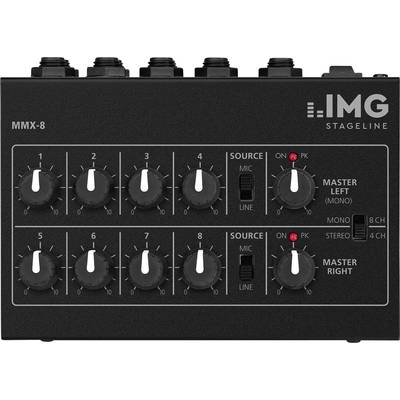

IMG Stageline MMX-8 Microphone mixer
EAN:
Part number:
Item no:
Technical specifications
- General information:
- Input sensitivity:
- Mic: 5 mV
- Line: 50 mV
- Outputs: 100 mV
- Frequency range 20-20000 Hz
- Distortion:< 0.4%
- Signal-to-noise ratio: 55 dB
- Power supply: 9 V battery or optional NetzgeratPSS-600E
- Permissible operating temperature: 0-40°C
- Dimensions: 150 x 115 x 68 mm
- Weight: approx. 700 g
- Inputs: 8 x 6.3 mm jack
- Outputs: 2 x 6.3 mm jack
- Power supply: 1 xKleinspannungsbuchse
- Product type
Microphone mixer
- Factory colour
Black
- Dim
(L x W x H) 150 x 150 x 68 mm
- Weight
700 g
- Length
150 mm
- Width
150 mm
- Height
68 mm
- No. of inputs
8 x
- Channels
8
- Height (min.)
68 mm
- Depth
115 mm
- Interfaces
6.3 mm jack in
- No of. 6.3 mm microphone inputs
8 x
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332127 IMG Stageline MMX-8 Microphone mixer
Description
Features
- Miniature Universal Audio Mixer
- 8 mono channels, switchable mic/line
- Can be switched to 4 stereo channels
- 2 output level control, 2 modulation LEDs
- Supplied without batteries
- This text is machine translated.
