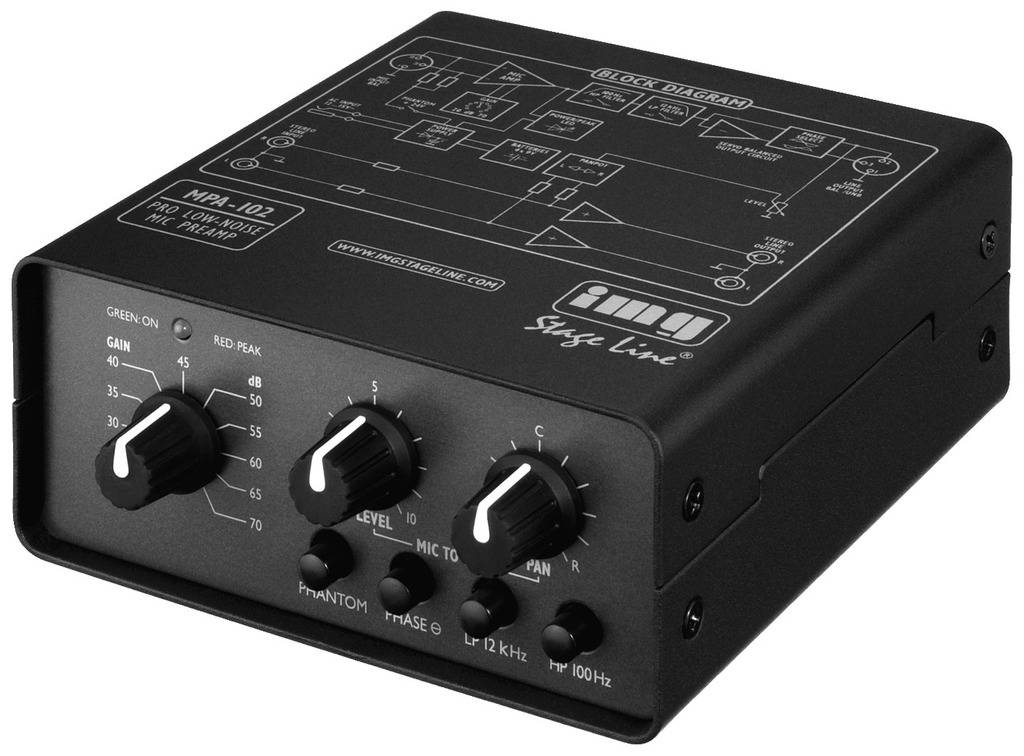

IMG Stageline MPA-102
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 20-20000 Hz
- Input sensitivity: 0,3-150 mVschaltbar
- Input impedance:
- Mic 2.2 kOhm
- Stereo line: 10 kOhm
- Outputs:
- Line, sym.: 1 V/100 Ohm, 12 V max.
- Stereo Line: 1 V/100 Ohm, Max. 6 V
- Stereo Master: -
- Filter, Low Cut: 100 Hz / -3 dB, 12 dB/oct.
- Filter, High Cut: 12 kHz/-3 dB, 12 dB/oct.
- Filter, Subsonic:
- Amplification, Mic: 70-70dB
- Amplification, Stereo Line: 0 dB
- Signal-to-noise ratio, Mic:> 66 dB (unfinished evaluates)
- Signal-to-noise ratio, line: 80 dB (unfinished evaluates)
- The non-linear distortion factor< 0.01%
- Power supply: via suppl. Plug-in power supply unit, alternatively 4 x 9-V block
- Dimensions: 116 x 55 x 125 mm
- Dim
(W x H x D) 116 x 55 x 125 mm
- Width
116 mm
- Height
55 mm
- No. of inputs
1 x
- Channels
1
- Depth
125 mm
- Interfaces
RCA out
RCA in
XLR out
XLR in
- No. of microphone XLR inputs
1 x
- No of. XLR outputs
1 x
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332134 IMG Stageline MPA-102
Description
Tools 4 music 02/2011
A high-quality pre-amp.
This text is machine translated.
A high-quality pre-amp.
This text is machine translated.
Features
- 1-Kanal-Low-noise microphone pre-amplifier for mains or battery operation
- 1 microphone input, XLR, balanced
- Amplification 11-stage 70-70dB
- LED green/red for operation/Peak
- Phantom Power +24V can be activated
- Microphone phase can be switched
- Low-cut 100 Hz, hi-cut 12 kHz, 12dB/oct. , Switchable
- 1x preamp out.
- 1 stereo line input
- 1 stereo line output
- Level control and panorama control for mixing of the microphone signal on the stereo line channel
Scope of delivery
- mains adaptor.
