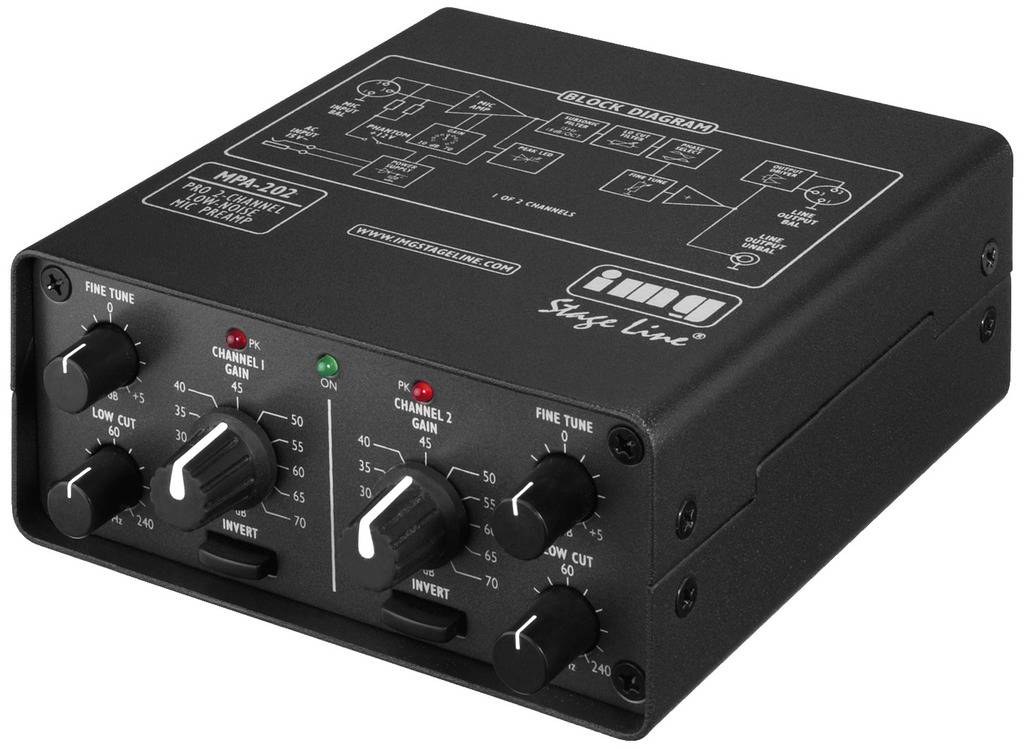

IMG Stageline MPA-202
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Frequency range 20-20000 Hz
- Input sensitivity: 0.16-150 mVschaltbar
- Input impedance:
- Mic: 4.4 kOhm sym., 2.2 kOhm unbalanced.
- Stereo Line: -
- Outputs:
- Line, sym.: 1 V/100 Ohm, 14 Vmax.
- Stereo Line: 1 V/600 Ohm, 7 Vmax.
- Stereo Master: -
- Filter, Low Cut: 15-240 Hz, 6 dB/oct.
- Filter, High Cut: -
- Filter, Subsonic: 15 Hz, 18dB/oct.
- Amplification, Mic: 15-75 dB
- Amplification, Stereo Line: -
- Signal-to-noise ratio, Mic:> 68 dB (unfinished evaluates)> 87 dB(rated )
- Signal-to-noise ratio, Line: -
- The non-linear distortion factor< 0.01%
- Power supply: uberbeil. Power supply unit
- Dimensions: 116 x 55 x 135 mm
- Dim
(W x H x D) 116 x 55 x 135 mm
- Width
116 mm
- Height
55 mm
- No. of inputs
2 x
- Channels
2
- Depth
135 mm
- Interfaces
RCA out
XLR out
XLR in
- No. of microphone XLR inputs
2 x
- No of. XLR outputs
2 x
Documents & Downloads
Datasheet
Datasheet 1332135 IMG Stageline MPA-202
User & Safety Instructions
User & Safety Instructions 1332135 IMG Stageline MPA-202
Description
Features
- 2-Kanal-Low-noise microphone pre-amplifier
- 2 microphone inputs, XLR, balanced
- Amplification 11-stage 70-70dB
- 2 Level Control +/-5 dB
- LED green/red for operation/Peak
- Phantom Power +12V can be activated
- Microphone phase position per channel can be switched
- Low-cut 15-240 Hz can be set continuously
- Subsonic filter 15 Hz, 18dB/Oct
- 2 line outputs, XLR balanced
- 2 line outputs, Rca unbalanced.
- This text is machine translated.
Scope of delivery
- mains adaptor.
