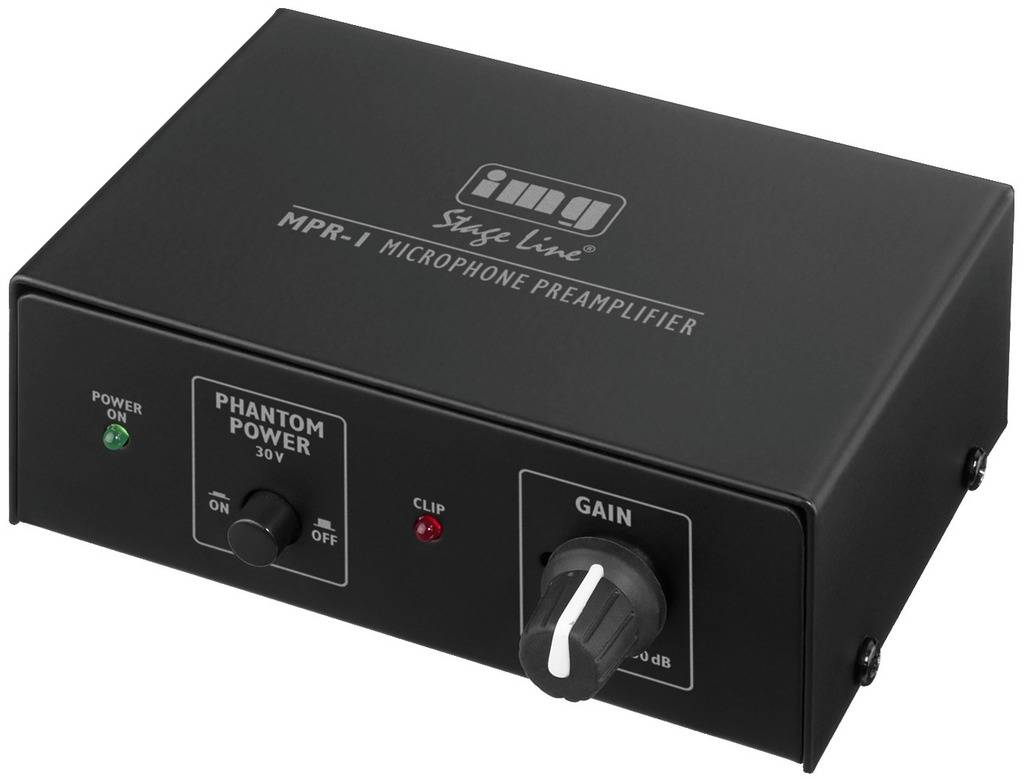

IMG Stageline MPR-1 Microphone pre-amp
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- General information:
- Frequency range: 10-3 0000 Hz
- Input sensitivity: 3.5 mV (XLR, balanced) 16 mV (jack, balanced)
- Input impedance: 10 kOhm
- Output voltage 1 V
- Amplification 50 dB (at sym. Connection) 44 dB (at unbalanced. Connection)
- Signal-to-noise ratio: 58 dB
- 0.1 % distortion factor
- Permissible operating temperature: 0-40°C
- Power supply: via suppl. plug power supply
- Dimensions (W x H x D): 113 x 92 x 40 mm
- Weight: 345 g
- XXLR inputs: 1, 1 x 6.3mm jack
- Outputs: 1 xXLR, 1 x 6.3mm jack
- Power supply:
- Product type
Microphone pre-amp
- Dim
(W x H x D) 113 x 92 x 40 mm
- Weight
345 g
- Width
113 mm
- Height
92 mm
- No. of inputs
2 x
- Channels
1
- Depth
40 mm
- Interfaces
XLR out
XLR in
6.3 mm jack in
6.3 mm jack out
- No of. 6.3 mm microphone inputs
1 x
- No. of microphone XLR inputs
1 x
- No of. XLR outputs
1 x
Documents & Downloads
Datasheet
Datasheet 1332136 IMG Stageline MPR-1 Microphone pre-amp
User & Safety Instructions
User & Safety Instructions 1332136 IMG Stageline MPR-1 Microphone pre-amp
Description
Features
- 1-channel microphone preamplifier with switchable phantom power
- 1 microphone input, XLR, bal. Or, 6.3-mm jack, balanced
- Adjustable amplification, up to a maximum of 50 dB
- CLIP display
- 30-V phantom power switchable
- This text is machine translated.
Scope of delivery
- mains adaptor.
