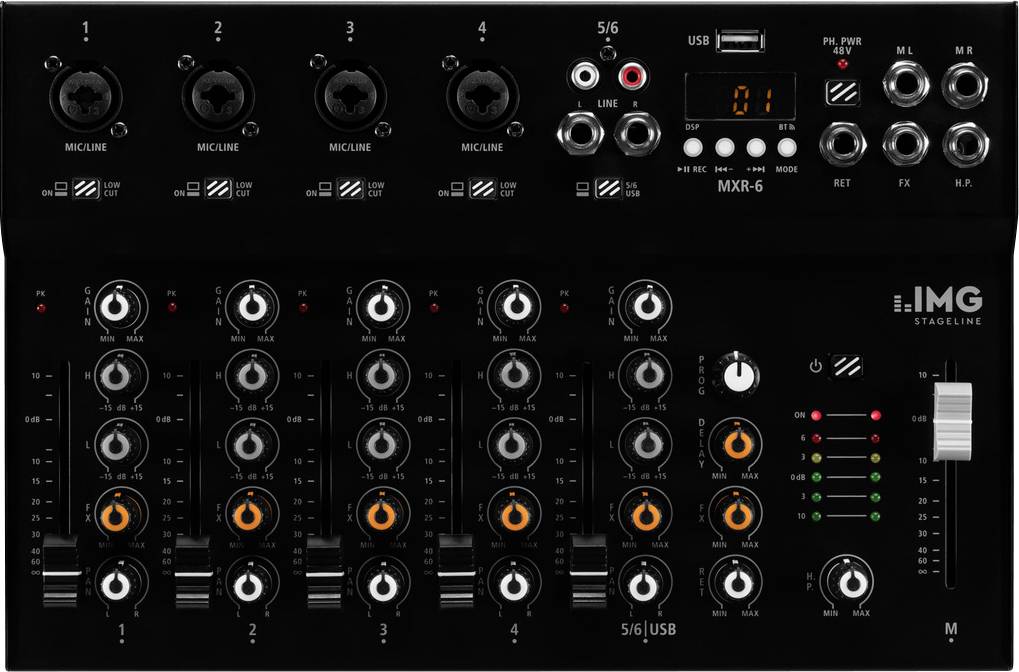

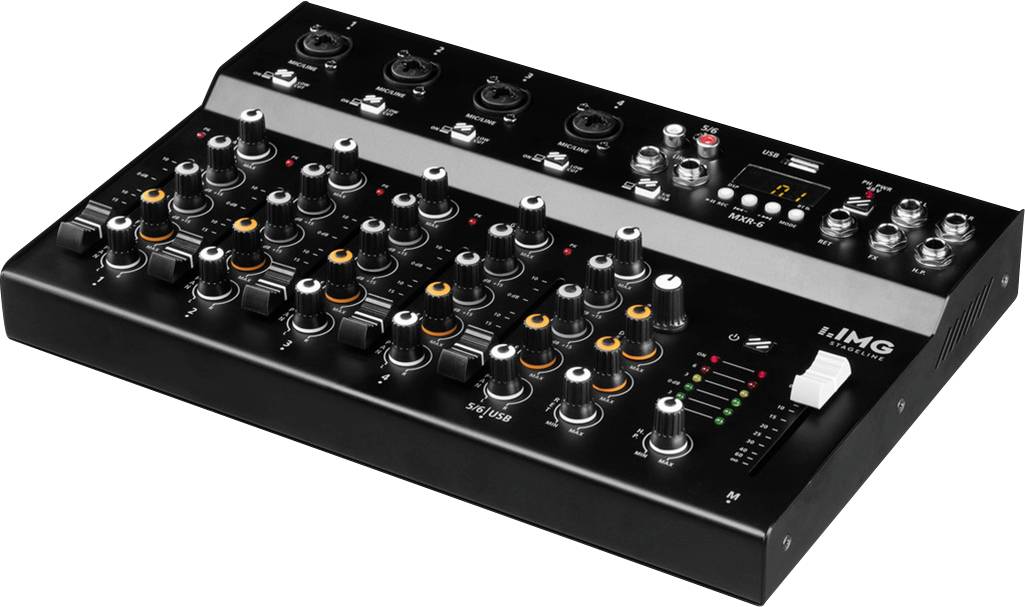

IMG Stageline MXR-6 Mixing console No. of channels:6 Bluetooth, USB port
EAN:
Part number:
Item no:
Highlights & Details
MXR-6 6-channel mixer
- Integrated USB audio interface (is recognized and addressed as an external sound card)
- Full duplex USB port (simultaneous recording and playback possible) For playing back digital audio data from the computer and for recording Of mixing to the computer
- 4 mono input channels with gain control, 2-way EQ and pan-pot
- 2 stereo input channels with 2-way EQ and balance control
Technical specifications
- Product type
Mixing console
- Channels
6
- No. of inputs
6 x
- Category
Bluetooth
USB port
- Interfaces
Mic XLR in
6.3 mm jack in
Line in
6.3 mm jack out
- No. of 6.3 mm headphone outputs
1 x
- No. of line-ins
4 x
- No. of microphone XLR inputs
4 x
- Weight
1.9 kg
- Width
308 mm
- Height
53 mm
- Length
205 mm
- Dim
(L x W x H) 205 x 308 x 53 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2335997 IMG Stageline MXR-6 Mixing console No. of channels:6 Bluetooth, USB port
Description
6-channel audio mixer with DSP effect unit, integrated MP3 player and Bluetooth receiver
This text is machine translated.
This text is machine translated.
Features
- MP3-Player
- USB-interface
- Bluetooth-receiver
- 16 different DSP-effects
- controllable Aux-Return-input and FX-Send-output
- +48-V-Phantom power, centrally connectable
- controllable headphone output
- Stereo-LED-level display
- Power supply via USB or accompanying power supply
- Mic-input:2 mV, sym. 4 x XLR
- line input: 100 mV (stereo), 2 x 6.3 mm L/R jack and 60 mV (mono), 2 x 6.3 mm aux
- input jack: 400 mV, 1 x 6.3 mm L/R master
- output: 500 mV, 1 x 6.3 mm L/R
- effect send jack: 4.4 V, 1 x 6.3 mm headphone jack
- ≥ 8 Ω, 1 x 6.3 mm jack plug
