Buy IMG Stageline MXR-60 Mixing console No. of channels:6 Bluetooth, USB port

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Integrated USB audio interface (is recognized and addressed as an external sound card)
Full duplex USB port (simultaneous recording and playback possible) for playback of digital
Audio data from the computer and for recording the mixing on the Computers
4 mono input channels with gain control, 3-way EQ and pan-pot
1 stereo input channel with 3-way EQ and balance control

Interfaces: Mic XLR in
6.3 mm jack in
RCA in
Line in
XLR out
6.3 mm jack out

Datasheet 2335998 IMG Stageline MXR-60 Mixing console No. of channels:6 Bluetooth, USB port

User & Safety Instructions 2335998 IMG Stageline MXR-60 Mixing console No. of channels:6 Bluetooth, USB port

Conformity certificate 2335998 IMG Stageline MXR-60 Mixing console No. of channels:6 Bluetooth, USB port

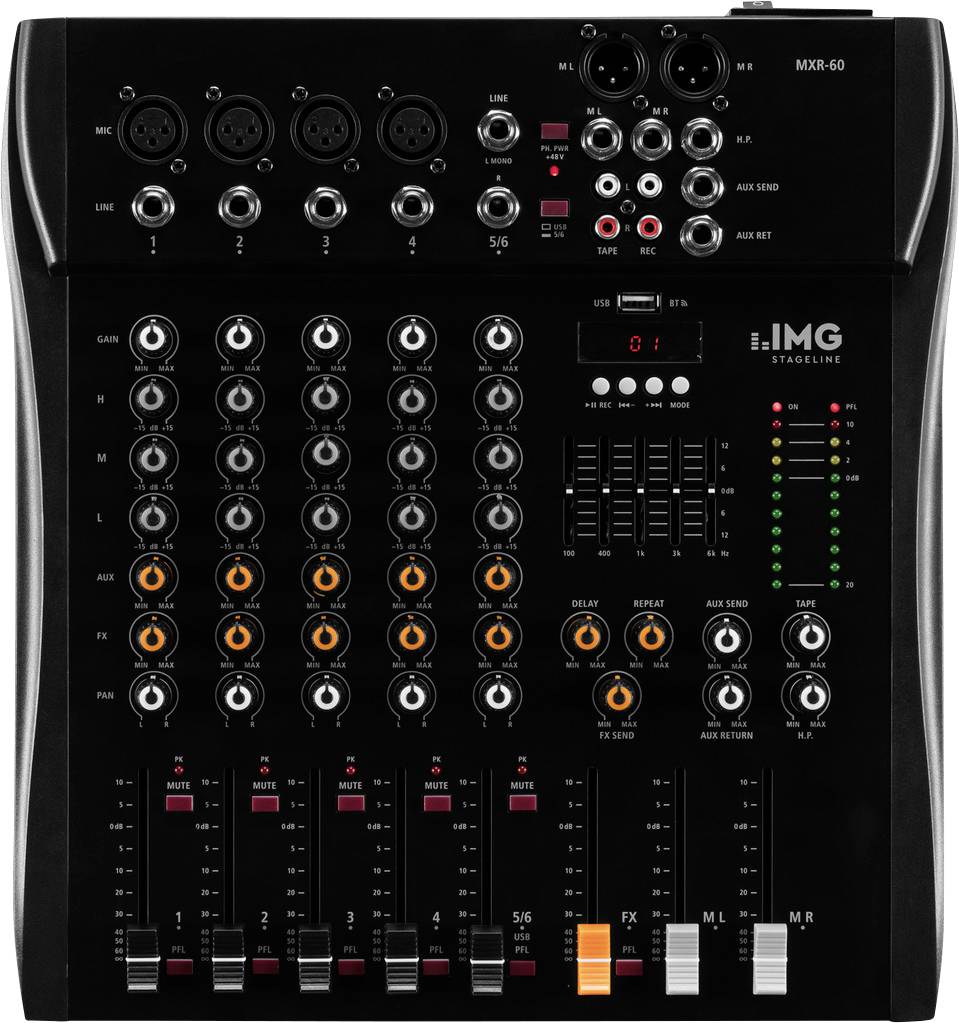

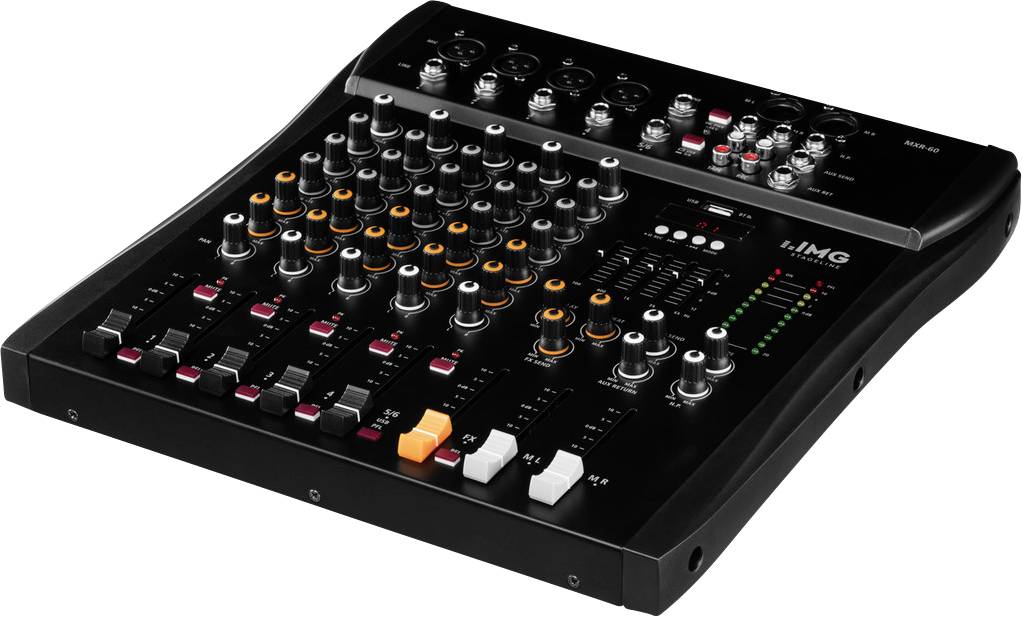

6-channel audio mixer with integrated MP3 player and Bluetooth receiver

This text is machine translated.

MP3-Player
USB-Interface
Bluetooth-Receiver
DSP-Delay, controllable
Aux-Return-input and FX-Send-output
Tape-Record/Play-Connections
5-Band-Stereo-Graphic-Equalizer
+48-V Phantom power, centrally connectable
Pre-listening (PFL) of the Stereo-input channels via controllable headphone output
Stereo-LED-level display
Mic-input: 2.2 mV, sym. 4 x XLR
Line input: 50 mV (stereo), 1 x 6.3 mm L/R jack and 30 mV (mono), 4 x 6.3 mm tape (
play) jack: 290 mV, 1 x L/R RCA
Aux input: 420 mV, 1 x 6.3 mm L/R Master
output: 880 mV, bal. 1 x XLR L/R and 880 mV, 1 x 6.3 mm L/R jack
Effect Send:9 V, 1 x 6.3 mm jack
Tape (Rec): 400 mV, 1 x RCA L/R
headphones ≥ 8 Ω, 1 x 6.3 mm jack
