IMG Stageline PARC-100/COL LED effect light Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 394.12 / piece)
€ 394.12
plus VAT.
14-day return policy included
Highlights & Details

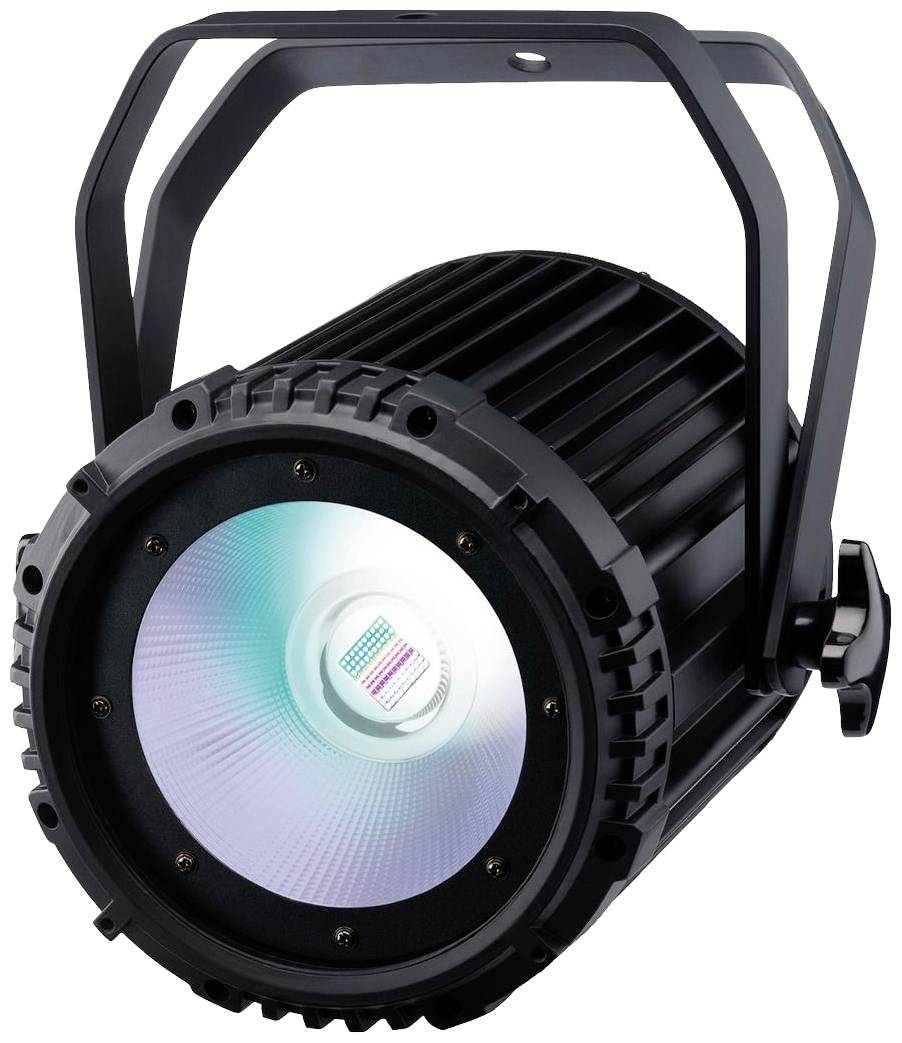

PARC-100/COL COD LED spotlight for indoor applications
- 1x PARC-100/COL COD LED spotlight for indoor applications
- Powerful 100 W RGBW-A(Amber) UV COB LED (beam angle 60°)
- Fanless cooling concept (convection cooling)
- Can be controlled via 7 different DMX channel modes (13 channels maximum)
- DMX, auto, music and master-slave mode
- 10 car programs, 2 music programs and 10 programmable processes
- Control panel with LED indicator
- Black painted aluminum housing
- Supplied with power connection cable POWERCON connector
- Parc 100B gate cover available as an option
- By 2 swiveling mounting brackets also suitable for setting up
- Power supply ~ 230 V/50 Hz/120 VA
- Dimensions 32 x 25 x 25 cm
- Weight 5.6 kg.
Technical specifications
- Product type
LED effect light
- Case colour
Black
- Colour
RGBW
100 W
- Dim
(L x W x H) 250 x 320 x 250 mm
n.rel.
- Weight
5.8 kg
- Width
320 mm
- Height
250 mm
- Length
250 mm
Documents & Downloads
Datasheet
Datasheet 2498887 IMG Stageline PARC-100/COL LED effect light Black
User & Safety Instructions
User & Safety Instructions 2498887 IMG Stageline PARC-100/COL LED effect light Black
Description
PARC-100/COL COD LED Spot Light: THE PARC-100/COL is a COB LED spot light suitable for indoor use. In addition to the powerful 100 W RGBW Amber UV COB LED with a 60° beam angle, this spotlight offers a fanless cooling concept, 7 different DMX channel modes with a maximum of 13 channels and a control panel with LED display. In addition, the spotlight offers 10 car and 2 music programs and 10 programmable sequences. The aluminum housing is painted black. A gate aperture PARC-100B is available as an option. A mains connection cable with POWERCON connection is included in the delivery.
This text is machine translated.
This text is machine translated.
Features
- Type: COB-Spot-headlight
- Light source: 1 x RGBW-A-UV-COB-LED
- Lamp power 100 W
- Beam angle: 60°
- Control options: DMX, microphone, master/slave, auto
- Number of DMX channels: 13/7
- Strobe effect: Yes
- Dimming function: 0-100%
- Display: LED
- Cooling: Fanless
- Permissible operating temperature: 0-40 °C.
- Operating voltage ~ 230 V
- Power consumption operation: 120 VA
- Width 320 mm
- Height: 250 mm
- Depth: 250 mm
- Weighs 5.8 kg

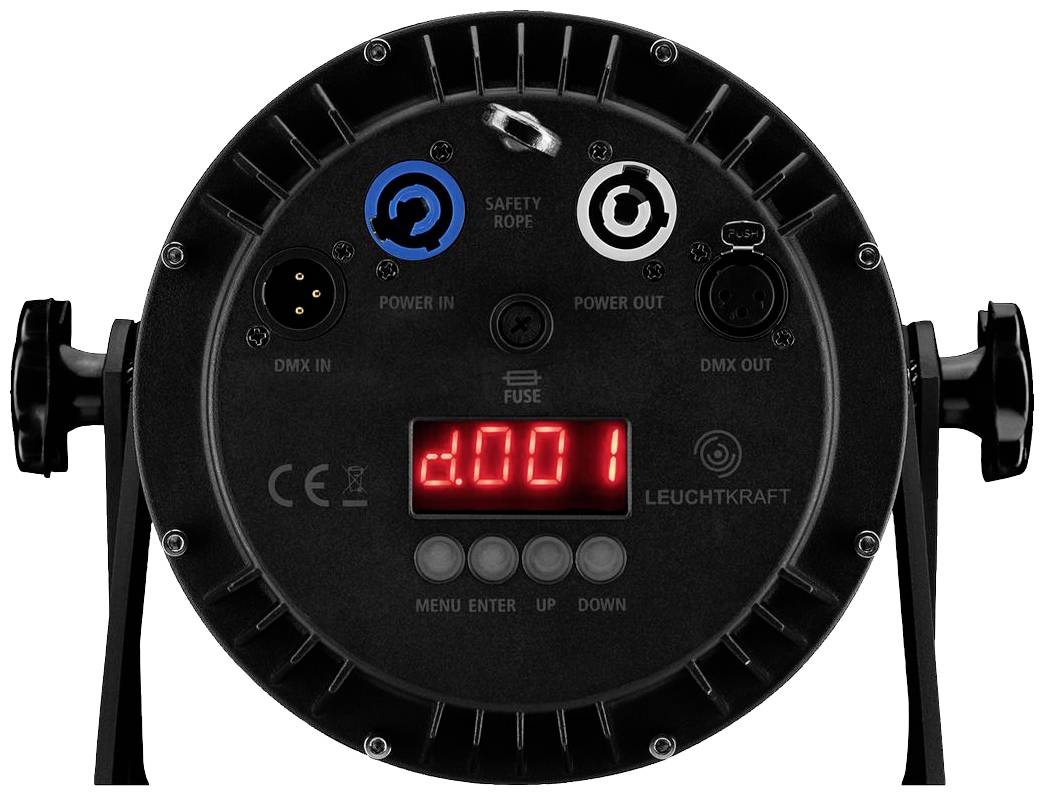

- Connections: DMX input and output cable, mains connection and loop-through cable
Scope of delivery
- Components: 1x PARC-100/COL, 1x mains connection cable
- Number of individual items: 1
