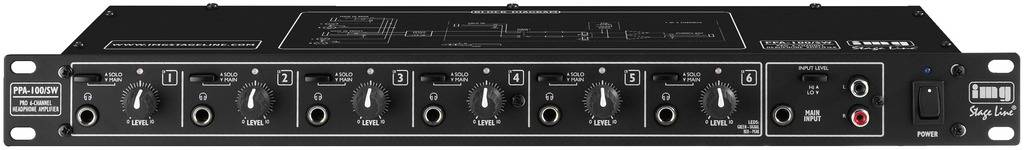

IMG Stageline PPA-100/SW Headphone amplifier Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- General information:
- Inputs:
- Solo: 250 mV / 50 kOhm
- Main Low: 250 mV / 50 kOhm
- Main High: 2.2 V/60 kOhm
- Outputs (pro headphones): 2 x 16 mW/8 Ohm 2 x 45 W/32 Ohm 2 x 75 mW/600 Ohm
- Frequency range: 5-30000 Hz
- Signal-to-noise ratio:> 60 dB
- Channel separation 50 dB
- Distortion factor:< 0.02%
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/11 VA
- Dimensions: 482 x 44 x 185 mm, 1 HE
- Weight: 2.3 kg
- Product type
Headphone amplifier
- Interfaces (output)
Headphone jack (6.3 mm)
- Interfaces (input)
Jack connector
RCA (phono)
- Power supply
PSU (included)
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Frequency range
5 - 30 000 Hz
- Width
482 mm
- Height
44 mm
- Depth
185 mm
- Weight
2.3 kg
Documents & Downloads
Datasheet
Datasheet 1332432 IMG Stageline PPA-100/SW Headphone amplifier Black
User & Safety Instructions
User & Safety Instructions 1332432 IMG Stageline PPA-100/SW Headphone amplifier Black
Description
Features
- Stereo headphone amplifier
- 6 separate headphone amplifier with 1 level control and 1 signal/clip LED as well as main/Solo switching
- For each amplifier 1 Input (solo), can be switched to the common main entrance (Main)
- Main entrance with low/high switch for adjustment of the input signal
- Inputs: Solo (stereo) 6 x 6.3mm jack, Main (stereo 2x6.3 mm jack, 2 x RCA L/R
- Outputs: headphones (stereo) 6 x 6.3mm jack
- This text is machine translated.
